Our unique solutions – your movement: Slewing bearings and slew drives for precision applications and special machines
Looking for slewing bearings in your precision applications or special machines? Look no further than our selection of top-quality slewing bearings and slew drives. Our products are designed to deliver superior performance, reliability, and durability, even in the most demanding environments, such as ladle turrets or amusement rides. With a range of sizes and configurations to choose from, we have the perfect solution for your specific needs. Contact us today to learn more about how our slewing bearings and slew drives can help you achieve precision and efficiency in your applications.
- Ladle turrets
- Pelletizing disks
- Bottle filling machines
- Amusement rides
- Turntable ladders for fire trucks
- Machine tools
Ladle turrets: Slewing bearings and their features

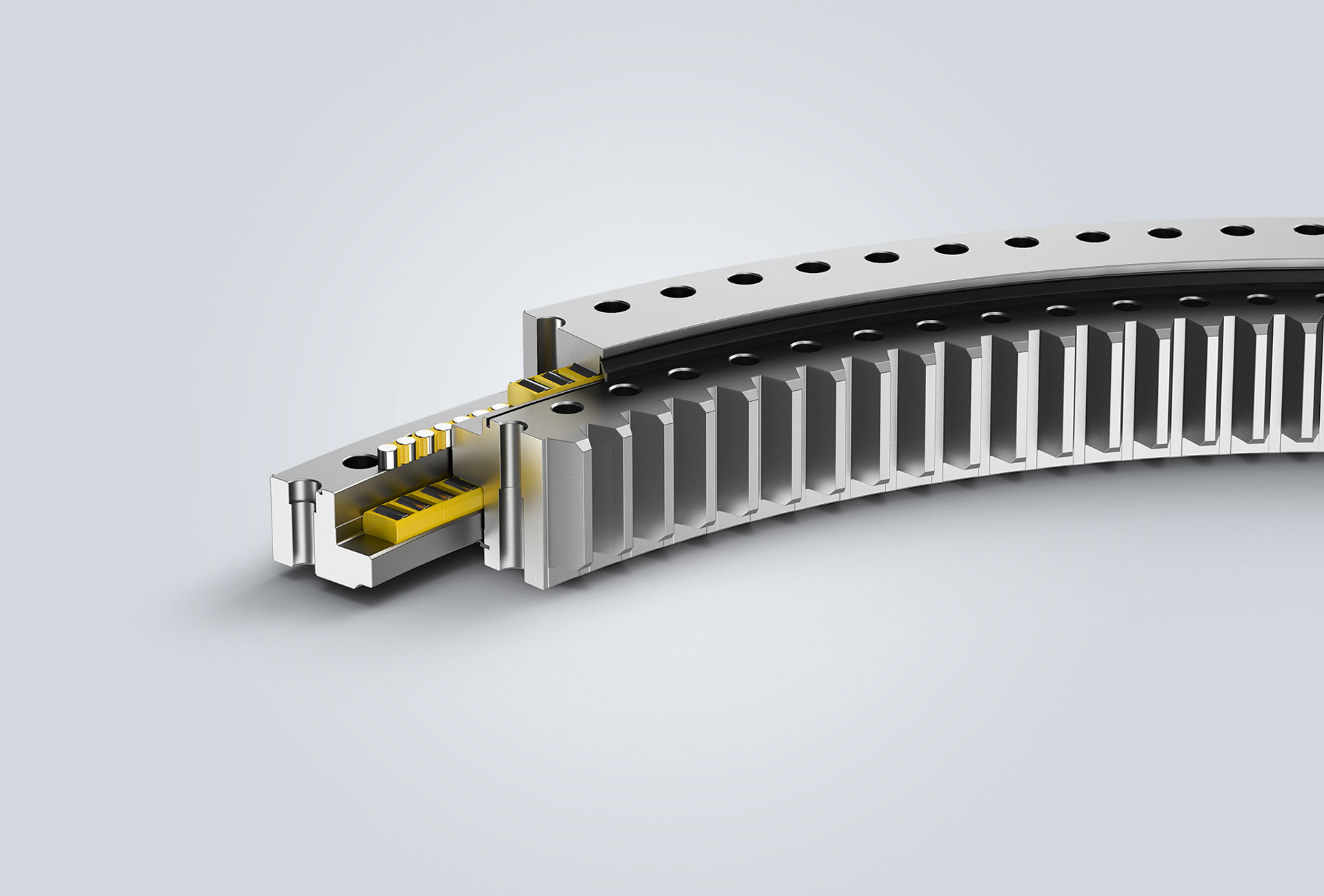

Triple-row roller bearings
- Roller bearings for ladle turrets are specifically designed to withstand demanding tasks
- With exceptional resistance to both axial forces and tilting moments, these bearings offer outstanding durability and reliability, ensuring optimal performance even in demanding operating environments
- Suitable for high temperature use: steel cages in combination with special sealings
Special sealings
- High temperature suitability: Specialized sealings for slewing bearings used in ladle turrets that are designed to withstand exceptionally high temperatures
- These sealings are perfectly suitable for the working conditions of ladle turrets, providing superior performance and reliability even in the most challenging operating environments
System competence
All from a single source: robust and durable drives for your ladle turret application
Pelletizing disks: Slewing bearings and their features
Triple-row roller bearings
- Important process parameters for pelletizing include the disc inclination and disc speed. Therefore, the roller bearings are designed to withstand various load situations under continuous rotation
- The gearing of roller bearings on pelletizing disks is hardened to minimize wear during the several million load cycles
- These bearings are highly resistant, ensuring exceptional durability and performance even in challenging operating conditions for several years of continuous use
System competence
- We offer a comprehensive range of components for pelletizing disks, including robust and durable drives, all from a single source
- By sourcing all your components from us, you can ensure seamless integration and optimal performance of your pelletizing disks application, while also benefiting from our commitment to quality and reliability
Bottle filling machines: Slewing bearings and their features
Cross roller bearings and single-row four-point bearings
- The bearings used in bottle filling machines are mounted play-free to ensure optimal performance
- High speeds greater than 50 rpm are no problem: the bearings are engineered with exceptional precision to provide smooth and accurate operation, ensuring the highest levels of quality and efficiency in the bottle filling process
Cross roller bearings and single-row four-point bearings
- Low torque resistance to avoid excessive bearing temperatures: possible due to the raceway system with roller bearings and plastic cage, as well as precise seals
- Higher positioning accuracy and smoother running due to precise gearing with gear quality 10
Reduced service efforts and costs

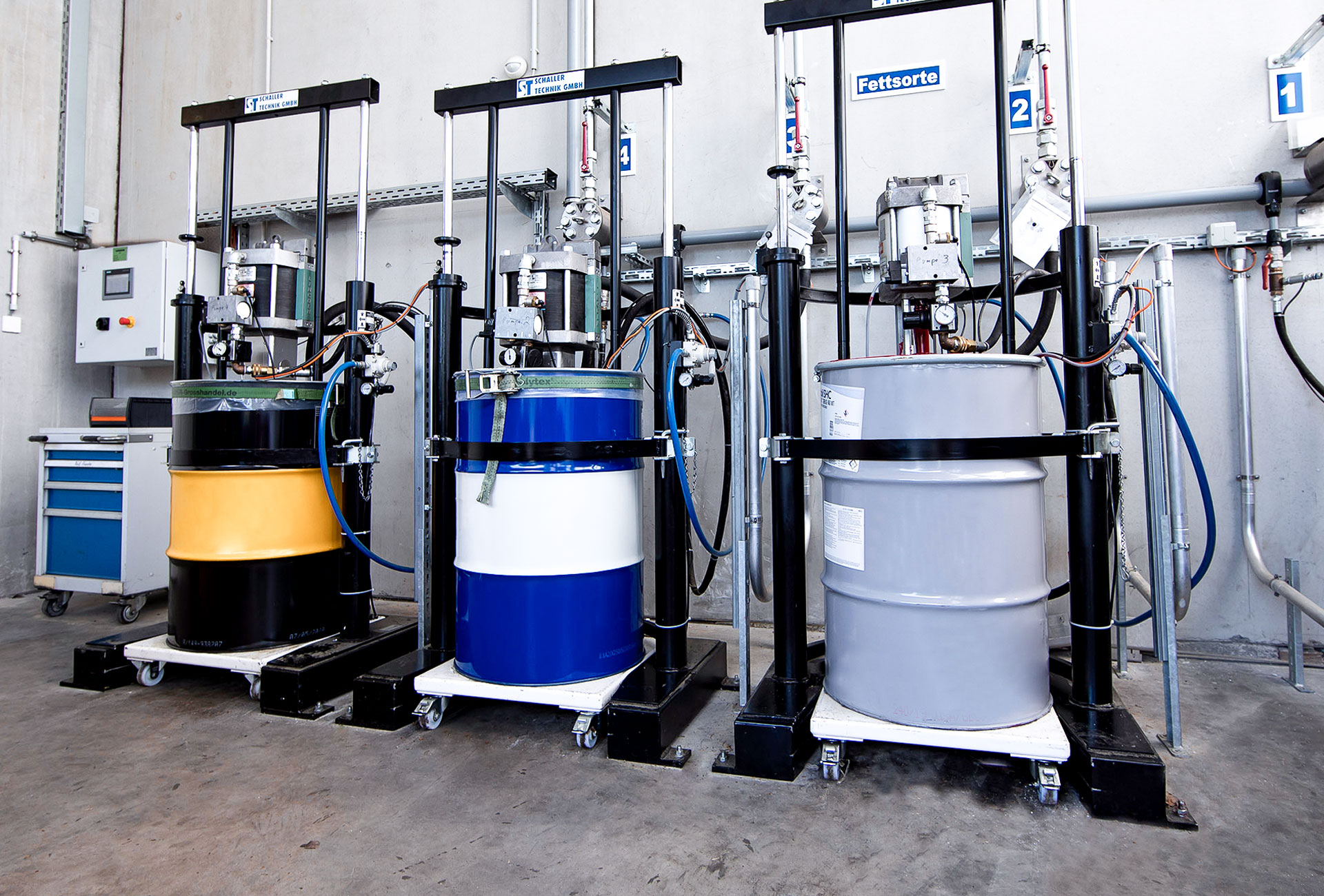

- Solid lubrication: Liquid, heated polymer-oil compound, curing of polymer in the bearing
- Operating temperature: -40 to 100°C
- Suitable for food industry: NSF/H1-approval
- No re-greasing: Significantly reduced service efforts and cost
- No grease leakage and contamination of the environment
- Increased lifetime: No risk of raceway corrosion
Perfect for food processing
- Grease with H1 approval: NSF H1 listed, making it suitable for applications in food processing plants where accidental contact of the lubricant with the product cannot be completely ruled out
