ComponentsSolutionsHydraulic pumps and motorsDPVO Axial piston pump

The pumps with open circuit and inverse piston technology are design especially for high pressure applications and impress with their large swing angle as well as a high resistance to pressure. They offer a through-drive of 100 percent and can be combined with all conventional controllers.

metricimperial

  • Circulation - open

  • Adjustability - variable

  • Nominal pressure - 380 / 400 bar

  • Maximum pressure - 420 / 450 bar

  • Nominal sizes - 108 / 140 / 165 / 165 impeller / 215 / 215 impeller / 550 impeller

  • Areas of application - Agriculture and forestry / Building construction and civil engineering / Machinery and plant construction / Maritime applications / Mining / Special vehicles

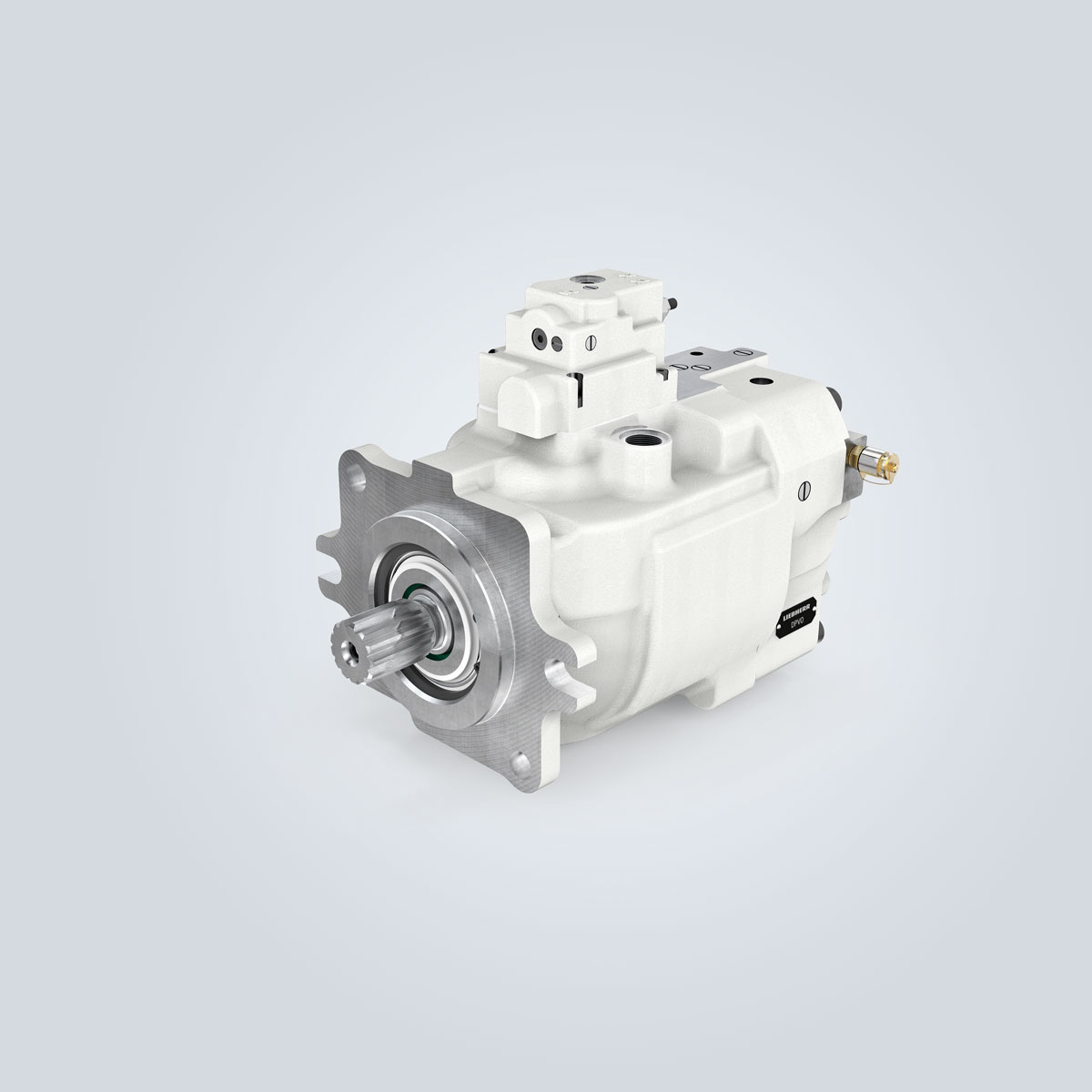

product image 0
Max. driving power [Pmax]
151 - 505 kW
Max. torque [Mmax]
685 - 3,330 Nm

Variants

Nominal size108140165165 impeller215215 impeller550 impeller
Nominal pressure [pN] (bar)400400400400400400380
Maximum pressure [pmax] (bar)450450450450450450420
Displacement volume [Vg max] (cm³)107.7140.2167.8167.8216.5216.5550.0
Max. speed at Vg max and pabs = 1 bar at the suction port [nmax] (rpm)2,1002,1002,1002,3002,0002,6001,450
Volume flow at Vg max and nmax [qv max] (l/min)226294352386433563797
Max. driving power [Pmax] (kW)151196235257289375505
Max. torque [Mmax] (Nm)6858921,0671,0671,3781,3783,330

DPVO - short description

DPVO - technical data sheet

DPVO 550 - technical data sheet

  • This video is provided by Google*. When you load this video, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.

    By clicking on “ACCEPT”, you consent to the data transmission to Google for this video pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each YouTube video individually in the future and want to be able to load them without this blocker, you can also select “Always accept YouTube videos” and thus also consent to the respectively associated data transmissions to Google for all other YouTube videos that you will access on our website in the future.

    You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the settings (later also accessible via the “Data protection settings” in the footer of our website).

    For further information, please refer to our Data Protection Declaration and the Google Privacy Policy.*Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

    Variable displacement pump DPVO 550i

Downloads

In the download section, you will find an overview of all short descriptions and data sheets of the various Liebherr hydraulic pumps and motors.
