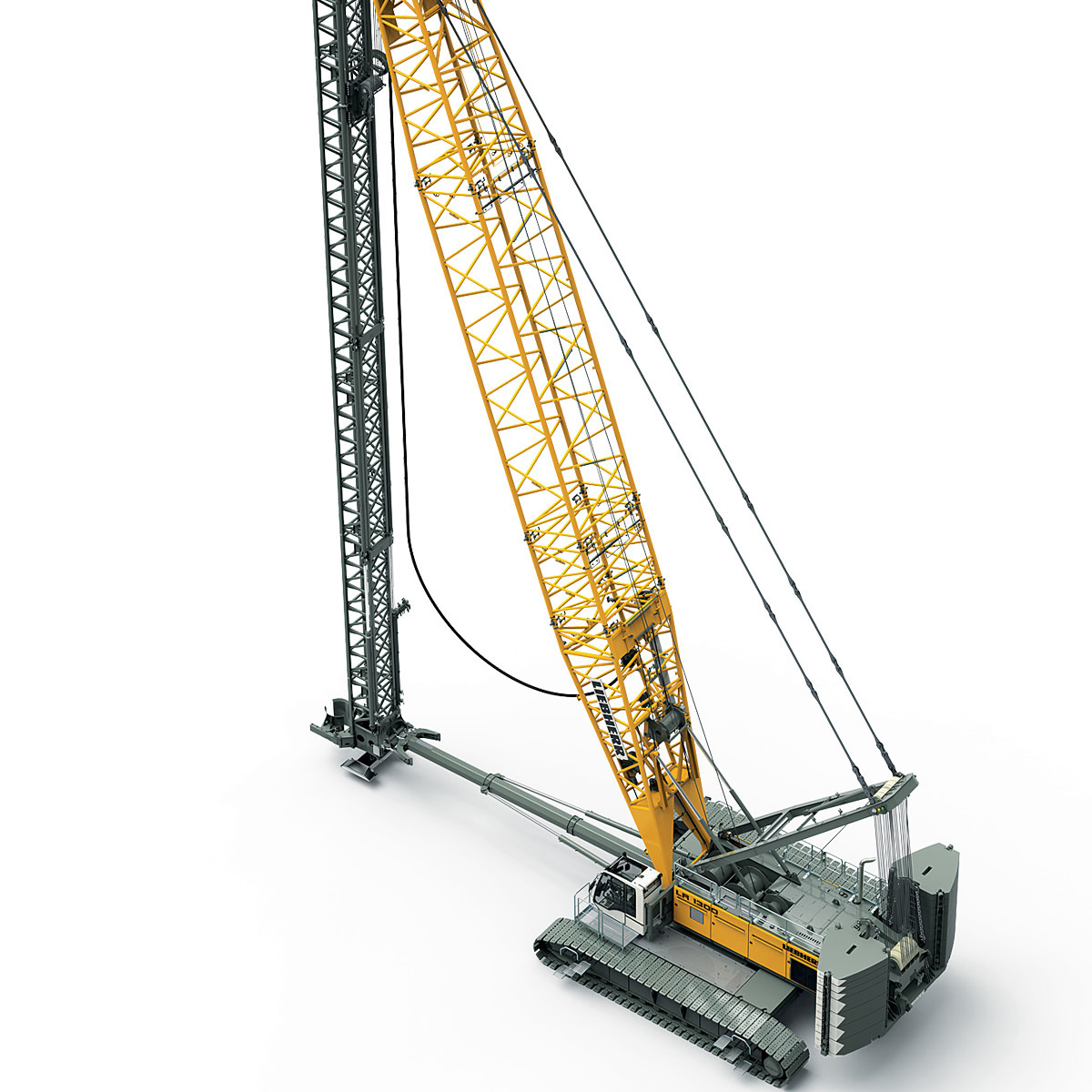

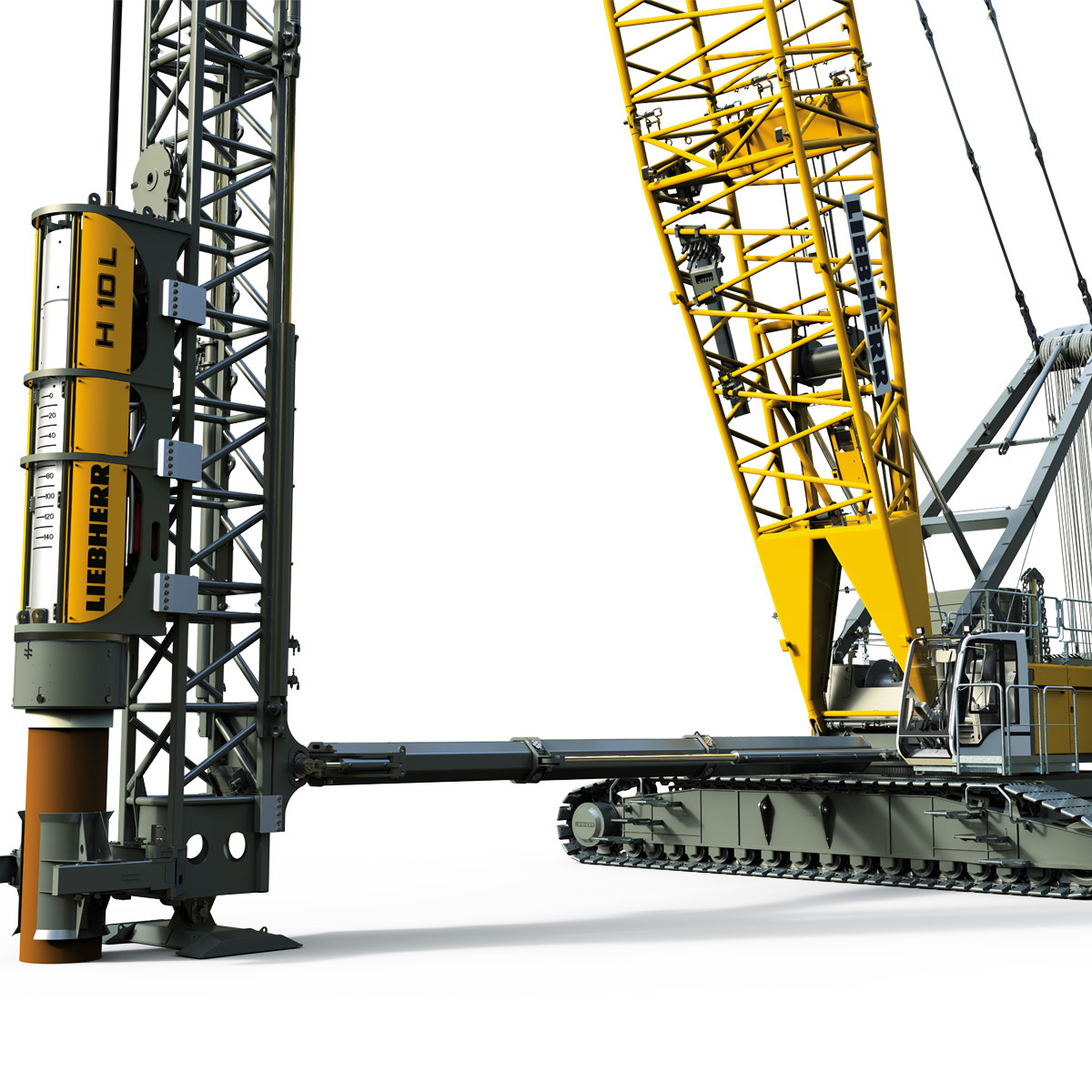

The LRH 600 piling rig is particularly suitable for heavy piling operations with large radius. The proven crawler crane LR 1300 or duty cycle crawler crane HS 895 HD can be used as a carrier machine. The modern concept of the new fixed leader impresses with easy and quick assembly by means of pin connections. A high degree of stability is ensured through the lattice boom design. The range of application covers the most common processes in deep foundation work. In addition to pile driving with a hammer or a vibrator, these include drilling operations with continuous flight auger or down-the-hol...

  • Max. pile length - 50.0 m

  • Max. pile weight - 40 t

  • Leader inclination - 1:4

  • Vertical travel device - ± 5 m

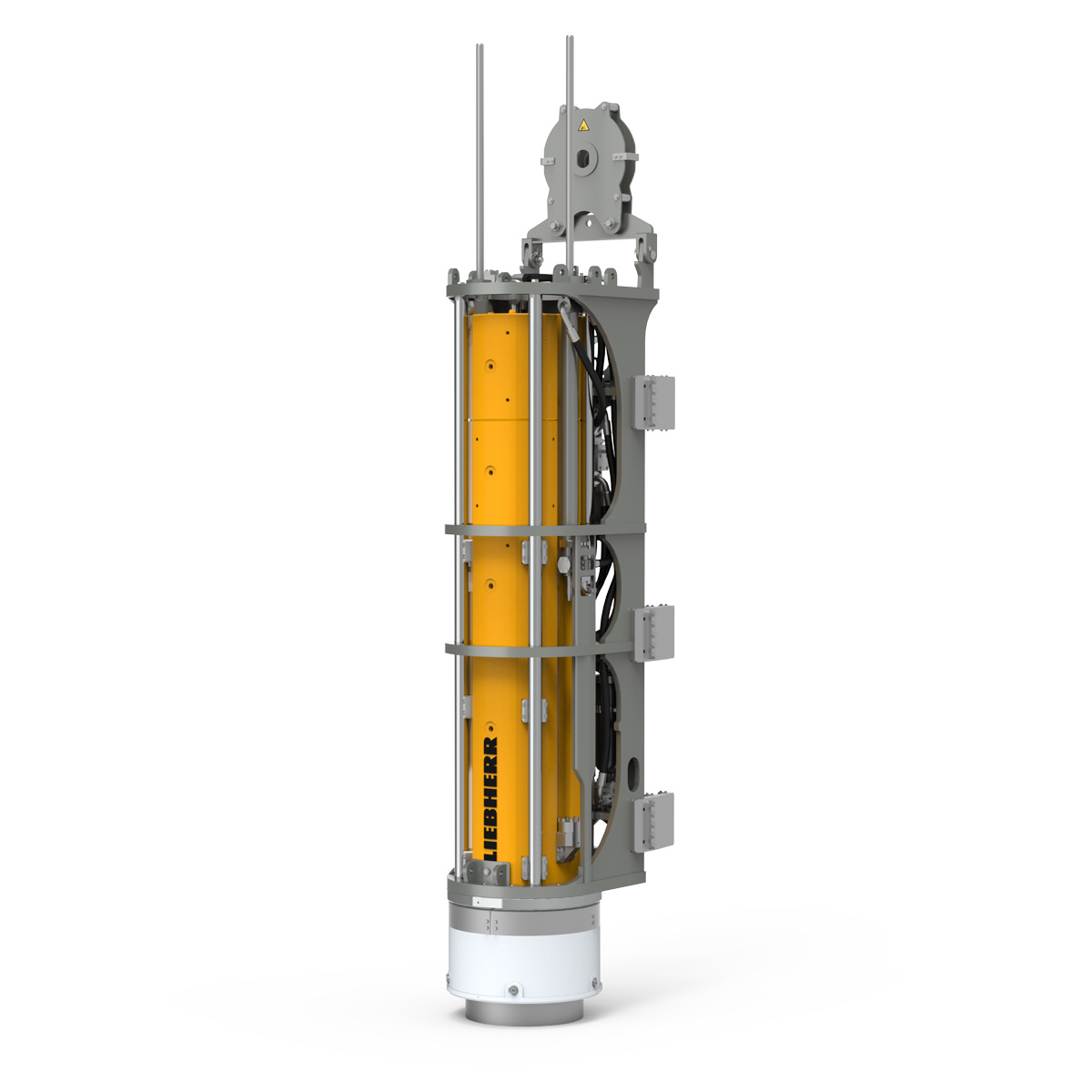

  • Basic hammer weight max. - 35,000 kg

01/07
High service availability
A global service network with experienced technicians and fast access to spare parts ensure high machine availability and a long product service life.
Reliable drive technology
A reliable and easy to service diesel engine designed for the HS series provides the required hydraulic power. Less operating costs are achieved by lower fuel consumption. Through its new exhaust after-treatment system the required emission targets are attained.

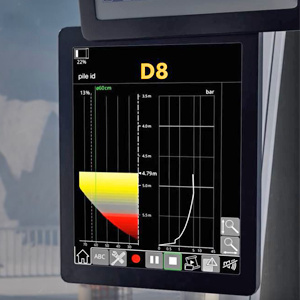

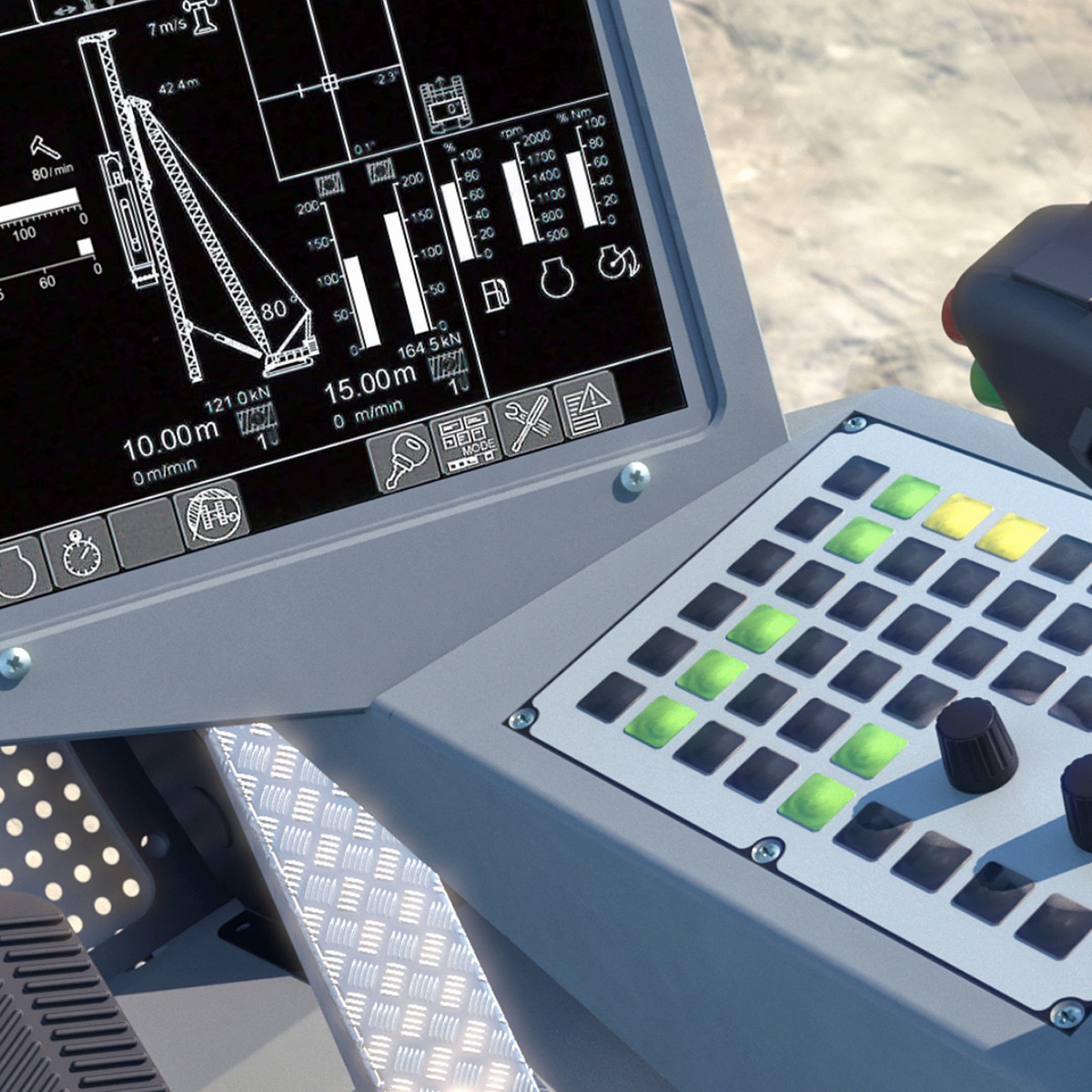

Intelligent crane control
The crane control system offers a multitude of programme and control options. Color displays clearly provide service and machine data. All movements can be carried out simultaneously. The operator thus benefits from a facilitated handling of the rig. Furthermore, quick working cycles are achieved.
High working length at large radii and inclination
With the fixed leader the rig achieves working length of more than 50 meters and a maximum radius of 15 meters. Thanks to the clever leader kinematics inclinations of up to 14° backwards and 9.5° forwards are possible.
High Performance carrier machines
Owing to the high engine power of the basic machine, the hydraulic hammers and rotary drives can be operated directly from the on-board hydraulic system, thus no additional power pack is required.

Sales and Service

Our customers can rely on a worldwide sales and service network. Search here for the right contact partner.

Find your contact person

Used machines

Do you prefer a used machine? Find construction machines persuasive by experience.

Used machines

Concrete pumps

Stationary concrete pumps in conjunction with concrete distribution systems are particularly economic for use over several days.

Stationary concrete pumps

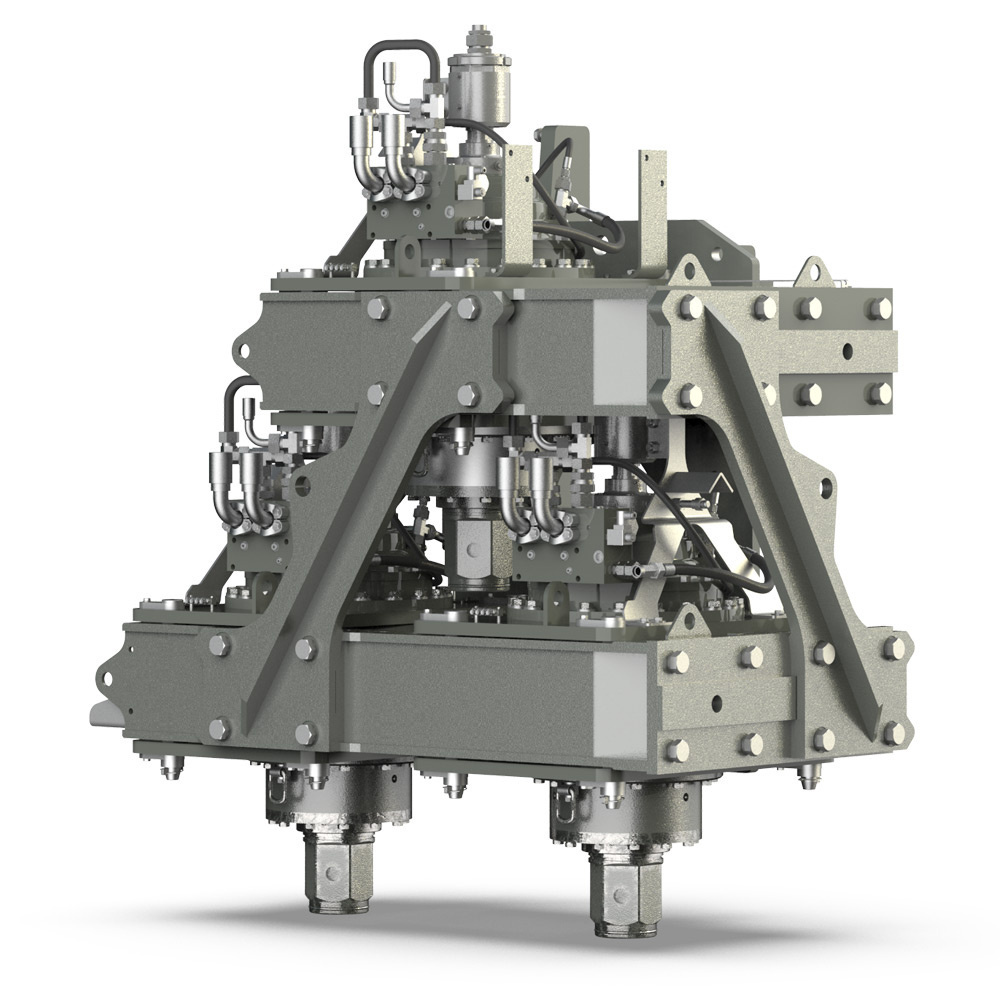

Attachments
