Liebherr robot system for bin picking

Unloading work pieces out of the transport bin is a complex interaction between a vision system, software and robot. Based on the parts matrix, we harmonise all steps of the process to each other, this guarantees an optimum picking and positioning result.

Process description

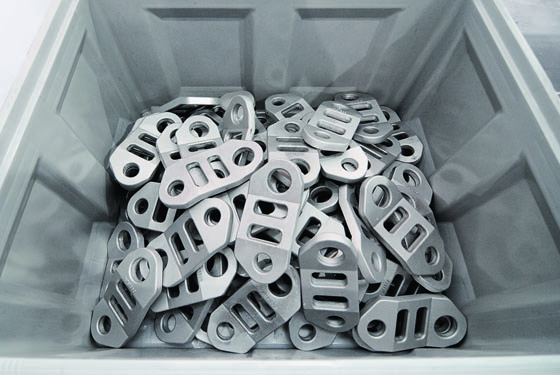

  • Requirement
    Randomly arranged parts need to be removed from the bin.

    Requirement

    Randomly arranged parts need to be removed from the bin.

  • Optical data detection and assessment
    A reliable, sturdy 3D object recognition system detects the data optically and evaluates it.

    Optical data detection and assessment

    A reliable, sturdy 3D object recognition system detects the data optically and evaluates it.

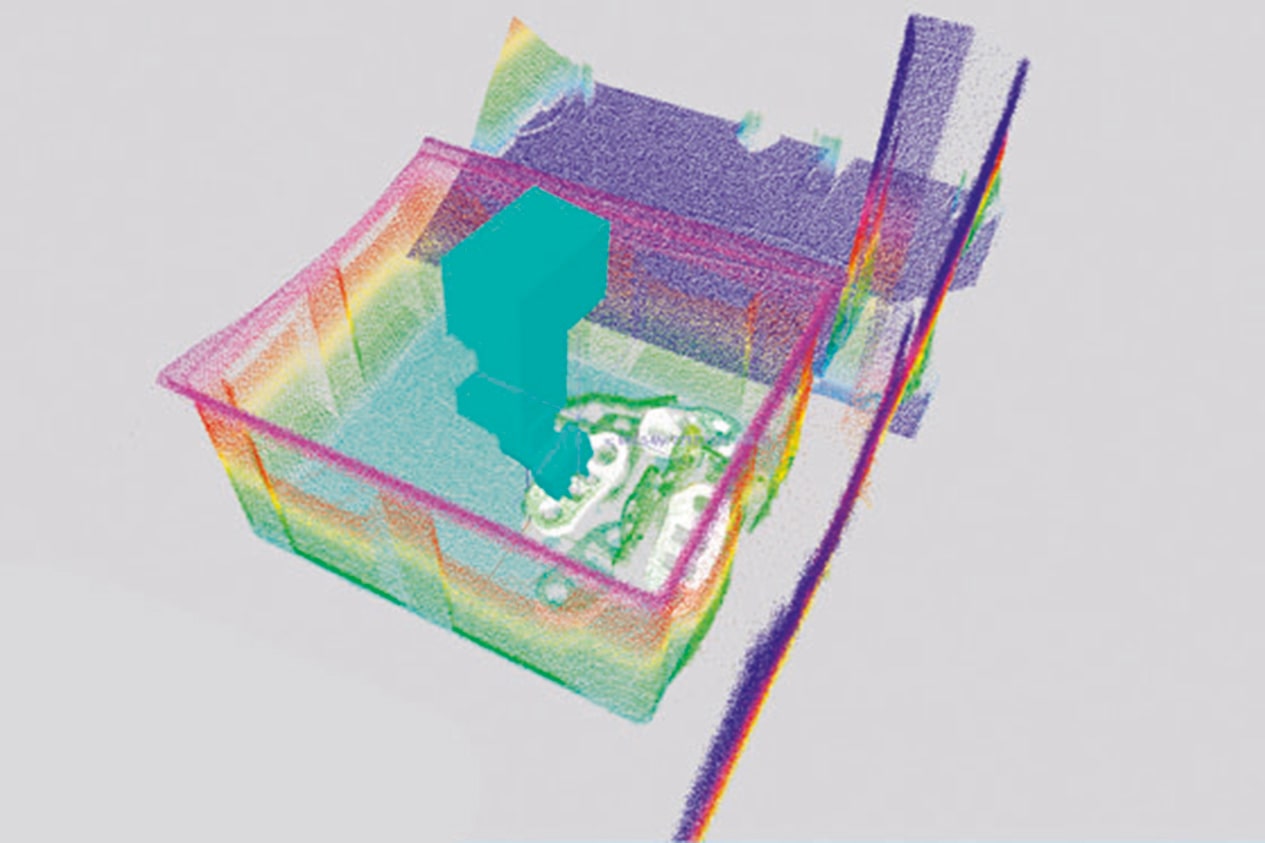

  • Object identification and selection
    Specially-designed software segments, identifies and selects the information about the workpieces as well as the technical framework conditions.

    Object identification and selection

    Specially-designed software segments, identifies and selects the information about the workpieces as well as the technical framework conditions.

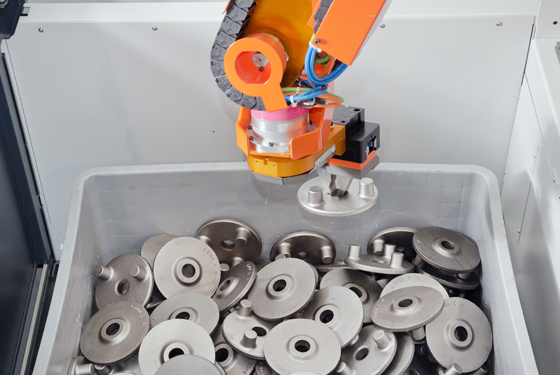

  • Collision-free withdrawal of parts
    The intelligent picker has additional axes and enables collision-free withdrawal of parts from the bin.

    Collision-free withdrawal of parts

    The intelligent picker has additional axes and enables collision-free withdrawal of parts from the bin.

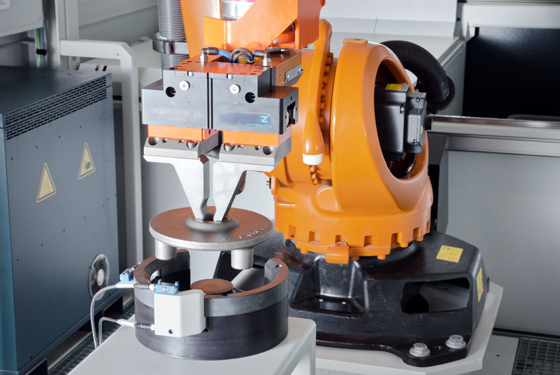

  • Object positioning
    Finally, the tools are precisely positioned at the defined location or on a machine.

    Object positioning

    Finally, the tools are precisely positioned at the defined location or on a machine.
