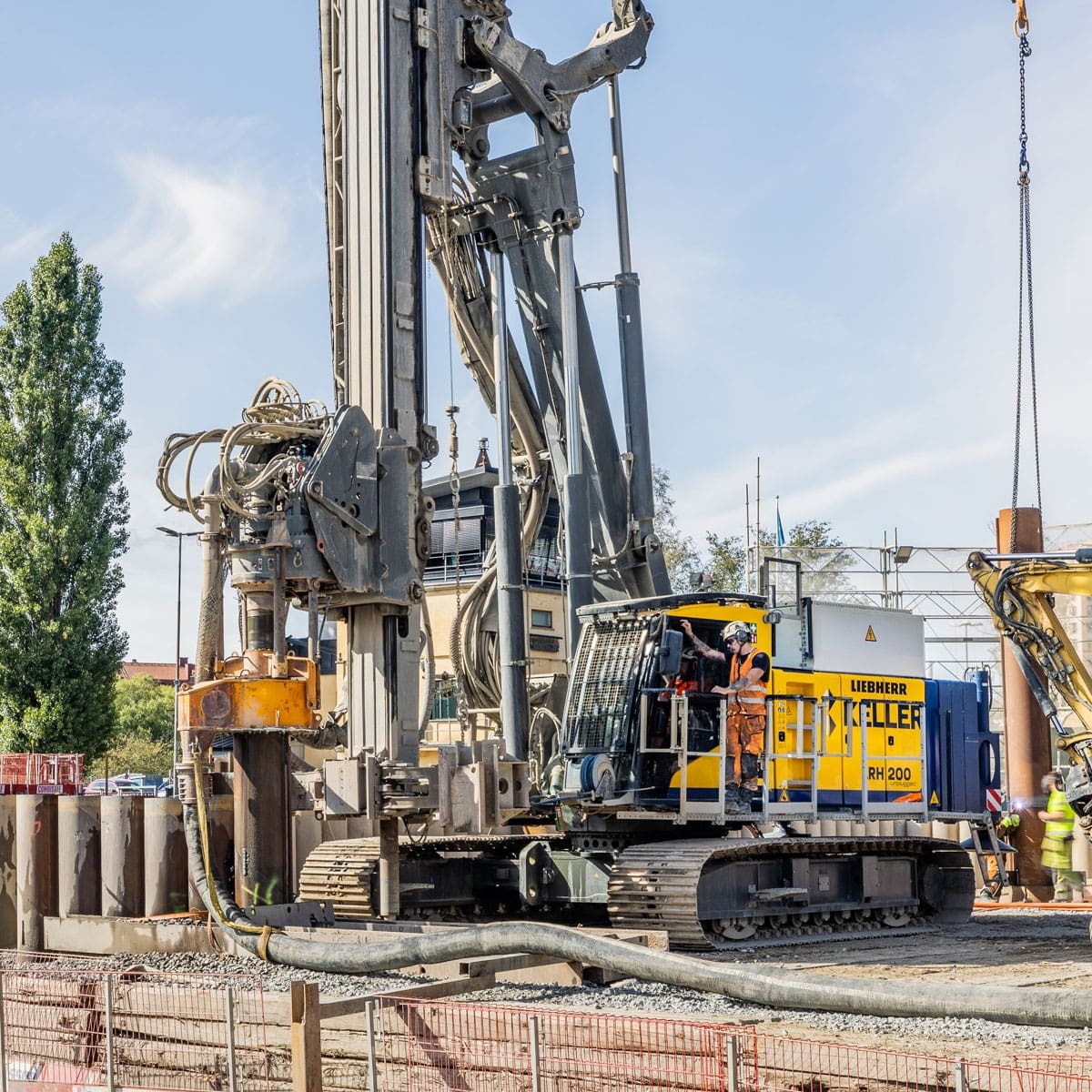

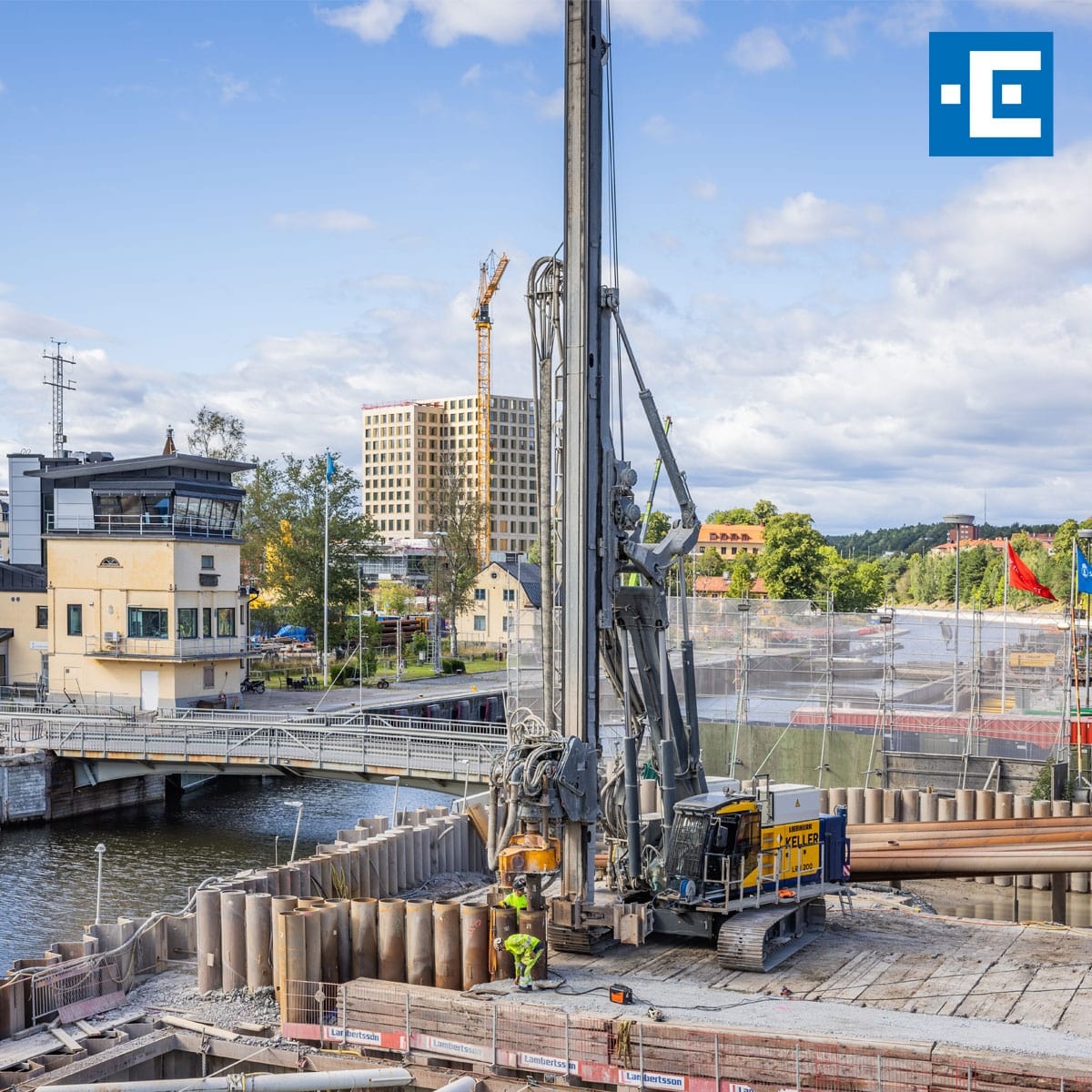

The LRH 200 unplugged is one of the world’s first battery-powered piling and drilling rigs. During operation the deep foundation machine can be connected to a conventional electric supply or powered by battery without a cable, therefore “unplugged”. There are no restrictions in performance and application of the machine when compared to the conventional version with diesel engine.

metricimperial
  • Max. pile length - 24.5 m

  • Max. pile weight - 16 t

  • Leader inclination - 1:3

  • Vertical travel device - 6,5 m

  • Basic hammer weight max. - 18,000 kg

product image 0
Operating weight
81.5 t
Max. winch line pull
200 kN
Max. crowd force
200 kN
Drive
Electric (zero emission)
Max. drive power
255 kW
Leader inclination
1:3
Max. height
29.2 m
Max. leader lenght
25.7 m
Vertical travel device
6,5 m
Max. pile length
24.5 m
Max. pile weight
16 t
Max. torque
250 kNm
Jib length
7.8 m
Basic hammer weight min.
6,740 kg
Basic hammer weight max.
18,000 kg
Ram mass min.
3,000 kg
Ram mass max.
10,000 kg
Predrilling, max. drilling depth
17.4 m
Predrilling, max. torque
35 kNm
Continuous flight auger drilling, max. drilling depth
34.5 m
Continuous flight auger drilling, max. drilling diameter
1,000 mm
Full displacement drilling, max. drilling diameter
500 mm
Full displacement drilling, max. drilling depth
35.2 m
Soil mixing, max. mixing diameter
1,500 mm
Soil mixing, max. effective length
34.3 m
Down-the-hole drilling, max. drilling depth
25.2 m
Min. transport width
3,490 mm
Min. transport height
3,400 mm
