Crawler crane

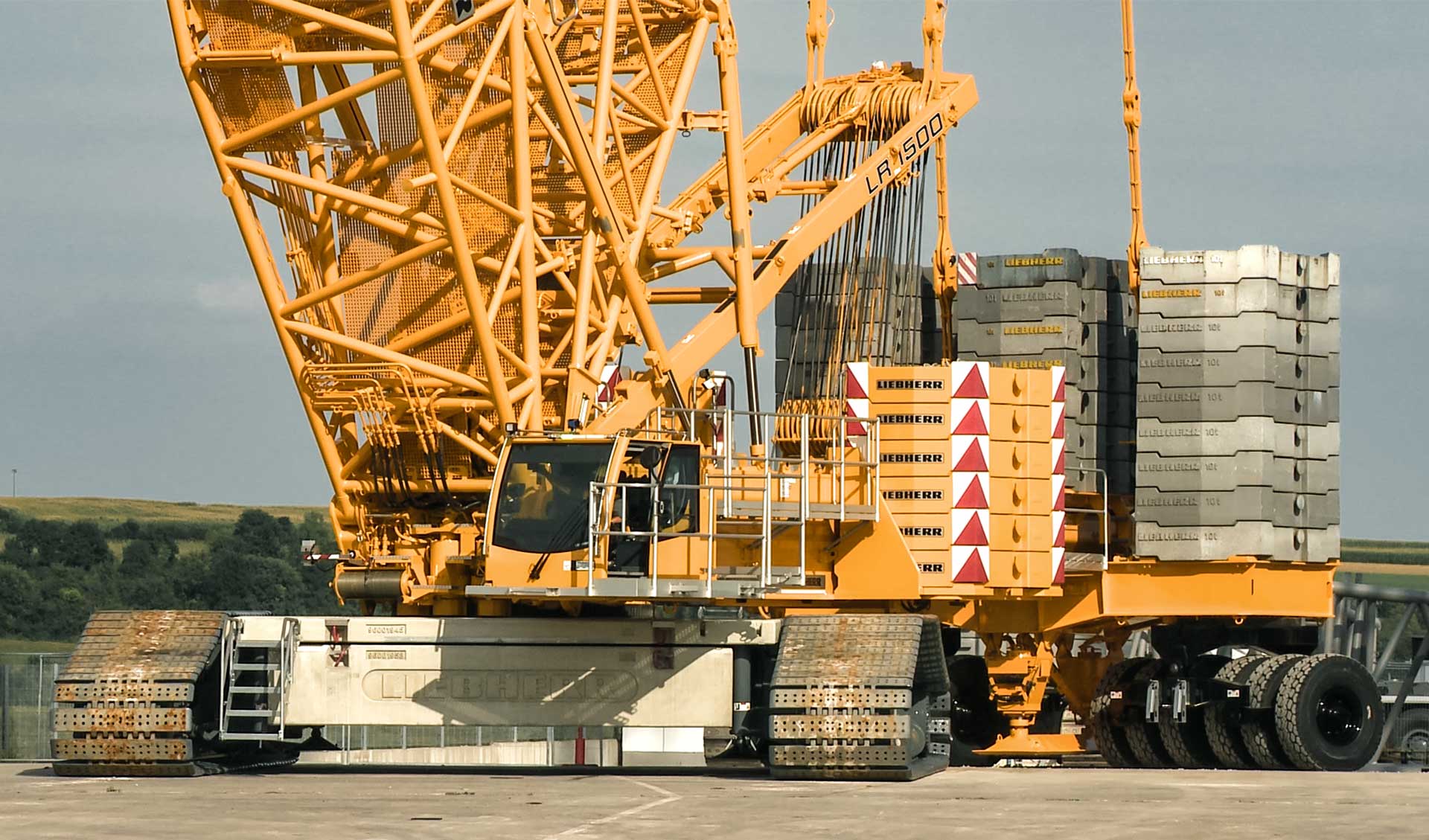

LR 1500 - Powerful, smart, compact.
The LR 1500 crawler crane delivers the lifting capacities of the 500 tonne (550 USt) crawler crane class throughout its operating range whilst having the dimensions and component weights which have previously been normal in the 400 tonne (440 USt) class. For straightforward and cost-effective global transport, all parts are weight-optimised and no more than 3 metres wide. The LR 1500 cannot just be transported easily and at low cost, but is also simple to set up and operate. Its powerful main hoist unit can handle all hoists up to the maximum lifting capacity. This means there is no need for a second winch in dual mode for heavyweight hoists.
Max. load capacity - 500 t
500 t
Max. hoist height - 164 m
164 m
Max. radius - 144 m
144 m
Photo gallery
Technical data
| Max. load capacity | 500 t |
| at radius | 7.50 m |
| Main boom, lightweight/heavyweight up to | 132 m |
| Max. load torque | 5,896 tm |
| Derrick boom | 30.0 m |
| Central ballast | 40 t |
| Counterweight at superstructure | 170 t |
| Derrick ballast | 280 t |
| Engine power | 330 kW |
