Universal applications

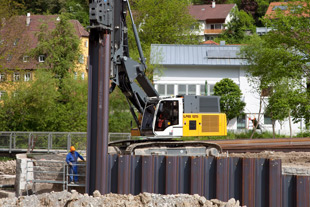

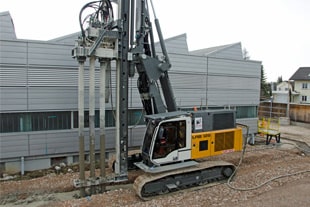

Piling and drilling rigs of the LRB series have a broad range of applications – from use with vibrator and hydraulic hammer to drilling methods with Kelly equipment, double rotary head, continuous flight auger and full displacement tool.

Sturdy and reliable

The piling and drilling rigs of the LRB series are characterised by their stable design, the large effective mast length and by the great flexibility of the parallelogram attachment geometry.

Easy to transport

Liebherr piling and drilling rigs boast decisive mobility benefits. The straightforward transportation and fast assembly keep operating costs to a minimum.

Piling and drilling rigs

Hits 1-4 of 4

New

LRB 16 Piling and drilling rig

Operating weight 47.9 t
Max. torque 120 kNm
Max. crowd force 200 kN
Engine power 390 kW
New

LRB 18 Piling and drilling rig

Operating weight 50.9 t
Max. torque 120 kNm
Max. crowd force 200 kN
Engine power 390 kW

LRB 125 Piling and drilling rig

Operating weight 52.0 t
Max. torque 120 kNm
Max. crowd force 200 kN
Engine power 505 kW

LRB 355 Piling and drilling rig

Operating weight 95.3 t
Max. torque 450 kNm
Max. crowd force 400 kN
Engine power 750 kW
