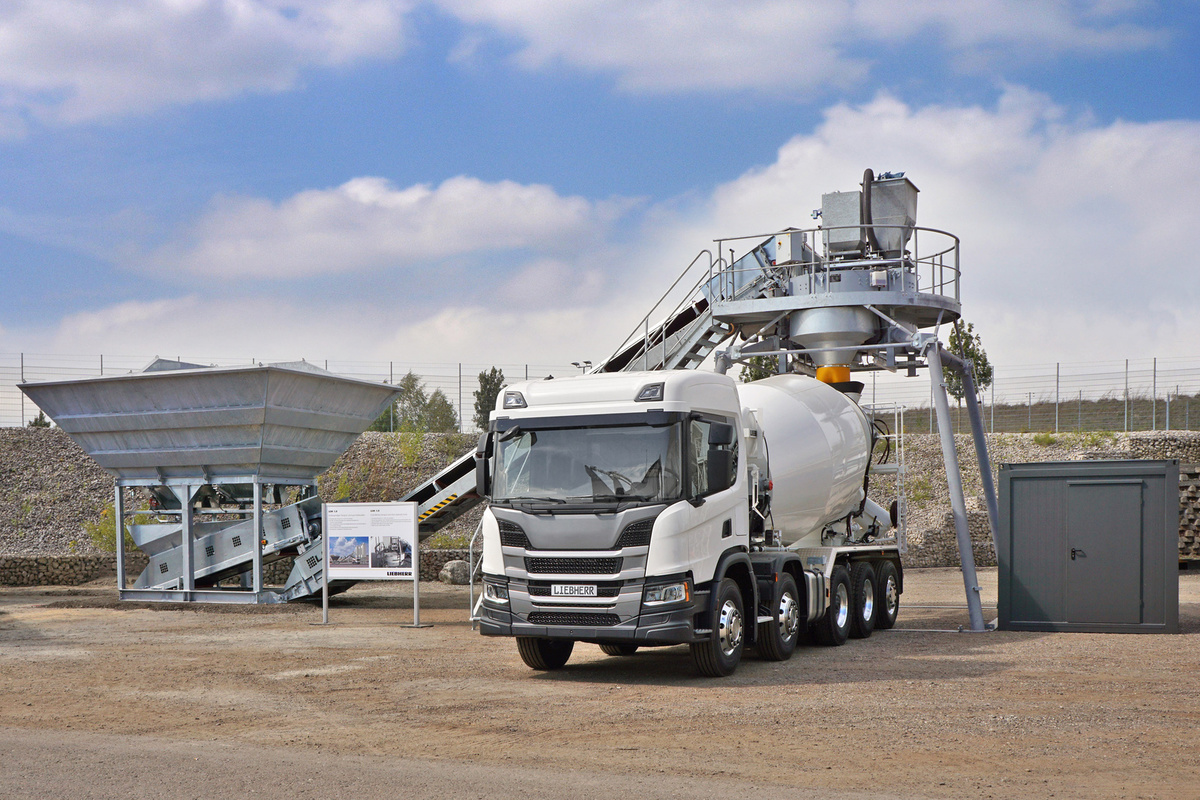

The LCM 1.0 is a reliable concrete mixing plant with special advantages. The plant is inexpensive to buy and economical to operate. Preassembled subassemblies and steel foundations make the plant ideal for mobile use. The operation of the plant is easy thanks to an intuitive steering system via laptop. Availability: outside Western Europe
metricimperial
Theoretical discharge output in compacted mixed concrete - 69 m³/h
69 m³/h
Mixer type - R / RIM
R / RIM
Mixer size - 1.00 m³
1.00 m³
Theoretical discharge output in compacted mixed concrete
69 m³/h
Mixer type
R / RIM
Mixer size
1.00 m³
Max. number of aggregate chambers in-line silo
4
Max. aggregate storage capacity in-line silo
100 m³
Max. aggregate storage capacity in-line silo per chamber
25 m³
Max. number of aggregate chambers pocket silo
4
Max. aggregate storage capacity pocket silo
40 m³
Max. number of cement types
3
Max. filling amount of each cement silo
100 t
