LTM 1030-2.1

Mobile crane

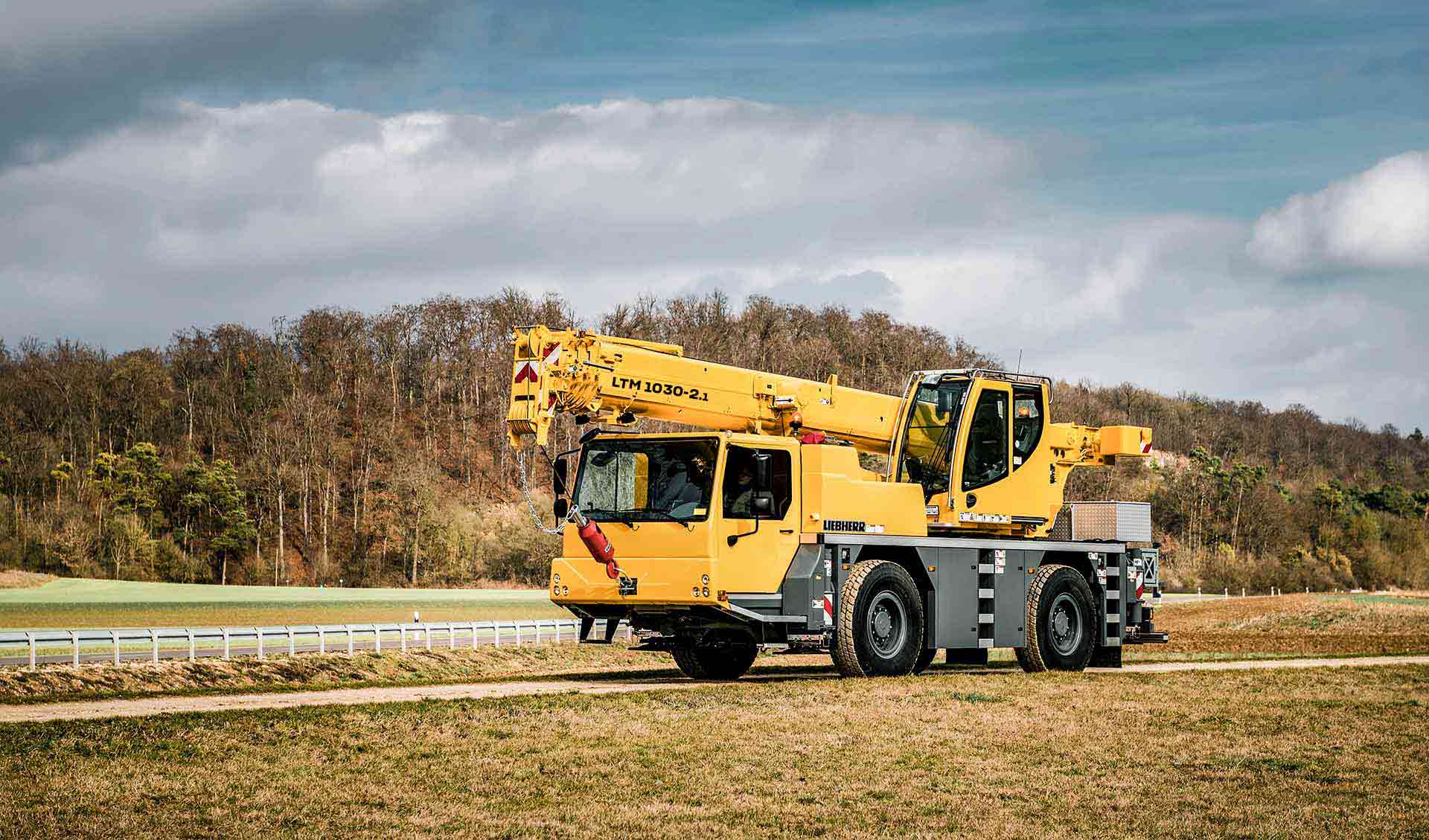

LTM 1030-2.1 - The best-selling mobile crane in the world.

The LTM 1030-2.1 mobile crane, which was launched in 1997 with the name LTM 1030/2, was the first mobile crane in the world to feature data bus transfer technology. This innovative technology enabled the 2-axle crane to achieve major enhancements in terms of the functionality and reliability of mobile cranes. On the basis of this crane, the LTM 1030-2.1 has undergone a series of revisions and now represents the state of the art of mobile crane technology. Well over 2500 of these 2-axle cranes have been built. That makes it the best-selling mobile crane in the world and the most successful crane model in the history of all-terrain mobile cranes.

  • Max. load capacity - 35 t

  • Telescopic boom - 30 m

  • Max. hoist height - 44 m

  • Max. radius - 40 m

  • Number of axles - 2

What's inside

Up, up and away:

The integral double folding jib delivers a hoist height of up to 144 ft / 44 m.

Time-tested engineering:

The 4-piece telescopic boom can be extended quickly using the time-tested hydro-mechanical telescoping system.

Lower fuel consumption:

ECOmode reduces fuel consumption by up to 10%.

Up to date:

This was the first crane to have data bus technology and today features lots of modifications to keep it state of the art.

A great view:

Fast, safe set-up process for the crane using BTT remote control. Optional BTT-E remote control means that the crane can be controlled in a direct line of sight whilst in action.

Photo gallery

Technical data

Max. load capacity
35 t
at radius
3.00 m
Telescopic boom from
9.20 m
Telescopic boom up to
30.00 m
Lattice jib from
8.60 m
Lattice jib up to
15.00 m
Drive engine/make
Cummins
Drive engine
6-Zylinder-Diesel
Drive engine/power
209 kW
Number of axles
2
Drive/Steering standard
4 x 4 x 4
Driving speed
85.00 km/h
Total ballast
5.50 t

Downloads

Technical Data - Mobile crane LTM 1030-2.1 [m/t]

PDF (3.5 MB)

Videos

  • The LTM 1030-2.1 receives the excellence equipment engineering award

Driving conditions

On-road driving

Ballast systems

Counterweight

Technology

ECOmode
ECOmode minimises both fuel consumption and noise emissions when operating the crane superstructure. The crane operator sets the required working speed using the control lever. The crane control system calculates the perfect engine speed for the diesel engine.
ECOdrive
ECOdrive makes the mobile crane significantly more comfortable and quieter by reducing the engine speed. Faster gearshifting delivers greater dynamic and traction offroad. On the road, the torque from the Liebherr diesel engine is used efficiently to minimise fuel consumption.
VarioBase®
VarioBase makes the crane’s support system variable. It enables each outrigger to be extended to a different length. This enhances safety – particularly in constricted spaces. And what's more, the crane’s lifting capacities are significantly increased, particularly over the outriggers and depending on the configuration.
HVO ready
Up to 90 % lower CO2 emissions in action.
