R 9100 G6
The real heavy duty 100 t excavator
The R 9100 is a true 100-tonne mining excavator designed for extreme conditions, that has the versatility to work in a huge range of applications. This excavator follows the Liebherr design philosophy of maximising a machine’s performance by improving the efficiency of all individual subsystems, like the attachment. The R 9100’s attachment has been designed to deliver excellent digging and lifting forces for optimal onsite productivity. To optimise productivity even further, the R 9100 was designed to be easy and fast to maintain. Technicians can effortlessly access major service points for quick and safe maintenance so the machine can be up and running again in no time. The R 9100 is a powerful piece of digging equipment that’s a perfect match for 45–100-tonne haul trucks.
Operating weight with backhoe attachment - 113.00 t
113.00 t
Operating weight with face shovel attachment - 116.00 t
116.00 t
Engine rating at 1800 rpm - 565 kW
565 kW
Bucket capacity at 1.8 t/m³ - 7.00 - 7.50 m³
7.00 - 7.50 m³
Shovel capacity at 1.8 t/m³ - 7.30 m³
7.30 m³
R 9100 highlights:
Easy and fast maintenance
One machine, many applications
High digging forces
We are more than satisfied with our first Liebherr mining excavator as we have always met our production targets since it was commissioned.
| Engine model | Liebherr D9512 |
| Engine rating at 1800 rpm | 565 kW |
| Emissions (USA/EPA) | US EPA Tier 4f / EU Stage V |
| Attachment and travel drive pump | 3 Liebherr variable flow axial piston pumps x 435 l/min. @ 350 bar |
| Swing drive pump | 1 Liebherr reversible swash plate pump x 420 l/min. @ 350 bar, closed-loop circuit |
| Maximum swing speed | 6.00 rpm |
| Operating weight with backhoe attachment | 113.00 t |
| Bucket capacity at 1.8 t/m³ | 7.00 - 7.50 m³ |
| Liebherr GET system for GP/HD/XHD buckets | Z90/Z100/Z100 |
| Max. digging force (ISO 6015) | 415 kN |
| Max. breakout force (ISO 6015) | 560 kN |
| Operating weight with face shovel attachment | 116.00 t |
| Shovel capacity at 1.8 t/m³ | 7.30 m³ |
| Liebherr GET system for GP/HD/XHD shovels | Z90/Z100/Z100 |
| Max. crowd force at ground level (ISO 6015) | 545 kN |
| Max. crowd force (ISO 6015) | 704 kN |
| Max. breakout force for shovel (ISO 6015) | 585 kN |
Downloads
Videos
R 9100 & R 9150 in action!
Watch Liebherr Bucket Solutions and Ground Engaging Tools!
Customer testimonial - Karunia's confidence with Liebherr mining
R 9100 customer testimonial from Israel
Machine gallery
Equipped with the proven Liebherr V12 diesel engine!

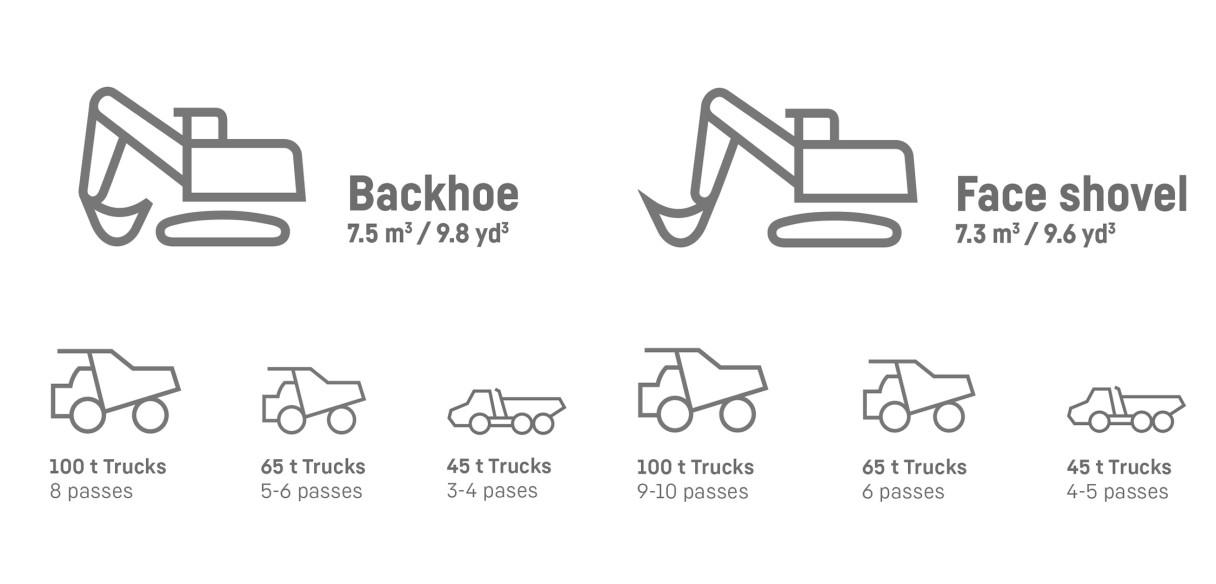

Shovel truck match*
*Site-specific factors like loose material density, bucket size, fill factors, truck body size and payload capacity will influence pass match. Contact your local Liebherr affiliate or sales partner for analysis of your site.
