XRF 5220 Plus NoFrost

Side-by-Side combination

Exterior dimensions: height/width/depth - 1,855 / 1,226 / 675 mm
1,855 / 1,226 / 675 mm
Total volume - 676 l
676 l
Connectivity solution - retrofittable
retrofittable

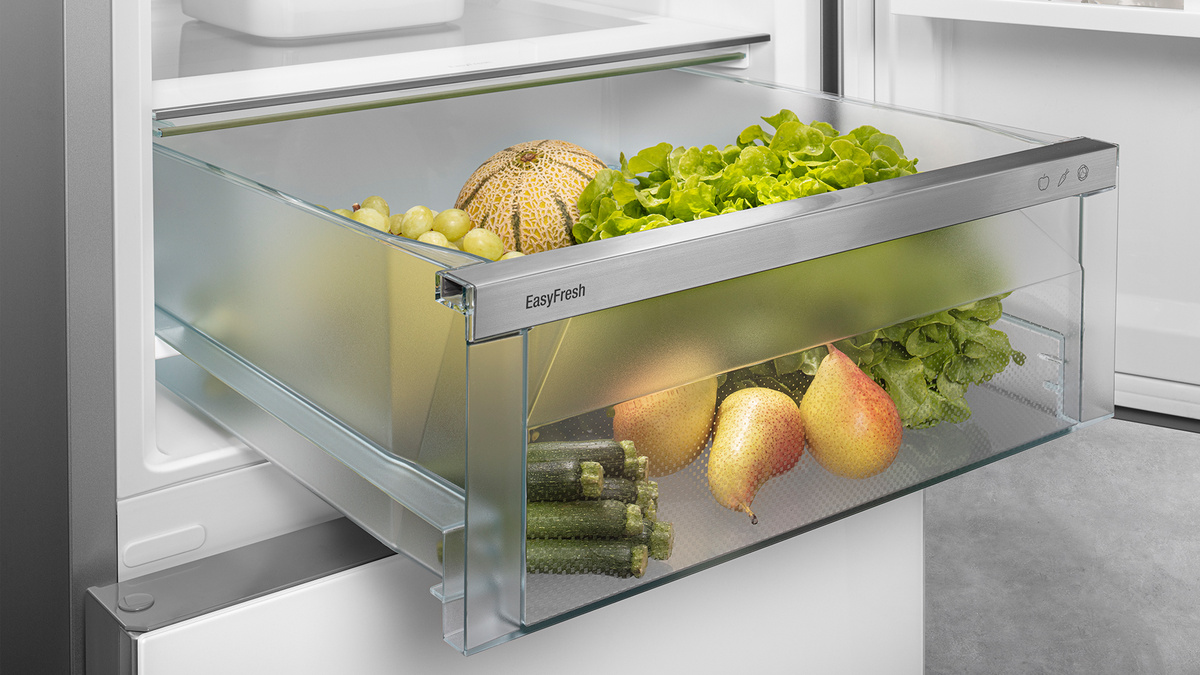

EasyFresh

The guarantee of market freshness in the home is our EasyFresh-Safe. Whether it’s unpackaged vegetables or fruit, this ensures optimal storage for everything. Thanks to the air-tight closure, the food causes the humidity in the safe to rise. This keeps the food fresh for a long time.

NoFrost

When you open your freezer, you want to see frozen food – and certainly not ice and frost. NoFrost protects the freezer compartment from unwanted icing, which consumes a lot of energy and can be expensive. NoFrost means no more tedious and time-consuming defrosting of the freezer compartment, more time for other things – and saving money.

Retrofitable SmartDeviceBox

Want to be prepared for the future of the Smart Home? Your Liebherr will be happy to help. You can retrofit it with a SmartDeviceBox which will connect your Liebherr to the Internet. The SmartDeviceBox can be installed in just a few steps and will open up the whole world of digital possibilities to you today.

Touch display

Fingertip control: the touch display enables easy and intuitive operation of your Liebherr. All functions are clearly arranged on the display. By gently tapping a finger, for example, you can easily select the functions or check the current temperature of your refrigerator.

EasyOpen

Done this before? After putting all the shopping in the freezer you remember an item of food you have forgotten – and have to give the door a good pull to open it again. With your Liebherr, you don't need to do this. EasyOpen means the door can be opened multiple times one after another, conveniently and easily.

Plinth concept

Does your refrigerator need to be powerful and convenient – but also sustainable? If so, then a Liebherr is perfect for you. Our BluPerformance technology makes it a real all-rounder. It offers a huge volume and lots of cooling capacity – but also consumes a very small amount of energy. And now listen! You can hardly hear a thing. Your Liebherr is extremely quiet despite its level of performance.

SpaceBox

Accommodate the “big stuff” in your Liebherr: An XL turkey or a multi-layered ice cream cake simply needs more space. Your Liebherr has the SpaceBox for exactly that purpose: At a generous height of 250 mm, it offers lots of extra space, even for large frozen goods. Helpful for you when storing food flexibly.

FrostProtect

Not all freezers are fitted in heated rooms. Some are located in cold garages or sheds. It’s good then that your Liebherr is ideally set up for such a cool environment because all components are designed to operate in ambient temperatures as low as -15 °C.

SuperFrost

Want to freeze your fresh food in a way that preserves vitamins? Simply activate SuperFrost – and the freezer compartment will increase its cooling capacity. In this way, the temperature remains constant when you place in unfrozen food. SuperFrost is also energy-saving: if you don't switch off the function manually, it automatically deactivates itself after 65 hours.

SuperCool

You want your fridge to maintain the optimum temperature, even if you have just put shopping in from the market which has been warmed by the sun? This is a case for SuperCool. Once activated, your Liebherr boosts its performance until the fresh food is as cool as the rest of the contents. SuperCool then switches off automatically.

VarioSpace

Looking for somewhere to safely store a multi-tiered ice cream cake until the summer party? No problem for your Liebherr freezer: it knows that sometimes you just need more space. Thanks to VarioSpace, you can simply remove individual freezer drawers – and voilà: here’s your extra-high storage space!

Contains the following products:

Exterior dimensions: height/width/depth - 185.5 / 59.7 / 67.5 cm
185.5 / 59.7 / 67.5 cm
Total volume - 277 l
277 l

Exterior dimensions: height/width/depth - 185.5 / 59.7 / 67.5 cm
185.5 / 59.7 / 67.5 cm
Total volume - 399 l
399 l

EasyFresh

NoFrost

Retrofitable SmartDeviceBox

White

Simple, classic, high-quality: With its shiny white-painted surface, the Liebherr fits particularly well into its surroundings and transcends fashion and trends, remaining timeless, beautiful and functional. The white surface is robust and easy to clean, keeping your Liebherr looking as good as the day you got it, even years later.

Touch display

EasyOpen

Recessed grip

Special and functional: You can open the appliance very easily using the vertically integrated and ergonomically fitted handle. Additionally, the modern and puristic design fits perfectly into your hands-free kitchen.

InteriorFit

Complete the purest design for your kitchen: Our refrigerators fit perfectly into a 60 cm deep niche: Leaving only the door protruding in a defined manner, ensuring optimum access to the recessed grip and lever handle. In this way, the focus is always on your kitchen – with your Liebherr as the focal point and highlight.

PowerCooling system

Do you want to be sure that the cold is distributed as evenly as possible in your refrigerator? If so, the PowerCooling system is what you need. The fan – as powerful as it is quiet – distributes the cold air efficiently throughout the entire refrigeration compartment.

Plinth concept

Silent

What would you like to hear in your kitchen? A sizzling pan, laughter, music? One thing you certainly don't want to hear is your fridge. It has such a calm character that you can barely hear it. Its secret lies in its modern interior. All components are technically and mechanically adapted to one another. Sounds good, doesn't it?

SuperSilent

Shhh – listen carefully. Your Liebherr is so quiet that you have to strain your ears to hear it. How is this achieved? All refrigeration components such as compressors, valves, fans and evaporators are optimised and perfectly adapted to one another. This means you only hear what you want to hear in your kitchen.

LED ceiling lighting

The LED ceiling lighting illuminates the interior from above – providing a good overview of your food. Another highlight: the LEDs are positioned in front of the glass shelves so that even a full refrigerator is well lit.

FlexCube

Want to store small tubes, open cream cups or quail eggs safely? The FlexCube can fix that for you: Its various sized openings provide space for a large assortment of small items. The FlexCubes compact size means you can fit several of them in your fridge. The FlexCube is dishwasher safe and fits in all Liebherr bottle and can racks.

VarioSafe

Do you want a clearly arranged place for small food items such as yoghurt pots, jam jars or tubes? Your Liebherr provides this with the VarioSafe. It not only creates order, but is also highly adaptable. Simply place the two-stage height-adjustable VarioSafe in the refrigerator where it suits you best.

SpaceBox

FrostProtect

Drawer with comfortable tilting

The top drawer in the freezer is often a bit of a mystery because you just can’t see what’s up there. A simple tilting function on the drawer allows it to be angled downwards when opened. This gives you a complete overview all the time. It also makes it easier to add and remove frozen goods. And the pull-out stop ensures the compartment does not fall out.

Door shelf

Do you want a safe storage area for your drinks or food? And do you still want to reach them easily? Our door shelves offer you both. They are height-adjustable and therefore meet all your requirements. The sliding and removable bottle holder is also convenient. This holds your bottles securely at all times.

Height-adjustable inner door shelves

Use all of the space in your Liebherr – and entirely to suit your requirements. The height adjustable inner door shelves will help with this: These allow you to change the height at which the shelves are mounted quickly and easily at any time – which means they can be used entirely flexibly and securely for storing a wide range of containers and foodstuffs.

Separable glass shelf

If you store a carafe or tall container in the refrigerator, you don't want to have to remove an entire glass shelf. And why should you? Because there are separable glass shelves. Simply slide the front half of the glass shelf under the back half. This allows you to place higher containers at the front and still have enough space for other food.

Glass shelves with stainless-steel-look decorative trim

Clear, bright and attractive – this is the look and feel that awaits you every time you open your Liebherr. This is provided for example by means of transparent glass shelves made of safety glass. You can adjust their height quickly and easily in one simple step. Decorative trim with a stainless steel look rounds off the attractive visual appearance.

Convenient height adjustment for glass shelves

Do you need a large container to go in the fridge? If so, simply adjust the heights at which you insert the glass shelves. The convenient height adjustment means this can be done quickly and individually – even with food stored on the shelves.

EasyFresh with integrated drawer runner

The integrated drawer slides with pull-out stop mean your EasyFresh safe can be opened and closed really easily. A further plus in terms of convenience: the running rails close the safe reliably. This means your chilled food is always stored under optimum conditions.

CleaningMode

Until now, you had to make a decision when cleaning the refrigerator: do I switch it off to save energy, or leave it switched on so I can see? The CleaningMode removes this dilemma. The refrigeration switches off while the lights stay on. This means you can stay totally relaxed while cleaning your Liebherr.

EnergySaver

Do you want to save energy and money at the same time? Your Liebherr will help you do just that – with the energy-saving mode. When you activate the EnergySaver, the standard temperature increases by two degrees. This means your Liebherr needs even less power – and your food stays optimally fresh.

PartyMode

Now you’re ready to receive guests – because even your Liebherr is in the mood for a party. In PartyMode, functions such as SuperCool and/or SuperFrost are activated. After 24 hours, your Liebherr goes back to normal mode automatically.

SuperFrost

Display lock

An illuminated display is a magnet for children's hands – your Liebherr also knows that. That's why there is the display lock. It ensures the settings on your refrigerator are not changed unintentionally. You can also, of course, simply deactivate the display lock.

NightMode

Your Liebherr wishes you have a good night's sleep – and makes sure you're not disturbed. This is because in NightMode it switches off all sounds and noises. And the IceMaker remains quiet as a mouse too. The interior lighting also dims so that you are greeted by soft light when you open the fridge at night.

Power failure alarm

Your Liebherr is a real guardian angel for your food. In the event of a power failure, it reliably sounds the alarm. Not only do you hear the alarm, but you can also see it. The display shows the highest temperature reached in the freezing compartment. However, you are never alerted unnecessarily. If there is no critical rise in temperature during a brief power failure, the alarm will not go off.

HolidayMode

Are you going away? Then why not send your Liebherr on holiday too? In HolidayMode, the fan and SuperCool are switched off and your refrigerator regulates its temperature to +15 °C. This saves electricity but still prevents unpleasant odours. The freezer compartment, of course, remains switched on.

SuperCool

BottleTimer

Done this before? You place a bottle of wine in the ice compartment so that it chills quickly – and forget about it. This will never happen again with the BottleTimer: it provides extra fast cooling by activating SuperFrost. And as soon as the bottle has reached the optimum temperature, your Liebherr reminds you via the app to take it out of the ice compartment.

Door alarm

The door alarm of your Liebherr makes sure that you don’t unnecessarily use energy and that food doesn’t go off: if the appliance door stays open for too long an alarm goes off – flashing light and a warning tone. You decide what “too long” means: depending on the settings the door alarm comes on after one, two or three minutes.

SabbathMode

On the Sabbath, all activities are at rest – this also applies to electrical appliances. Your Liebherr takes this into account. In SabbathMode, all lighting and displays are switched off and there are no noises generated by actions, e.g. alarms. After 80 hours, the SabbathMode deactivates.

Temperature alarm

In your Liebherr freezer, food is safe even in the event of a fault: the temperature alarm reliably warns you the moment the temperature reaches a critical level. No only do you hear this alarm, but you also see it. The display shows how far the temperature has risen. You can of course switch off the alarm manually.

Bottle shelf

For the storage of bottles, the bottle shelf offers a solution that is as practical as it is pleasing to the eye: these can be stored horizontally in a safe and space-saving manner

FreshAir activated charcoal filter

The smell of some foods is sometimes less pleasant. However, this is no problem for your Liebherr. Thanks to FreshAir activated carbon filters, there is always fresh air in the interior. The filter is located right on the air flow in the fan housing and neutralises odours as far as possible. The display reminds you to change the filter.

Egg tray

Do you want to store eggs in your refrigerator safely and without a box? This is no problem with the egg tray. This will store up to 10 chicken eggs, keeping them stable and protected, and well cooled. The tray fits both in the inside door and on the glass shelves.

VarioSpace

Freezer tray

Do you want your frozen berries to be fresh and firm after defrosting – and to not turn into a compote? The freezer tray is ideal for this type of delicate food. When spread out well on the plastic tray, fruits and herbs freeze quickly and without being squashed. You can easily insert the freezer tray in the freezer drawer and remove it again.

Ice cube tray

The sound of clinking ice cubes falling into a glass is always hard to resist. That is why the ice cube tray in the freezer compartment is an absolute classic. The ice cube tray in your Liebherr allows you to produce 21 ice cubes ready for use. You determine the size of the cubes yourself by the amount of water used.

Replaceable door seal

Do you think the door seal on your Liebherr needs to be replaced after a few years? This is very easy to do yourself. The replaceable door seal can be removed in a few simple steps – and the new seal is just as easy to insert. As a result, this part of the refrigerator is always spotless and hygienically clean.

Space for baking tray

Do you want to keep that home-baked fruit pie fresh? Or maybe a prepared pizza to be baked later on? If so, simply slide your baking tray into your Liebherr ¬- it has plenty of space for storing a baking tray. Really convenient – you can slide the baking tray in and out when the door is opened at 90°.

Closing assistance

Close the door! With your Liebherr, you can be sure that the door is always firmly closed: The closing aid prevents a small gap from remaining open if you close the fridge door a little too softly or a little too hard. This ensures that your food is always stored safely and maintains the optimum shelf-life.

Adjustable feet

Two adjustable feet mean the appliance can be perfectly fitted and adjusted to its surroundings, e.g. on uneven ground. This means you can be sure that the fridge door closes completely, no heat can enter and no condensation can form. That saves both energy and money.

Dishwasher-safe features

The features of your Liebherr are practical in two ways: Not only do they simplify everyday use, they are also very easy to clean. Does the butter dish, FlexSystem or ice cube tray need to be cleaned? Just put them in the dishwasher. Then you’ll have more time for other things.

Transport castors

With your Liebherr, you can enjoy pure comfort from the very first moment. Make the setup of your cooling appliance a breeze, thanks to its fitted, standard transport castors. Say goodbye to heavy lifting and hello to effortless placement. All our freestanding appliances are equipped with transport castors from the Pure series onwards, making it easy and convenient to position them perfectly in your kitchen.

General product information

Model type	Freestanding freezer with NoFrost
GTIN	4016803131878
Series	plus

Output and consumption

Energy efficiency class	D
Energy consumption in 24h	0.545 kWh / 24h
Energy consumption per year	199 kWh/a
Climate class	SN-T
Noise level	36 dB
Sound emission class	C
Connection rating	1.3 A 264.6 W
Voltage	220-240 V ~
Frequency	50-60 Hz

Control and functions

Control	Monochrome LC display , touch display
Position of control unit	behind the door
Number of temperature zones	1
Number of regulated refrigeration circuits	1
Temperature display	Freezer
SuperFrost	Adjustable on appliance and via app
Door alarm, freezing	Adjustable on appliance and via app
BottleTimer	Adjustable on app
IceCubeTimer	—
NightMode	—
Display lock	Adjustable on appliance
Control unit	Touch
Connectivity solution *	retrofittable
HolidayMode	—

Freezer compartment

Temperature range freezer compartment	-15 °C to -28 °C
Freezer compartment position	—
Defrosting method	automatic
Freezing capacity in 24 hours according to GS **	18.00 kg / 24h
No. of drawers in freezer compartment	7
of which on telescopic rails	0
FrostSafe	Drawers closed on all sides with transparent front
Drawer pull-out system, freezer compartment	Integrated drawer guide
Drawer with comfortable tilting	✔
Interior light, freezer compartment	—
VarioSpace	✔
SpaceBox	✔
IceMaker safe lighting	—
EasyTwist-Ice	No
IceTower	—
Ice cube tray	Ice cube tray
Number of ice cube trays	1
Number of water filters	0
Number of cold storage accumulators	0
Freezer tray	1
Star-rating	4
Storage time in case of fault according to GS **	16 h

Design and materials

InteriorFit	✔
Door material	Steel
Material of adjustable shelves in the freezer compartment	—
Colour	white
Door colour	white
Side wall material	steel
Handle	Recessed grip (both sides, vertical, continuous)

Set-up and installation

EasyOpen	✔
Closing aid	✔
Door hinges	Left
Door hinge replacement	Possible for customer
Door opening angle	115°
Door seal	Replaceable
Height-adjustable feet	2
Transport handles	Front and rear
Transport castors at back	✔
Ventilation	Front ventilation
Connector cable (length)	2,100 mm

Specifications

Total volume ***	277 l
Volume, freezer compartments	278 l
Of which 4-star compartment	277.9 l
Exterior dimensions: height/width/depth ****	185.5 / 59.7 / 67.5 cm
Exterior dimensions: height/width/depth (with packaging)	1,927.0 / 615.0 / 767.0 mm
Weight (without packaging)	68.9 kg
Weight (with packaging)	72.4 kg

SmartDevice functionality based on availability

Value according to global standard (GS)

***

In accordance with Regulation EU 2019/2016, we show the total volume as an integer (rounded down) and the volume of the freezer and freshness compartments with one digit after the decimal point. The complete range of efficiency classes can be found on page 9. According to (EU) 2017/1369 6a. The term "volume" refers to the term "total volume" mentioned in the current regulation.

****

In order to achieve the declared energy consumption, the spacers enclosed with the appliance must be used. This increases the appliance depth by approx. 1.5 cm. The appliance is fully functional without the use of the spacers, but has a slightly higher energy consumption.

General product information

Model type	Refrigerator with EasyFresh
GTIN	4016803129998
Series	plus

Output and consumption

Energy efficiency class	D
Energy consumption in 24h	0.268 kWh / 24h
Energy consumption per year	98 kWh/a
Climate class	SN-T
Noise level	35 dB
Sound emission class	B
Connection rating	1.2 A
Voltage	220-240 V ~
Frequency	50-60 Hz

Control and functions

Control	Monochrome LC display , touch display
Position of control unit	behind the door
Number of temperature zones	1
Number of regulated refrigeration circuits	1
Temperature display	Refrigerator
SuperCool	Adjustable on appliance and via app
Door alarm, cooling	Adjustable on appliance and via app
NightMode	Adjustable on app
Display lock	Adjustable on appliance
Control unit	Touch
BottleTimer	—
Connectivity solution *	retrofittable
HolidayMode	Adjustable on appliance and via app

Refrigerator compartment

Adjustable temperature range, refrigerator compartment	+2 °C to +9 °C
Refrigerator compartment climate zones	EasyFresh with universal drawer
Defrosting method	automatic
FreshAir filter	in the fan housing
Pull-out system drawer, refrigerator compartment	Integrated drawer guide
Illumination cooling compartment	LED ceiling lighting
Number of storage shelves, refrigerator compartment	7
Of which separable	1
of which height-adjustable	6
VarioSafe	✔
InfinitySpring	—
Bottle storage	Bottle rack
Number of EasyFresh safe(s)	1
Bottle rack	2
Number of can racks	2
VarioBox	—
VarioBoxes	0
Butter dish	—
Egg tray	10 eggs
Number of FlexCubes	1
Type of door rack Cooling compartment	Bottle and can rack
Height-adjustable inner door shelf	Gradual adjustment

Design and materials

InteriorFit	✔
Dry rear panel	—
Inner back wall material	—
Inner door décor	—
Material inner door rack	Plastic
Storage shelf material, refrigerator compartment	Glass
Door material	Steel
Colour	white
Door colour	white
Side wall material	steel
Handle	Recessed grip (both sides, vertical, continuous)

Set-up and installation

Closing aid	✔
Door hinges	Right
Door hinge replacement	Possible for customer
Door opening angle	115°
Door seal	Replaceable
Height-adjustable feet	2
Transport handles	Front and rear
Transport castors at back	✔
Ventilation	Front ventilation
Connector cable (length)	2,000 mm

Specifications

Exterior dimensions: height/width/depth	185.5 / 59.7 / 67.5 cm
Exterior dimensions: height/width/depth (with packaging)	1,927.0 / 623.0 / 767.0 mm
Weight (without packaging)	67.1 kg
Weight (with packaging)	72.6 kg
Total volume **	399 l
Volume, refrigerator compartments	399 l

SmartDevice functionality based on availability

Operating instructions

Assembly and installation instructions

Additional document

Dimensional drawing

3D data

Please note: Despite careful data maintenance, we reserve the right to make technical changes and there may be errors and deviations in the image and text content compared to the original appliance.
