LTM 1750-9.1
Mobile crane
-
Maximum lifting capacity
The 800 t / 900 US t upgrade delivers even more lifting capacity.
-
In the wind
The 800 t / 900 US t upgrade includes lifting capacity tables for three wind speeds.
-
Suitable for global mobility
To any site thanks to a wide range of configurations for driving on roads.
-
All alone
Fast, easy setup with small space requirements due to self-erection.
-
Completely flexible
Flexible support system using VarioBase®, and therefore enhanced safety.
-
Suitable for universal use
Extensive, modular boom system for every conceivable application.
LTM 1750-9.1 - Wide range of uses with powerful boom systems.
The 9-axle LTM 1750-9.1 can carry its complete telescopic boom for driving on public roads. Due to its high lifting capacities and variable boom system, it can cover a wide range of jobs in industry, infrastructure and the energy sector. The crane achieves significant increases in lifting capacity using its Y-guying. The all-terrain crane is designed to ensure particularly short setup times and maximum mobility. The extensive comfort and safety equipment, such as lifting capacity table for various wind speeds, round off the concept for the LTM 1750-9.1. Since 2020, there has been an 800 t (900 USt) upgrade available, which makes this mobile crane significantly more powerful.
Max. load capacity
800 t
Telescopic boom
52 m
Max. hoist height
152 m
Max. radius
116 m
Number of axles
9
What's inside
-
Maximum lifting capacity:
The 800 t / 900 US t upgrade delivers even more lifting capacity.
-
In the wind:
The 800 t / 900 US t upgrade includes lifting capacity tables for three wind speeds.
-
Suitable for global mobility:
To any site thanks to a wide range of configurations for driving on roads.
-
All alone:
Fast, easy setup with small space requirements due to self-erection.
-
Completely flexible:
Flexible support system using VarioBase®, and therefore enhanced safety.
-
Suitable for universal use:
Extensive, modular boom system for every conceivable application.
Photo gallery
| Max. load capacity | 800 t |
|---|---|
| at radius | 3.00 m |
| Telescopic boom from | 16.30 m |
| Telescopic boom up to | 52.00 m |
| Lattice jib from | 6.00 m |
| Lattice jib up to | 91.00 m |
| Drive engine/make | Liebherr |
| Drive engine | 8-Zylinder-Diesel |
| Drive engine/power | 505 kW |
| Number of axles | 9 |
| Crane engine/make | Liebherr |
| Crane engine | 6-Zylinder-Diesel |
| Crane engine/power | 300 kW |
| Drive/Steering standard | 18 x 8 x 18 |
| Driving speed | 85.00 km/h |
| Total ballast | 204.00 t |
Counterweight
Boom/jib combinations
On-road driving
On-road driving [lb]
![Jobsite driving [t]](/external/products/product-related-entity-assets/40f58ec1-7c2d-4866-9f26-56e694f5e5e2/liebherr-lwe-ltm-1750-9.1-baustellenfahrt-metrisch-s3383.jpg)
Jobsite driving [t]
Jobsite driving [lb]
![Special driving conditions [lb]](/external/products/product-related-entity-assets/4d8b330f-feea-4e35-a700-edebdbd8c109/ltm-1750-9.1-special-condition-imperial.jpg)
Special driving conditions [lb]
ECOdrive
ECOdrive makes the mobile crane significantly more comfortable and quieter by reducing the engine speed. Faster gearshifting delivers greater dynamic and traction offroad. On the road, the torque from the Liebherr diesel engine is used efficiently to minimise fuel consumption.
VarioBase®
VarioBase makes the crane’s support system variable. It enables each outrigger to be extended to a different length. This enhances safety – particularly in constricted spaces. And what's more, the crane’s lifting capacities are significantly increased, particularly over the outriggers and depending on the configuration.
Automatic erection of the luffing jib
We can provide a support function for erecting the luffing jib on larger LICCON2 cranes. Activating the automatic erection system in the LICCON crane control system ensures that the adjustment winch is automatically adjusted by the control system as the telescopic boom is luffed.
WindSpeed load charts
Increased flexibility and safety by using lifting capacity tables with different maximum wind speeds.
HVO ready
Up to 90 % lower CO2 emissions in action.
Liebherr mobile crane LTM 1750-9.1
Call up video
LTM 1750-9.1 - Installation at the large power plant in Mannheim
Call up video

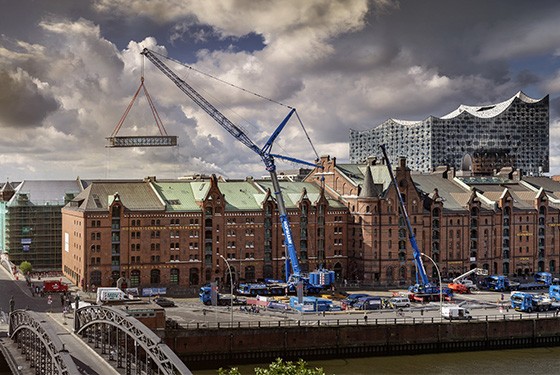

LTM 1750-9.1 - Miniatur Wunderland Hamburg
