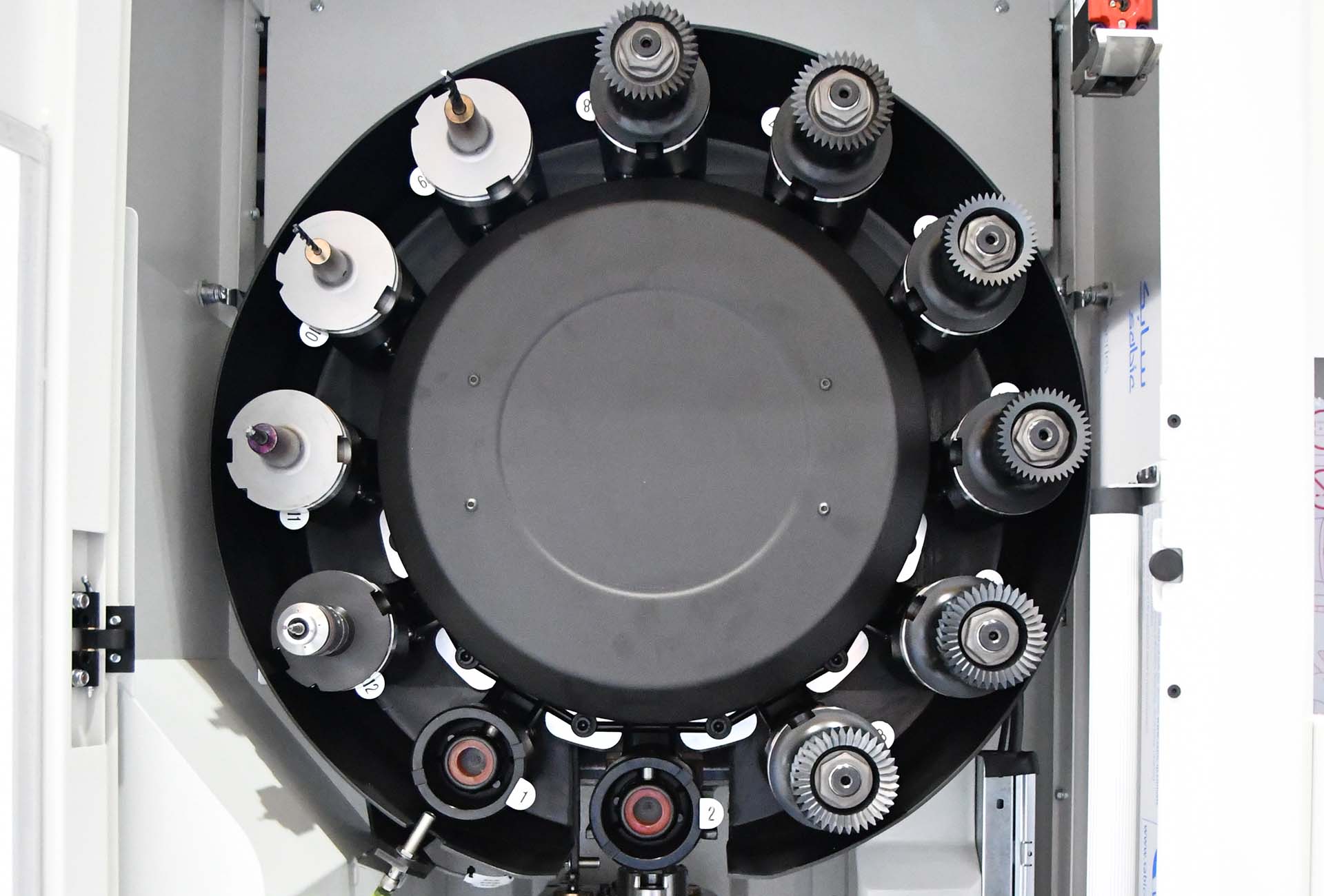

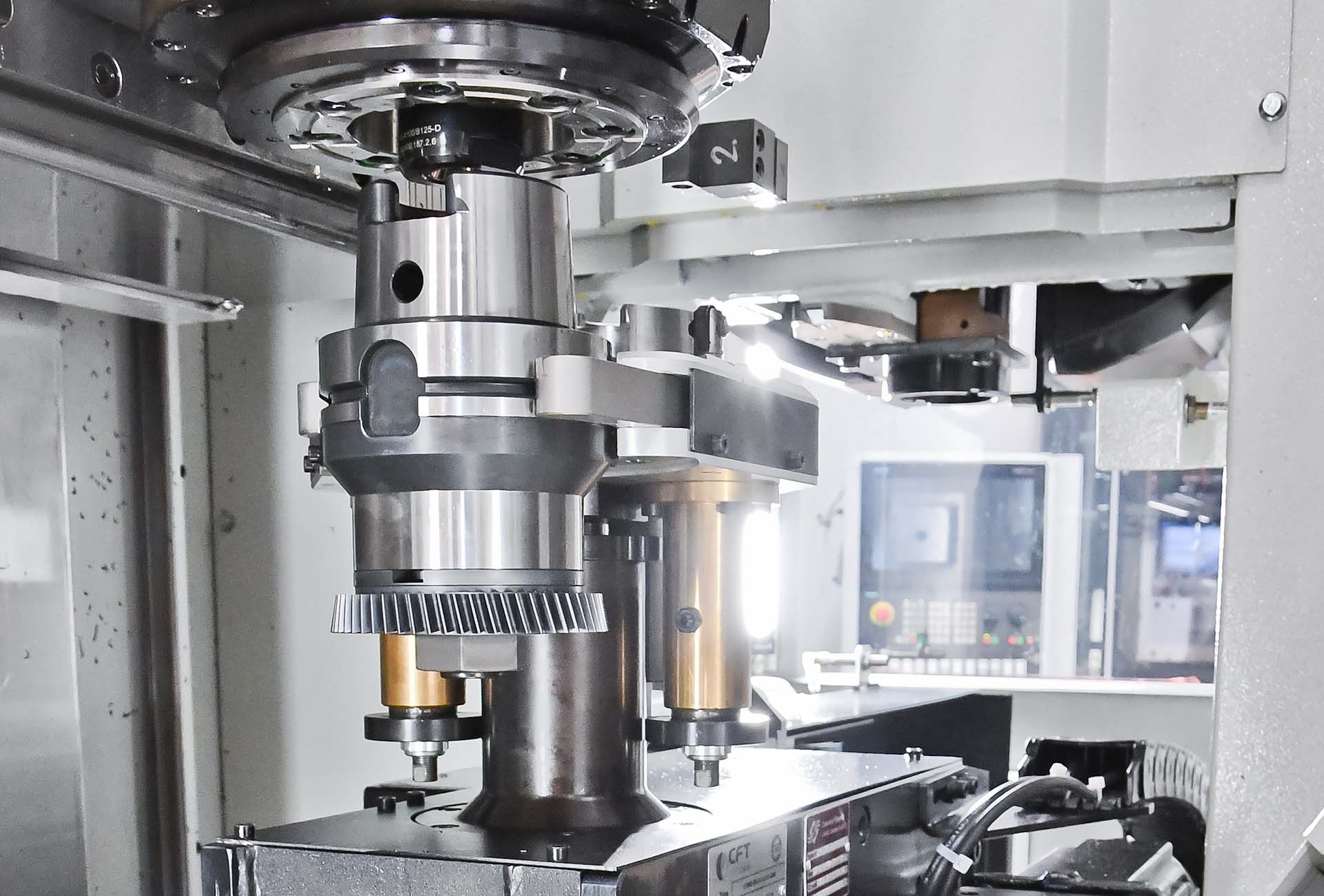

LK 180 - 280

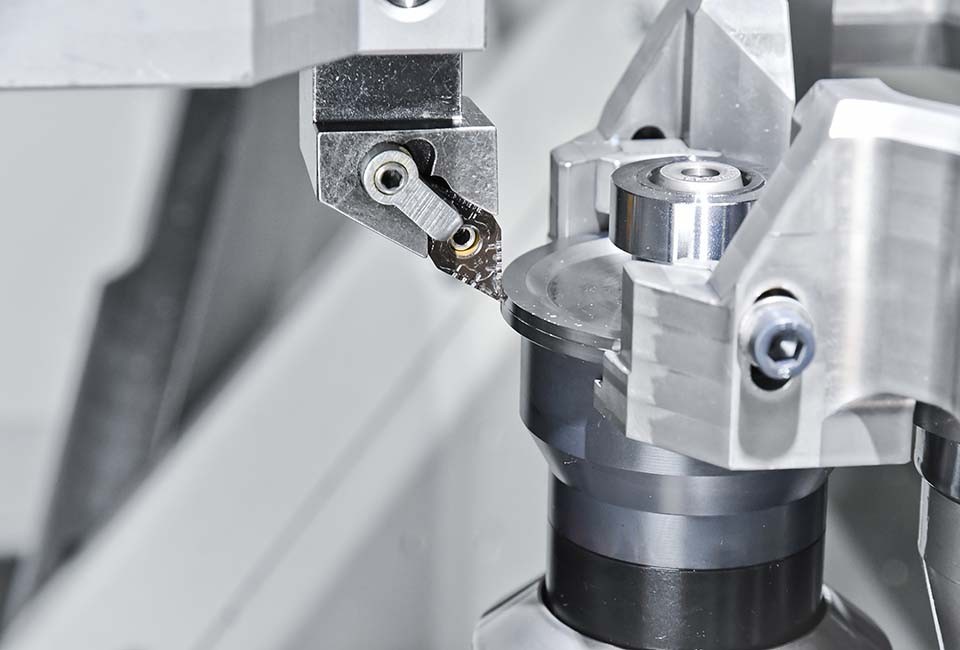

Chamfering during the machining process with LK 180 / 280 DC

With every machining process, sharp edges and burrs result from tool runout. We offer the new FlexChamfer technology to remove these during the machining process. The gears are chamfered with a standard end mill. The movements of the tool are NC-controlled and therefore ensure high reproducibility and chamfer quality.

Chamfering during the machining process with LK 180 / 280 DC

With every machining process, sharp edges and burrs result from tool runout. We offer the new FlexChamfer technology to remove these during the machining process. The toothed gears are chamfered with a standard shank cutter. The movements of the tool are NC-controlled and therefore ensure high reproducibility and chamfer quality.

Chamfering during the machining process with LK 180 / 280 DC

With every machining process, sharp edges and burrs result from tool runout. We offer the new FlexChamfer technology to remove these during the machining process. The toothed gears are chamfered with a standard shank cutter. The movements of the tool are NC-controlled and therefore ensure high reproducibility and chamfer quality.

Axes

X92 - Radial movement machining head | Z92 - Axial movement machining head | B92 - Rotary movement tool | Y92 - Tangential movement column | A92 - Tilting movement machining head | C92 - Rotary movement workpiece | Z6 - Vertical movement NC lifting station | A1 - Tilting movement tool | V1 - Tangential movement tool | C1 - Rotary movement tool | C2 - Rotary movement tool | Z1 - Axial movement gear skiving head | X1 - Rotary movement machine column | Z41 - Vertical travel tailstock | Z13 - Lowering device additional working area | C3 - Rotary movement ringloader | Z4 - Vertical movement tailstock arm | Z5 - Lowering workpiece gripper on ringloader

Wet machining

With internal gears, wet machining is advantageous because the cutting edge are cooled and lubricated, which reduces the thermal load on the tools. Another reason is that chips that form are perfectly removed, which prevents them from being drawn into the running process. Optimum chip removal significantly increases the gear and surface quality.

The new optimized control panel LHStation & LHMobile

With the control panel, Liebherr intelligently divides the programming and operation of the machine between two system parts: The large, fixed monitor unit LHStation for data input and process monitoring and the standardized, mobile handheld terminal LHMobile with context-sensitive user guidance during setup. Both units have a multi-touch surface as well as tactile elements for optimum operating speed and operating safety.

Mobile handheld unit LHMobile

• 10-inch multi-touch as standard
• Context-sensitive views such as PLC/NC keys and program statuses
• Wired signal transmission for maximum safety

The programming system by Liebherr: 25% faster setup time

With the LHGearTec software, the system constantly guides users when entering workpiece and tool data, as well as during workpiece correction and process monitoring. The user guidance has been redefined in intensive cooperation with designers and users.
