D9612 Agriculture

Configuration V-engine
Number of cylinders 12
Displacement 27.0 l
Rated power 640 - 900 kW
Rated speed 1,800 rpm
Find sales partner Find service partner

What's inside

  • Robust and highly efficient

  • Low total cost of ownership

  • Improved fuel consumption

    thanks to a twin scroll turbocharger

  • Longer service intervals

    thanks to an integrated fuel fine filter

  • Long oil change interval

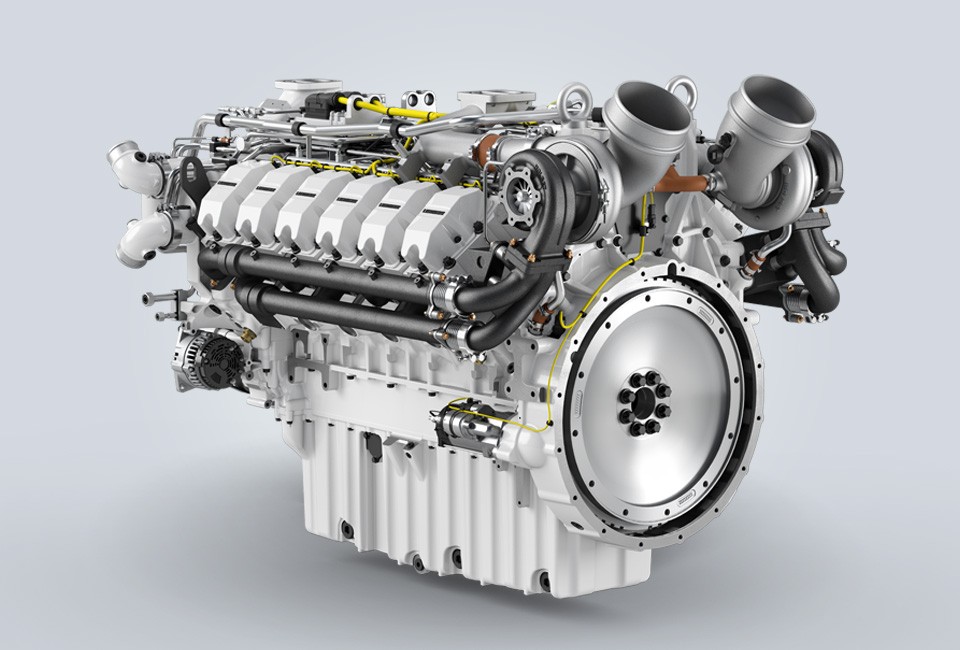

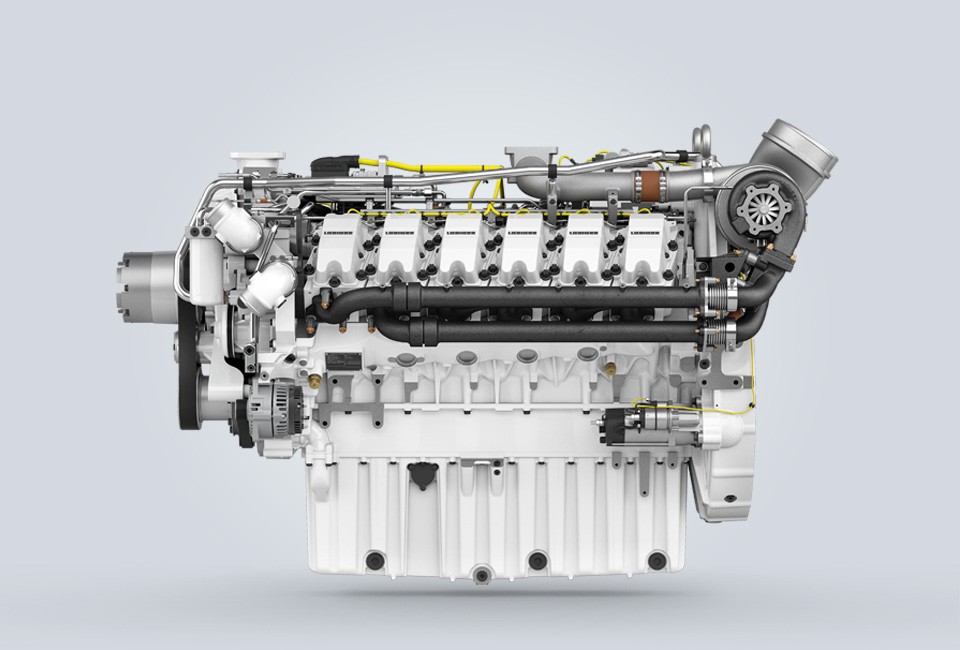

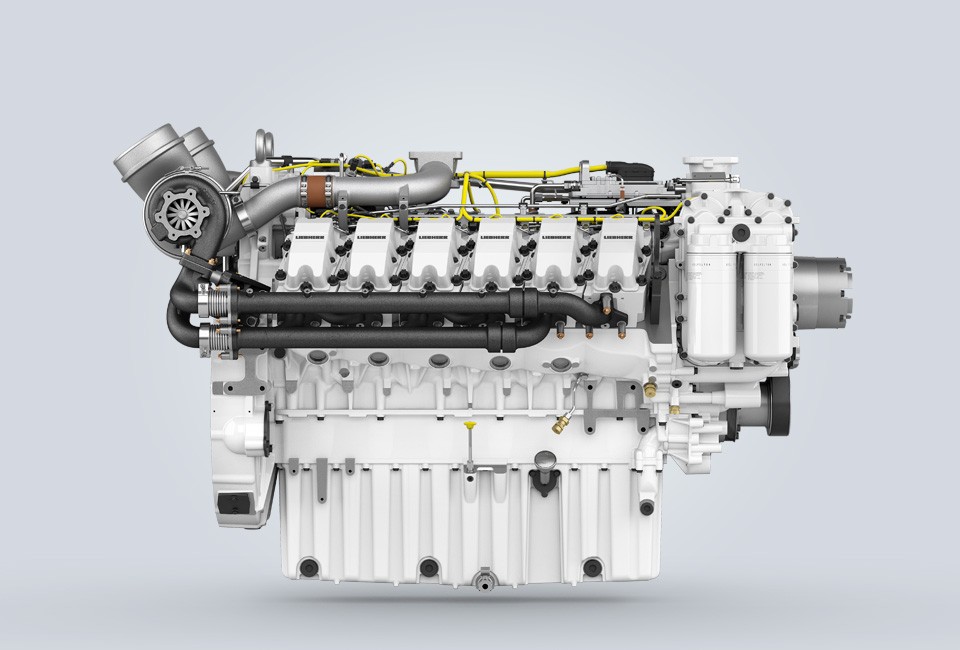

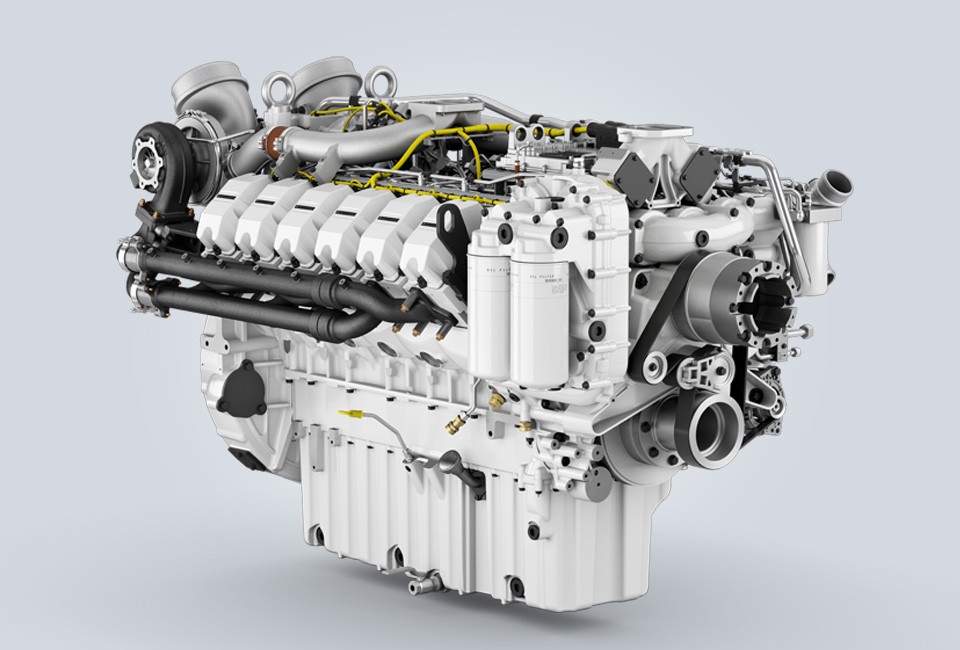

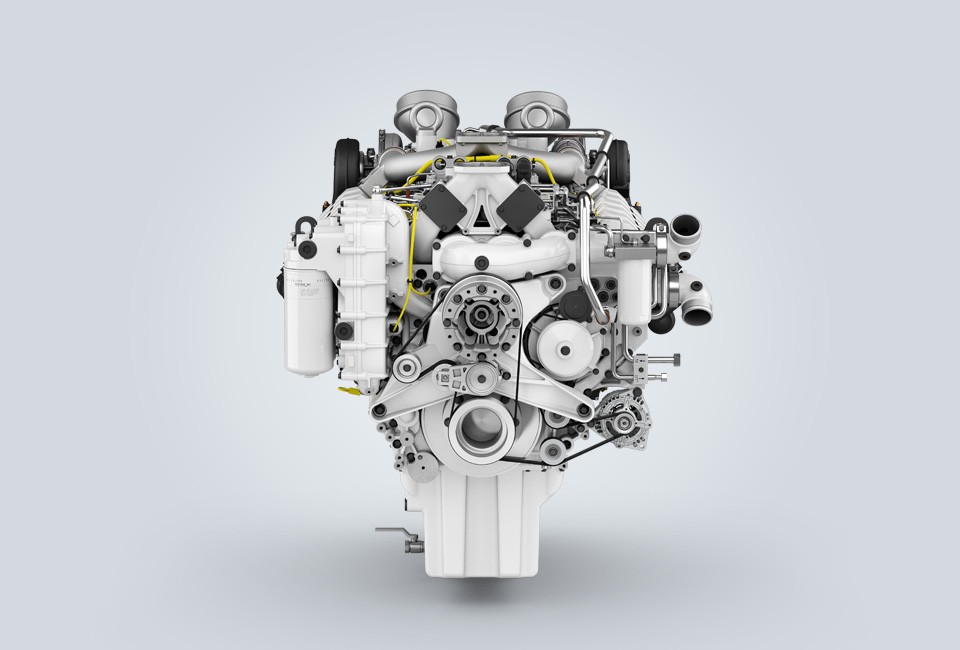

Photo gallery

Technical data
Configuration V-engine
Number of cylinders 12
Bore 135 mm
Stroke 157 mm
Displacement 27.0 l
Rated power 640 - 900 kW
Rated speed 1,800 rpm
Peak torque 5.100 Nm at 1.400 rpm
Compression ratio 17:1
Dimensions (L/W/H) 2.117/ 1.361 / 1.355 mm
Dry weight 2,350 kg
Downloads

Options available for the engine:

  • Several high power Take-off

  • Cold start kits for any temperature conditions

  • Efficient engine brake system

  • Remote fuel and oil filters

  • Air compressor

  • Several oil sumps design for all packaging installation, with oil level sensor

  • Several oil filling and dipstick position

  • Air condition accessories

  • Generator

  • Double-starter configuration

  • Several SEA-flywheel options

  • Fan drives

  • Turbocharger connections

  • Several air and water connections

  • Finger guard

  • Two service-sides

  • LiDIA diagnostic tool

  • Engine Condition monitoring
