We keep the industry moving

Manufacturing systems for the conventional powertrain

System solutions for machining manufacturing

Planning a manufacturing line can be highly complex. With Liebherr at your side, you have an experienced partner with great process and system expertise. We have proven and established ourselves as a reliable automation supplier with strong references in the automotive industry. Manufacturing lines from Liebherr are in use all over the world and ensure optimal production of large quantities of units. Our broad portfolio enables flexible system configuration with maximum productivity.

Discover our product portfolio

Gantry robots

Liebherrs gantry robots can be used in multiple ways. A modular system means the automation system can be custom adapted.

Find out more

Conveyor systems

Liebherr produces tailored conveyor systems. The high level of vertical integration enables us to implement customer wishes exactly.

Find out more

Storage systems

Liebherr offers a wide range of high-quality tool storage systems, which are used in many different fields.

Find out more

Additional devices

Liebherr helps their customers solve complicated tasks. We draw on a large scope of additional services to do this.

Find out more

Turnkey systems

Automated manufacturing systems enable the precise mechanical machining of workpieces for the conventional powertrain. The focus here is to reduce system auxiliary process times and optimize system availability.

The production design involves CNC machines working in parallel in standardized manufacturing cells. Each machine in the cell performs specific machining steps. Engine blocks, cylinder heads or gearbox housings are machined in the area for cubic parts using gear cutting, honing, drilling and thread cutting to give them the desired shapes and dimensions. Rotational and grinding processes are used when machining cylindrical workpieces like crank shafts or camshafts.

The number of machines in a cell depends on the cycle time and number of machining operations. Additional machines can be added easily. Using adapter plates means new types of workpieces can be integrated without costly retrofitting work. Conveyor belts generally facilitate material flow between the cells.

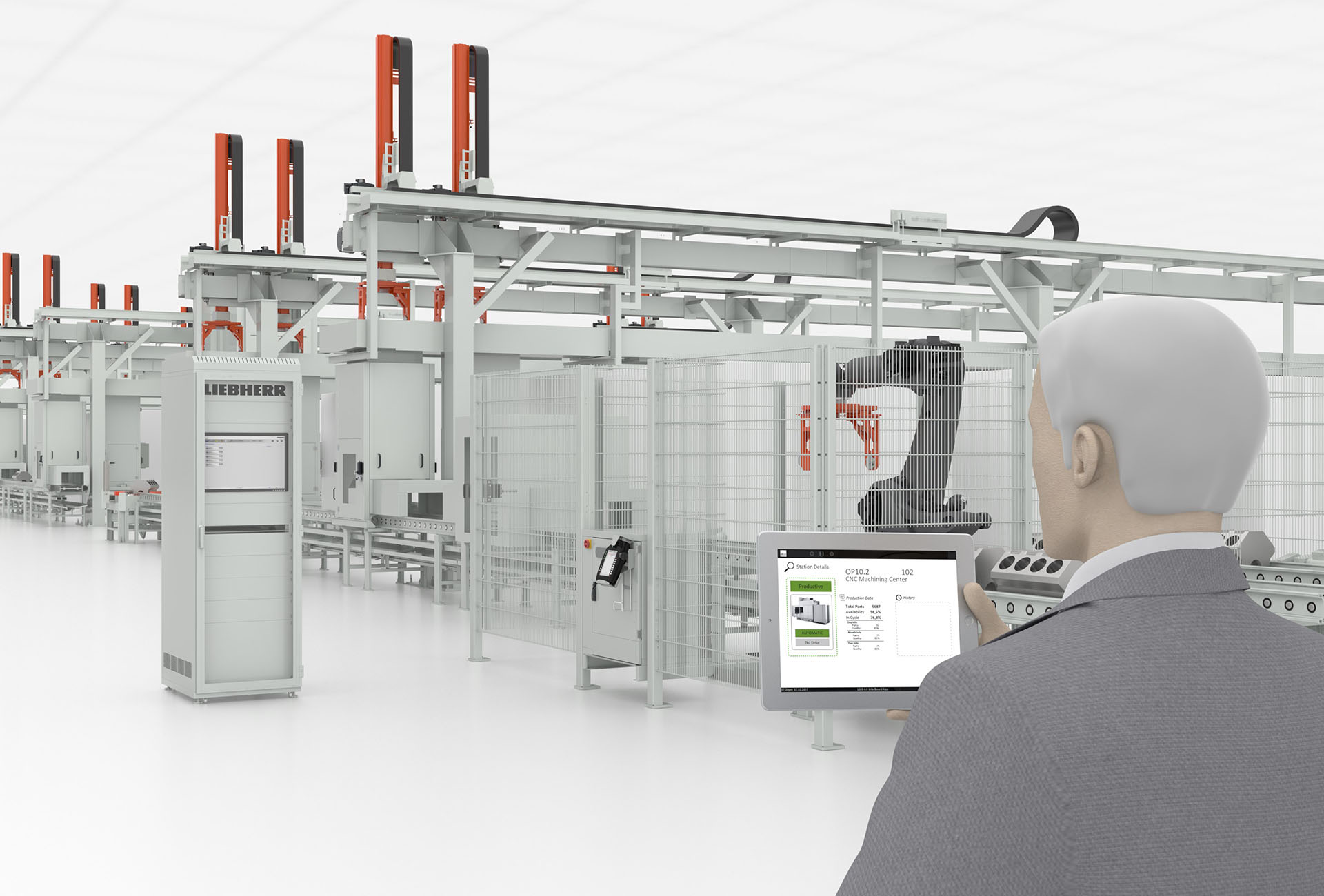

The linear gantry allows unimpeded access to the machines while sliding hatch covers ensure safe access even in Automatic Mode. Maintenance work can therefore be performed without interrupting production and keeps more systems available. Workpieces can be unloaded and loaded for quality assurance using SPC spaces.

Application examples

  • Manufacturing line for passenger vehicle engine blocks

    Manufacturing line for passenger vehicle engine blocks

  • Loading machine tools using gantry robots

    Loading machine tools using gantry robots

  • Friction roller conveyor for parts transport

    Friction roller conveyor for parts transport

  • Crank shaft

    Crank shaft

  • Car cylinder head

    Car cylinder head

  • Truck cylinder block

    Truck cylinder block
