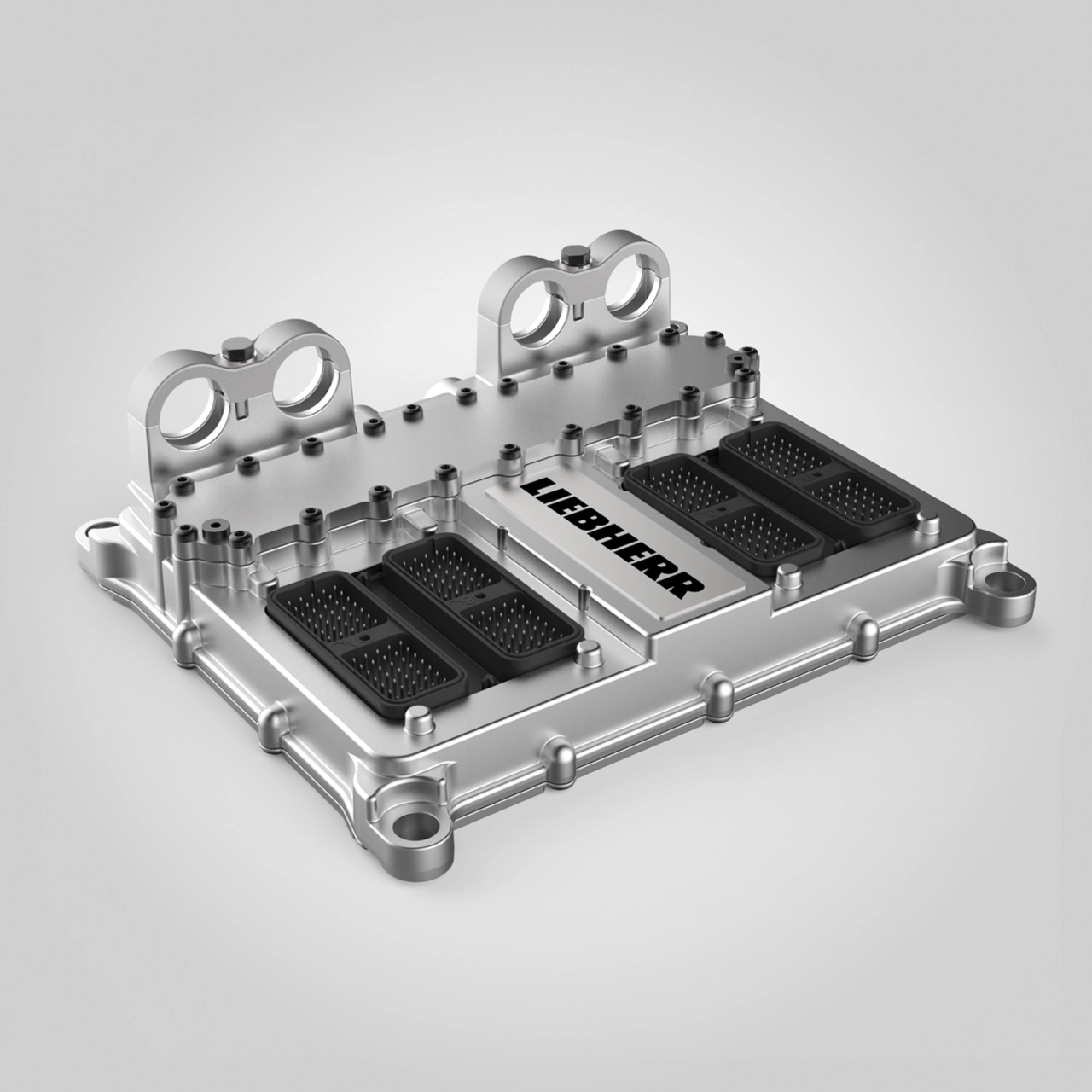

Name: ECU2-HD Engine control unit
Brand: Liebherr

Accessories for your product

The Liebherr group has a global sales and service network. Here, you can check whether a market participant already has a Liebherr partner contract.

to find the contact person responsible for you.

We have special offers and content for your country.

Results per page

Please enter an alternative search text or limit results using the filter selection.

Unfortunately, we were unable to find any results.

Functions

Unfortunately, we are having technical problems processing your inquiry.

Find out more

Products

Recommendations

Search suggestions

Search

I want to share the following page:%0D%0A{pageUrl}

Share

Facebook

Google+

LinkedIn

Twitter

Xing

YouTube

The current page is not available in the language you selected on the previous web page

Filter results

Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore.

Sorry, the desired job vacancy is no longer available.

Your wish list does not contain any products.

Results are hidden by your filtering.

Rating Plate Link Title EN-GB

Shipping Link Title EN-GB

Technical data

Highlights

Uncompromisingly robust: The ECU2-HD, rated IP6K9K, can be used under harsh conditions with connected or disconnected cable harness. The control is suitable for diesel engines and stationary gas engines with up to 12 cylinders. As a cascaded solution, it controls up to 20 cylinders. The ECU2-HD matches perfectly to the Liebherr Common Rail Systems. The ECU2 HD controls all engine functions as well as the Liebherr SCRonly or SCRFilter systems, including Ad-Blue (DEF) dosing The engine control unit enables the fulfillment of various emission regulations, e.g. EU Stage IV / V, Euro V and EPA Tier 4f. The control unit fulfills the functional safety requirements of function chains according to international safety standards. Due to the integrated self-diagnosis, the ECU2-HD checks itself, which facilitates maintenance. Integrated fuel cooling ensures safe and reliable operation of the ECU2-HD, even in case of strong heat generation.

<h2>Lindau production site</h2>

High-quality electronics for demanding machines: the Liebherr site in Lindau is specialised in the development and production of customised electronic solutions as well as a wide range of services.

Downloads

<h2>Downloads</h2>

In the download area you find an overview of all brochures and datasheets for the various Liebherr components.

<h2>Contact</h2>

Please contact us – we will answer your questions and put together an individual offer for you. If you need a component as a spare part for your Liebherr machine, please contact your local service partner.

All job vacancies

<h2>Apply Now!</h2>

We are always on the lookout for talented people who will contribute their expertise and enthusiasm to the Liebherr Group in many different fields.

Imprint

Data protection notice

Contact

Privacy Settings

Accessibility statement

Refrigeration and freezing

Earthmoving

Deep foundation

Tower cranes

Concrete technology

Mobile and crawler cranes

Mining

Aerospace and transportation systems

Material handling

Gear technology and automation systems

Components

Maritime cranes

Careers

Job vacancies

Professionals

Young professionals

Students

Pupils

We as an employer

Company

Liebherr worldwide

History

Services

Sales and service partners

Liebherr shop

Product cybersecurity

News

News and press releases

Exhibitions and events

Visit us

Youtube

TikTok

This chart is provided by Google*. When you load this chart, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.By clicking on “ACCEPT”, you consent to the data transmission to Google for this chart pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each Google chart individually in the future and want to be able to load them without this blocker, you can also select “Always accept Google Charts” and thus also consent to the respectively associated data transmissions to Google for all other Google charts that you will access on our website in the future.You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the <a href="#" data-function-id="userCentricsShowSettings" data-function-id-params="null" target="_self" class="copy-link">settings</a> (later also accessible via the “Privacy Settings” in the footer of our website).For further information, please refer to our <a href="#" data-function-id="crossEntryPoint" data-function-id-params="hau_privacy" target="_self" class="copy-link">Data Protection Declaration</a> and the Google <a href="https://policies.google.com/privacy" target="_blank" class="copy-link">Privacy Policy</a>.*Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

External content (third-party service)Google Charts

This map material is provided by Google*. When you load this map, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.By clicking on “ACCEPT”, you consent to the data transmission to Google for this map pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each Google map individually in the future and want to be able to load them without this blocker, you can also select “Always accept Google Maps” and thus also consent to the respectively associated data transmissions to Google for all other Google maps that you will access on our website in the future.You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the <a href="#" data-function-id="userCentricsShowSettings" data-function-id-params="null" target="_self" class="copy-link">settings</a> (later also accessible via the “Privacy Settings” in the footer of our website).For further information, please refer to our <a href="#" data-function-id="crossEntryPoint" data-function-id-params="hau_privacy" target="_self" class="copy-link">Data Protection Declaration</a> and the Google <a href="https://policies.google.com/privacy" target="_blank" class="copy-link">Privacy Policy</a>.* Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

External content (third-party service)Google Maps

Click RELEASE VIDEO and follow the data protection notices.

This video is provided by Google*. When you load this video, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.By clicking on “ACCEPT”, you consent to the data transmission to Google for this video pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each YouTube video individually in the future and want to be able to load them without this blocker, you can also select “Always accept YouTube videos” and thus also consent to the respectively associated data transmissions to Google for all other YouTube videos that you will access on our website in the future.You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the <a href="#" data-function-id="userCentricsShowSettings" data-function-id-params="null" target="_self" class="copy-link">settings</a> (later also accessible via the “Privacy Settings” in the footer of our website).For further information, please refer to our <a href="#" data-function-id="crossEntryPoint" data-function-id-params="hau_privacy" target="_self" class="copy-link">Data Protection Declaration</a> and the Google <a href="https://policies.google.com/privacy" target="_blank" class="copy-link">Privacy Policy</a>.* Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

Supported emission standards	EPA Tier 4f / EU Stage IV / EU Stage V / Euro V
Supported engines	Diesel engines / Stationary gas engines (CNG)
Number of supported cylinders	12
Supported injection systems	Common rail systems
Integrated SCR control interface	yes
