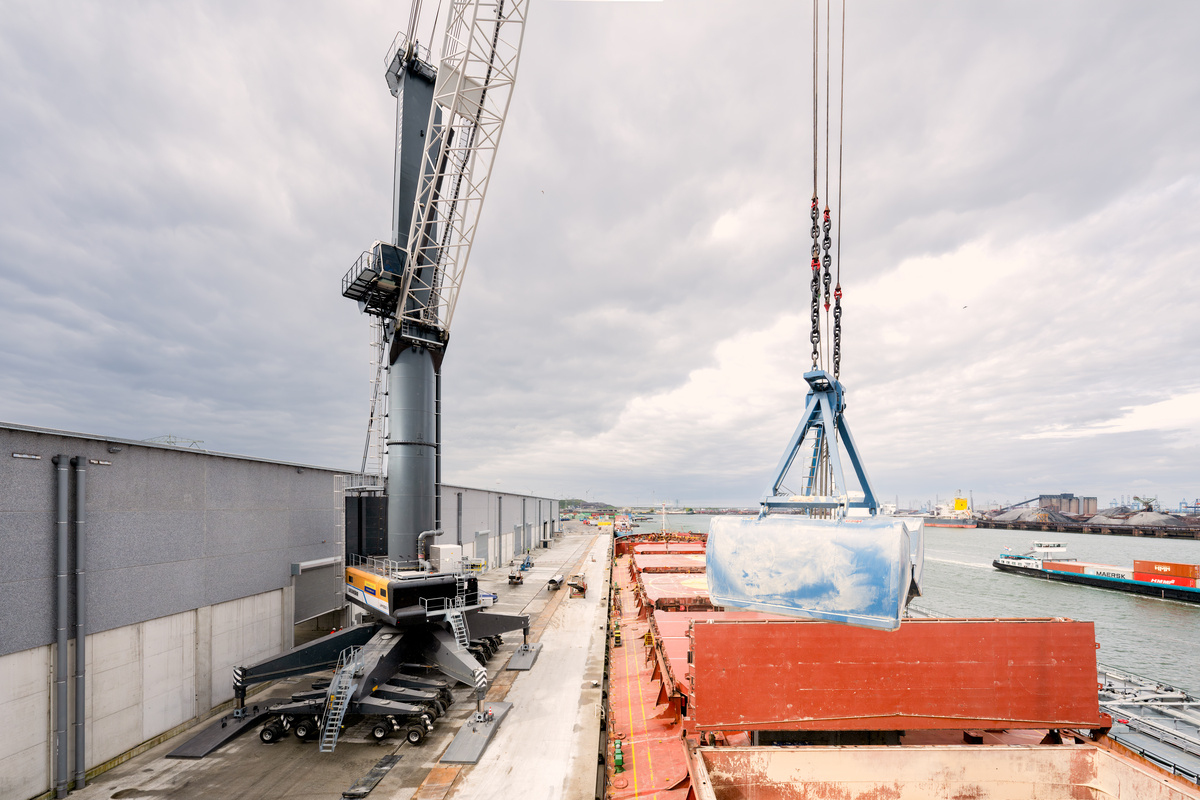

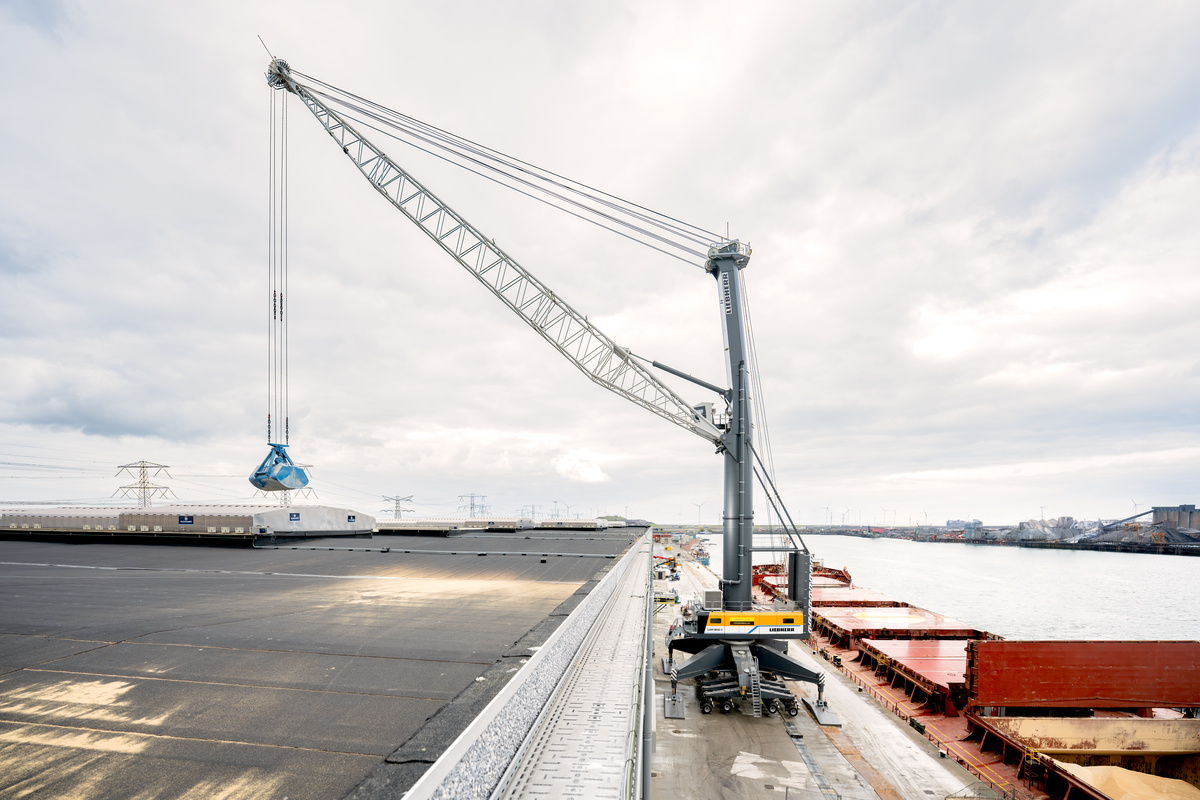

The LHM 800 is the most powerful mobile harbour crane in the world. Owing to its huge dimensions, the crane handles large freighters with a width of up to 22 rows of containers. Thanks to its maximum lifting capacity of over 300 tonnes, the crane is particularly suitable for the handling of heavy industrial goods. The bulk cargo capacity of this giant is also unique at 2,300 tonnes per hour.

metricimperial
  • Lifting capacity (max.) - 308 t

  • Jib length - 64 m

  • Total weight - 742 t

  • Hoisting/lowering max. - 120 m/min

product image 0
Lifting capacity (max.)
308 t
Max. load bulk
90 t
Radius min.
12.00 m
Jib length
64 m
Total weight
742 t
Container rows max.
23
Max. ship width bulk
73 m
Max. ship width scrap
57 m
Material handling capacity bulk
1,500 t/h
Engine power
750 kW
Hoisting/lowering max.
120 m/min
Slewing max.
1.60 rpm
Luffing max.
95 m/min
Travel speed max.
4.00 km/h
Mobility
rubber tyred
Fields of application
Bulk handling / Container handling / General cargo operation / Heavy lift / Scrap handling
Lifting height max.
54 m
