Deep FoundationAttachmentsDrilling toolsKelly drilling toolsTremie pipe ESR 200

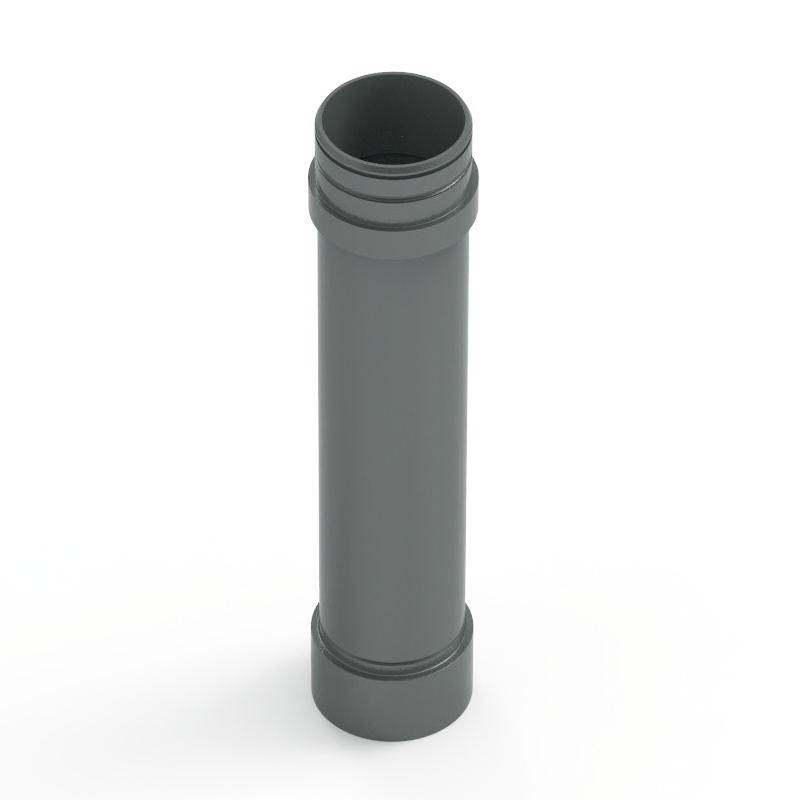

Tremie pipes are used for filling fresh concrete into boreholes < 880 mm when installing drilled piles and prevents the fresh concrete from separating.

metricimperial

  • Range of application - Filling with fresh concrete

  • Diameter - 200 mm

  • Scope of delivery - Other diameters available on request

  • Type - Tremie pipe

product image 0

Variants

ESR 200 NL 1000ESR 200 NL 2000ESR 200 NL 3000ESR 200 NL 4000ESR 200 NL 5000ESR 200 NL 6000
Casing outside diameter (mm)219219219219219219
Effective length (mm)1,0002,0003,0004,0005,0006,000
Total length (mm)1,1052,1053,1054,1055,1056,105
Weight (kg)4881147114180213
Outside diameter (mm)254254254254254254
Article no.119185571196530511965306119653071196530811965309

  • Operating weight - 59.4 t

  • Max. torque - 180 kNm

  • Kelly drilling, max. drilling depth - 34.5 m

  • Kelly drilling, max. drilling diameter - 1,500 mm

  • Operating weight - 52.8 t

  • Max. torque - 200 kNm

  • Kelly drilling, max. drilling depth - 34.5 m

  • Kelly drilling, max. drilling diameter - 1,500 mm

  • Operating weight - 69.3 - 79.9 t

  • Max. torque - 252 kNm

  • Kelly drilling, max. drilling depth - 53.2 m

  • Kelly drilling, max. drilling diameter - 3,300 mm

  • Operating weight - 71.1 - 82.1 t

  • Max. torque - 252 kNm

  • Kelly drilling, max. drilling depth - 53.2 m

  • Kelly drilling, max. drilling diameter - 3,300 mm

  • Operating weight - 73.6 - 84.6 t

  • Max. torque - 297 kNm

  • Kelly drilling, max. drilling depth - 70.8 m

  • Kelly drilling, max. drilling diameter - 3,400 mm

  • Operating weight - 75.5 - 85.5 t

  • Max. torque - 297 kNm

  • Kelly drilling, max. drilling depth - 70.8 m

  • Kelly drilling, max. drilling diameter - 3,400 mm

  • Type - Sleeve

  • Range of application - Tremie pipes

  • Type - Pins

  • Range of application - Tremie pipes

  • Type - O-ring

  • Range of application - Tremie pipes

  • Type - Connector wire

  • Range of application - Tremie pipes

  • Type - Concreting ball

  • Range of application - Tremie pipes

  • Type - Spacer

  • Range of application - Tremie pipes
