Type CB-RSC cased

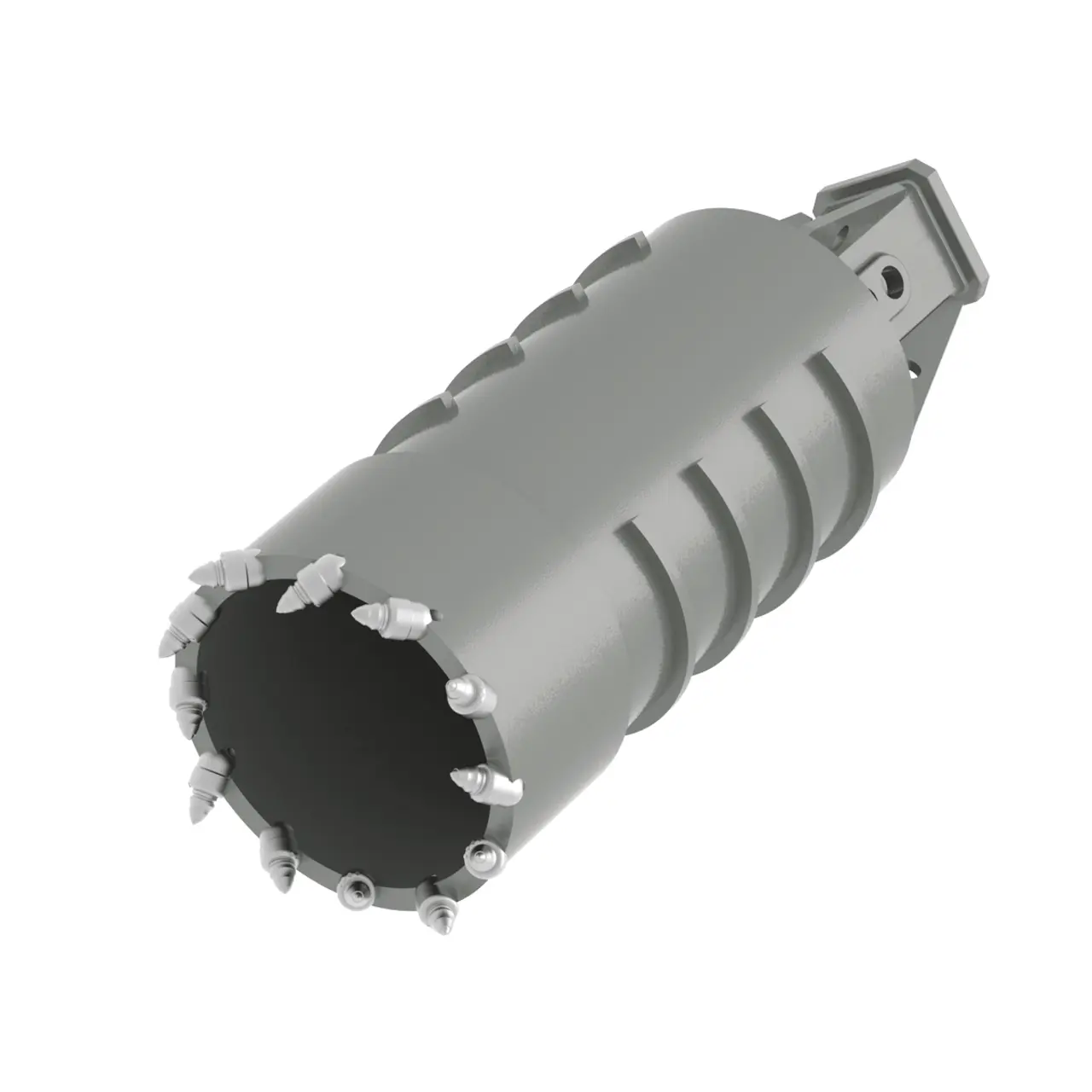

Name: Type CB-RSC cased Core barrel with round shank chisels
Brand: Liebherr

Core barrel with round shank chisels

metric

imperial

Effective length - 1,200 mm
1,200 mm
Diameter - 520 - 1,840 mm
520 - 1,840 mm
Casing - cased
cased
Range of application - Hard rock up to 100 MPa, unreinforced concrete
Hard rock up to 100 MPa, unreinforced concrete
Equipment - Kelly box 200 mm, easily exchangeable cutting ring with round shank chisels, hardfacing as wear protection
Kelly box 200 mm, easily exchangeable cutting ring with round shank chisels, hardfacing as wear protection

Variants

	CB-RSC Ø 520 cased	CB-RSC Ø 650 cased	CB-RSC Ø 700 cased	CB-RSC Ø 780 cased	CB-RSC Ø 900 cased	CB-RSC Ø 970 cased	CB-RSC Ø 1060 cased	CB-RSC Ø 1180 cased	CB-RSC Ø 1370 cased	CB-RSC Ø 1650 cased	CB-RSC Ø 1840 cased
Diameter (mm)	520	650	700	780	900	970	1,060	1,180	1,370	1,650	1,840
Casing outside diameter (mm)	620	750	800	880	1,000	1,080	1,180	1,300	1,500	1,800	2,000
Casing inside diameter (mm)	540	670	720	800	920	1,000	1,100	1,220	1,420	1,720	1,910
Effective length (mm)	1,200	1,200	1,200	1,200	1,200	1,200	1,200	1,200	1,200	1,200	1,200
Total length (mm)	2,000	2,000	2,000	2,000	2,000	2,000	2,000	2,000	2,000	2,000	2,000
Weight (kg)	568	713	789	818	920	1,105	1,050	1,340	1,598	1,969	2,222
Max. torque (kNm)	350	350	350	480	480	480	480	480	480	480	480
Article no.	13646872	13646873	13653057	14104440	14104441	13653059	14104442	14110635	13653970	13653060	13653972
