Type AU-P cased

Progressive rock auger heavy-duty design

Progressive rock auger with round shank chisels and pilot bit

metric

imperial

Effective length - 1,500 mm
1,500 mm
Diameter - 520 - 1,840 mm
520 - 1,840 mm
No. of cutters - progressive
progressive
Pilot - Round shank chisel
Round shank chisel
Connector - Kelly box - 200 mm Spanner width
Kelly box - 200 mm Spanner width
Casing - cased
cased
Range of application - Hard rock up to 100 MPa
Hard rock up to 100 MPa
Equipment - Kelly box 200 x 200 mm, round shank chisels densely mounted on the progressive auger part, exchangeable round shank chisel pilot bit, easily exchangeable hard metal wear plates and hardfacing as wear protection
Kelly box 200 x 200 mm, round shank chisels densely mounted on the progressive auger part, exchangeable round shank chisel pilot bit, easily exchangeable hard metal wear plates and hardfacing as wear protection

Variants

	AU-P Ø 520 cased	AU-P Ø 650 cased	AU-P Ø 700 cased	AU-P Ø 780 cased	AU-P Ø 900 cased	AU-P Ø 970 cased	AU-P Ø 1060 cased	AU-P Ø 1180 cased	AU-P Ø 1370 cased	AU-P Ø 1650 cased	AU-P Ø 1840 cased
Diameter (mm)	520	650	700	780	900	970	1,060	1,180	1,370	1,650	1,840
Casing outside diameter (mm)	620	750	800	880	1,000	1,080	1,180	1,300	1,500	1,800	2,000
Casing inside diameter (mm)	540	670	720	800	920	1,000	1,100	1,220	1,420	1,720	1,910
Effective length (mm)	1,500	1,500	1,500	1,500	1,500	1,500	1,500	1,500	1,500	1,500	1,500
Total length (mm)	2,300	2,300	2,300	2,300	2,300	2,300	2,300	2,300	2,300	2,300	2,300
Weight (kg)	780	975	1,015	1,090	1,210	1,280	1,390	1,490	1,690	1,910	2,300
Max. torque (kNm)	350	350	350	480	480	480	480	480	480	480	480
Article no.	13653884	13653888	13653889	13653890	13653892	13653893	13653895	14110604	13653897	13653899	13653901

Rotary drilling tools for Kelly drilling

Wear parts for drilling tools

Drilling rig

Drilling rig (LB series)

Drilling rig (LB series)

Drilling rig (LB series)

Drilling rig (LB series)

Drilling rig (LB series)

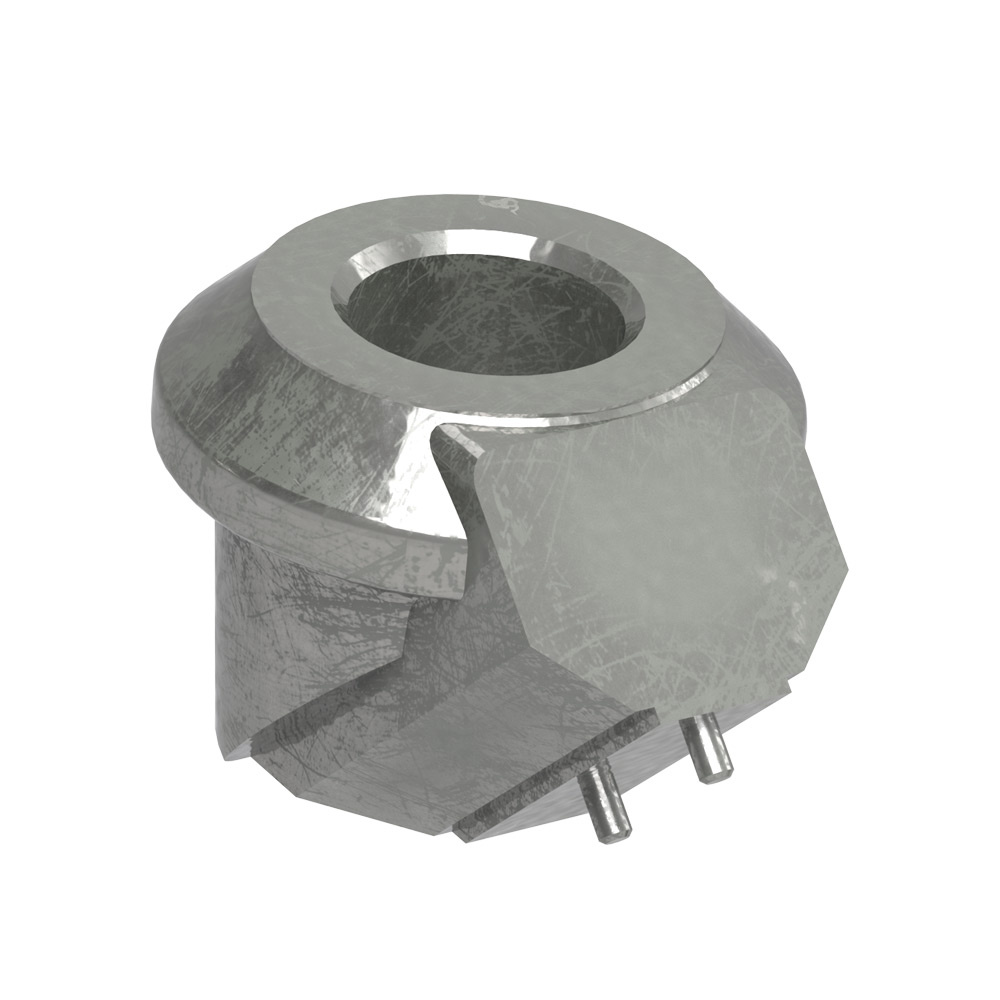

Holder for round shank chisels
