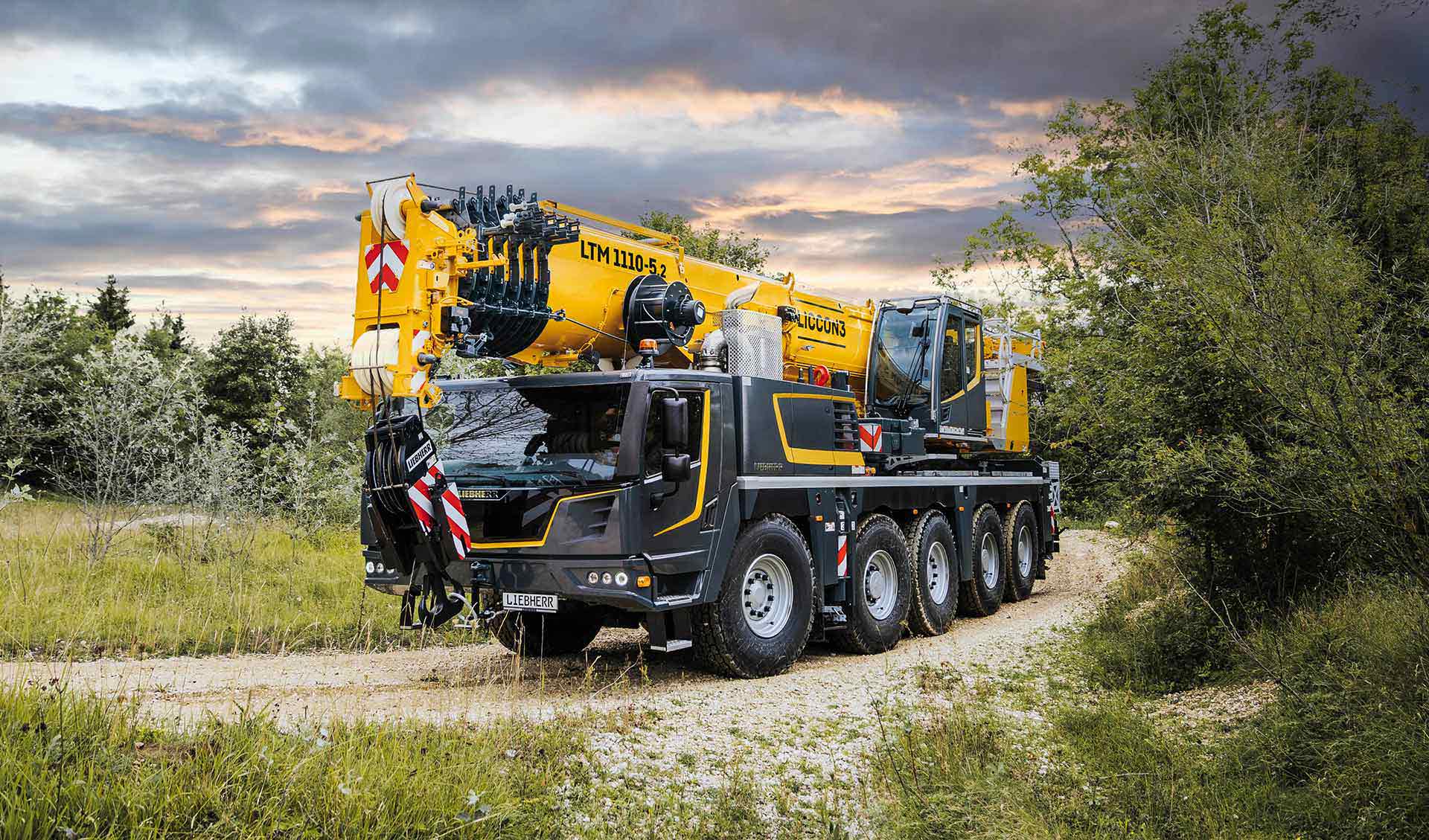

Technical Data - Mobile crane LTM 1110-5.2 [m/t]

Videos

•

  This video is provided by Google*. When you load this video, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.

  By clicking on “ACCEPT”, you consent to the data transmission to Google for this video pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each YouTube video individually in the future and want to be able to load them without this blocker, you can also select “Always accept YouTube videos” and thus also consent to the respectively associated data transmissions to Google for all other YouTube videos that you will access on our website in the future.

  You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the settings (later also accessible via the “Privacy Settings” in the footer of our website).

  For further information, please refer to our Data Protection Declaration and the Google Privacy Policy.^{*Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).}

  Engineered for the future, built on experience

Boom/jib combinations

Boom/jib combinations

Driving conditions

On-road driving

Jobsite driving

Ballast systems

Counterweight

Technology

ECOmode

ECOmode minimises both fuel consumption and noise emissions when operating the crane superstructure. The crane operator sets the required working speed using the control lever. The crane control system calculates the perfect engine speed for the diesel engine.

ECOdrive

ECOdrive makes the mobile crane significantly more comfortable and quieter by reducing the engine speed. Faster gearshifting delivers greater dynamic and traction offroad. On the road, the torque from the Liebherr diesel engine is used efficiently to minimise fuel consumption.

Single-engine concept

Take one engine out to increase lifting capacity. Or more accurately – the superstructure is powered by the undercarriage engine. Gear shafts are routed from the distributor gear in the substructure via two mitre gears to the pump distributor gear in the superstructure. That enables us to remove one engine – and we use this to increase the crane’s lifting capacity.

Hillstart-Aid

Hillstart-Aid makes starting on gradients easier. Move off safely and easily without rolling backwards.

RemoteDrive

The RemoteDrive remote control enables the crane to be controlled from outside the driver’s cabin. This is not only possible during crane operations, but also whilst driving on the site. This delivers greater safety and comfort as the crane operator has a better view of problem areas as he can be right next to them. In other words, the operator can move himself to the areas with difficult access.

LICCON3

The third generation LICCON control system features the same time-tested operation as previous generations and adds a fast data bus, significantly more storage space and greater computing power. LICCON3 cranes are prepared for telematics and fleet management.

VarioBase® Plus

The combination of VarioBase technology and the crane’s structural steelwork. A trapezoidal support combined with the various support base delivers even higher lifting capacities, particularly over the crane’s rear outriggers.

AutoBallast

The AutoBallast function completes the ballasting process automatically. All the steps are carried out after the button has been pressed just once.

WindSpeed load charts

Increased flexibility and safety by using lifting capacity tables with different maximum wind speeds.

HVO ready

Up to 90 % lower CO2 emissions in action.
