The Hydrostatic Drive

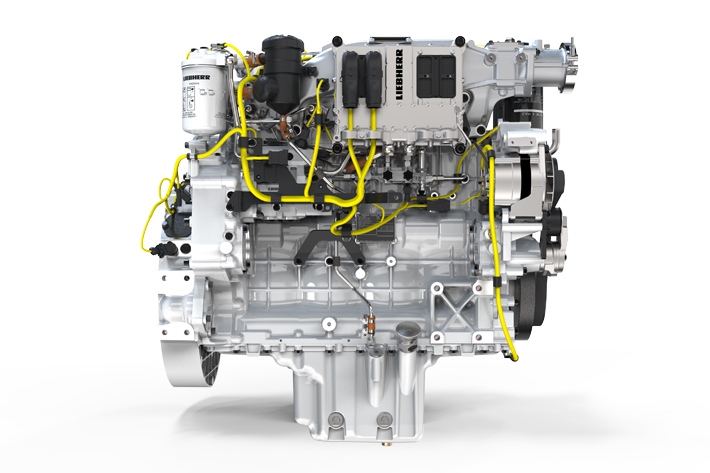

The Liebherr diesel engine with 230 kW in combination with the hydrostatic drive contributes significantly to low fuel consumption.
Ever since the market launch in June 2015, all the devices of the LRS 545 series have been among the most innovative ones on the reachstacker market. The decisive factor above all is the unique drive concept of the Liebherr reachstackers, the hydrostatic drive. This concept is a high-end solution developed by Liebherr and has already proven itself in over 70,000 Liebherr wheel loaders.
It enables a number of unique advantages over competitive products, e.g. maintenance- and wear-intensive parts such as differential and torque converters can be saved.
Fuel Savings
Furthermore, the hydrostatic drive combined with the extremely economical 230 kW Liebherr diesel engine provides possible fuel savings of up to 30% compared to the market average.
Video
The Right Machine for every Job

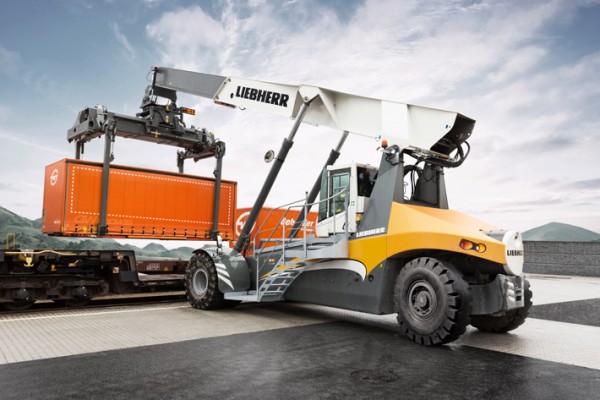

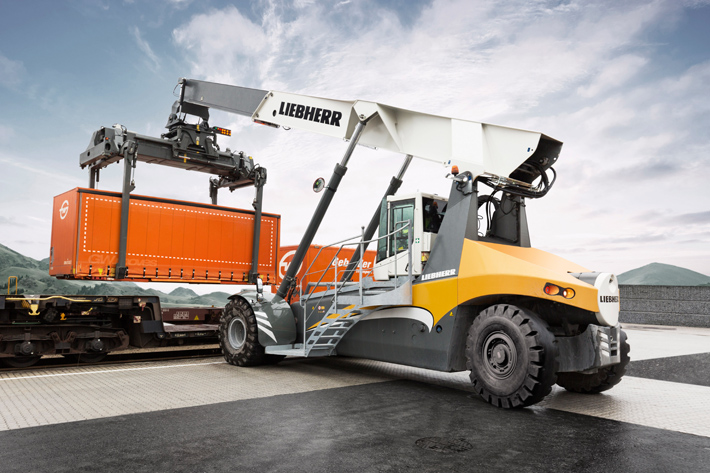

Liebherr LRS 545-31 in intermodal handling at a rail terminal in Austria.
Liebherr offers different spreader types and also various machine configurations. Depending on customer requirements, we are able to provide machines with a maximum lifting capacity of either 27, 31 or even 35 tonnes in the second container row.
Efficient LRS 545 Log Handler
Sophisticated design and proven quality standards make the new Liebherr LRS 545 Log Handler a hallmark of reliability. The design of the Log Handler is optimised for quick and easy service. All relevant parts are easily accessible which ensures short idle times. With up to 30 tonnes lifting capacity and a maximum grapple capacity of 8.2 m², the new Log Handler from Liebherr sets standards when it comes to timber handling performance. The telescopic boom allows an unrivalled range of up to 8.5 metres and stacking height of up to 8.9 metres. Another advantage is the possibility of log handling below ground level.
Video
All-round visibility

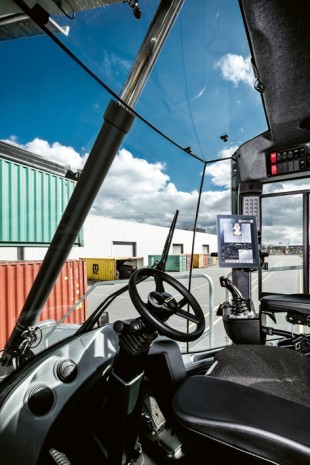

The innovative Topview System offers the driver an excellent rear and side view from a bird’s eye perspective.
Thanks to the individual wheel drive and the excellent panoramic view from the driver's cab, our reachstackers are well-known for their high mobility and all-round visibility, even on terminals with narrow container rows. The proven cab design and the slim wedge shape offer a particularly safe and pleasant driving experience in the new devices.
Topview Camera System
To extend the safety aspect during operation, Liebherr developed the new Topview Camera System, which is an optional feature available for all device types of the LRS 545 series. The innovative Topview System offers the driver an excellent rear and side view from a bird’s eye perspective, without any blind spots. Due to the logical composition of three camera images, the complete rear area is covered by the system at an angle of 270°.
Video
