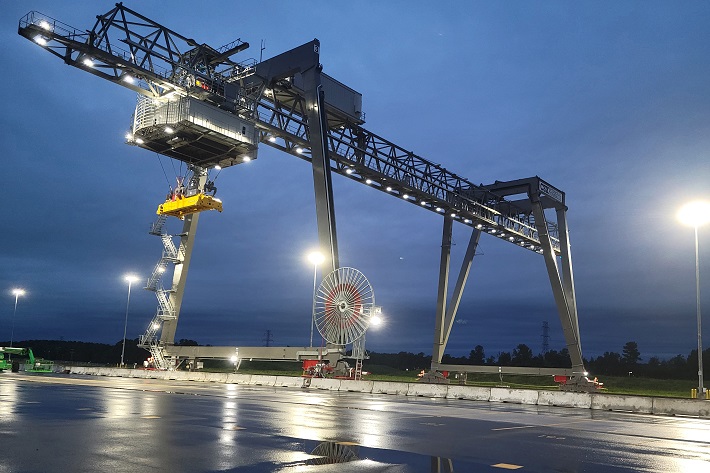

Liebherr Container Cranes Ltd. are delighted to have handed over three fully automated rail mounted gantry cranes to the CSX Carolina Connector Intermodal Terminal (CCX) in Rocky Mount, North Carolina. The cabinless RMGs have been supplied with Liebherr Remote operator Stations (ROS) for supervised moves and exception handling.
The widespan Liebherr RMGs have a span of 165 ft. (50.292 m), a lift height over rail of 50 ft. (15.24 m) and cantilevered outreaches both sides with a safe working load of 40 long tons (40.6 tonnes). Within the span, the machines will work five rail lines and a four-high, five-wide container stack, with a further two rail lines under one of the cantilevers. Truck handling will take place under the other cantilever in a dedicated truck transfer area. Container handling on the stack is fully automated and in line with terminal safety procedures, picking and placing from the rail cars is carried out remotely using supervised moves. Truck handling employs a combination of manual and supervised moves. The RMGs will operate on both domestic 53’ wide top pick containers and ISO containers, handling single and double stacked rail cars.
An industrial data centre with redundant servers and a high speed fibre network anchor the automated crane operations and communications. A 3D measurement system scans the operational area, continuously creating and updating profiles of container stacks, railcars and hazards, providing key data for path planning and automatic operation. XYZ crane positioning is provided by Infrared spreader tracking, RFID gantry and trolley positioning technologies further supported by encoders.
A proprietary obstacle generation and monitoring system is at the heart of the cranes’ automation. Built by a team of Liebherr engineers and based on decades of automation expertise by the Liebherr Group, the system has been tailored to precise customer requirements. It works seamlessly together with the Tideworks TOS through a customer-specific interface.
For safety, a Yardeye system has been installed. This system monitors operational traffic, particularly pinmen vehicles in and around the RMG operational area allowing for safe operation. The system uses both GNSS and RFID, which provides for increased accuracy and redundancy, tracking the position, heading and velocity of equipped vehicles in the yard in real time.
Fast and precise operation reduces energy consumption
The new cranes bring state-of-the-art, emission-free container handling to CCX. In line with Liebherr’s long established simultaneous motion approach to container handling, the automated RMG includes 3 dimensional stack and train profiling allowing optimal path planning and the most productive and efficient spreader path rather than the traditional approach of square moves. This approach increases productivity and throughput and also results in a further reduction of energy consumption. The Liebherr drive system with active front end and simultaneous motion allows power usage to be optimised on the crane and regenerated energy fed back to the grid.
Liebherr’s eight-rope-reeving system is inherently stable and ensures precise and faster final positioning times whilst the micro-motion controls ensure smooth remote driver operation when placing containers onto trucks.
The CCX terminal is ideally positioned with over 5 million customers within a 120 mile radius and has exceptional connectivity being located in close proximity to I-95 highway and the growing Raleigh metro area. The new machines bring state-of-the-art freight handling to North Carolina whilst the electric cranes have zero local emissions.
