LIPOS®- Liebherr Positioning System for deep foundation machines

Accurate positioning and precise execution of piling or drilling processes are crucial for the success of deep foundation machinery. Using latest satellite navigation technology, Liebherr’s positioning system LIPOS assists the driver in aligning attachments and tools precisely. The compiled data of the piling or drilling processes can be stored for quality assurance and project reporting.

Precise positioning

Liebherr’s positioning system LIPOS enables direct integration of positioning technology for exact and significantly faster alignment of deep foundation machines and their attachment tools. Moreover, it eliminates stake out work, which leads to time and cost savings with drilling or piling jobs.

LIPOS® - Accuracy at its best

  • LIPOS allows for easy integration of Differential Global Navigation Satellite Systems (DGNSS) solutions.

    Accurate satellite navigation technology

    LIPOS allows for easy integration of Differential Global Navigation Satellite Systems (DGNSS) solutions.

  • After surveying, a digitalized design plan is created and transferred into the machine navigation system in the cabin.

    Digital design plan

    After surveying, a digitalized design plan is created and transferred into the machine navigation system in the cabin.

  • Digital design plans eliminate stake out work, which leads to savings in time and cost, as well as increased safety on the jobsite.

    Reduction of stake out work

    Digital design plans eliminate stake out work, which leads to savings in time and cost, as well as increased safety on the jobsite.

  • An additional DGNSS site tablet guides the driver to the exact position on the construction site.

    Machine navigation system guided by satellite

    An additional DGNSS site tablet guides the driver to the exact position on the construction site.

  • The exact positioning eliminates measurement works which results in faster working cycles.

    Precise alignment

    The exact positioning eliminates measurement works which results in faster working cycles.

  • Process data reporting can be enhanced by adding position data, which enables complete process transparency, traceability and documentation.

    Documentation of working processes

    Process data reporting can be enhanced by adding position data, which enables complete process transparency, traceability and documentation.

  • Consistent reports based on recorded data can be used for quality assurance checks of piling and drilling procedures.

    Quality assurance

    Consistent reports based on recorded data can be used for quality assurance checks of piling and drilling procedures.

    • Video

    We need your consent This YouTube video is provided by Google*. If you load the video, your data - including your IP address - is transmitted to Google and may be stored and processed by Google inter alia in the USA. We have no influence over further data processing by Google. By clicking on "Accept", you consent to the transmission of data to Google for this video in accordance with Art. 6 (1) (a) GDPR and at the same time expressly consent to the transfer of data to the USA in accordance with Art. 49 (1) (a) GDPR. If you no longer wish to consent to each YouTube video individually in the future and wish to be able to load the videos without this blocker, you can also select "Always accept YouTube" and thereby consent to the associated data transmissions and transfers to Google and to the USA for all other YouTube videos which you open on our website in the future. Please note that, in the opinion of the European Court of Justice, there does not currently exist an adequate level of data protection in line with EU standards in the USA, and at present we cannot provide suitable safeguards to protect your data and offset this shortcoming. Possible risks to you of data transfer to the USA are that access by state authorities cannot be excluded and that your data could be processed for reasons of national security, criminal prosecution or for other purposes in the public interest of the USA, possibly without you being informed separately and without enforceable rights and effective means of redress being available to you. You can withdraw consent that you have given at any time with future effect via the settings. For further information, please see our Data Protection Declaration and Google's Privacy Policy. *Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Irland; Mutterunternehmen: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA
    Demonstration clip of the LIPOS® Machine Positioning System for accurate alignment of deep foundation machinery at the jobsite. Play video We need your consent This YouTube video is provided by Google*. If you load the video, your data - including your IP address - is transmitted to Google and may be stored and processed by Google inter alia in the USA. We have no influence over further data processing by Google. By clicking on "Accept", you consent to the transmission of data to Google for this video in accordance with Art. 6 (1) (a) GDPR and at the same time expressly consent to the transfer of data to the USA in accordance with Art. 49 (1) (a) GDPR. If you no longer wish to consent to each YouTube video individually in the future and wish to be able to load the videos without this blocker, you can also select "Always accept YouTube" and thereby consent to the associated data transmissions and transfers to Google and to the USA for all other YouTube videos which you open on our website in the future. Please note that, in the opinion of the European Court of Justice, there does not currently exist an adequate level of data protection in line with EU standards in the USA, and at present we cannot provide suitable safeguards to protect your data and offset this shortcoming. Possible risks to you of data transfer to the USA are that access by state authorities cannot be excluded and that your data could be processed for reasons of national security, criminal prosecution or for other purposes in the public interest of the USA, possibly without you being informed separately and without enforceable rights and effective means of redress being available to you. You can withdraw consent that you have given at any time with future effect via the settings. For further information, please see our Data Protection Declaration and Google's Privacy Policy. *Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Irland; Mutterunternehmen: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA

    Downloads

    Sophisticated data interface

    Port expansion in Hamburg

    Port expansion in Hamburg

    Port expansion in Hamburg

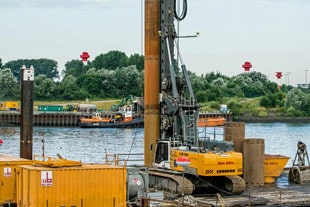

    Liebherr drilling rig LB 36 with LPOS® installed

    The LIPOS® data interface provides the GNSS machine control system with the required sensor data from the control unit of the Liebherr machine, for example tilt/inclination or rope length for depth measurement.

    Furthermore, DGNSS position data can be stored using a software enhancement from Liebherr’s proven process data recording system PDE® for deep foundation machines.

    Seamless integration into existing Liebherr IT solutions

    LiDAT® process data transmission enables automated transfer of position and process data via mobile communication network to the reporting software PDR2 for visualization and analysis purposes. Reports generated in the PDR2 solution are used for traceability, documentation and quality assurance of piling and drilling processes.

  • A software enhancement of the proven process data recording (PDE ® ) stores additional position data from external Machine Navigation Systems.

    Recording of positional data

    A software enhancement of the proven process data recording (PDE®) stores additional position data from external Machine Navigation Systems.

  • The LiDAT ® data transmission enables automated transfer of different data types from the piling or drilling rig via mobile network to the reporting software PDR2.

    Telematic data transmission

    The LiDAT® data transmission enables automated transfer of different data types from the piling or drilling rig via mobile network to the reporting software PDR2.

  • The process data reporting software PDR2 combines different types of data (e.g. machine, process or position data) from various sources in one consistent report.

    Reporting

    The process data reporting software PDR2 combines different types of data (e.g. machine, process or position data) from various sources in one consistent report.

    • Contact

    For further information please do not hesitate to contact our team for IT solutions:

    Downloads

    Simple integration of DGNSS hardware

    A mechanical preparation kit for external machine navigation systems consists of fixtures that allow for easy and quick installation of DGNSS hardware without the need to change the machine structure.

  • The GNSS antennas are mounted on the pivot point of the leader inclination cylinders for an optimum signal quality and intensity.

    Satellite antenna adapters

    The GNSS antennas are mounted on the pivot point of the leader inclination cylinders for an optimum signal quality and intensity.

  • Receiver and junction box are mounted with brackets in the motor compartment.

    Receiver and junction box

    Receiver and junction box are mounted with brackets in the motor compartment.

  • The radio antenna is fixed with magnet holder above the driver's cabin.

    Radio antenna

    The radio antenna is fixed with magnet holder above the driver's cabin.

  • The site tablet is easily fixed with brackets and a ball joint in the driver’s cabin.

    Navigation site tablet

    The site tablet is easily fixed with brackets and a ball joint in the driver’s cabin.

    • Contact

    For further information please do not hesitate to contact our team for IT solutions:

    Downloads

    Compatible machines and applications

    Please contact our experts for IT solutions to check if LIPOS is available for your machine configuration and application.

    The following machine types are compatible for LIPOS:

    Table is scrollable
    Drilling rigs (LB series) Piling and drilling rigs (LRB series)
    LB 16 unplugged
    LB 20.1 / LB 16-180
    LB 25 / LB 20-230
    LB 30 / LB 24-270
    LB 35 / LB 28-320
    LB 45 / LB 36-410
    LB 55 / LB 44-510    		 LRB 16
    LRB 18
    LRB 23
    LRB 355

    Methods and applications

    Contact

    For further information please do not hesitate to contact our team for IT solutions:

    Downloads

    Connected and digitalized IT solutions for deep foundation machinery

    We need your consent This YouTube video is provided by Google*. If you load the video, your data - including your IP address - is transmitted to Google and may be stored and processed by Google inter alia in the USA. We have no influence over further data processing by Google. By clicking on "Accept", you consent to the transmission of data to Google for this video in accordance with Art. 6 (1) (a) GDPR and at the same time expressly consent to the transfer of data to the USA in accordance with Art. 49 (1) (a) GDPR. If you no longer wish to consent to each YouTube video individually in the future and wish to be able to load the videos without this blocker, you can also select "Always accept YouTube" and thereby consent to the associated data transmissions and transfers to Google and to the USA for all other YouTube videos which you open on our website in the future. Please note that, in the opinion of the European Court of Justice, there does not currently exist an adequate level of data protection in line with EU standards in the USA, and at present we cannot provide suitable safeguards to protect your data and offset this shortcoming. Possible risks to you of data transfer to the USA are that access by state authorities cannot be excluded and that your data could be processed for reasons of national security, criminal prosecution or for other purposes in the public interest of the USA, possibly without you being informed separately and without enforceable rights and effective means of redress being available to you. You can withdraw consent that you have given at any time with future effect via the settings. For further information, please see our Data Protection Declaration and Google's Privacy Policy. *Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Irland; Mutterunternehmen: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA

    The LIPOS® machine positioning system enables efficient, precise and accurate alignment of drilling and piling rigs at the jobsite.

    Combined piling and drilling rigs LRB 16 & LRB 18

    We need your consent This YouTube video is provided by Google*. If you load the video, your data - including your IP address - is transmitted to Google and may be stored and processed by Google inter alia in the USA. We have no influence over further data processing by Google. By clicking on "Accept", you consent to the transmission of data to Google for this video in accordance with Art. 6 (1) (a) GDPR and at the same time expressly consent to the transfer of data to the USA in accordance with Art. 49 (1) (a) GDPR. If you no longer wish to consent to each YouTube video individually in the future and wish to be able to load the videos without this blocker, you can also select "Always accept YouTube" and thereby consent to the associated data transmissions and transfers to Google and to the USA for all other YouTube videos which you open on our website in the future. Please note that, in the opinion of the European Court of Justice, there does not currently exist an adequate level of data protection in line with EU standards in the USA, and at present we cannot provide suitable safeguards to protect your data and offset this shortcoming. Possible risks to you of data transfer to the USA are that access by state authorities cannot be excluded and that your data could be processed for reasons of national security, criminal prosecution or for other purposes in the public interest of the USA, possibly without you being informed separately and without enforceable rights and effective means of redress being available to you. You can withdraw consent that you have given at any time with future effect via the settings. For further information, please see our Data Protection Declaration and Google's Privacy Policy. *Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Irland; Mutterunternehmen: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA

    Animation clip of the new piling and drilling rigs LRB 16 and LRB 18 operating with LIPOS® Positioning System.

    Downloads
