LRB 23

Piling and drilling rig (LRB series)

The compact piling and drilling rig type LRB 23 closes the gap between the LRB 16 and the long-proven LRB 355. An impressive engine output provides the all-rounder with the necessary capacity for all common deep foundation work, such as Kelly drilling, double rotary drilling, full displacement equipment and continuous flight auger, as well as soil mixing and applications with a vibrator or hydraulic hammer.

metric

imperial

Operating weight - 72.6 - 78.5 t
72.6 - 78.5 t
Max. torque - 300 kNm
300 kNm
Max. crowd force - 320 kN
320 kN
Engine power - 600 kW
600 kW

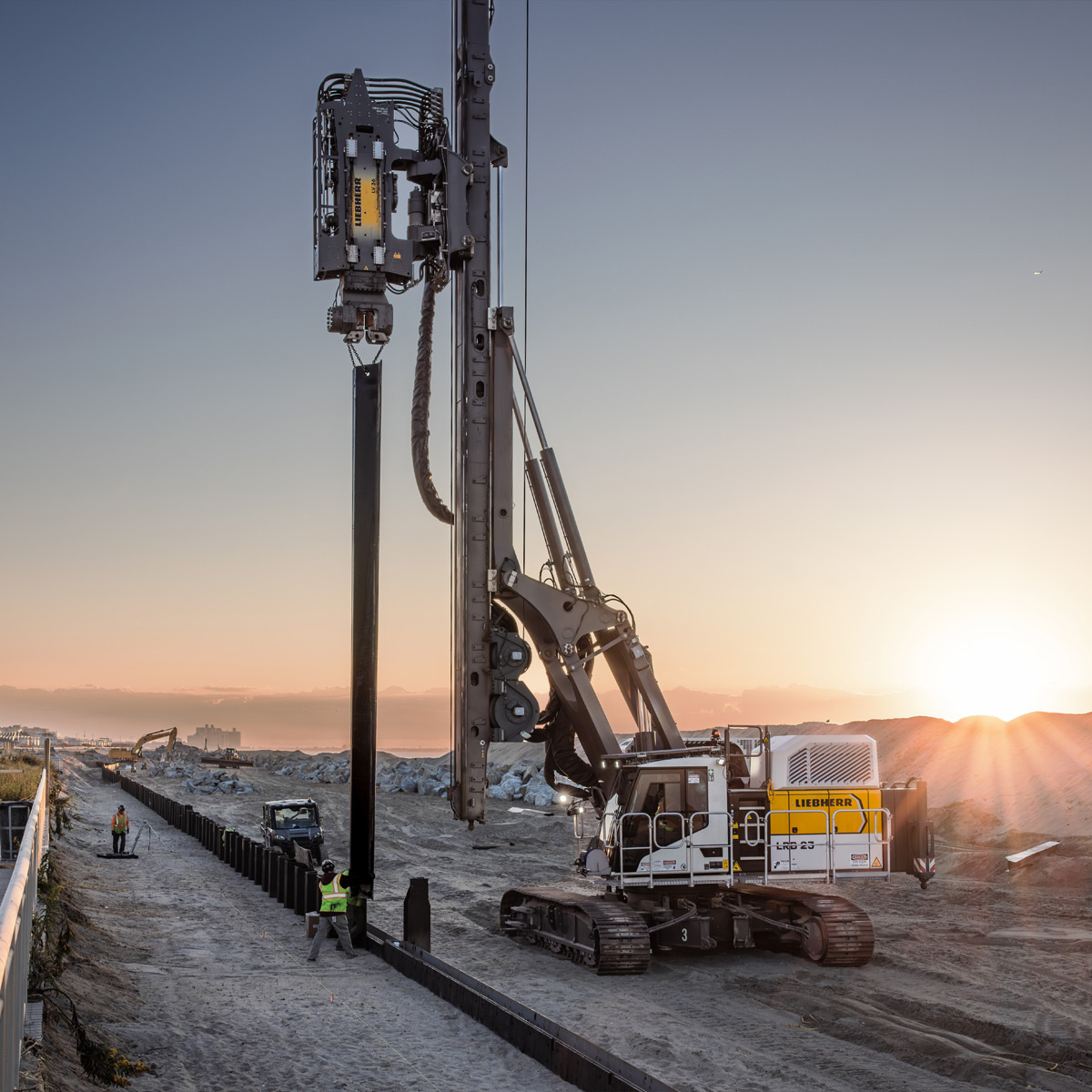

Pile driving with vibrator slim design, max. pile length - 22.0 m
22.0 m

Economic fuel consumption

Innovative hydraulic concepts achieve high performance and keep fuel consumption low, despite reduced engine power.

Obstacle recognition

An improvement for slurry wall application is the obstacle recognition, which enables the timely detection of obstacles in the soil. This protects both the attachment and the basic machine.

Easy transportation and quick set-up

Basic machine and leader can be transported in one piece with all hydraulic hoses connected. The minimized assembly work allows for quick and easy transportation of the machine between jobsites.

Safe access

Side platform, railings and ladders are fully integrated in the new machine design and no longer need to be removed for transport.

High operator comfort

The innovative cabin design includes a modern air-conditioning system and an optimized view from the cabin, as well as an orthopaedic operator’s seat. All switches, joysticks and pedals are ergonomically positioned.

Attachment recognition

The automatic attachment recognition also records performance figures of the respective attachment.

Operating weight	72.6 - 78.5 t
Max. torque	300 kNm
Max. winch line pull	230 kN
Max. crowd force	320 kN
Engine power	600 kW
Kelly drilling, max. drilling depth	72.3 m
Kelly drilling, max. drilling diameter	2,900 mm
Continuous flight auger drilling, max. drilling depth	31.7 m
Continuous flight auger drilling, max. drilling diameter	1,200 mm
Full displacement drilling, max. drilling depth	32.2 m
Full displacement drilling, max. drilling diameter	600 mm
Double rotary drilling, max. drilling depth	22.2 m
Double rotary drilling, max. drilling diameter	900 mm
Soil mixing, max. effective length	32.0 m
Pile driving with vibrator slim design, max. pile length	22.0 m
Pile driving with hydraulic hammer, max. pile length	20.0 m
Min. transport width	3,390 mm
Min. transport height	3,600 mm

Technical data – LRB 23 piling and drilling rig

Technical data (USA) – LRB 23 piling and drilling rig

Overview LRB series piling and drilling rigs

Overview LRB series piling and drilling rigs (USA)

Solutions for deep foundation work

Technical data - Vibrator LV 20 / LV 20 F

Rotary drilling tools for Kelly drilling

CFA drilling tools

Wear parts for drilling tools

Customer service for crawler cranes and foundation machines

Field Service

Original Liebherr Retrofits

Upgrade: Earth Spike

MyJobsite

LiSIM - training simulators for construction machines

Positioning System

Concrete pump controlled from the Liebherr deep foundation machine

Process data recording PDE and process data reporting PDR

Fuel costs matter! Efficiency-enhancing engine features

LiDAT – Data transmission and tracking system for crawler cranes and deep foundation machines

Rear supports

The robust undercarriage offers excellent stability, which can be further increased with the optional rear supports.

MyJobsite

One single tool for the collection, documentation and analysis of all process, machine, construction site and position data.

Recording of working processes (PDE)

With the PDE process data recording system machine data is recorded during the working process.

LIPOS positioning system

Accurate positioning and precise execution of piling or drilling processes.

Remote control

The complete loading and set-up processes can be carried out via remote control, which means only one person is required.

Kelly Visualization

Locking of the Kelly bar’s telescopic sections is made significantly easier due to the Kelly Visualization system.

Kelly drilling

Kelly drilling belongs to the most common dry rotary drilling methods. Soil and rock material is conveyed to the surface discontinuously with relatively short rotary drilling tools.

Vibrating

Vibrating allows for installing and extracting elements using harmonious vibration.

Continuous flight auger drilling

The loosened soil material is continuously conveyed to the surface using a continuous auger, the so-called continuous flight auger.

Impact driving

Impact driving uses a hydraulic hammer for the installation of various types of pile. The hammer’s ram mass impacts on the pile.

Full displacement drilling

Full displacement drilling is a modification of continuous flight auger drilling. The drilling tool used is a smooth pipe with an auger-type starter piece.

Double rotary drilling

Double rotary drilling combines continuous flight auger drilling with a continuous casing.
