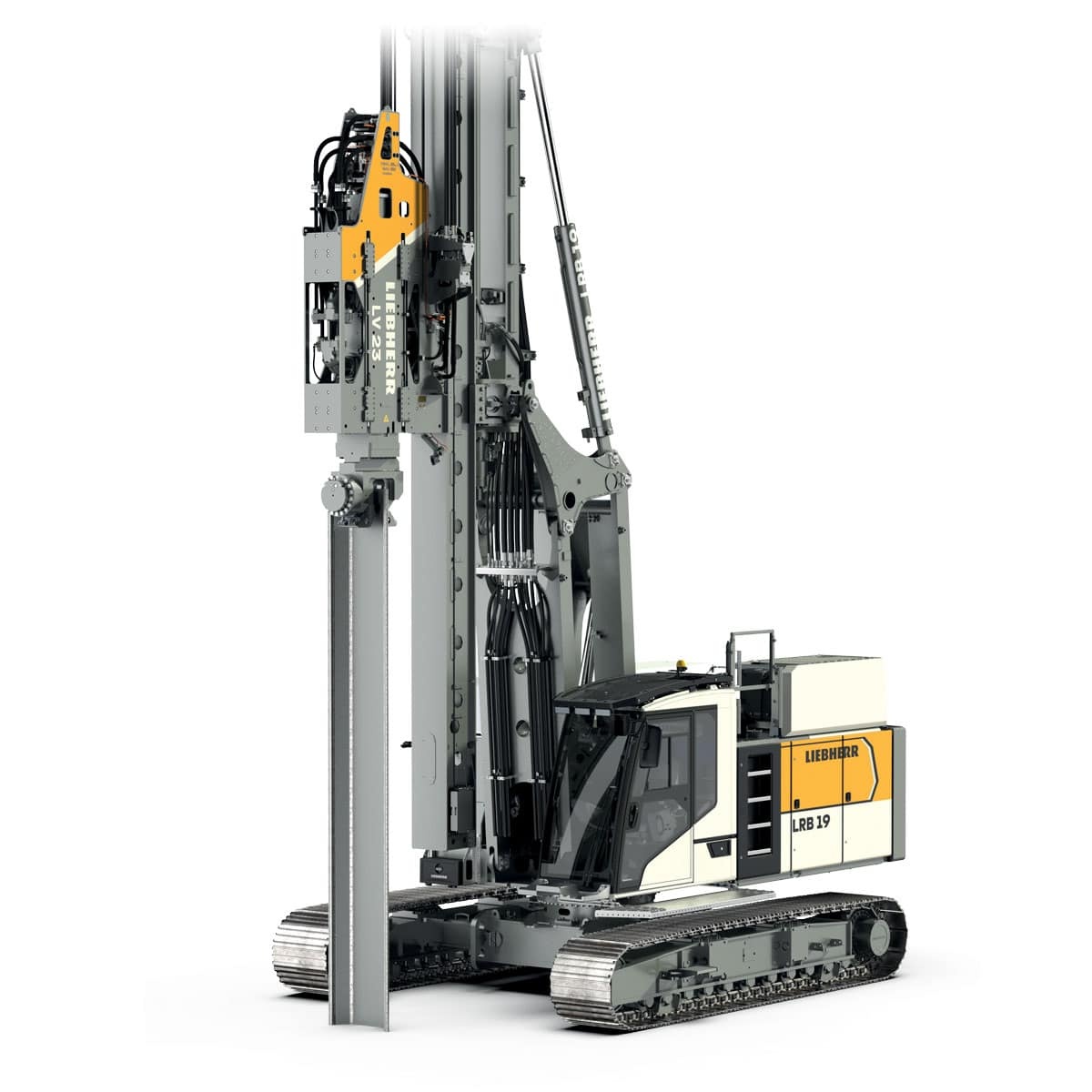

LRB 19

Piling and drilling rig (LRB series)

The LRB 19 is designed for all common applications in specialised civil engineering, such as piling and vibrating applications as well as drilling with Kelly equipment, double drill head, full displacement tool or soil mixing. The attachments can be easily changed using the hydraulic quick-change system without the driver having to leave the cab. All hydraulic, mechanical and electrical connections are automatically coupled. Improved hose routing optimises the work process. The name LRB 19 refers to the maximum travel distance of the carriage of 19 metres. A 450 kW motor provides the necessary...

metric

imperial

Operating weight - 53.0 t
53.0 t
Operating weight - 48.2 - 50.7 t
48.2 - 50.7 t
Max. torque - 180 kNm
180 kNm
Max. crowd force - 250 kN
250 kN
Engine power - 450 kW
450 kW
Pile driving with vibrator slim design, max. pile length - 18.0 m
18.0 m

Operating weight	53.0 t
Operating weight	48.2 - 50.7 t
Max. torque	180 kNm
Max. winch line pull	110 kN
Max. crowd force	250 kN
Engine power	450 kW
Kelly drilling, max. drilling depth	24.6 m
Kelly drilling, max. drilling diameter	2,800 mm
Continuous flight auger drilling, max. drilling depth	22.2 m
Continuous flight auger drilling, max. drilling diameter	800 mm
Full displacement drilling, max. drilling depth	23.8 m
Full displacement drilling, max. drilling diameter	600 mm
Double rotary drilling, max. drilling depth	16.0 m
Double rotary drilling, max. drilling diameter	800 mm
Soil mixing, max. effective length	24.0 m
Pile driving with vibrator slim design, max. pile length	18.0 m
Pile driving with hydraulic hammer, max. pile length	15.5 m
Min. transport width	3,000 mm
Min. transport height	3,270 mm
Soil mixing, max. mixing diameter	1,500 mm

Technical data - LRB 19 piling and drilling rig

Technical data (USA) - LRB 19 piling and drilling rig

Overview LRB series piling and drilling rigs

Technical data Vibrator LV 23 and LV 23 F

Overview LRB series piling and drilling rigs (USA)

Technical data Vibrator LV 23 and LV 23 F (USA)

Solutions for deep foundation work

Rotary drilling tools for Kelly drilling

CFA drilling tools

Wear parts for drilling tools

Customer service for crawler cranes and foundation machines

Field Service

Original Liebherr Retrofits

Upgrade: Earth Spike

MyJobsite

LiSIM - training simulators for construction machines

Positioning System

Concrete pump controlled from the Liebherr deep foundation machine

Remote control

The complete loading and set-up processes can be carried out via remote control, which means only one person is required.

Ground Pressure Visualization

The Ground Pressure Visualization calculates the current ground pressure of the machine in real time and compares it with the specified safety limits of the relevant jobsite.

Eco silent mode

With the eco silent mode the engine speed can be reduced to a predefined, required level. With this feature a notable reduction in diesel consumption can be achieved without any impact on operational output. Noise emissions are thus also lowered.

Kelly drilling

Kelly drilling belongs to the most common dry rotary drilling methods. Soil and rock material is conveyed to the surface discontinuously with relatively short rotary drilling tools.

Vibrating

Vibrating allows for installing and extracting elements using harmonious vibration.

Continuous flight auger drilling

The loosened soil material is continuously conveyed to the surface using a continuous auger, the so-called continuous flight auger.

Impact driving

Impact driving uses a hydraulic hammer for the installation of various types of pile. The hammer’s ram mass impacts on the pile.

Full displacement drilling

Full displacement drilling is a modification of continuous flight auger drilling. The drilling tool used is a smooth pipe with an auger-type starter piece.

Double rotary drilling

Double rotary drilling combines continuous flight auger drilling with a continuous casing.
