Deep FoundationMachinesCarrier machine for slurry wall constructionLBX 600 unplugged

The carrier machine for slurry wall construction fulfils the requirements of jobsites in urban areas in particular. The compact size combined with the battery-powered unplugged version enables work in even the most confined spaces and noise-sensitive areas. The machine does not produce any exhaust fumes and are extremely quiet. The battery is charged using a conventional jobsite electric supply. The compact carrier machine can be transported in one piece. A modular boom system allows for three different versions of the machine and a high degree of flexibility. The LBX 600 can be fitted with me...

metricimperial

  • Max. working depth - 80 m

  • Max. grab weight, full - 30 t

  • Max. pull force in grab operation (dual-winch operation) - 450 kN

  • Max. pull force in recovery mode (dual-winch operation) - 600 kN

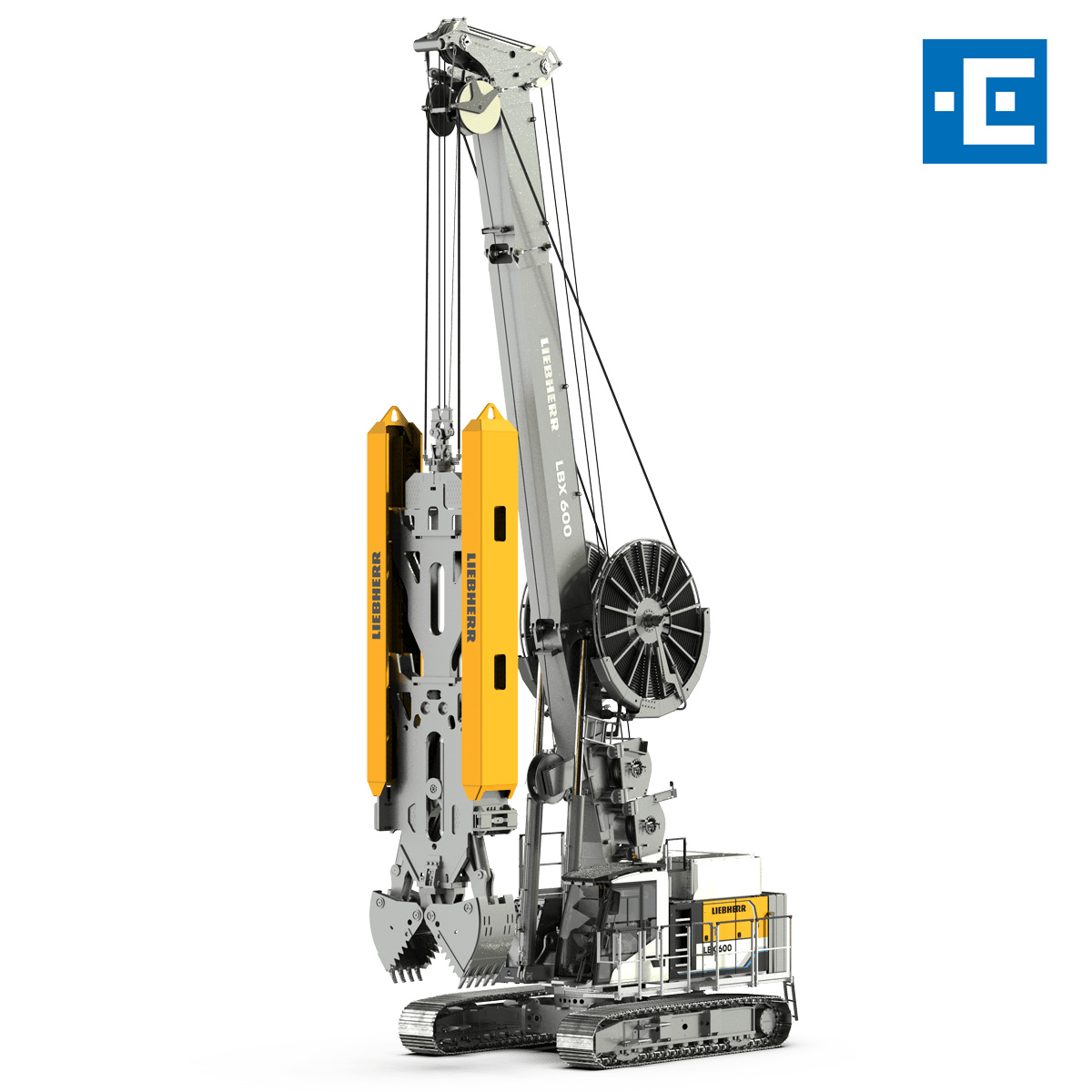

product image 0
Zero Emission
The machine causes no local emissions and significantly less noise. Thus, it is also suitable for operation in areas sensitive to noise.
Electric engine
The innovative Liebherr machine has an electric engine.
Unplugged (battery powered)
The machine can be operated by battery without a cable, therefore: unplugged.
Plugged in (socket operation)
The machine can operate fully when connected to a conventional electric supply, or be recharged within a few hours.
Modular box boom
The modular boom system offers a high degree of flexibility.
Various attachments
The carrier machine can be operated with a hydraulic or mechanical slurry wall grab, or a chisel.
Max. working depth
80 m
Max. grab weight, full
30 t
Max. pull force in grab operation (dual-winch operation)
450 kN
Max. pull force in recovery mode (dual-winch operation)
600 kN
Drive
Electric (zero emission)
Engine power
390 kW
System performance
390 kW
Max. winch line pull
2 x 300 kN
Battery charging time
5.0 h
Battery capacity
4 h
Min. transport width
3,000 mm
Min. transport height
3,600 mm
Operating weight
72.5 t

Technical data – LBX 600 carrier machine for slurry wall operation

Technical data (USA) – LBX 600 carrier machine for slurry wall operation

Verticality Assistant
This system monitors the slurry wall installation process by measuring the deviations between the slurry wall and the grab. Additionally the productivity data is recorded.
MyJobsite
One single tool for the collection, documentation and analysis of all process, machine, construction site and position data.
Recording of working processes (PDE)
With the PDE process data recording system machine data is recorded during the working process.
LIPOS positioning system
Accurate positioning and precise execution of piling or drilling processes.
Ground Pressure Visualization
The Ground Pressure Visualization calculates the current ground pressure of the machine in real time and compares it with the specified safety limits of the relevant jobsite.
Remote control
The remote control simplifies the loading process for transportation as well as the assembly of the machine.
Slurry wall installation with grab
A clamshell grab excavates the slurry wall panels.
Verticality Assistant
This system monitors the slurry wall installation process by measuring the deviations between the slurry wall and the grab. Additionally the productivity data is recorded.
Ground Pressure Visualization
The Ground Pressure Visualization calculates the current ground pressure of the machine in real time and compares it with the specified safety limits of the relevant jobsite.
Remote control
The remote control simplifies the loading process for transportation as well as the assembly of the machine.
LIPOS positioning system
Accurate positioning and precise execution of piling or drilling processes.
MyJobsite
One single tool for the collection, documentation and analysis of all process, machine, construction site and position data.
Recording of working processes (PDE)
With the PDE process data recording system machine data is recorded during the working process.
Slurry wall installation with grab
A clamshell grab excavates the slurry wall panels.

  • This video is provided by Google*. When you load this video, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.

    By clicking on “ACCEPT”, you consent to the data transmission to Google for this video pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each YouTube video individually in the future and want to be able to load them without this blocker, you can also select “Always accept YouTube videos” and thus also consent to the respectively associated data transmissions to Google for all other YouTube videos that you will access on our website in the future.

    You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the settings (later also accessible via the “Privacy Settings” in the footer of our website).

    For further information, please refer to our Data Protection Declaration and the Google Privacy Policy.*Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

    LBX 600 - Carrier machine for slurry wall constructio

  • This video is provided by Google*. When you load this video, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.

    By clicking on “ACCEPT”, you consent to the data transmission to Google for this video pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each YouTube video individually in the future and want to be able to load them without this blocker, you can also select “Always accept YouTube videos” and thus also consent to the respectively associated data transmissions to Google for all other YouTube videos that you will access on our website in the future.

    You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the settings (later also accessible via the “Privacy Settings” in the footer of our website).

    For further information, please refer to our Data Protection Declaration and the Google Privacy Policy.*Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

    Video LBX 600

  • Wall thickness - 500 - 1,800 mm

  • Jaw opening width - 2,500 - 3,600 mm

  • Max. closing force at teeth - 594 kN
