Deep FoundationAttachmentsHSG 5-18 C/L

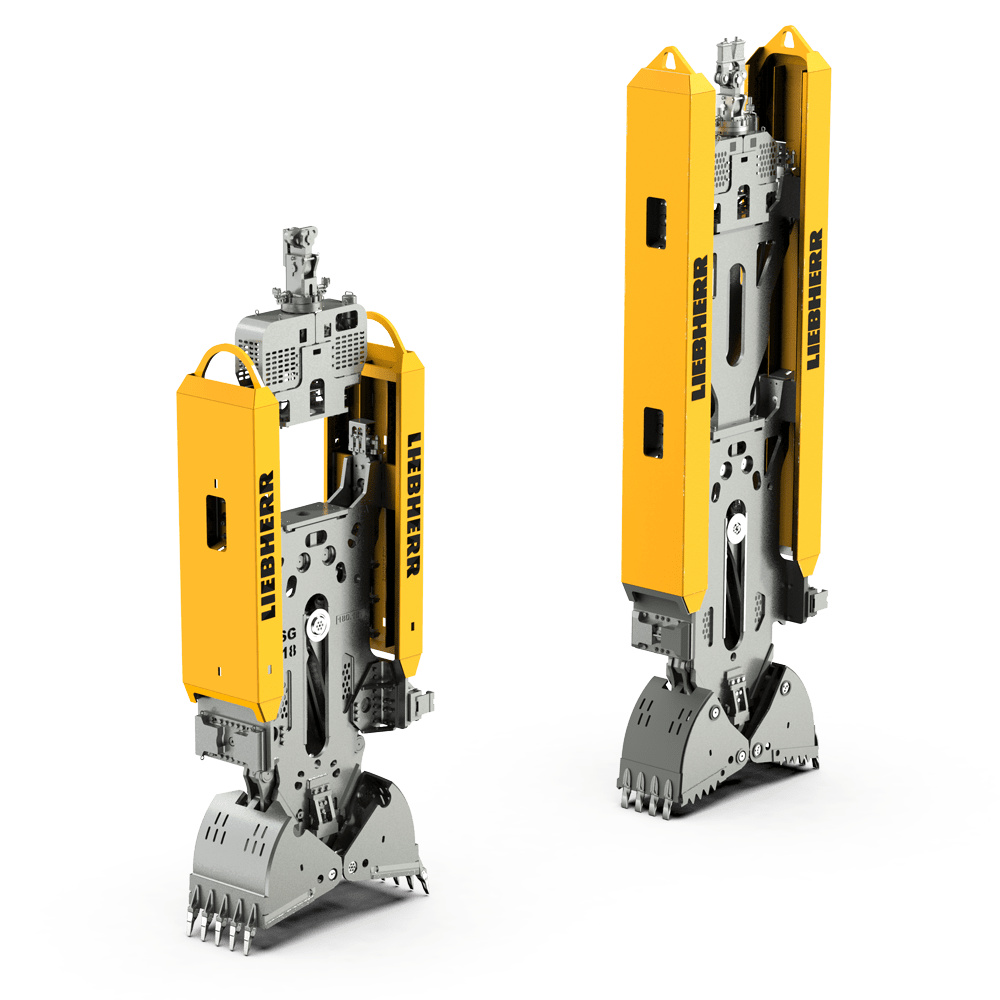

The hydraulic slurry wall grab is modularly designed and has an extremely robust base body. As the names of the grabs imply, HSG 5-18, slurry walls with thicknesses between 500 and 1800 mm can be installed, depending on the composition. The base body of the “L” (large) version is 2.5 m longer. The resulting total height of the grab at 9.5 m, as well as the high weight with low centre of gravity provide for even better vertical positioning and are especially advantageous when installing larger dimensioned slurry walls. When working in difficult ground conditions, the dead weight of the grab can...

metricimperial

  • Wall thickness - 500 - 1,800 mm

  • Jaw opening width - 2,500 - 3,600 mm

  • Max. closing force at teeth - 594 kN

product image 0
Flexible
The modular design of the grab promises a high level of flexibility and enables the optimum adaptation to jobsite requirements.
Robust
The grab convinces with its robust design and high closing force. These properties provide a decisive advantage especially in hard soils.
Basic machine and grab perfectly matched
Thanks to the synchronisation of the hoisting winches high grab weights are viable and the lifting capacity of the duty cycle crawler crane is optimally utilized.
Chiselling
The robust design of the grab and the synchronized free-fall winches allow for light chiselling as accustomed with mechanical grabs.
Hydraulic rotating device
Alignment of the grab in all directions as well as quick and operator-friendly 180° rotation after each grab cycle thanks to a hydraulic rotating device. The assistance of an employee on the ground is no longer required.
Easy maintenance
Opening and closing of the grab jaws is synchronised via push rods. This mechanism is reliable and easy to maintain. The piston rods of the hydraulic cylinders are protected inside the grab body.
Wall thickness
500 - 1,800 mm
Jaw opening width
2,500 - 3,600 mm
Max. cylinder force
2 x 924 kN
Max. closing force at teeth
594 kN
Weight version C (compact)
13.2 - 24.7 t
Weight version L (large)
14.4 - 31.3 t
Total height version C (compact)
6,500 mm
Total height version L (large)
9,200 mm
Rotation (left/right)
0 - 180 °
Max. working depth
90 m
Open / close
8/8 sec
Semi-Kelly guide
The optional semi-Kelly guide on the boom head of the duty cycle crawler crane provides for steady guidance of the grab outside the trench. This makes rotation and alignment of the grab easier for the operator and accelerates the process.
Grab extension
The grab extension increases weight and length of the grab and therefore enhances the verticality of the trench. It is recommended for depths exceeding 40 m.
Lower guide bar extensions
Additionally available guide bar extensions allow for the grab to be aligned in the trench more quickly. These extensions are mounted on the existing guide bars.
Additional weight
Additional weights are available in various sizes up to 7 t. These are used when working in hard soils.
Adjustable guide bars
During excavation work the grab direction can be corrected using the guide bars and so higher verticality of the slurry wall is achieved. The system is driven hydraulically and remote-controlled from the cabin. The grab must be equipped with a hydraulic rotating device.
Verticality Assistant
This system monitors the slurry wall installation process by measuring the deviations between the slurry wall and the grab. Additionally the productivity data is recorded.
Slurry wall installation with grab
A clamshell grab excavates the slurry wall panels.
Stop-end guide
The slurry wall grab is guided vertically along the stop-end element via the stop-end guide. Furthermore, this guide serves to scrape off and loosen the excess/seeping concrete from the stop-end element.
Adjustable guide bars
During excavation work the grab direction can be corrected using the guide bars and so higher verticality of the slurry wall is achieved. The system is driven hydraulically and remote-controlled from the cabin. The grab must be equipped with a hydraulic rotating device.
Lower guide bar extensions
Additionally available guide bar extensions allow for the grab to be aligned in the trench more quickly. These extensions are mounted on the existing guide bars.
Grab extension
The grab extension increases weight and length of the grab and therefore enhances the verticality of the trench. It is recommended for depths exceeding 40 m.
Semi-Kelly guide
The optional semi-Kelly guide on the boom head of the duty cycle crawler crane provides for steady guidance of the grab outside the trench. This makes rotation and alignment of the grab easier for the operator and accelerates the process.
Verticality Assistant
This system monitors the slurry wall installation process by measuring the deviations between the slurry wall and the grab. Additionally the productivity data is recorded.
Slurry wall installation with grab
A clamshell grab excavates the slurry wall panels.

  • This video is provided by Google*. When you load this video, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.

    By clicking on “ACCEPT”, you consent to the data transmission to Google for this video pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each YouTube video individually in the future and want to be able to load them without this blocker, you can also select “Always accept YouTube videos” and thus also consent to the respectively associated data transmissions to Google for all other YouTube videos that you will access on our website in the future.

    You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the settings (later also accessible via the “Privacy Settings” in the footer of our website).

    For further information, please refer to our Data Protection Declaration and the Google Privacy Policy.*Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

    Verticality Assistant

  • This video is provided by Google*. When you load this video, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.

    By clicking on “ACCEPT”, you consent to the data transmission to Google for this video pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each YouTube video individually in the future and want to be able to load them without this blocker, you can also select “Always accept YouTube videos” and thus also consent to the respectively associated data transmissions to Google for all other YouTube videos that you will access on our website in the future.

    You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the settings (later also accessible via the “Privacy Settings” in the footer of our website).

    For further information, please refer to our Data Protection Declaration and the Google Privacy Policy.*Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

    Slurry wall grab HSG 5-18 C/L

  • Max. lifting capacity - 70 t

  • Engine power - 320 kW

  • Max. winch line pull - 2 x 200 kN

  • Max. main boom - 50.00 m

  • Max. lifting capacity - 100 t

  • Engine power - 450 kW

  • Max. winch line pull - 2 x 295 kN

  • Max. main boom - 59.00 m

  • Max. lifting capacity - 130 t

  • Engine power - 565 kW

  • Max. winch line pull - 2 x 350 kN

  • Max. main boom - 53.00 m

  • Max. working depth - 80 m

  • Max. grab weight, full - 30 t

  • Max. pull force in grab operation (dual-winch operation) - 450 kN

  • Max. pull force in recovery mode (dual-winch operation) - 600 kN

  • Max. working depth - 80 m

  • Max. grab weight, full - 30 t

  • Max. pull force in grab operation (dual-winch operation) - 450 kN

  • Max. pull force in recovery mode (dual-winch operation) - 600 kN
