Name: DAT 500 wind Slewing drive
Brand: Liebherr

Slewing drive

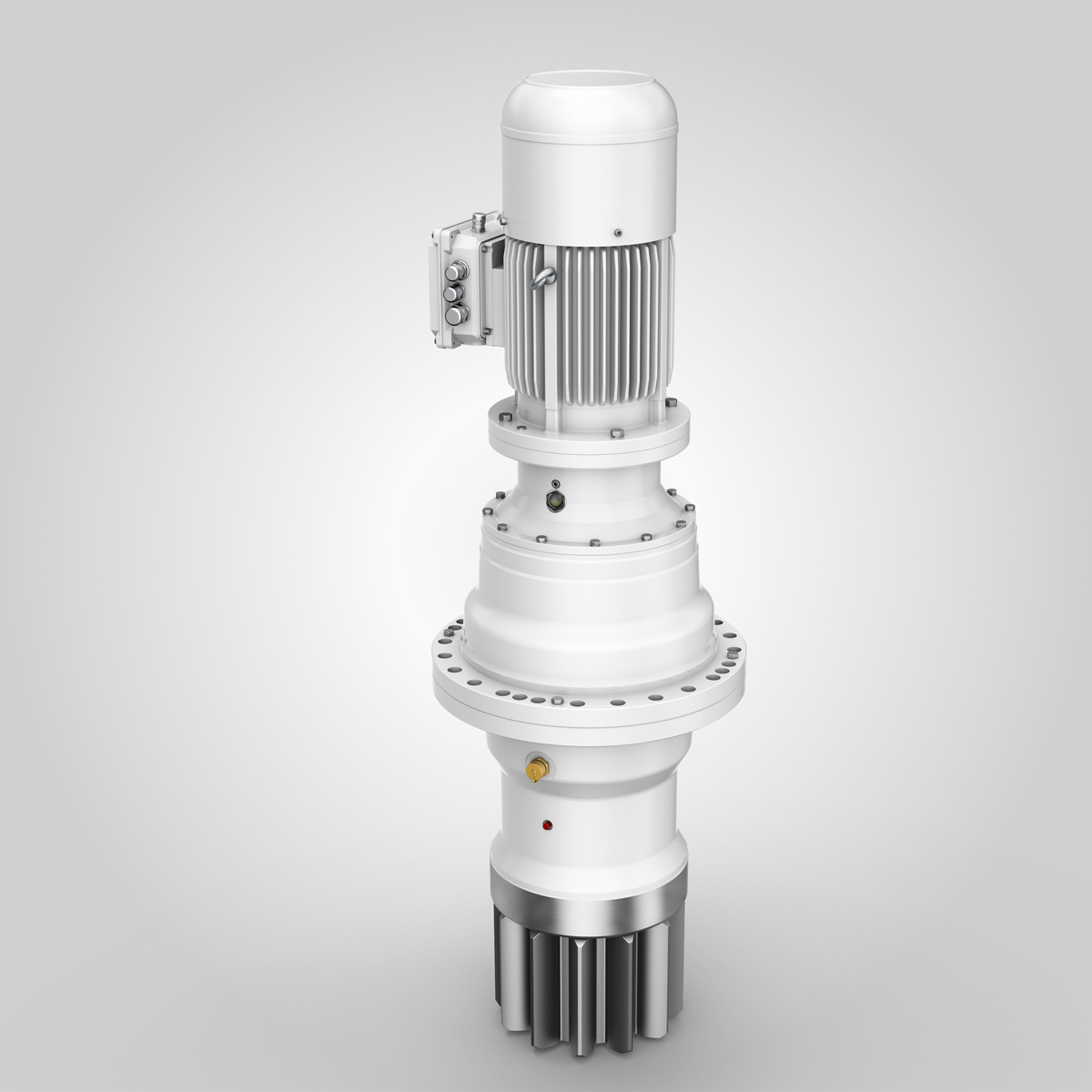

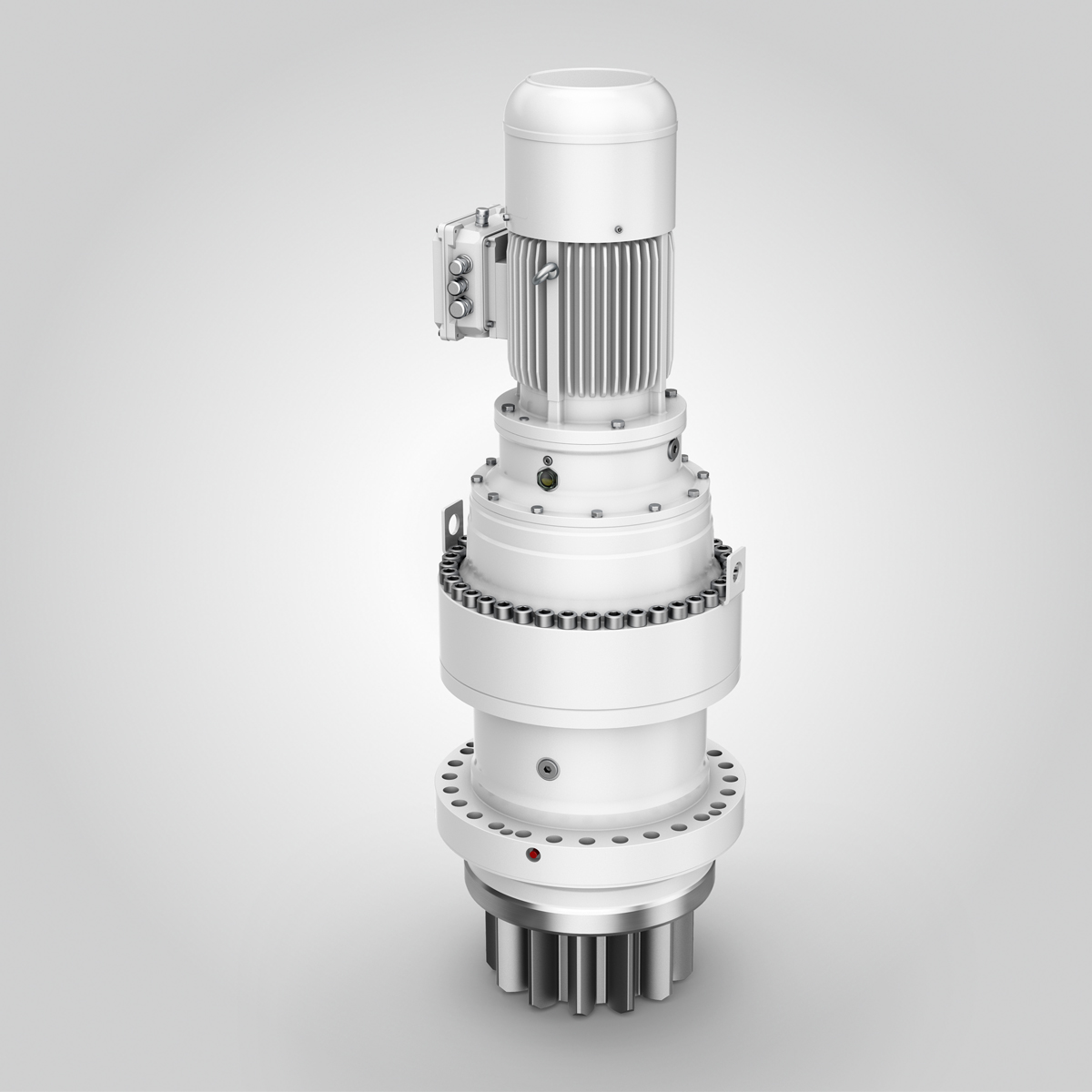

The slewing drive DAT 500 wind is part of the Liebherr series-production for wind turbines. The gearbox size 500 can be designed with a short output shaft (design 1) or long output shaft (design 2) and is suitable for use as a yaw gearbox.

metric

imperial

Reference output torque, dynamic - 82,900 Nm
82,900 Nm
Output torque Tmax - 171,000 Nm
171,000 Nm

Reference output torque, dynamic	82,900 Nm
Output torque Tmax	171,000 Nm
Areas of application	Wind energy
Gear transmission ratios (yaw)	915.0 / 1,140 / 1,260 / 1,628.9 / 1,954.2 / 2,143.8

Variants

Type	Design 1	Design 2
Diameter of centering seat (mm)	420	370 / 475
External diameter (mm)	510	565
Pitch circle diameter (mm)	460	520
Housing diameter (mm)	485	460
Number of bolts	28	24
Diameter of bolts (mm)	26.0	26.0
Installation depth (mm)	115	432
Height of centering seat (mm)	38.0	15.0 / 72.0
Gearbox height (mm)	585	485
Flange height (mm)	70	70
Number of teeth (output pinion)	13	12
Gear module of output pinion	22	24
Height of output pinion (mm)	135	245
Weight (three-stage model) (kg)	825	723
Diameter of output pinion (mm)	350	360
