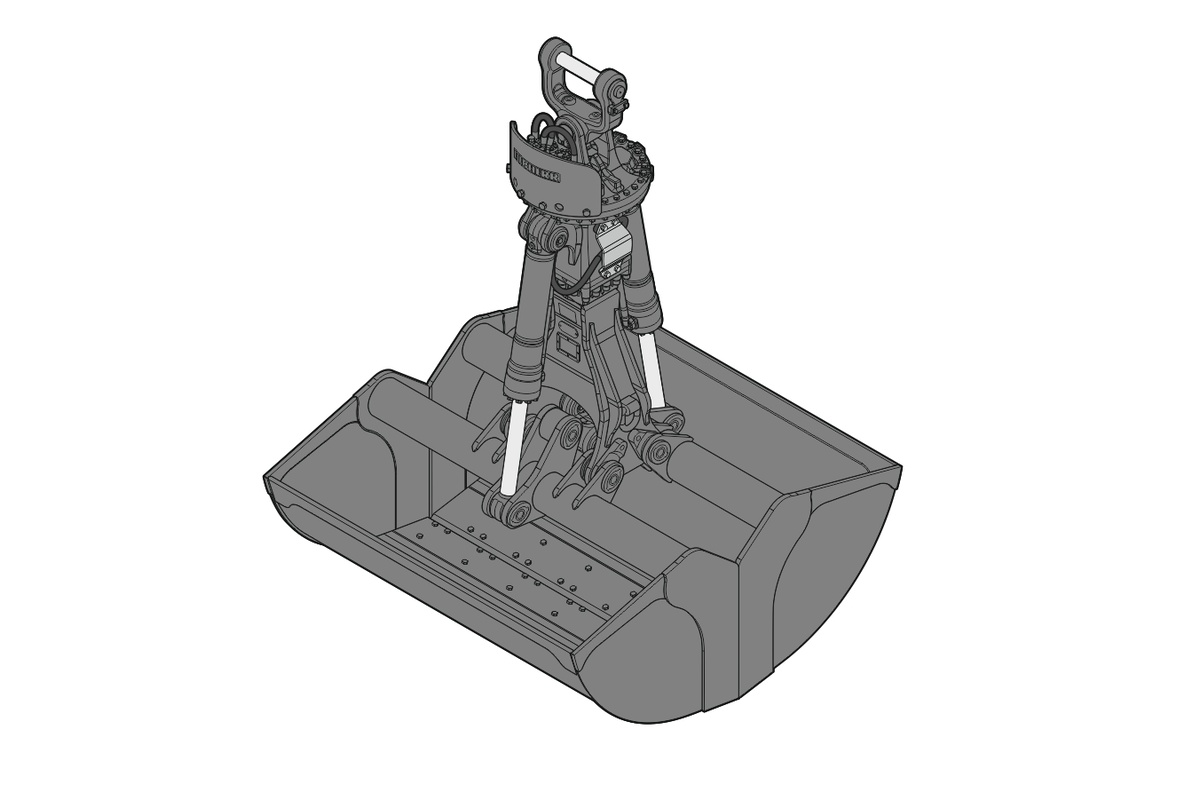

Name: GMZ 80 Clamshell Buckets
Brand: Liebherr

Technical data

Highlights

Carrier machines

Variants

The low dead weight of the GMZ 80 increases productivity and the turnover of material. Furthermore, the optimal shape of the tines allow good penetration and fast emptying. The GMZ 80 is extremely well suited for excavators of the 30 to 110 tonne class and it available with a clamshell bucket. High clamping forces ensure excellent excavation properties.

Imprint

Data protection notice

Contact

Privacy Settings

Products

Refrigeration and freezing

Earthmoving

Deep foundation

Tower cranes

Concrete technology

Mobile and crawler cranes

Mining

Aerospace and transportation systems

Material handling

Gear technology and automation systems

Components

Maritime cranes

Career

Job vacancies

Professionals

Young professionals

Students

Pupils

We as an employer

Company

Liebherr worldwide

History

Services

Sales and service partners

Liebherr shop

Product cybersecurity

News

News and press releases

Exhibitions and events

Visit us

LinkedIn

Xing

Youtube

This chart is provided by Google*. When you load this chart, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.By clicking on “ACCEPT”, you consent to the data transmission to Google for this chart pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each Google chart individually in the future and want to be able to load them without this blocker, you can also select “Always accept Google Charts” and thus also consent to the respectively associated data transmissions to Google for all other Google charts that you will access on our website in the future.You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the <a href="#" data-function-id="userCentricsShowSettings" data-function-id-params="null" target="_self" class="copy-link">settings</a> (later also accessible via the “Privacy Settings” in the footer of our website).For further information, please refer to our <a href="#" data-function-id="crossEntryPoint" data-function-id-params="hau_privacy" target="_self" class="copy-link">Data Protection Declaration</a> and the Google <a href="https://policies.google.com/privacy" target="_blank" class="copy-link">Privacy Policy</a>.*Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

External content (third-party service)Google Charts

This map material is provided by Google*. When you load this map, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.By clicking on “ACCEPT”, you consent to the data transmission to Google for this map pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each Google map individually in the future and want to be able to load them without this blocker, you can also select “Always accept Google Maps” and thus also consent to the respectively associated data transmissions to Google for all other Google maps that you will access on our website in the future.You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the <a href="#" data-function-id="userCentricsShowSettings" data-function-id-params="null" target="_self" class="copy-link">settings</a> (later also accessible via the “Privacy Settings” in the footer of our website).For further information, please refer to our <a href="#" data-function-id="crossEntryPoint" data-function-id-params="hau_privacy" target="_self" class="copy-link">Data Protection Declaration</a> and thr Google <a href="https://policies.google.com/privacy" target="_blank" class="copy-link">Privacy Policy</a>.*Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

External content (third-party service)Google Maps

Click RELEASE VIDEO and follow the data protection notices.

This video is provided by Google*. When you load this video, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.By clicking on “ACCEPT”, you consent to the data transmission to Google for this video pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each YouTube video individually in the future and want to be able to load them without this blocker, you can also select “Always accept YouTube videos” and thus also consent to the respectively associated data transmissions to Google for all other YouTube videos that you will access on our website in the future.You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the <a href="#" data-function-id="userCentricsShowSettings" data-function-id-params="null" target="_self" class="copy-link">settings</a> (later also accessible via the “Privacy Settings” in the footer of our website).For further information, please refer to our <a href="#" data-function-id="crossEntryPoint" data-function-id-params="hau_privacy" target="_self" class="copy-link">Data Protection Declaration</a> and the Google <a href="https://policies.google.com/privacy" target="_blank" class="copy-link">Privacy Policy</a>.*Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

External content (third-party service)YouTube videos

GMZ 80 Clamshell Buckets  - Liebherr

The Liebherr group has a global sales and service network. Here, you can check whether a market participant already has a Liebherr partner contract.

to find the contact person responsible for you.

We have special offers and content for your country.

Results per page

Please enter an alternative search text or limit results using the filter selection.

Unfortunately, we were unable to find any results.

Functions

Unfortunately, we are having technical problems processing your inquiry.

Find out more

Search

I want to share the following page:%0D%0A{pageUrl}

Share

Facebook

Google+

Twitter

YouTube

The current page is not available in the language you selected on the previous web page

Mountings	Direct mounting / MH 110B Solidlink / SWA 66 mechanical/hydraulic/Solidlink / SW suspension separable for direct mounting
Excavator class	30 - 70 t
Shell type	Clamshell Buckets
Cutting width	1,200 - 2,000 mm
Grapple capacity	1.40 - 2.50 m³
Weight without suspension	2,085 - 2,510 kg

	1200	1400	1650	2000
Cutting width (mm)	1,200	1,400	1,650	2,000
Grapple capacity (m³)	1.40	1.70	2.00	2.50
Teeth	7	9	11	13
Weight without suspension (kg)	2,085	2,190	2,330	2,510
