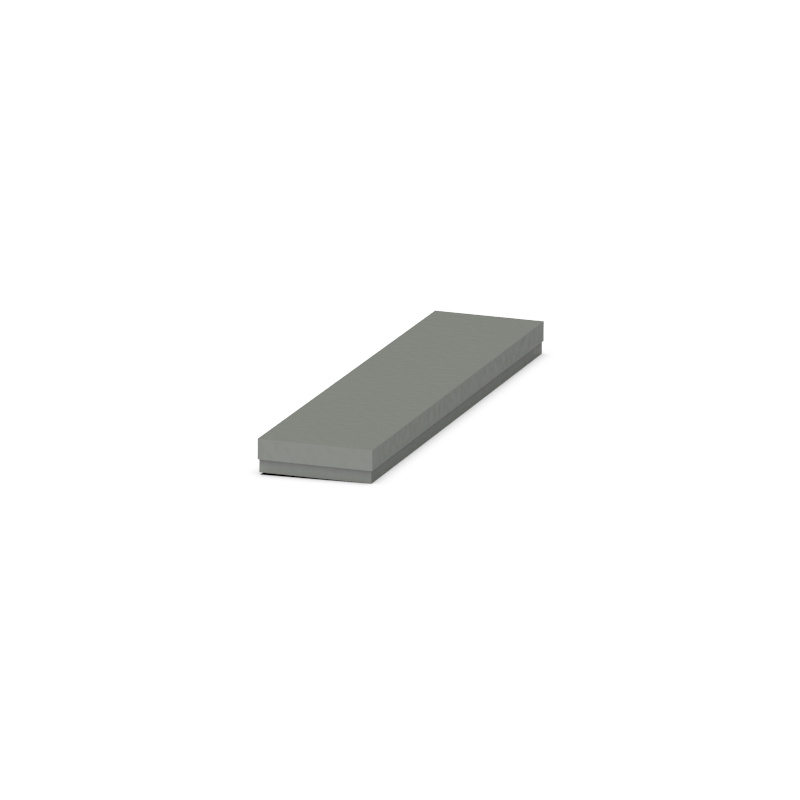

Wear protection bar VSE 13x45x70

Wear protection bar

When ordering we require the name of the drilling tool, its diameter and, in the case of augers, flight pitch.

Scope of delivery - Plate thickness 8 mm, hardfacing 5 mm
Plate thickness 8 mm, hardfacing 5 mm
Type - Wear protection bar
Wear protection bar
Range of application - Wear protection drilling auger
Wear protection drilling auger

	Wear protection bar VSE 13x45x70
Article no.	11275772
Shop

Progressive rock auger heavy-duty design

Effective length - 1,500 mm
1,500 mm
Diameter - 520 - 1,840 mm
520 - 1,840 mm
No. of cutters - progressive
progressive
Pilot - Round shank chisel
Round shank chisel
Connector - Kelly box - 200 mm Spanner width
Kelly box - 200 mm Spanner width
Casing - cased
cased
Range of application - Hard rock up to 100 MPa
Hard rock up to 100 MPa
Equipment - Kelly box 200 x 200 mm, round shank chisels densely mounted on the progressive auger part, exchangeable round shank chisel pilot bit, easily exchangeable hard metal wear plates and hardfacing as wear protection
Kelly box 200 x 200 mm, round shank chisels densely mounted on the progressive auger part, exchangeable round shank chisel pilot bit, easily exchangeable hard metal wear plates and hardfacing as wear protection

Progressive rock auger heavy-duty design

Effective length - 1,500 mm
1,500 mm
Diameter - 600 - 2,000 mm
600 - 2,000 mm
No. of cutters - progressive
progressive
Pilot - Round shank chisel
Round shank chisel
Connector - Kelly box - 200 mm Spanner width
Kelly box - 200 mm Spanner width
Casing - uncased
uncased
Range of application - Hard rock up to 100 MPa
Hard rock up to 100 MPa
Equipment - Kelly box 200 x 200 mm, round shank chisels densely mounted on the progressive auger part, exchangeable round shank chisel pilot bit, easily exchangeable hard metal wear plates and hardfacing as wear protection
Kelly box 200 x 200 mm, round shank chisels densely mounted on the progressive auger part, exchangeable round shank chisel pilot bit, easily exchangeable hard metal wear plates and hardfacing as wear protection

Cross cutter

Diameter - 600 - 2,000 mm
600 - 2,000 mm
Bored pile diameter - 600 - 2,000 mm
600 - 2,000 mm
Pilot - Round shank chisel
Round shank chisel
Range of application - Fracture existing building elements, break out drill cores, drill rock < 100 MPa, penetrate boulders.
Fracture existing building elements, break out drill cores, drill rock < 100 MPa, penetrate boulders.
Casing - uncased
uncased
Equipment - Kelly box 200 mm, three cutter bars with round shank chisels and round shank chisel pilot bit; easily exchangeable hard metal wear plates and hardfacing as wear protection
Kelly box 200 mm, three cutter bars with round shank chisels and round shank chisel pilot bit; easily exchangeable hard metal wear plates and hardfacing as wear protection

Cross cutter

Diameter - 520 - 1,840 mm
520 - 1,840 mm
Casing inside diameter - 540 - 1,910 mm
540 - 1,910 mm
Pilot - Round shank chisel
Round shank chisel
Range of application - Fracture existing building elements, break out drill cores, drill rock < 100 MPa, penetrate boulders.
Fracture existing building elements, break out drill cores, drill rock < 100 MPa, penetrate boulders.
Casing - cased
cased
Equipment - Kelly box 200 mm, three cutter bars with round shank chisels and round shank chisel pilot bit; easily exchangeable hard metal wear plates and hardfacing as wear protection
Kelly box 200 mm, three cutter bars with round shank chisels and round shank chisel pilot bit; easily exchangeable hard metal wear plates and hardfacing as wear protection
