Maritime cranesProductsPort equipmentReachstackerLRS 545

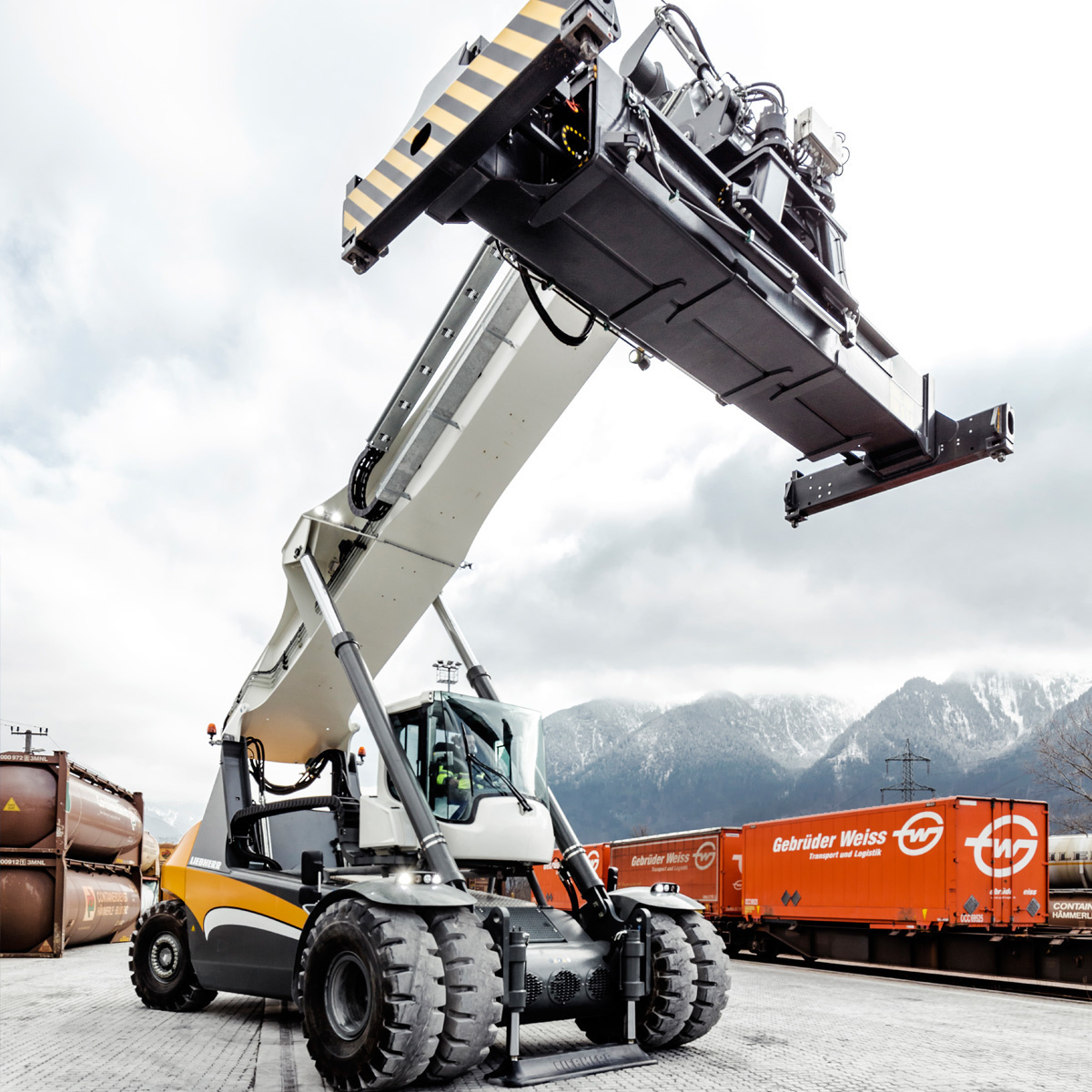

The LRS 545 from Liebherr gives terminals a new impulse. Designed for fast handling of containers and semi-trailers, the agile reachstacker is distinguished by its wedge shape, combined with driving comfort and powerful performance. The optional Pactronic hybrid drive ensures that energy is recuperated, fuel is saved and emissions are reduced.

metricimperial

  • Stacking capacity - 5 Container

  • Total length - 11.80 m

  • Engine power - 230 kW

product image 0
Single wheel drive
Shear forces are reduced with the single-wheel drive. This results in lower tyre wear and makes possible narrow radii.
Ergonomic cab
The comfortable cab with its ergonomic design eases the burden on the operator. Optimal view with the high proportion of glass in the cab increases safety in the terminal.
Hydrostatic drive
The tried-and-tested hydrostatic drive enables continuous acceleration for enhanced driving comfort. It also ensures energy recovery for increased efficiency.
Litronic control system
The control system of our Reachstacker, which was developed by Liebherr, focuses on precision, safety and productivity. Obtain a detailed overview here.
Wheel rims
The wheel rims ensure reduced maintenance costs and increased safety. The simple principle of these rims makes assembly quick and safe. This concept is unique on the market.
Service network
Like all maritime cranes from Liebherr, our Reachstacker can rely on a dense service network worldwide. This ensures short downtimes and a quick response.
Stacking capacity
5 Container
Engine power
230 kW
Weight Toplift
69 t
Weight Intermodal
72 t
Lifting capacity (max.)
45 t
Mobility
rubber tyred
Fields of application
Stacking
Total length
11.80 m
Width
4.49 m
Height
4.98 m
Wheel base
6.50 m
Fuel tank
500.00 l

Brochure LRS 545

Technical data sheet LRS 545-31 Intermodal

Technical data sheet LRS 545-31 Toplift

Technical data sheet LRS 545-27 Toplift

Supporting pads
Optional supporting pads increase the load capacity of the Reachstacker when lifting heavy loads.
Horizontally adjustable cab
The operator can change the horizontal position of the cab using the hydraulic system. This stepless setting option facilitates intermodal handling.
Joystick control
In addition to the steering wheel, control using joysticks ensures relaxed driving and eases the strain on the back.
Camera system
Optional cameras at the boom and rear of the Reachstacker facilitate handling and increase safety at the terminal grounds.
Load display
Freight under control: The weight under the load suspension device is automatically calculated and displayed on the monitor in the cab.
LED lighting
High-performance LED headlights provide better lighting with a longer service life.
