Hydraulic cylinders for mobile applications
Liebherr sets standards in mobility: With the sturdy hydraulic cylinders for mobile applications, our customers profit from sound product knowledge and innovative solutions. Flexibility is guaranteed thanks to hydraulic cylinder series that are specially designed for mobile applications in the pressure range of up to 260 and 380 bar.
Product portfolio - Hydraulic cylinders for mobile applications
Attachment cylinder
The robust products deployed in the 380 bar series-production range are built for handling dynamic loads. As hoist, stick and bucket cylinders, they move the equipment on wheeled excavators.
Boom and luffing cylinder
As a boom or luffing cylinder for concrete pumps or mobile cranes, this type of hoist cylinder handles the movement of the boom or crane arm.
Swing axle cylinder
The swing axle cylinder from Liebherr with one-sided action is used to fix the drive axle on wheeled excavators, for example.
Pull cylinder
Pull cylinders fulfil safety-relevant functions when tensioning mobile crane ropes, among other things. Liebherr therefore uses high strength materials in their manufacture.
Telescopic cylinder
The single or double-acting telescopic cylinders are suitable, along with other possibilities, for erecting the cross members of a crawler crane. When retracted, the telescopic cylinders impress with their compactness. The rams eject in multiple stages allowing a large lift to be realised.
Ballast cylinder
Ballast cylinders adopt safety-relevant functions, e.g. taking up ballast weights in mobile cranes. Liebherr therefore relies on high strength materials during production.
Synchronised cylinder
Synchronised cylinders are used to adjust the horizontal position in a whole range of different applications, e.g. in the maritime or earthmoving sector. For the maritime sector, the special ram coating offers optimal protection against corrosion.
Plunger cylinder
On the simple plunger cylinder, the ram itself acts as a piston. These can be used, for example, to raise the cab chassis on material handling equipment.
Support cylinder
Support cylinders are distinguished by their lightweight design. Nevertheless, they assure the highest stability. Support functions are required in numerous applications in the mobile construction machine sector for example the concrete pump.
Standard product features: facts and figures
- Lift capacities up to 8,000 mm
- Nominal diameter up to 500 mm
- Operating pressures up to 630 bar
- Lifting speeds up to 1 m/s
- Temperatures -40°C to +80°C
- Chrome coating as well as nickel chromium, HVOF and many others
- Corrosion protection for continental and also maritime environments
- Damping (from ground and/or rod side)
Innovative cylinder series for greater flexibility
Liebherr offers two innovative hydraulic cylinder series-production ranges for use in mobile applications. The 260 bar series offers maximum efficiency, while the 380 bar series is perfect for applications with extensive additional requirements.
Manufacturing expertise at Liebherr

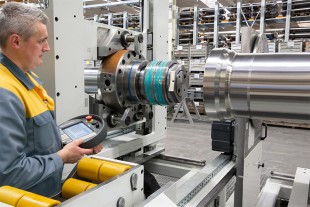

Assembly of large cylinders at Liebherr
In the manufacture of hydraulic cylinders, Liebherr relies on decades of experience and modern production technology. By continuing to further develop our processes, we create innovative solutions for dynamic and static deployment.
