LR 1300.1 SX

Crawler crane

The newest generation of LR 1300 has a lifting capacity of max. 300 t. The crawler crane impresses with many innovative assistance systems, which both increase operational safety as well as simplify handling. With the new cabin design, the crane appears in elegant design and with many features for high operator comfort.

metric

imperial

Max. load capacity - 300 t
300 t
Max. hoist height - 169 m
169 m
Max. radius - 143 m
143 m

Comfort

This includes a modern air-conditioning system with improved airflow, an optimized field of vision and increased noise protection, as well as an orthopaedic operator’s seat with integrated heating and cooling.

High service availability

A global service network with experienced technicians and fast access to spare parts ensure high machine availability and a long product service life.

Self-loading and self-assembly system

The innovative self-assembly and self-loading system enables unloading and assembly without an auxiliary crane. For crawler cranes in this size category, more cost-effective transportation and quick commissioning play an instrumental role in efficient operation.

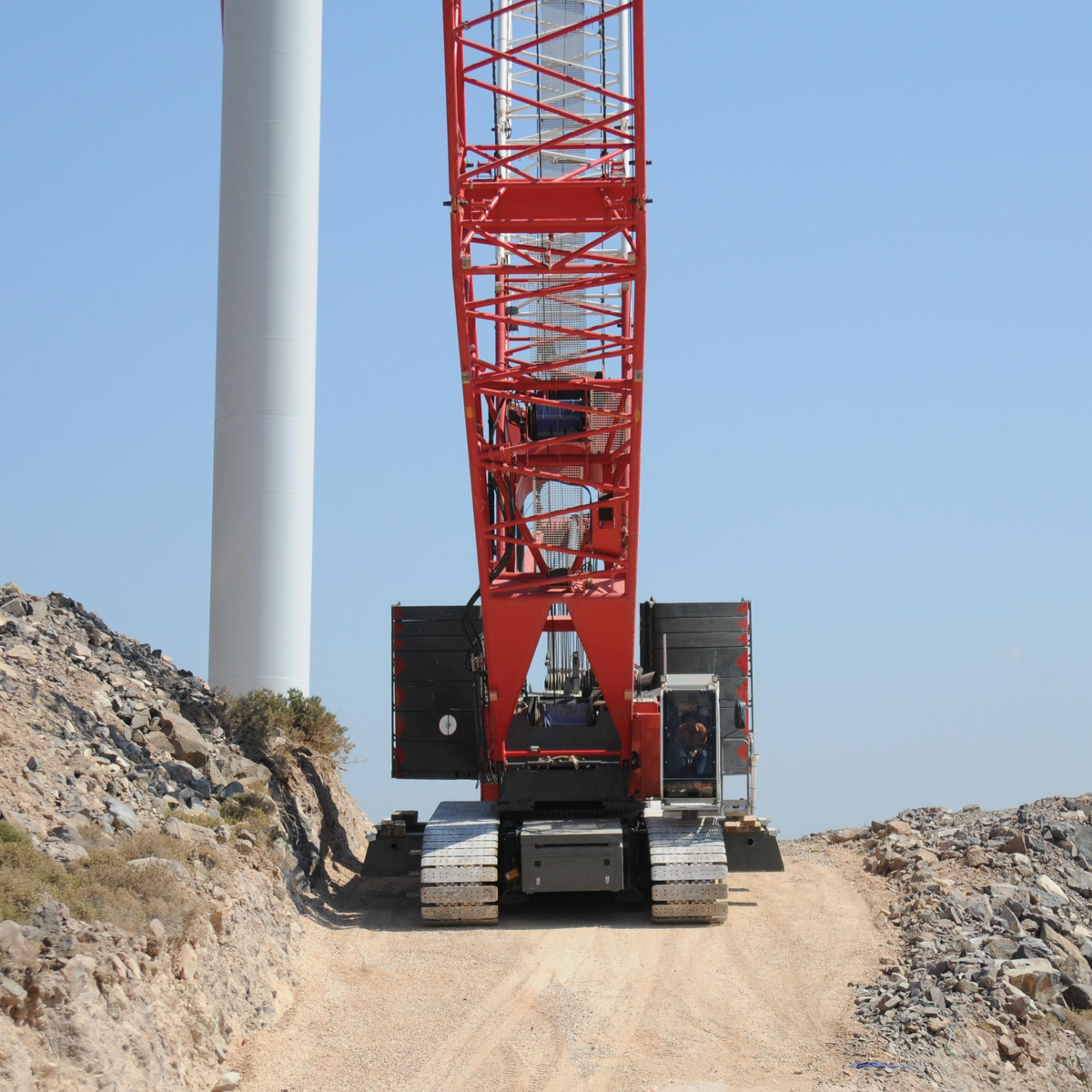

Designed for road transportation

When disassembled the crawler crane has a compact transport width of maximum 3 metres, which permits cost-effective transportation with standard low loaders. The connecting pieces of the luffing jib can also be transported in the connecting pieces of the main boom to save space. Fewer transport vehicles are therefore required.

Ground Pressure Visualization

The Ground Pressure Visualization calculates the current ground pressure of the machine in real time and compares it with the specified safety limits of the relevant position.

Consideration of wind speed

Both the measured wind speed and the actual crane configuration are taken into consideration when calculating the current hazardous situation for the crane. When the conditions become too dangerous, the system gives a warning.

Max. load capacity	300 t
at radius	4.30 m
Main boom, lightweight/heavyweight up to	92 m
Max. load torque	3,172 tm
Lattice jib up to	113.00 m
Derrick boom	30.0 m
Central ballast	57 t
Counterweight at superstructure	124 t
Derrick ballast	120 t
Engine power	390 kW
Driving speed	1.12 km/h
Total ballast	181.00 t

Technical data - LR 1300.1 SX crawler crane

Technical data (USA) - LR 1300.1 SX crawler crane

Technical data - LR 1300.1 SX Derrick / counterweight

Technical data (USA) - LR 1300.1 SX Derrick / counterweight

Overview LR series crawler cranes

Overview LR series (USA) crawler cranes

Floating unit operation

Floating unit operation (USA)

Solutions for Lifting Operations

Upgrade: Negative angle indication for luffing jibs

Upgrade: Ground pressure indication and monitoring

Customer service for crawler cranes up to 400 tonnes lifting capacity

Crane Planner 2.0 flyer

Field Service

Crane Planner 2.0 flyer (USA)

MyNotifier

Original Liebherr Retrofits

Upgrade: Earth Spike

LiSIM - Training Simulators for Construction Machines

Fuel costs matter! Efficiency-enhancing engine features.

LiDAT – Data transmission and tracking system for crawler cranes and deep foundation machines

Vertical Line Finder and Horizontal Load Path for crawler cranes

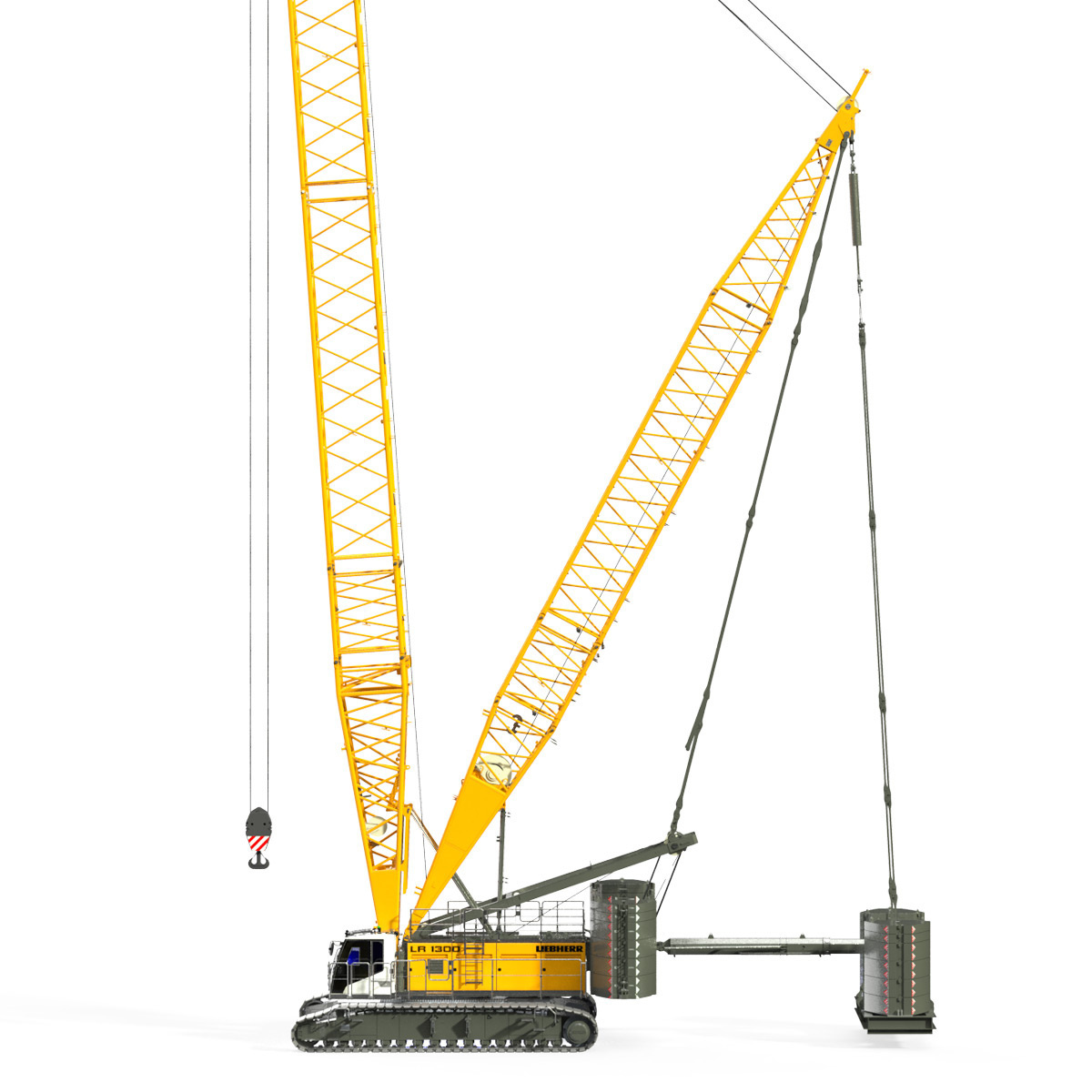

Derrick and counterweight

For heavy loads, the crane can be fitted with a derrick boom in combination with an additional counterweight. The suspended counterweight can be hydraulically displaced.

Virtual crane operation plan

Confined spatial conditions, as well as special ground conditions, are key factors for the configuration of the device. As a solution, with the "Crane Planner" Liebherr offers software for selecting the optimal crawler crane and the appropriate configuration for the respective use.

Boom up-and-down Assistant

The assistance system “Boom up-and-down Assistant” indicates the approach to the tipping border and automatically stops operation before the operator unintentionally enters an unsafe zone.

Personnel lifting

The crane is approved for personnel lifting. The statutory emergency generator and emergency controls required for personnel lifting are offered by Liebherr as a simple Plug-and-Play solution.

Horizontal load path

This control assistance system increases the comfort in the operation of the crane. Loads can be moved to their intended position more efficiently. Coordination is also simplified for multi-crane lifting.

Vertical Line Finder

The Vertical Line Finder ensures that the boom head is moved exactly vertical over the load to be lifted. This prevents the load swinging and possible contact with obstacles, as well as people. The service life of the crane is also increased with the lower dynamics on the boom.
