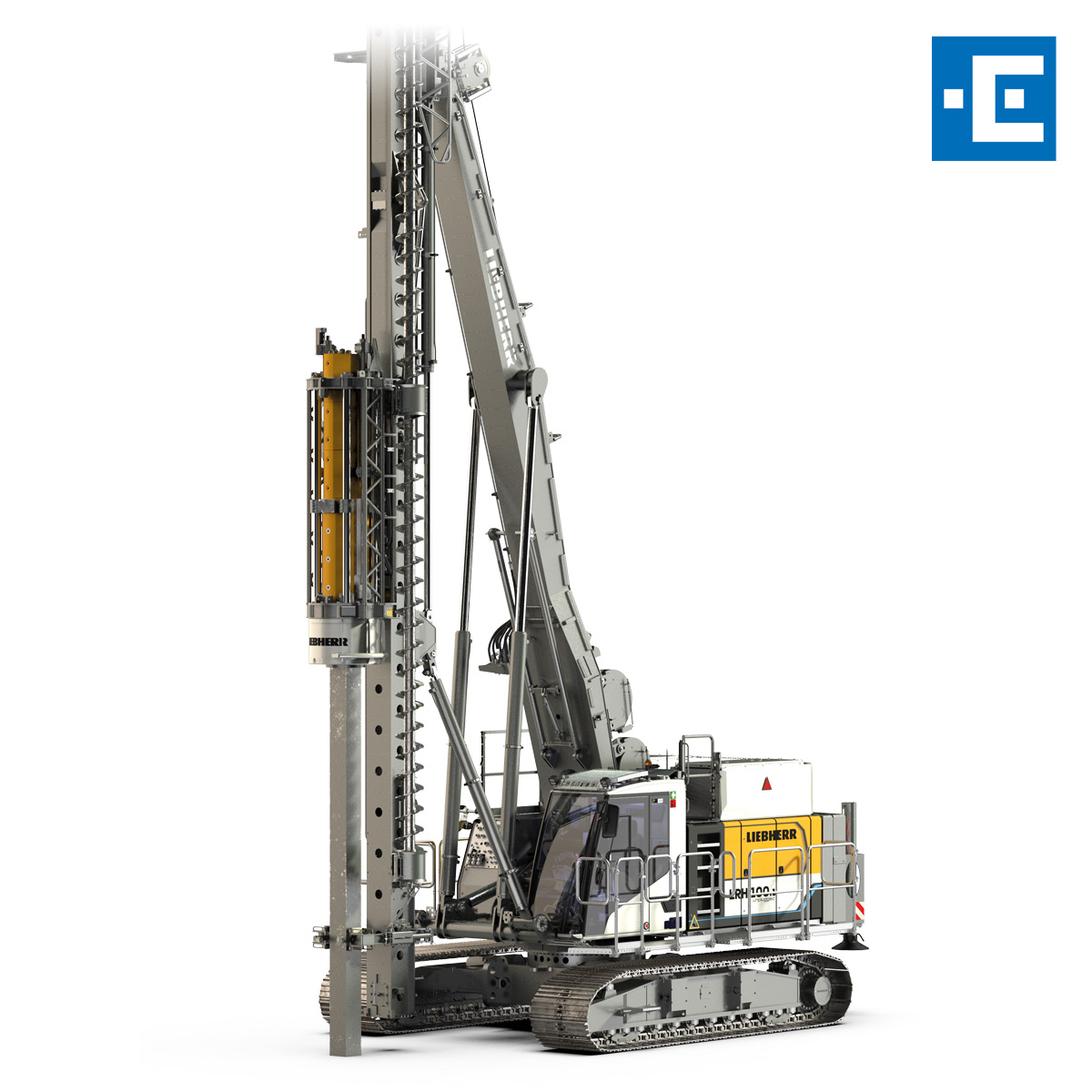

LRH 100.1 unplugged

Piling rig (LRH series)

The LRH 100.1 unplugged is one of the world’s first battery-powered piling rigs. During operation the deep foundation machine can be connected to a conventional electric supply or powered by battery without a cable, therefore “unplugged”. There are no restrictions in performance and application of the machine when compared to the conventional version with diesel engine.

metric

imperial

Max. pile length - 19.5 m
19.5 m
Max. pile weight - 8 t
8 t
Leader inclination - 1:3
1:3
Vertical travel device - 4 m
4 m
Basic hammer weight max. - 9,600 kg
9,600 kg

Zero Emission

The machine causes no local emissions and significantly less noise. Thus, it is also suitable for operation in areas sensitive to noise.

Electric engine

The innovative Liebherr machine has an electric engine.

Unplugged (battery powered)

The machine can be operated by battery without a cable, therefore: unplugged.

Plugged in (socket operation)

The machine can operate fully when connected to a conventional electric supply, or be recharged within a few hours.

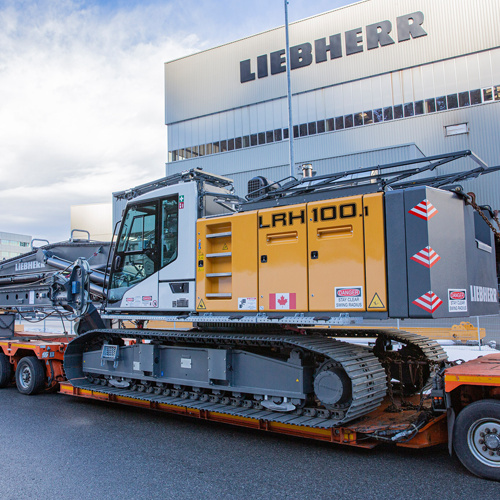

Easy transportation and quick set-up

The compact rig can be transported in one piece with the hammer mounted and is consequently ready for operation on the jobsite in a short time.

Special radii and inclination

The flexible leader kinematics allows very large radii of up to 8 m and inclinations of up to 18° in all directions. Thus, a complete pile group can be installed from one location without repositioning the carrier machine.

Operating weight	71.9 t
Max. winch line pull	108 kN
Max. crowd force	80 kN
Drive	Electric (zero emission)
Max. drive power	255 kW
Leader inclination	1:3
Max. height	24.0 m
Max. leader lenght	19.5 m
Vertical travel device	4 m
Max. pile length	19.5 m
Max. pile weight	8 t
Jib length	8.7 m
Basic hammer weight min.	6,600 kg
Basic hammer weight max.	9,600 kg
Ram mass min.	3,000 kg
Ram mass max.	6,000 kg
Predrilling, max. drilling depth	12.0 m
Predrilling, max. torque	12 kNm
Min. transport width	3,490 mm
Min. transport height	3,400 mm

Technical data - Hammer H 6 / H 15L

Technical data – LRH 100.1 unplugged piling rig

Technical data Hammer H 6 / H 15L [ft/lb]

Technical data (USA) – LRH 100.1 unpluggedpiling rig

Overview LRH series piling rigs

Overview LRH series (USA) piling rigs

Solutions for deep foundation work

MyJobsite

Job report piling rig LRH 100.1 unplugged

MyJobsite

One single tool for the collection, documentation and analysis of all process, machine, construction site and position data.

Recording of working processes (PDE)

With the PDE process data recording system machine data is recorded during the working process.

LIPOS positioning system

Accurate positioning and precise execution of piling or drilling processes.

Eco silent mode

With the eco silent mode the engine speed can be reduced to a predefined, required level. With this feature a notable reduction in diesel consumption can be achieved without any impact on operational output. Noise emissions are thus also lowered.

Automatic engine stop

The machine can optionally be equipped with an automatic engine stop control. Thanks to this feature it automatically switches off during longer work breaks after evaluating several machine parameters. This is fuel saving and environmentally friendly.

Fleet management and teleservice

The data transmission and positioning system “LiDAT” provides important information on the operation of the machine. With these data the operation becomes more efficient. Various additional modules allow machine data reporting or access through service engineers via teleservice.

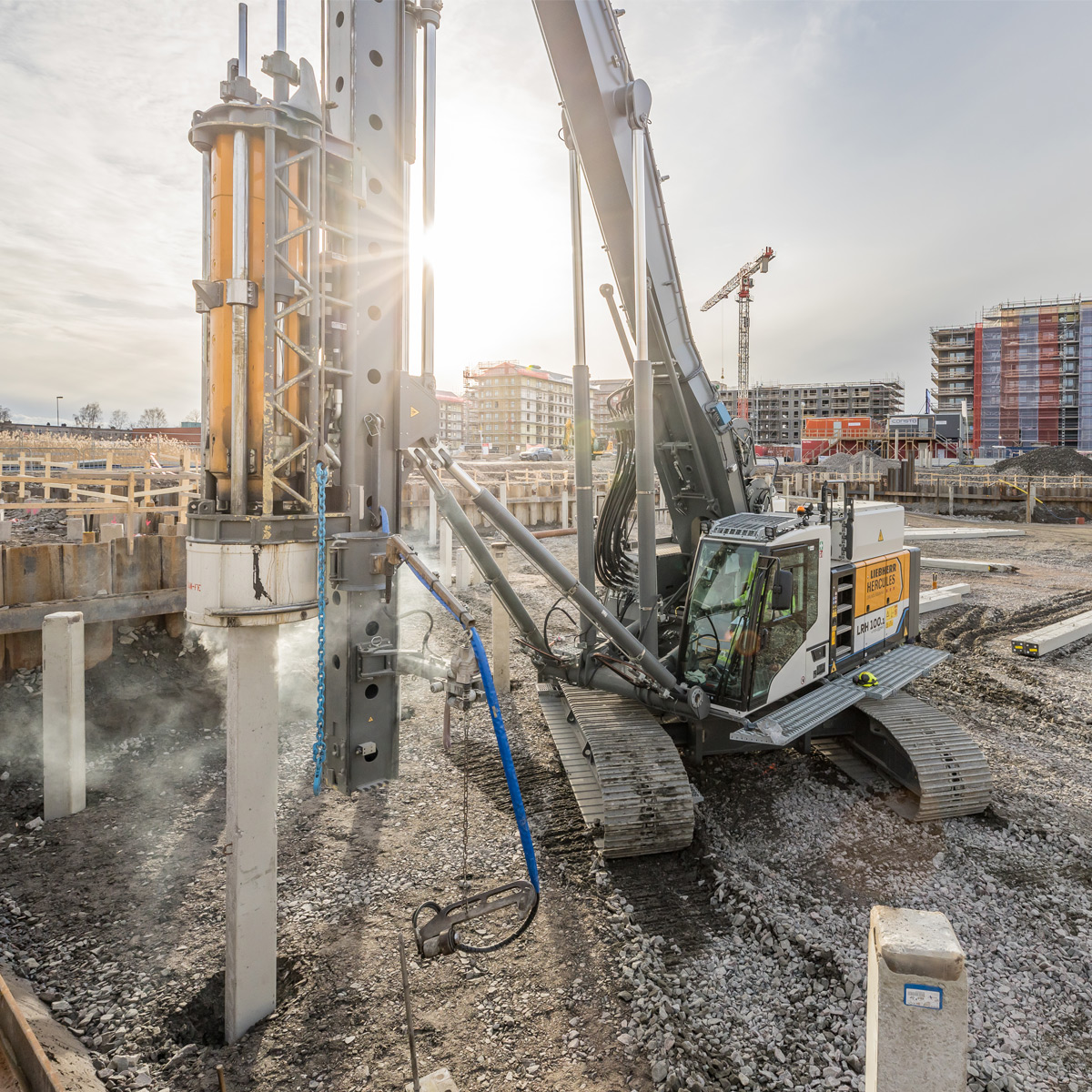

Impact driving

Impact driving uses a hydraulic hammer for the installation of various types of pile. The hammer’s ram mass impacts on the pile.
