Deep FoundationMachinesFixed and swinging leadersLRH seriesLRH 100.1

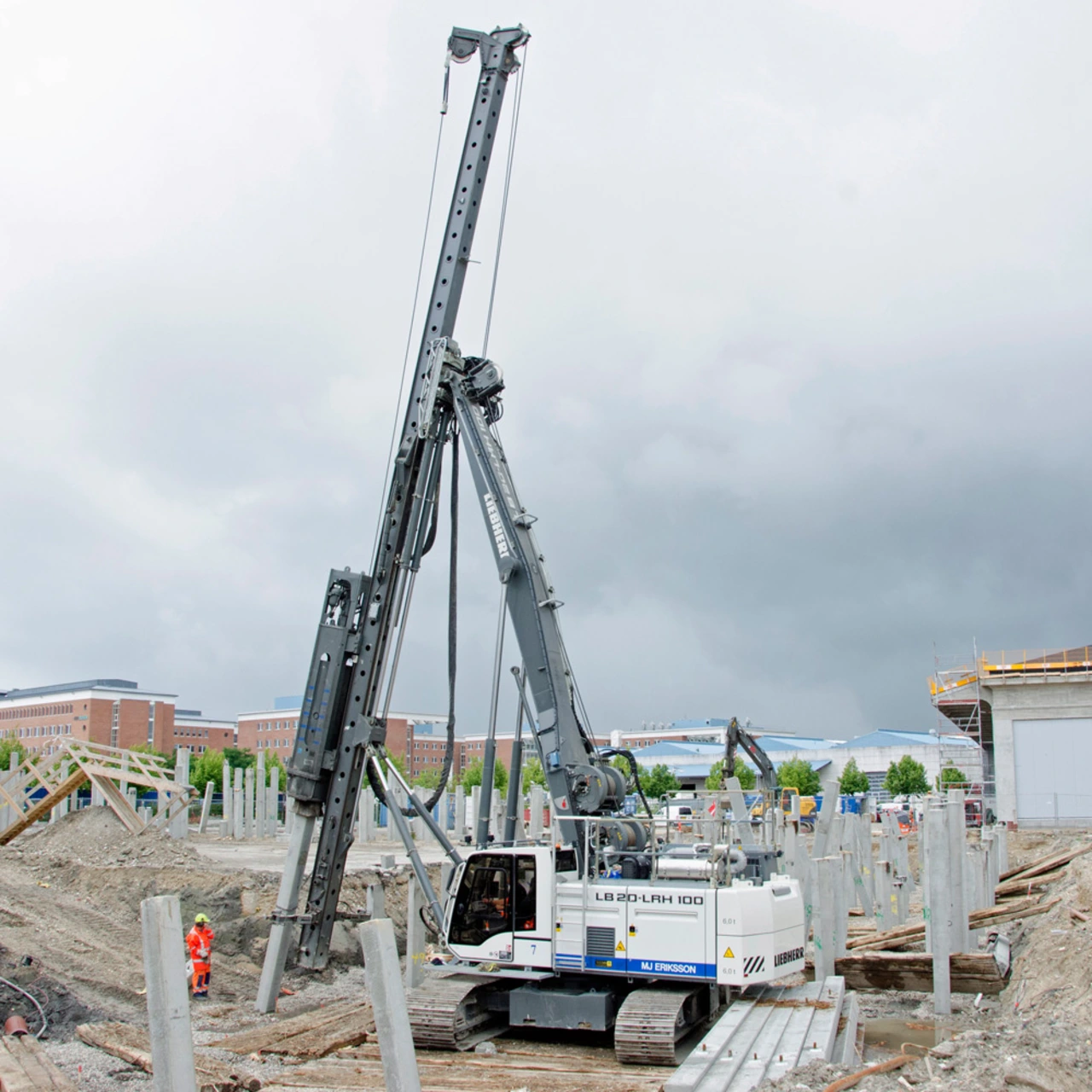

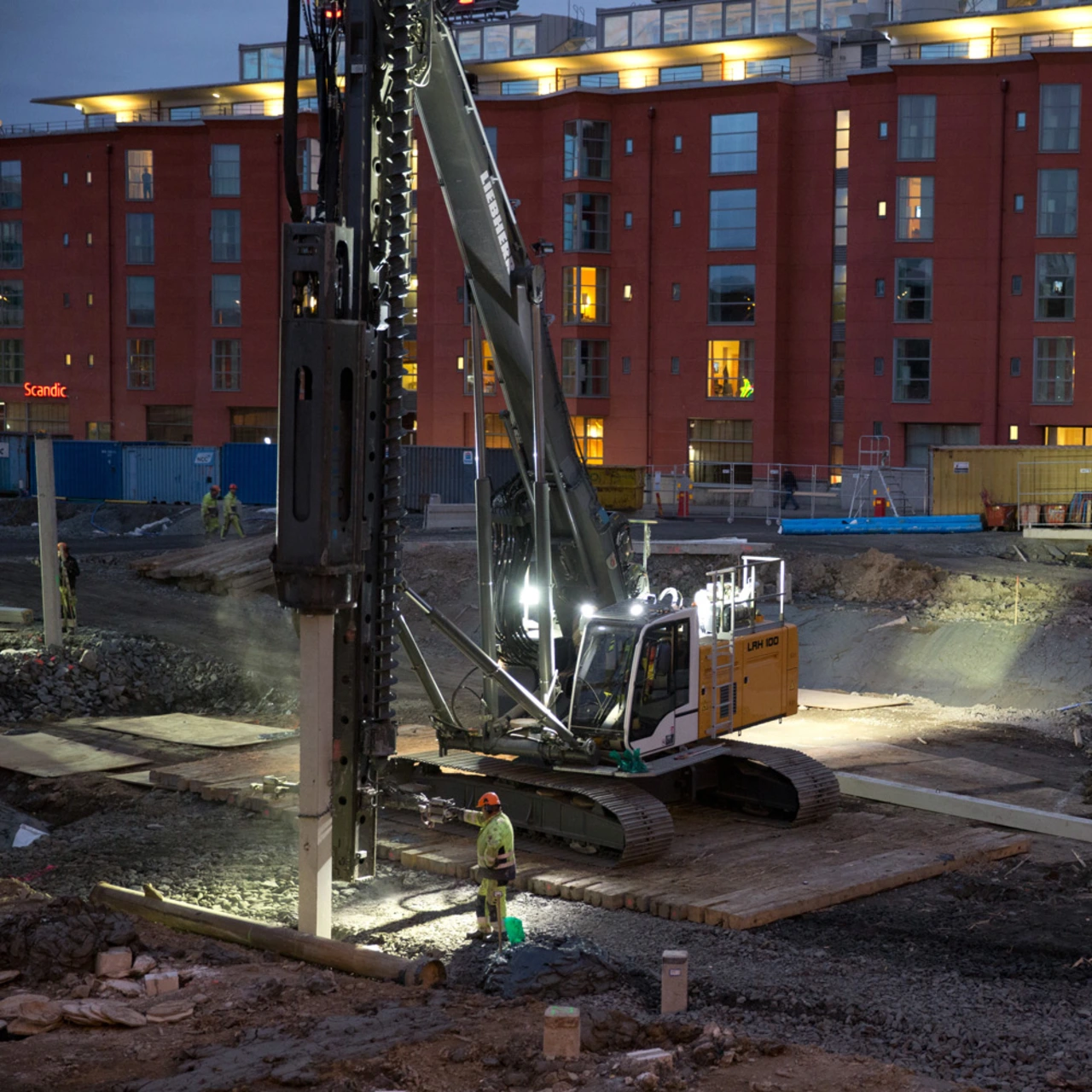

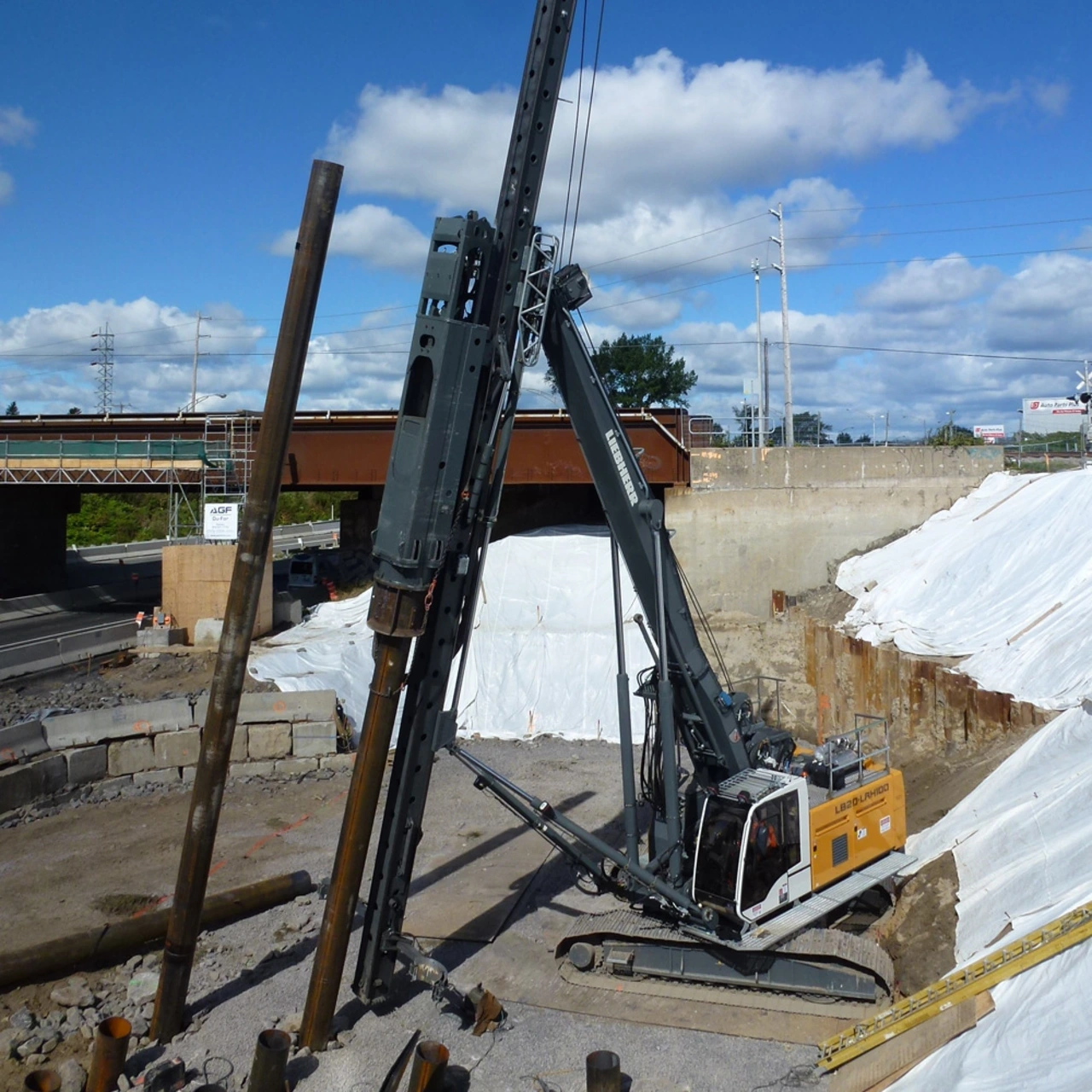

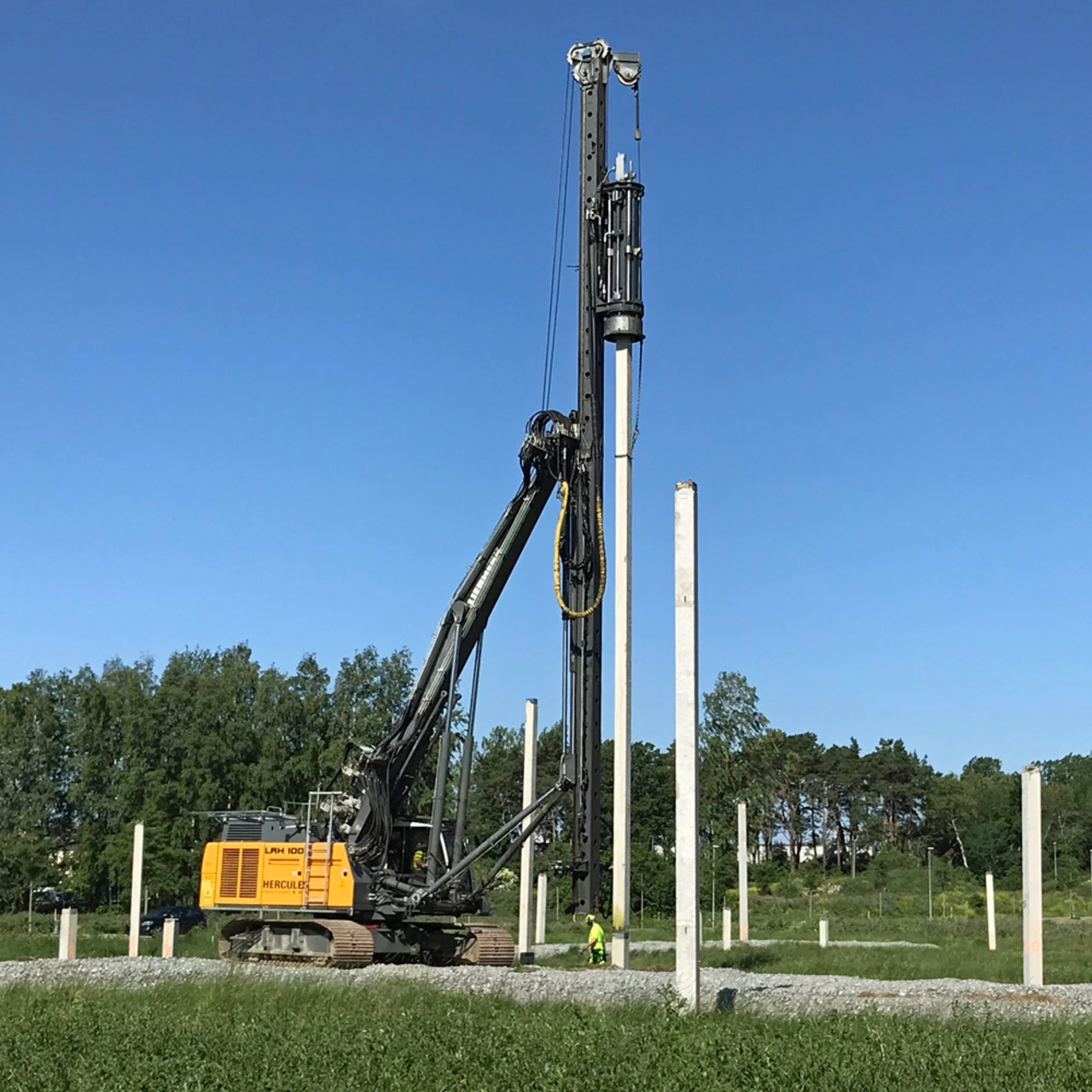

The piling rig LRH 100.1 has a special leader kinematics which enables very high radii and inclinations of up to 18° in all directions. Thus, a complete pile group can be installed from one location without repositioning the carrier machine. The flexible hammer system allows the use of different ram weights. With the LRH 100.1 different timber, concrete or steel piles can be produced. The LRH 100.1 is based on the approved LB 25’s basic machine of the Liebherr rotary drilling rig series.

metricimperial

  • Max. pile length - 19.5 m

  • Max. pile weight - 8 t

  • Leader inclination - 1:3

  • Vertical travel device - 4 m

  • Basic hammer weight max. - 9,600 kg

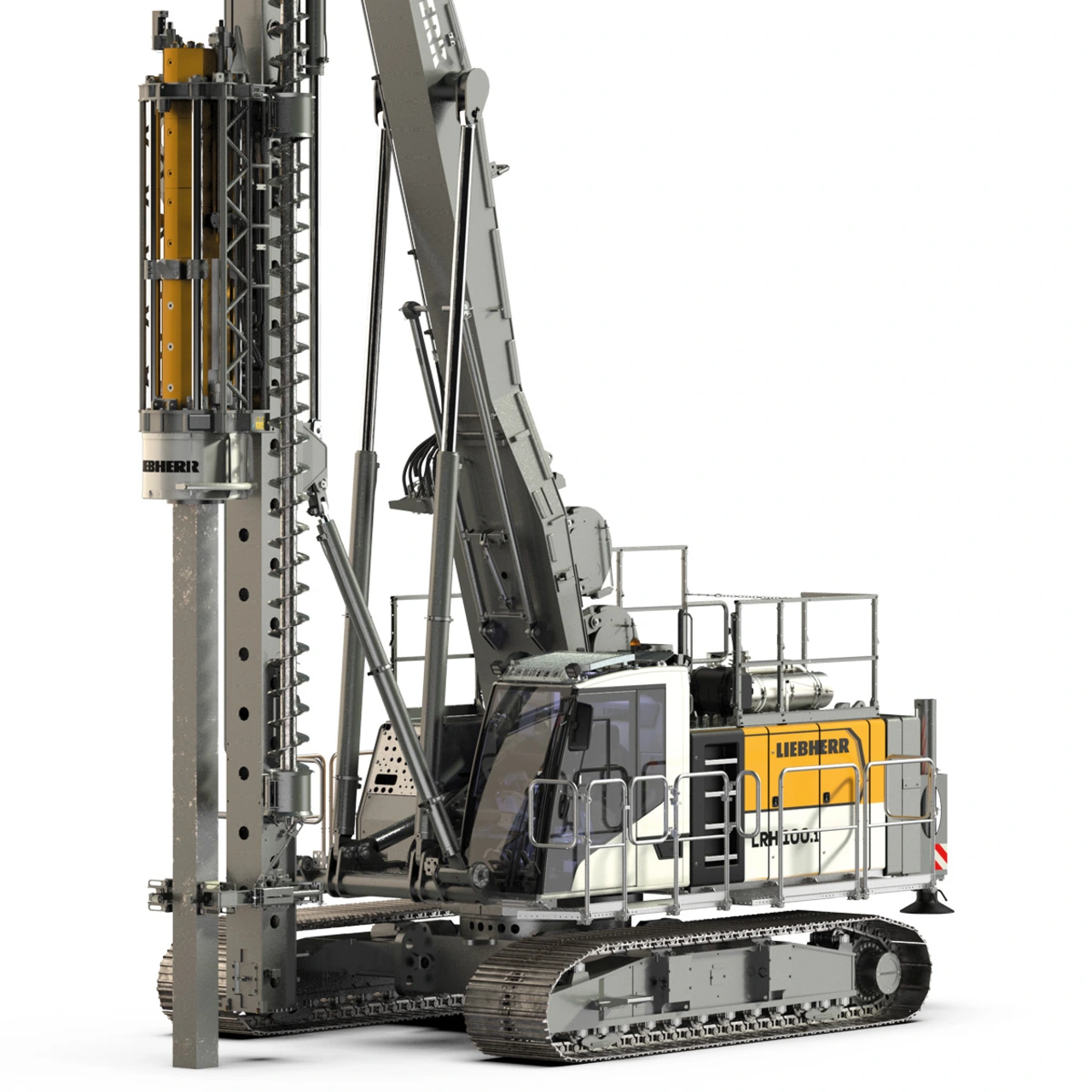

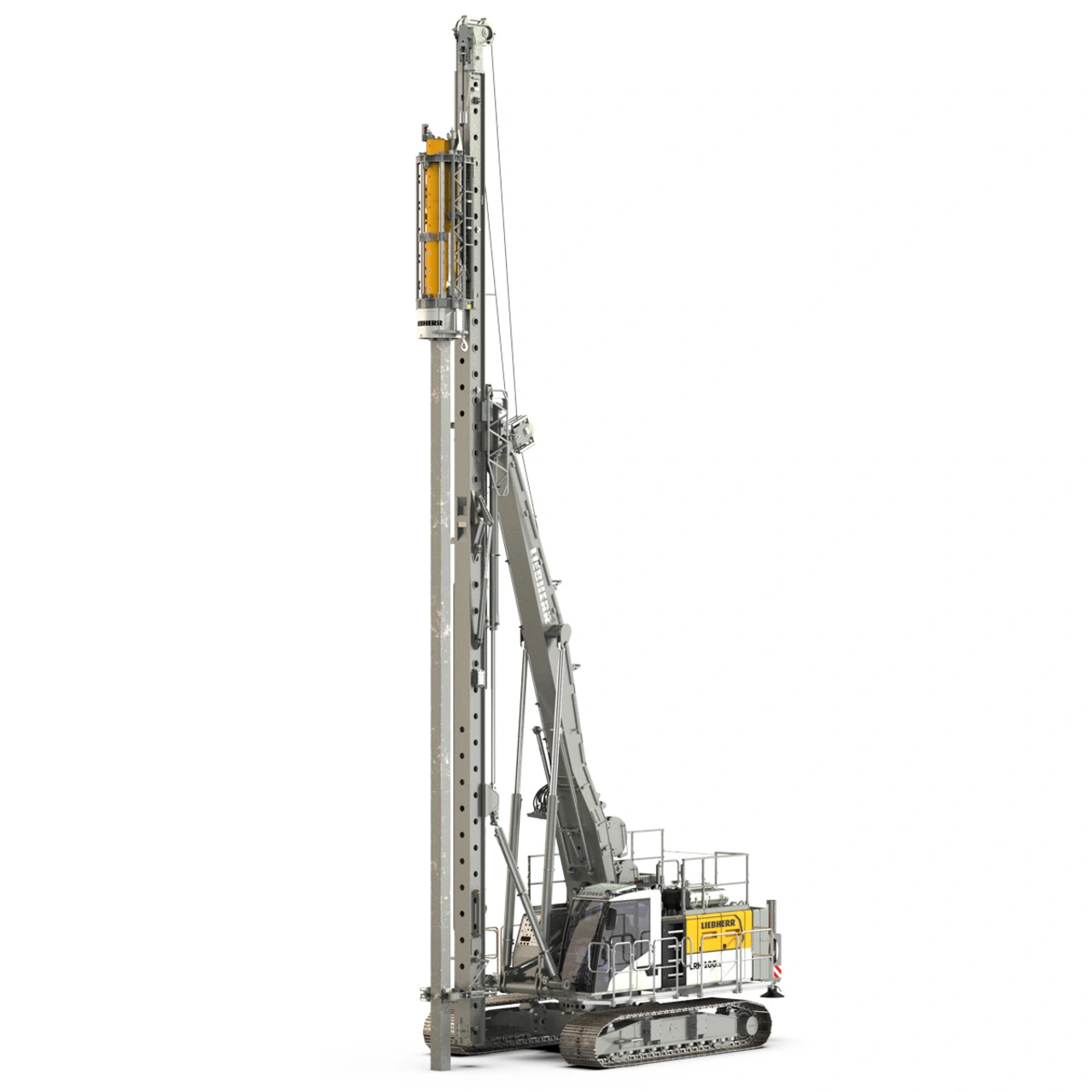

product image 0
Easy transportation and quick set-up
The compact rig can be transported in one piece with the hammer mounted and is consequently ready for operation on the jobsite in a short time.
Special radii and inclination
The flexible leader kinematics allows very large radii of up to 8 m and inclinations of up to 18° in all directions. Thus, a complete pile group can be installed from one location without repositioning the carrier machine.
Safe access
Side platform, railings and ladders are fully integrated in the new machine design and no longer need to be removed for transport.
Powerful drive technology
The Liebherr-own and fuel efficient diesel engine generates the required power. In combination with the on-board hydraulics a sufficient amount of performance for various deep foundation works is provided. When using further attachments like casing oscillators, no additional power pack is needed.
Innovative crane control
The crane control system offers a multitude of programme and control options for various piling and drilling methods. Service and machine data is also provided on color displays. The operator thus benefits from a facilitated handling of the rig. Hence, quick working cycles are achieved.
High service availability
A global service network with experienced technicians and fast access to spare parts ensure high machine availability and a long product service life.
Operating weight
71.3 t
Max. winch line pull
108 kN
Max. crowd force
80 kN
Drive
Conventional (diesel engine)
Engine power
250 kW
Leader inclination
1:3
Max. height
24.0 m
Max. leader lenght
19.5 m
Vertical travel device
4 m
Max. pile length
19.5 m
Max. pile weight
8 t
Jib length
8.7 m
Basic hammer weight min.
6,600 kg
Basic hammer weight max.
9,600 kg
Ram mass min.
3,000 kg
Ram mass max.
6,000 kg
Predrilling, max. drilling depth
12.0 m
Predrilling, max. torque
12 kNm
Min. transport width
3,490 mm
Min. transport height
3,400 mm
MyJobsite
One single tool for the collection, documentation and analysis of all process, machine, construction site and position data.
Recording of working processes (PDE)
With the PDE process data recording system machine data is recorded during the working process.
LIPOS positioning system
Accurate positioning and precise execution of piling or drilling processes.
Eco silent mode
With the eco silent mode the engine speed can be reduced to a predefined, required level. With this feature a notable reduction in diesel consumption can be achieved without any impact on operational output. Noise emissions are thus also lowered.
Automatic engine stop
The machine can optionally be equipped with an automatic engine stop control. Thanks to this feature it automatically switches off during longer work breaks after evaluating several machine parameters. This is fuel saving and environmentally friendly.
Fleet management and teleservice
The data transmission and positioning system “LiDAT” provides important information on the operation of the machine. With these data the operation becomes more efficient. Various additional modules allow machine data reporting or access through service engineers via teleservice.
Impact driving
Impact driving uses a hydraulic hammer for the installation of various types of pile. The hammer’s ram mass impacts on the pile.
  • This video is provided by Google*. When you load this video, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.

    By clicking on “ACCEPT”, you consent to the data transmission to Google for this video pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each YouTube video individually in the future and want to be able to load them without this blocker, you can also select “Always accept YouTube videos” and thus also consent to the respectively associated data transmissions to Google for all other YouTube videos that you will access on our website in the future.

    You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the settings (later also accessible via the “Privacy Settings” in the footer of our website).

    For further information, please refer to our Data Protection Declaration and the Google Privacy Policy.*Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

    MyJobsite – Your work at a glance

  • This video is provided by Google*. When you load this video, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.

    By clicking on “ACCEPT”, you consent to the data transmission to Google for this video pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each YouTube video individually in the future and want to be able to load them without this blocker, you can also select “Always accept YouTube videos” and thus also consent to the respectively associated data transmissions to Google for all other YouTube videos that you will access on our website in the future.

    You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the settings (later also accessible via the “Privacy Settings” in the footer of our website).

    For further information, please refer to our Data Protection Declaration and the Google Privacy Policy.*Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

    LIPOS - Liebherr Positioning System

  • This video is provided by Google*. When you load this video, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.

    By clicking on “ACCEPT”, you consent to the data transmission to Google for this video pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each YouTube video individually in the future and want to be able to load them without this blocker, you can also select “Always accept YouTube videos” and thus also consent to the respectively associated data transmissions to Google for all other YouTube videos that you will access on our website in the future.

    You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the settings (later also accessible via the “Privacy Settings” in the footer of our website).

    For further information, please refer to our Data Protection Declaration and the Google Privacy Policy.*Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

    Video - Automatic engine stop control explained

  • This video is provided by Google*. When you load this video, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.

    By clicking on “ACCEPT”, you consent to the data transmission to Google for this video pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each YouTube video individually in the future and want to be able to load them without this blocker, you can also select “Always accept YouTube videos” and thus also consent to the respectively associated data transmissions to Google for all other YouTube videos that you will access on our website in the future.

    You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the settings (later also accessible via the “Privacy Settings” in the footer of our website).

    For further information, please refer to our Data Protection Declaration and the Google Privacy Policy.*Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

    Training

  • This video is provided by Google*. When you load this video, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.

    By clicking on “ACCEPT”, you consent to the data transmission to Google for this video pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each YouTube video individually in the future and want to be able to load them without this blocker, you can also select “Always accept YouTube videos” and thus also consent to the respectively associated data transmissions to Google for all other YouTube videos that you will access on our website in the future.

    You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the settings (later also accessible via the “Privacy Settings” in the footer of our website).

    For further information, please refer to our Data Protection Declaration and the Google Privacy Policy.*Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

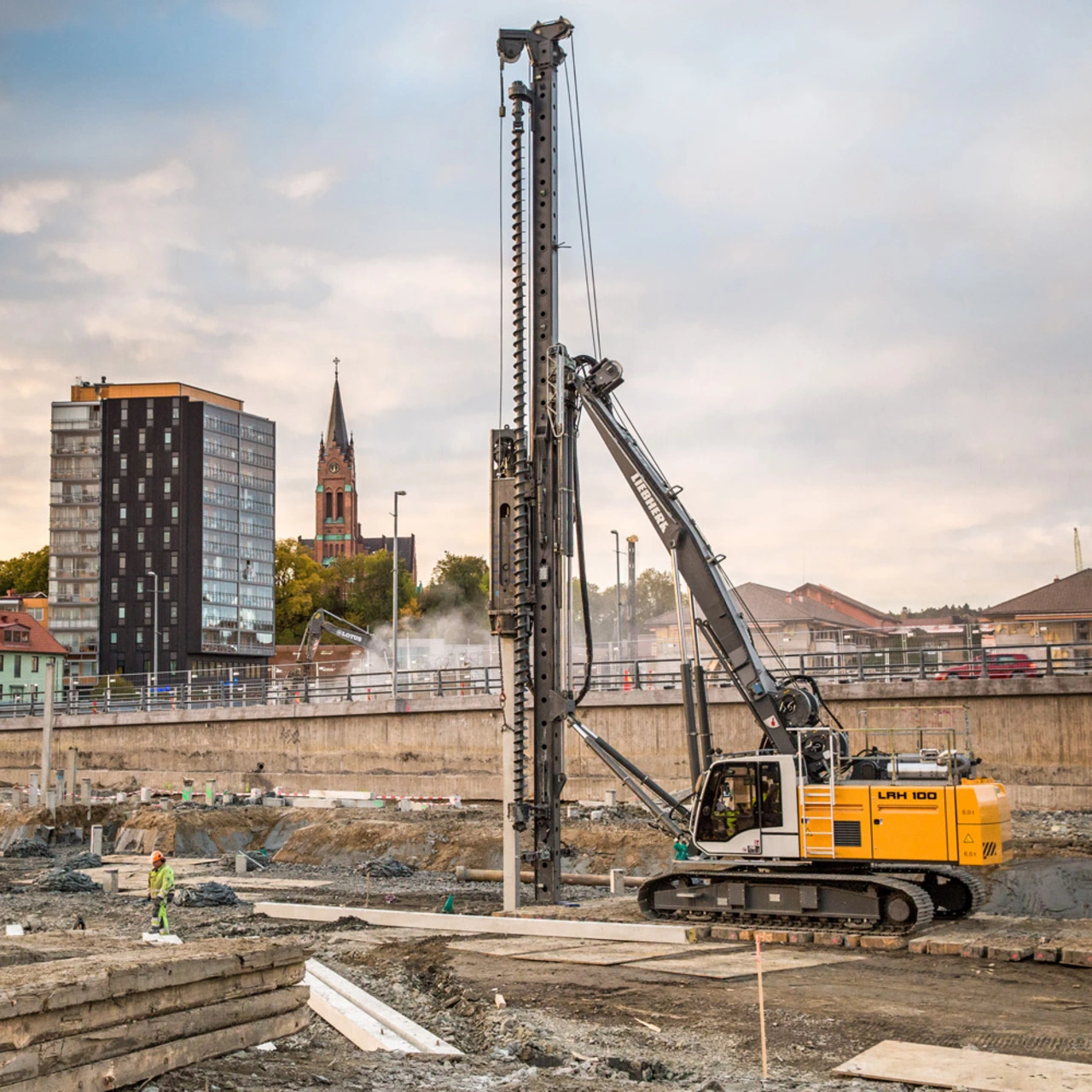

    Video: Liebherr piling rig LRH 100 with special leader kinematics

  • Torque - 12 kNm

  • Speed - 65 U/min

  • Max. ram weight - 3,000 kg

  • Max. energy - 36 kNm

  • Blow rate - 50 - 150 bpm

  • Max. ram weight - 4,000 kg

  • Max. energy - 48 kNm

  • Blow rate - 50 - 150 bpm

  • Max. ram weight - 5,000 kg

  • Max. energy - 60 kNm

  • Blow rate - 50 - 150 bpm

  • Max. ram weight - 6,000 kg

  • Max. energy - 72 kNm

  • Blow rate - 40 - 150 bpm

  • Operating weight - 69.3 - 79.9 t

  • Max. torque - 252 kNm

  • Kelly drilling, max. drilling depth - 53.2 m

  • Kelly drilling, max. drilling diameter - 3,300 mm
