Components for
agriculture and forestry

Powerful, efficient, innovative – components for agricultural and forestry machines

With many years of experience in the agricultural industry, Liebherr offers a broad portfolio of components for agricultural and forestry machinery. Components by Liebherr can be used in agricultural machinery covering the entire harvesting cycle. In addition, the range in the forestry sector contains everything from machines for harvesting to equipment for transporting timber.

❯ Combustion engines for tractors, harvesters, and sprayers

❯ Injection systems for tractors, harvesters and combine harvesters

❯ Axial piston pumps and motors for harvesters, sprayers, forwarders and shredders

❯ Electric motors for harvesters and tractors

❯ Drive technology for harvesters and farm machines

❯ Slewing bearings and slew drives for harvesters and agricultural machinery

❯ Camera monitor systems and gateway solutions for tractors, harvesters and sprayers

❯ Moisture sensors for combine harvesters, forage harvesters, balers and feed mixers

❯ Energy storage systems for farms and forestry operations

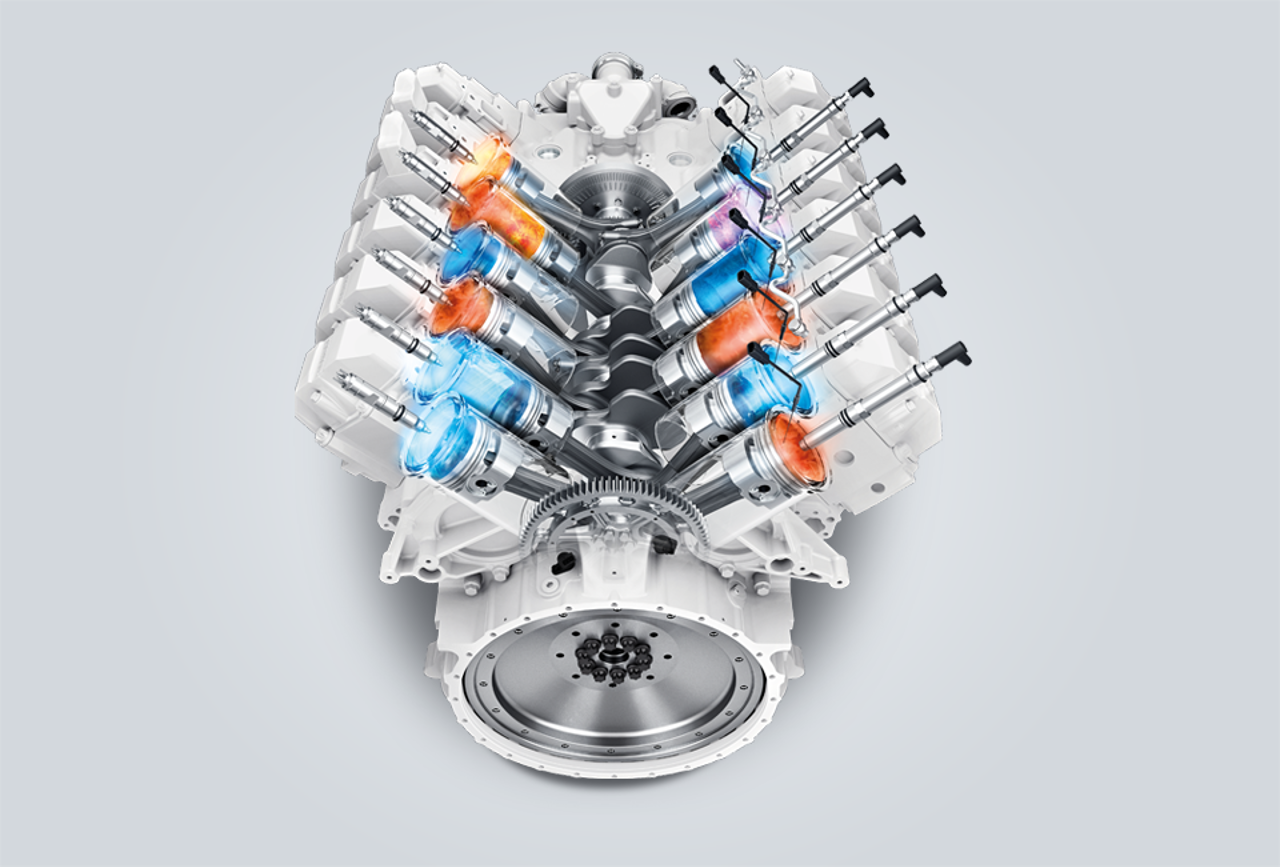

Combustion engines

Powerful: Our product portfolio of combustion engines for tractors, harvesters, and sprayers ranges from 250 kW to 950 kW

Fuel-efficient: With innovative SCRonly technology, our engines impress in day-to-day life with low fuel consumption and a low cooling requirement

Low maintenance: Long maintenance intervals of over 1,000 operating hours ensure low operating costs.

Modularity: Our base engines can be equipped with different exhaust gas aftertreatment systems to meet the required emission standards, including the most stringent global requirements

D976 diesel engine

The D976 is one of the best-in-class combustion engines for off-road applications. Thanks to its robust design and Liebherr’s extensive experience, this 6-cylinder in-line engine is perfectly suited for the toughest environmental conditions that are common in agriculture and forestry.

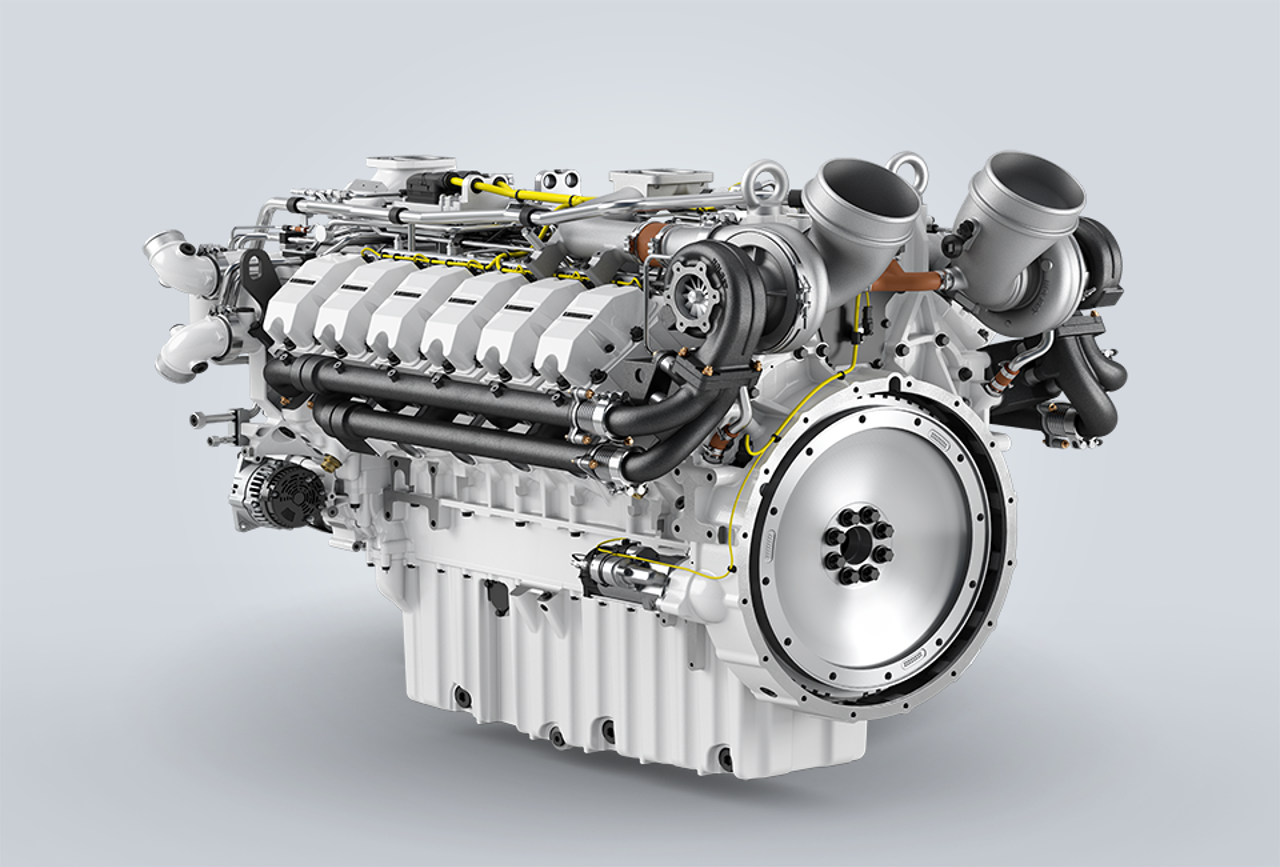

D9612 diesel engine

The Liebherr D9612 engine is a powerful and efficient solution for demanding agricultural applications. Delivering up to 950 kW of power, it combines elevated performance with high fuel efficiency and low emissions, making it ideal for intensive field operations. With a displacement of 27 litres, the D9612 ensures adaptability across a range of agricultural machinery.

Injection systems

Flexible: Different housing geometries and nozzle variants enable a wide range of variations in product design

Reliable: An innovative 3-way control valve allow for stable multiple injections with high accuracy

Robust: Manufactured with solid materials, the injection components are particularly resistant to various fuel grades and aggressive fuels, even under harsh environmental conditions

Future-proof: System solution for methanol and ethanol up to 30 bar with port fuel injection (PFI), suitable for dual-fuel or single-fuel applications

Axial piston pumps and motors

Versatile: The modular design of the hydraulic pumps and motors allows for a flexible use in a wide range of applications

Durable: The robust construction and precise technical design of the components ensure a long service life

Compact: An optimal utilisation of the installation space enables a high power density of all hydraulic units

DPVG axial piston pump

The axial piston pump for closed circuits does not only impress by its hydrostatic swashplate bearing, but also by the load-independent stability of its rotary group. It is ideally suited for closed travel and rotary circuits, such as those in harvesters, forwarders or shredders with dynamic load changes. Its robust construction withstands tough conditions and ensures a long service life.

DMVA axial piston motors

The DMVA axial piston motor in swashplate design can be used as a single or double motor. It is particularly characterised by the fact that each rotary group can be independently adjusted by up to 22 degrees in the open and closed circuits, resulting in increased efficiency and power density. The axial piston motor is specifically suitable, among other things, for traction and work drives in forwarders or harvesters. In addition, the use of two small rotary groups, instead of a single large one, in a tandem design allows for higher speeds in a confined space.

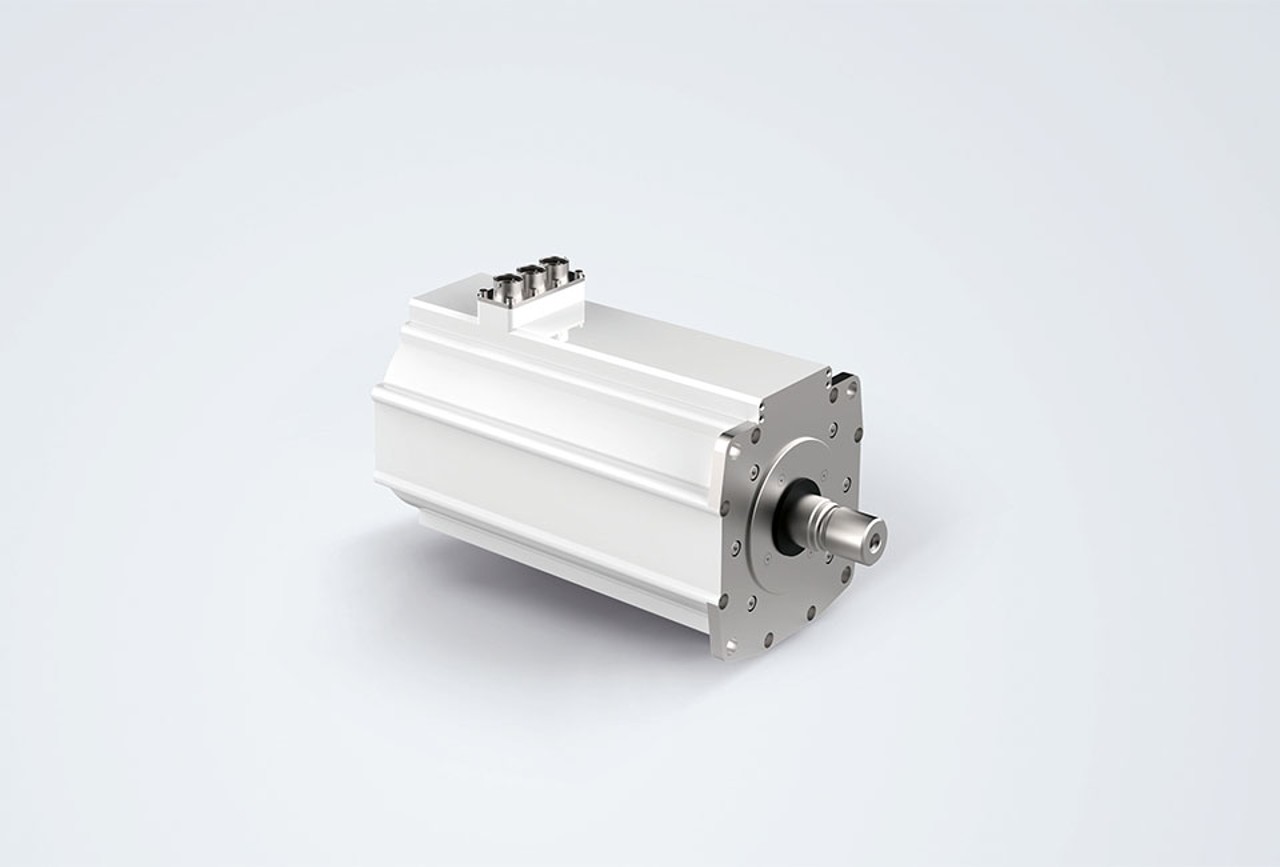

Electric machines – the new high power density alternative to hydraulic motor

The new design of the permanent magnet machines comes with the same power density as hydraulic designs, but without the effort and risks of the extensive line systems of hydraulic motors.

Type: Permanent magnet

Power range: 100 – 1,000 kW

Rated speed: 1,800 – 3,500 rpm

Increased MTBF

With its innovative design, the motor significantly reduces maintenance requirements - resulting in less downtime and lower maintenance costs.

The high torque in relation to the speed ensures a longer service life of the machine and an increase of the MTBF (Mean Time Between Failures) in the system by reducing the number of gear stages.

Swivelling drives

Liebherr swivelling drives are used in harvesters and excavators of all types and are designed for highly dynamic loads. The mostly two-stage planetary gearboxes are usually hydraulically driven, but they can also be equipped with an electric motor. They impress with their high reliability and long service life.

Slew drives

Slew drives are very compact with a high power density. This design is ideal for transferring high forces and torques whilst requiring a small installation space.

Exceptionally durable: Slew drives are very robust – blows or shocks, for example caused by felling, are no problem

A perfect fit: The worm gear slew drive is very compact

Slewing bearings

Slewing bearings are designed for the adjacent structures of the undercarriages in forestry and agricultural machines. This is particularly true of single-row four-point bearings, which are a perfect fit due to their light weight.

Effective and economic design: cost efficient and robust

Durable and safe due to the inner toothing, which prevents from dirt ingression

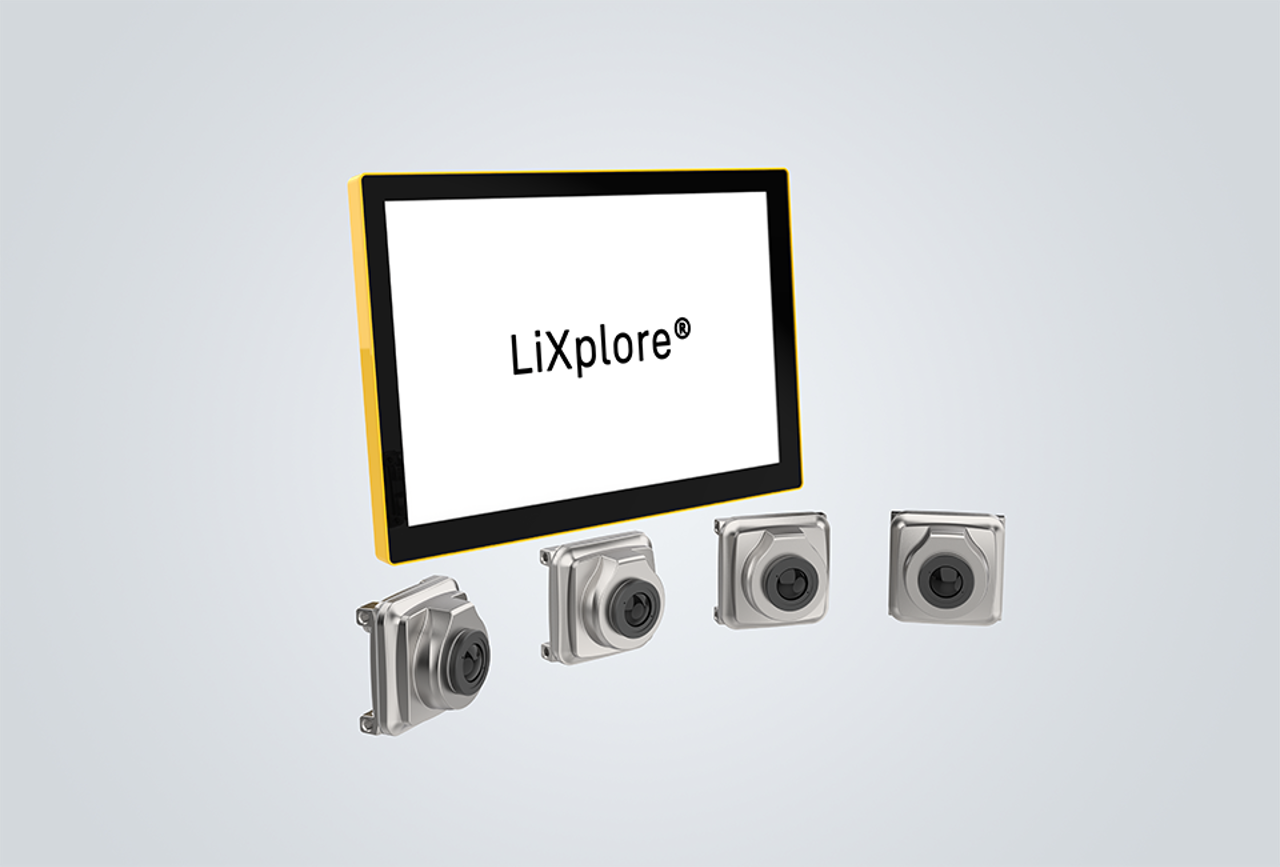

Camera monitor-systems with AI-based person detection

Perfect overview of work processes: A portfolio of camera solutions offers detailed views, a 360° bird's-eye perspective and an AI-based person detection.

Safe working at night and in twilight: HD image quality in any lighting situation

Convenient: simple and quick integration into the machine, e.g. through auto-calibration in a few minutes

NextGen Edge AI Gateways

More efficiency: IoT solutions enable a wide range of applications, from telematics to processor-intensive AI applications such as weed detection

High level of comfort: This holistic E2E solution reduces the keep alive effort of agricultural machinery manufacturers to a minimum

Security: Product functions, such as device management and over-the-air updates to support the security of the machines

Moisture sensors

Reliable: The sensors ensure accurate moisture readings for your applications and reliable data for different materials like grain, corn or straw

Robust: Even under extreme conditions, the sensors provide significant process data — our indirect measuring method and internal temperature compensation allow the sensors to achieve highest accuracy

Innovative: The sensor is equipped with a state-of-the-art integrated CAN interface and is a perfect fit for mobile harvesters

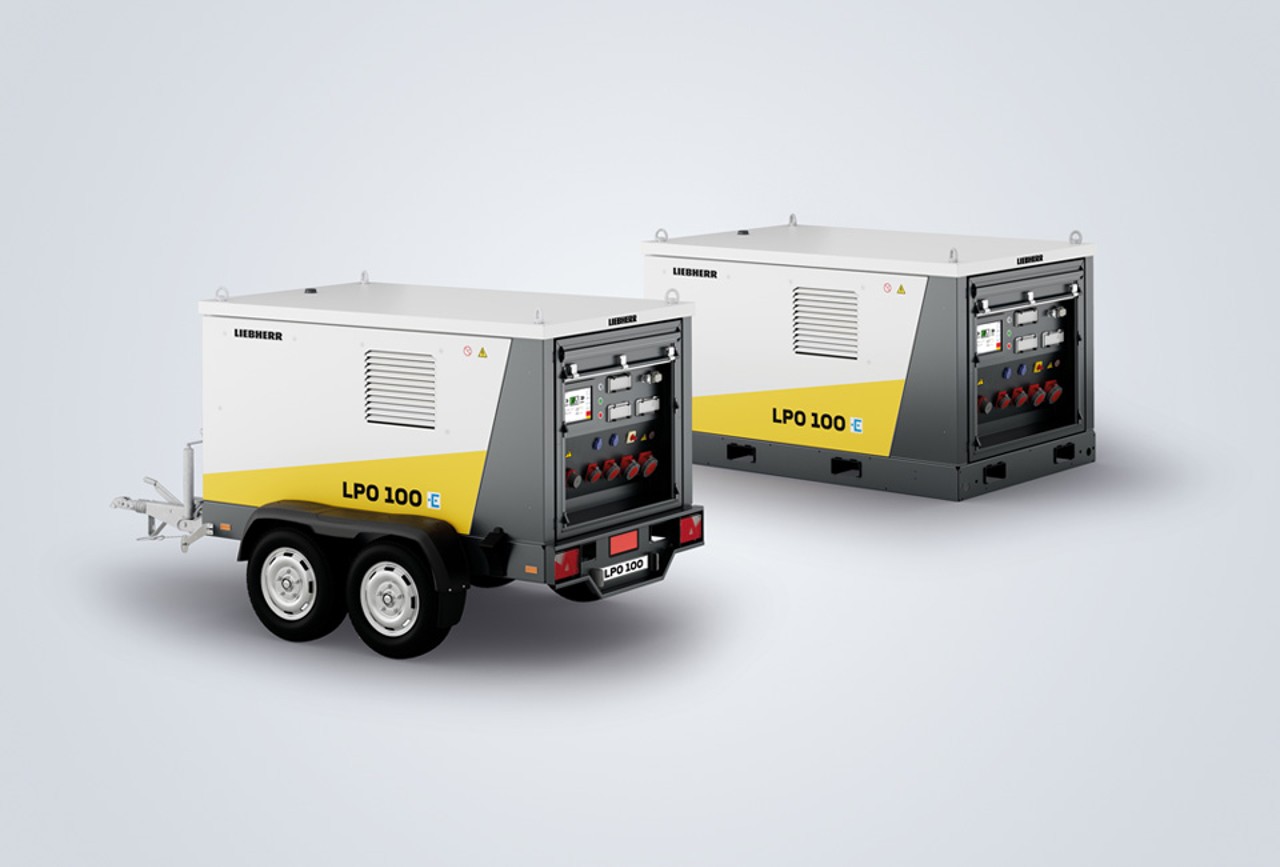

Liduro Power Port – the mobile power supply for electric machines

Charging vehicles and machines with zero local emissions: The mobile Liduro Power Port is a power source for electric vehicles and machines on off-grid sites or sites with limited grid access. It complies to emission regulations and offers long-term investment security with a best price-performance ratio.

Battery-based energy storage

Liduro Power Port (LPO) offers easy access to power for your fleet and enables smaller mains connections.

Type: LPO 100

Gross energy content: 94 kWh

Peak power: 110 kVA

Output slots: 16A (230V) / CEE 16A / 32A / 63A / 125A (400V)

Input slots: 16A (230V) / CEE 16A / 32A (400V)

Components, systems and products

Holistic solutions for work machines from various sectors and industries

Durable products thanks to robust design

Development and manufacturing with a focus on precision, quality and compliance with the highest industry standards

Long-term experience in various industries

Benefit from synergies, competencies and resources of the entire organisation

End-to-end product & service portfolio

Development, system design, state-of-the-art manufacturing facilities, in-house testing, customer services

Modular solutions for easy integration into your ecosystem

With a modular approach, Liebherr's component segment offers you building blocks for your ecosystem - from sensor components to integration into your applications – with the aim of extracting useful data from raw data and adding value to your processes.

We generate data with integrated sensors

Our components generate the required data, anytime and anywhere. Our own and third-party sensors are integrated in the best possible way and tested under the expected conditions.

Components in use

Digital smart cameras as well as display controllers on potato harvesters from AVR skillfully showcase the harvesting process.
