Technical data

The D9612 V12 engine sets new standards for power in heavy tactical platforms. Featuring increased displacement and Liebherr’s advanced injection system, it delivers the power-to-weight ratios required in the heavy vehicle segment while reducing fuel and oil consumption.
Backed by a proven civil platform with over 2,000 units in operation since 2016 and more than 47,000 hours of test bench validation, the engine ensures outstanding reliability. Thanks to Liebherr’s in-house engine control system, the D9612 can be optimized for different duty cycles and a wide range of fuel types, making it ideally suited for demanding heavy military missions.

<h2>Robust and highly versatile engine design</h2>

<p>Liebherr’s advanced V12 engine with 29.4-litre displacement and two-stage regulated turbocharging, delivering outstanding power and flexibility.</p>

<h2>Proven reliability</h2>

<p>Basic civil version in production since 2016 with over 2,000 units delivered worldwide.</p>

<h2>Extreme condition validation</h2>

<p>More than 47,000 hours of test benching ensuring robust performance in the most demanding environments.</p>

<h2>Low fuel consumption</h2>

<p>Low fuel and oil consumption thanks to Liebherr’s in-house developed engine control and injection system.</p>

<h2>Modular design  and adaptability</h2>

<p>Modular design and adaptability to various utilisation profiles and fuels, ideal for both heavy military vehicles and specialised civil applications.</p>

<h2>Global support  and digital solutions</h2>

<p>Supported by Liebherr’s global service network and advanced digital solutions for maximum uptime and long-term value for operators.</p>

<h2>Product advantages</h2>

<h2>Photo gallery</h2>

<p>Discover our Training Academy for combustion engines</p>

<p>The Training Academy provides in-depth technical knowledge and practical expertise in the field of combustion engines to help professionals master the challenges of today and tomorrow.</p>

Discover more

<p>LiDIA - engine diagnostic solution</p>

<p>LiDIA is an intuitive and user-friendly engine diagnostic solution, which requires no configuration, facillitates access to the engine environment, and reduces the complexity of diagnostic procedures to the essentials. LiDIA offers a rapid overview of all information on the engine system: status, diagnostic trouble codes, active limitations and failure reactions.</p>

<p>reThink & reFuel</p>

<p>The reduction of global greenhouse gases is a significant challenge of our generation. Striving to reach net zero emissions in the future, Liebherr works on alternative and climate-friendly powertrain concepts. ​</p>

<h2>Discover more</h2>

Imprint

Data protection notice

Contact

Privacy Settings

Accessibility statement

Refrigeration and freezing

Earthmoving

Deep foundation

Tower cranes

Concrete technology

Mobile and crawler cranes

Mining

Aerospace and transportation systems

Material handling

Gear technology and automation systems

Components

Maritime cranes

Careers

Job vacancies

Professionals

Young professionals

Students

Pupils

We as an employer

Company

Liebherr worldwide

History

Services

Sales and service partners

Liebherr shop

Product cybersecurity

News

News and press releases

Exhibitions and events

Visit us

Youtube

TikTok

<span>This chart is provided by Google*. When you load this chart, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.</span><p>By clicking on “ACCEPT”, you consent to the data transmission to Google for this chart pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each Google chart individually in the future and want to be able to load them without this blocker, you can also select “Always accept Google Charts” and thus also consent to the respectively associated data transmissions to Google for all other Google charts that you will access on our website in the future.</p><p>You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the <a href="#" data-function-id="userCentricsShowSettings" data-function-id-params="null"  target="_self" class="copy-link">settings</a>  (later also accessible via the “Privacy Settings” in the footer of our website).</p><span>For further information, please refer to our <a href="#" data-function-id="crossEntryPoint" data-function-id-params="hau_privacy"  target="_self" class="copy-link">Data Protection Declaration</a> and the Google <a href="https://policies.google.com/privacy" target="_blank" class="copy-link">Privacy Policy</a>.</span><span><sup>*Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA</sup></span><span><sup>** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).</sup></span>

External content (third-party service)Google Charts

<span>This map material is provided by Google*. When you load this map, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.</span><p>By clicking on “ACCEPT”, you consent to the data transmission to Google for this map pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each Google map individually in the future and want to be able to load them without this blocker, you can also select “Always accept Google Maps” and thus also consent to the respectively associated data transmissions to Google for all other Google maps that you will access on our website in the future.</p><p>You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the <a href="#" data-function-id="userCentricsShowSettings" data-function-id-params="null"  target="_self" class="copy-link">settings</a>  (later also accessible via the “Privacy Settings” in the footer of our website).</p><span>For further information, please refer to our <a href="#" data-function-id="crossEntryPoint" data-function-id-params="hau_privacy"  target="_self" class="copy-link">Data Protection Declaration</a> and the Google <a href="https://policies.google.com/privacy" target="_blank" class="copy-link">Privacy Policy</a>.</span><span><sup>* Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA</sup></span><span><sup>** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).</sup></span>

External content (third-party service)Google Maps

Click RELEASE VIDEO and follow the data protection notices.

<span>This video is provided by Google*. When you load this video, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.</span><p>By clicking on “ACCEPT”, you consent to the data transmission to Google for this video pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each YouTube video individually in the future and want to be able to load them without this blocker, you can also select “Always accept YouTube videos” and thus also consent to the respectively associated data transmissions to Google for all other YouTube videos that you will access on our website in the future.</p><p>You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the <a href="#" data-function-id="userCentricsShowSettings" data-function-id-params="null"  target="_self" class="copy-link">settings</a>  (later also accessible via the “Privacy Settings” in the footer of our website).</p><span>For further information, please refer to our <a href="#" data-function-id="crossEntryPoint" data-function-id-params="hau_privacy"  target="_self" class="copy-link">Data Protection Declaration</a> and the Google <a href="https://policies.google.com/privacy" target="_blank" class="copy-link">Privacy Policy</a>.</span><span><sup>* Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA</sup></span><span><sup>** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).</sup></span>

External content (third-party service)YouTube videos

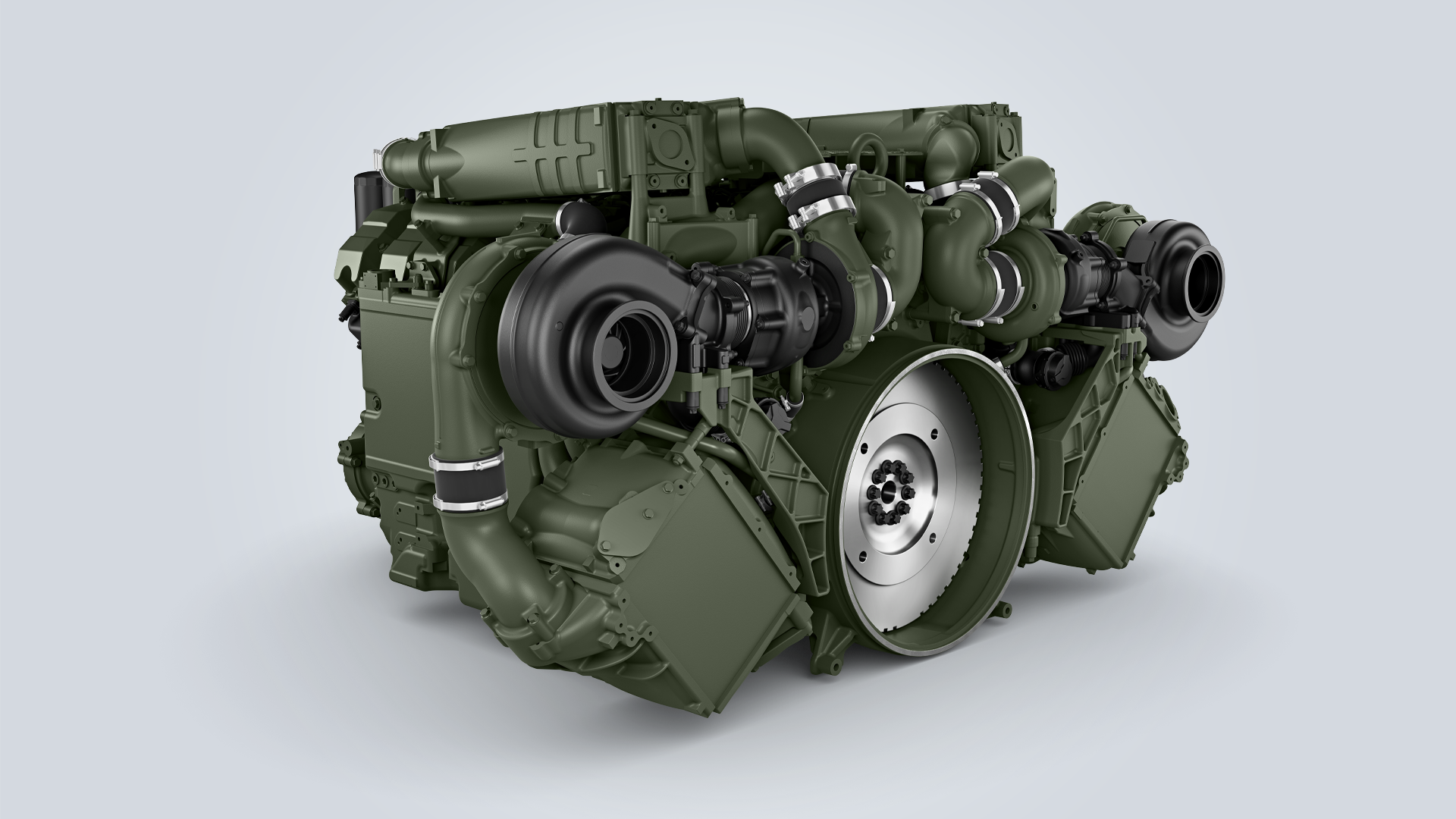

The D9612: a robust, high-performance 12-cylinder engine by Liebherr, perfect for defense.

Application	Defense
Engine type	Diesel engines
Configuration	V-engine
Number of cylinders	12
Bore	141 mm
Stroke	157 mm
Displacement	29.4 l
Rated power	850 - 1,400 kW
Dimensions (L/W/H)	1,750 / 2,020 / 1,080 mm
