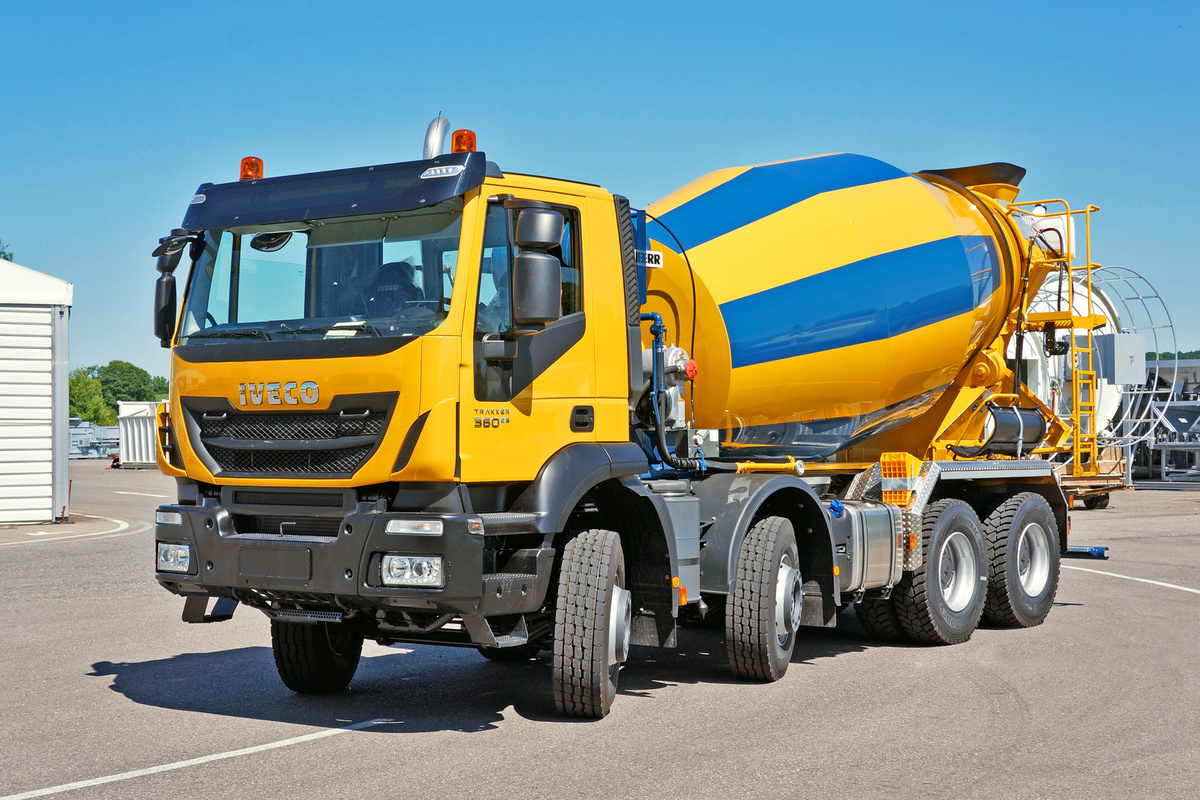

Name: HTM 904 Truck mixer
Brand: Liebherr

Measured in accordance with DIN 459-1 at min. 2 drum rotations per minute. The given values for capacity and water volume only apply to a horizontally aligned mixer frame. A deflection of the frame during loading is not taken into account here and may negatively affect the water volume under certain circumstances. The real maximum filling capacity with concrete depends on the consistency and the rheological characteristics of the concrete. The topology of the road and the driveability also influence the maximum loading volume.

Nominal filling in compacted mixed concrete.

Weight details for basic unit with chassis power take-off (PTO), incl. 2 extension chutes, compl. assembled/ready for operation, deviations +/- 5%.

Technical data

Highlights

The HTM 904 truck mixer, as a perfect all-rounder, allows for economic concrete transportation due to its low body weight and the use of long-lasting, sturdy components.

Imprint

Data protection notice

Contact

Privacy Settings

Products

Refrigeration and freezing

Earthmoving

Deep foundation

Tower cranes

Concrete technology

Mobile and crawler cranes

Mining

Aerospace and transportation systems

Material handling

Gear technology and automation systems

Components

Maritime cranes

Career

Job vacancies

Professionals

Young professionals

Students

Pupils

We as an employer

Company

Liebherr worldwide

History

Services

Sales and service partners

Liebherr shop

Product cybersecurity

News

News and press releases

Exhibitions and events

Visit us

LinkedIn

Xing

Youtube

This chart is provided by Google*. When you load this chart, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.By clicking on “ACCEPT”, you consent to the data transmission to Google for this chart pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each Google chart individually in the future and want to be able to load them without this blocker, you can also select “Always accept Google Charts” and thus also consent to the respectively associated data transmissions to Google for all other Google charts that you will access on our website in the future.You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the <a href="#" data-function-id="userCentricsShowSettings" data-function-id-params="null" target="_self" class="copy-link">settings</a> (later also accessible via the “Privacy Settings” in the footer of our website).For further information, please refer to our <a href="#" data-function-id="crossEntryPoint" data-function-id-params="hau_privacy" target="_self" class="copy-link">Data Protection Declaration</a> and the Google <a href="https://policies.google.com/privacy" target="_blank" class="copy-link">Privacy Policy</a>.*Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

External content (third-party service)Google Charts

This map material is provided by Google*. When you load this map, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.By clicking on “ACCEPT”, you consent to the data transmission to Google for this map pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each Google map individually in the future and want to be able to load them without this blocker, you can also select “Always accept Google Maps” and thus also consent to the respectively associated data transmissions to Google for all other Google maps that you will access on our website in the future.You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the <a href="#" data-function-id="userCentricsShowSettings" data-function-id-params="null" target="_self" class="copy-link">settings</a> (later also accessible via the “Privacy Settings” in the footer of our website).For further information, please refer to our <a href="#" data-function-id="crossEntryPoint" data-function-id-params="hau_privacy" target="_self" class="copy-link">Data Protection Declaration</a> and thr Google <a href="https://policies.google.com/privacy" target="_blank" class="copy-link">Privacy Policy</a>.*Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

External content (third-party service)Google Maps

Click RELEASE VIDEO and follow the data protection notices.

This video is provided by Google*. When you load this video, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.By clicking on “ACCEPT”, you consent to the data transmission to Google for this video pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each YouTube video individually in the future and want to be able to load them without this blocker, you can also select “Always accept YouTube videos” and thus also consent to the respectively associated data transmissions to Google for all other YouTube videos that you will access on our website in the future.You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the <a href="#" data-function-id="userCentricsShowSettings" data-function-id-params="null" target="_self" class="copy-link">settings</a> (later also accessible via the “Privacy Settings” in the footer of our website).For further information, please refer to our <a href="#" data-function-id="crossEntryPoint" data-function-id-params="hau_privacy" target="_self" class="copy-link">Data Protection Declaration</a> and the Google <a href="https://policies.google.com/privacy" target="_blank" class="copy-link">Privacy Policy</a>.*Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

External content (third-party service)YouTube videos

HTM 904 Truck mixer - Liebherr

The Liebherr group has a global sales and service network. Here, you can check whether a market participant already has a Liebherr partner contract.

to find the contact person responsible for you.

We have special offers and content for your country.

Results per page

Please enter an alternative search text or limit results using the filter selection.

Unfortunately, we were unable to find any results.

Functions

Unfortunately, we are having technical problems processing your inquiry.

Find out more

Search

I want to share the following page:%0D%0A{pageUrl}

Share

Facebook

Google+

Twitter

YouTube

The current page is not available in the language you selected on the previous web page

Nominal filling	9 m³
Water capacity	10.22 m³
Geometric drum capacity	15.96 m³
Clearance height without frame	2,531 mm
Hopper filling height without frame	2,485 mm
Assembly weight Standard	4,030 kg
Additional weight separate motor	630 kg
