Components
Diesel engine
Highlights
Designed and manufactured by Liebherr, the D976 is one of the best-in-class combustion engines for off-road applications, such as construction. Thanks to its robust design and Liebherr’s extensive experience, this 6-cylinder in-line engine is perfectly suited for the toughest environmental conditions. Delivering up to 620 kW (up to 670 kW in development) with 18 L displacement, the engine provides high power density, and reaches a peak torque of 3641 Nm at 1300 rpm. Not only does the D976 achieve high performance, it also reduces the total cost of ownership by featuring high oil change intervals of more than 1000 hours, and low fuel consumption. Our engine condition monitoring solution and LiDIA diagnostic tool, together with a long life service further extend reliability and minimise engine down time.
Configuration - In-line engine
In-line engine
Number of cylinders - 6
6
Displacement - 18.0 l
18.0 l
Rated power - 565 - 620 kW
565 - 620 kW
Rated speed - 1,900 rpm
1,900 rpm

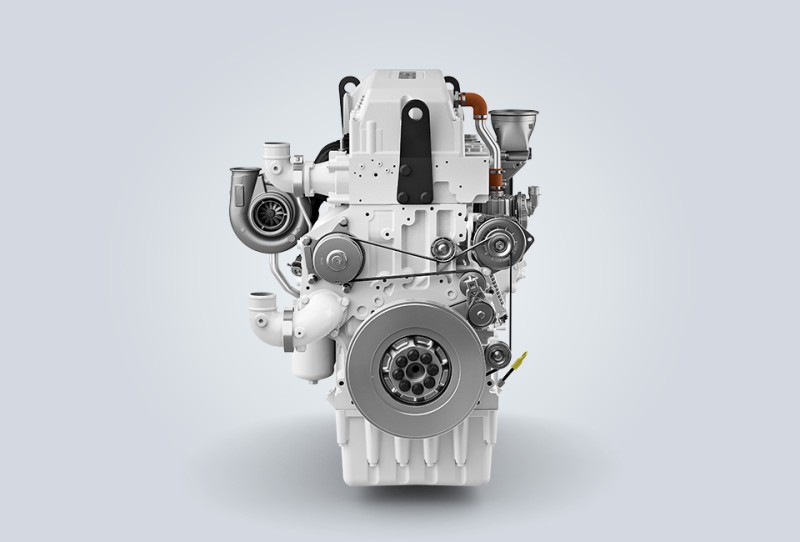

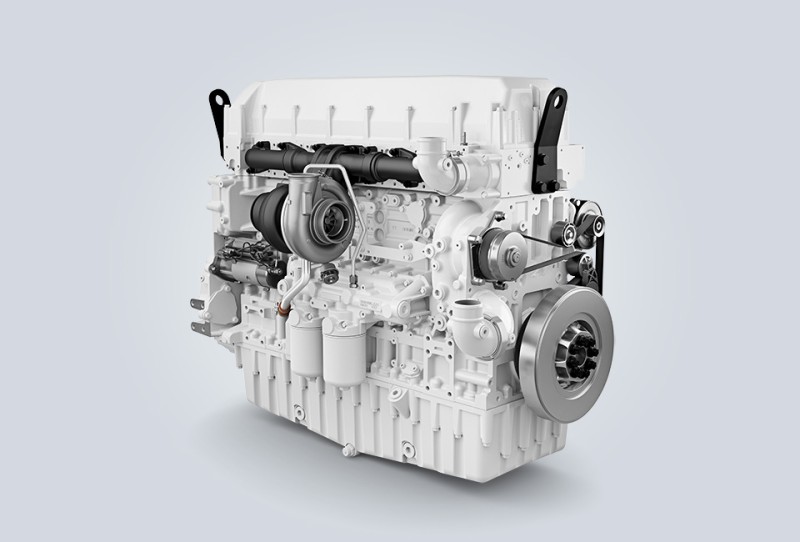

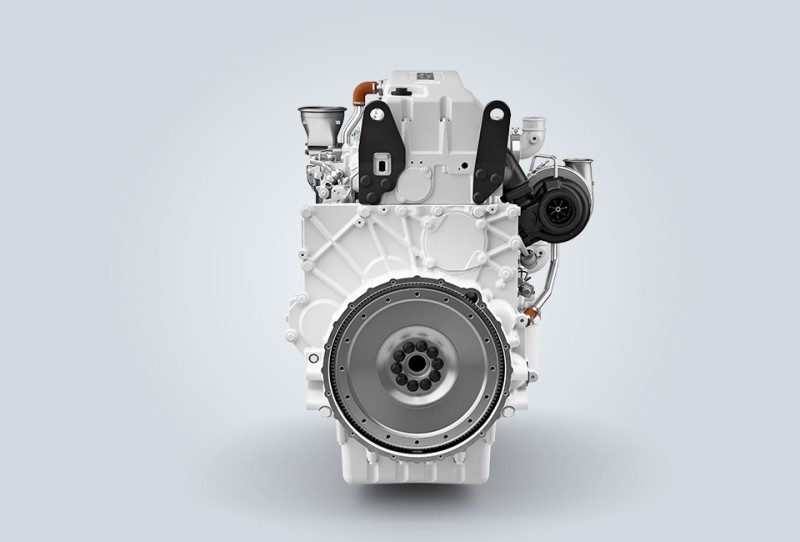

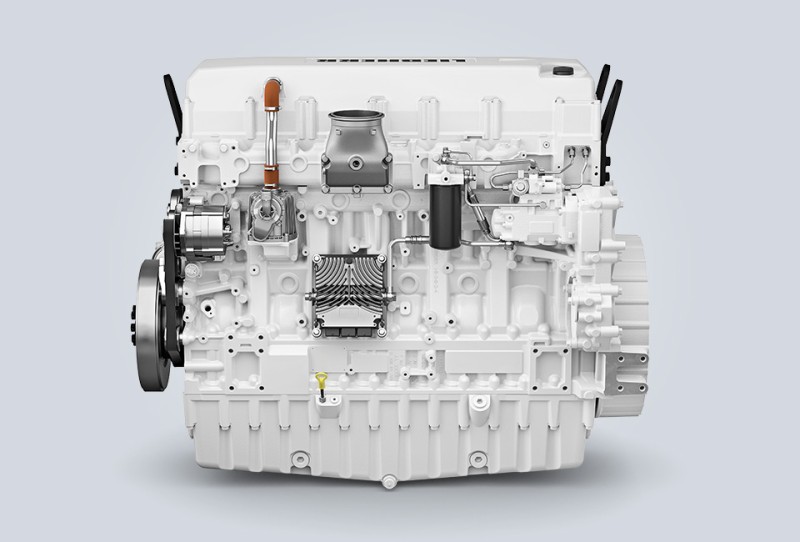

Photo gallery
Technical data
| Configuration | In-line engine |
| Number of cylinders | 6 |
| Bore | 148 mm |
| Stroke | 174 mm |
| Displacement | 18.0 l |
| Rated power | 565 - 620 kW |
| Rated speed | 1,900 rpm |
| Peak torque | 3,641 Nm at 1,300 rpm |
| Compression ratio | 16.5 : 1 |
| Dimensions (L/W/H) | 1,546 / 1,057 / 1,284 mm |
| Dry weight | 1,830 kg |
| Emission standards | EPA Tier 0 (Fuel consumption optimised) / EPA Tier 4f / EU Stage V |
