LHDismantle: Automated disassembly of high-voltage batteries
Electric mobility is on the rise – and with it, the need for efficient solutions for the recycling and reprocessing of high-voltage batteries. Liebherr-Verzahntechnik GmbH has developed LHDismantle, an industrial-grade system for the automated disassembly of high-voltage batteries. Based on this foundation, the company offers solutions ranging from automated unscrewing processes to modular and scalable turnkey systems for disassembly and unloading.
OEMs and recycling companies face a common challenge: Regardless of whether battery components are reconditioned for reuse or sent for recycling, the first necessary step in the process is to dismantle the high-voltage batteries from electric vehicles. However, dismantling them manually is time-consuming, costly and involves safety risks. At the same time, the volume of returns is rising steadily, and there is a shortage of qualified personnel capable of handling high-voltage components.
There is another reason why early, smart and automated disassembly is a key component of a functioning battery recycling system: Once the material has been shredded, valuable materials such as copper, nickel, cobalt, manganese and lithium can usually only be recovered through complex metallurgical processes. Leading recycling companies are therefore increasingly relying on precise disassembly processes to achieve high recovery rates and high material quality. This is exactly where LHDismantle comes in.

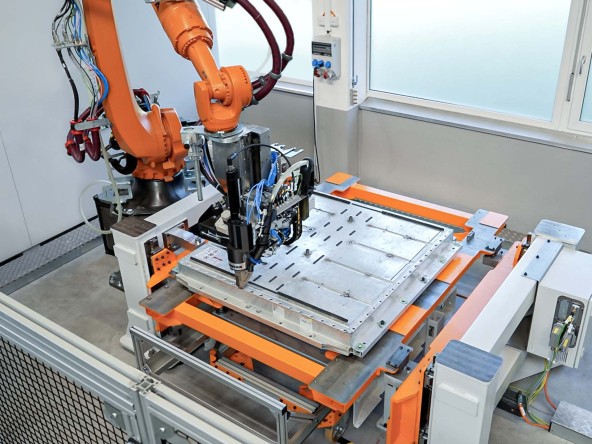

Seamless integration into modular automation systems: the LHDismantle disassembly cell
From research to industrial application
LHDismantle builds on the results of the interdisciplinary “ZIRKEL” research project, funded by the German research ministry, which investigated the circular economy of battery systems in the electric mobility sector. Based on these results, Liebherr-Verzahntechnik GmbH has developed an innovative disassembly cell for industrial use.
The system automates the non-destructive loosening of numerous bolted joints – a safety-critical process that has predominantly been carried out manually until now. The battery management system (BMS) can only be deactivated after opening the battery compartment; this creates safety risks due to the exposed high-voltage contacts. LHDismantle automates this stage of the process, reduces the exposure of specialist staff to high-voltage hazards and lays the groundwork for safe, repeatable further processing.
Technical challenges
Automating battery disassembly is a challenging task: Different battery types require a high degree of flexibility, as their geometries, screw types and positions vary considerably. Contamination, corrosion and damage make it difficult to reliably detect the screws, which is particularly challenging for camera-based systems. There is also the high voltage hazard, which imposes the strictest requirements on workplace safety.

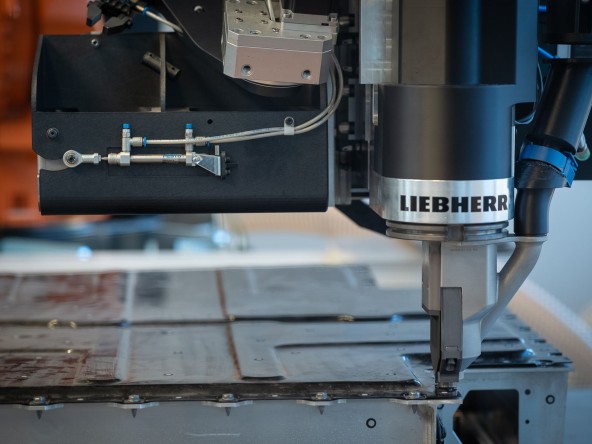

High process reliability thanks to precise alignment of the bit with the screw via tactile detection
LHDismantle: Automated unscrewing
At its core, LHDismantle uses a patented, tactile unscrewing method with automatic position correction. This makes the system resistant to dirt, corrosion and damage, and ensures maximum process reliability. It also achieves high productivity. An automatic tool change system allows different types of screws to be machined without manual intervention. The removed screws are safely taken away via a swivel unit or an optional extraction module.
The system is operated via an intuitive user interface that displays a live graphical status of the entire unscrewing process. Battery types and unscrewing programs are selected directly from an integrated database; new component types can be set up quickly, both in terms of programming and tooling. Using a digital twin, Liebherr-Verzahntechnik GmbH can digitize new battery variants in advance and simulate and validate the disassembly process before the relevant programs are made available to system users. “When we need to process a previously unknown battery pack, we use reverse engineering to create a virtual twin of the battery pack. From this, we derive the tools and the appropriate disassembly sequence,” explains Viktor Bayrhof, product manager for automation systems. This shortens ramp-up times and reduces risks when processing new battery variants.
We always consider the system as part of the overall setup and seamlessly integrate external process steps as needed
Turnkey solutions: Integration into the process chain
In addition to unscrewing technology, Liebherr-Verzahntechnik GmbH offers a comprehensive portfolio of solutions for the handling, transport, and storage of high-voltage batteries. The LHDismantle cell integrates seamlessly into modular automation systems, serving as a central component within an end-to-end process chain. Pallet handling systems (PHS) connect automation cells, machines, and manual workstations. In addition, unloading equipment and manual workstations are used for subsequent steps. Third-party components, such as machining centers for milling or laser cutting processes, can also be flexibly integrated. “We always consider the system as part of the overall setup and seamlessly integrate external process steps as needed,” says Viktor Bayrhof. This results in a comprehensive, scalable solution for the safe and efficient processing of high-voltage batteries.
Win-win: Practical testing in real life conditions
The disassembly cell can be viewed at the Liebherr-Verzahntechnik GmbH Tech Center in Kempten. The company is currently preparing to deploy the system at a test site. The concept is based on mutual benefit: Recycling companies gain access to industrial automation technology and can trial it in real life operating conditions. In turn, Liebherr-Verzahntechnik GmbH gains valuable insights from its practical application and is able to continuously refine the system. “Our solution offers a risk-free introduction to automated disassembly, particularly for companies that have had little experience with automation to date,” explains Viktor Bayrhof.

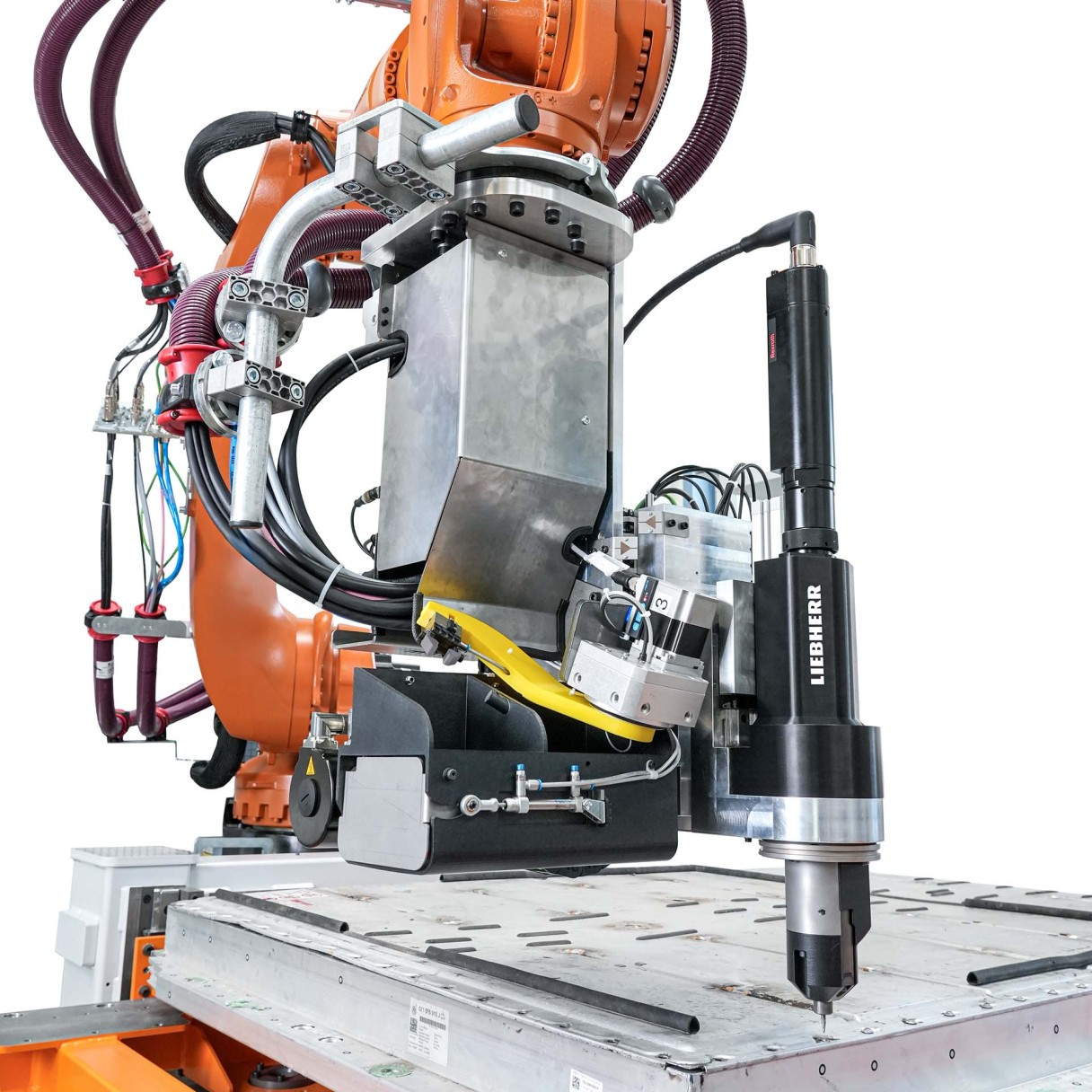

Tactile unscrewing unit with automatic position correction
Positioning in a growing market
With LHDismantle, Liebherr-Verzahntechnik GmbH is addressing the growing demand for industrially scalable solutions for battery disassembly. When combined with the corresponding turnkey systems, this creates a comprehensive, integrated solution that adapts flexibly to growing production volumes and supports an efficient circular economy in the field of electric mobility.
