Undercarriage for hydraulic excavators

Built for mining

Liebherr undercarriages are engineered specifically for mining applications and are available for Liebherr’s complete range of mining excavator class sizes. They provide the foundation for reliable machine performance and long component life.

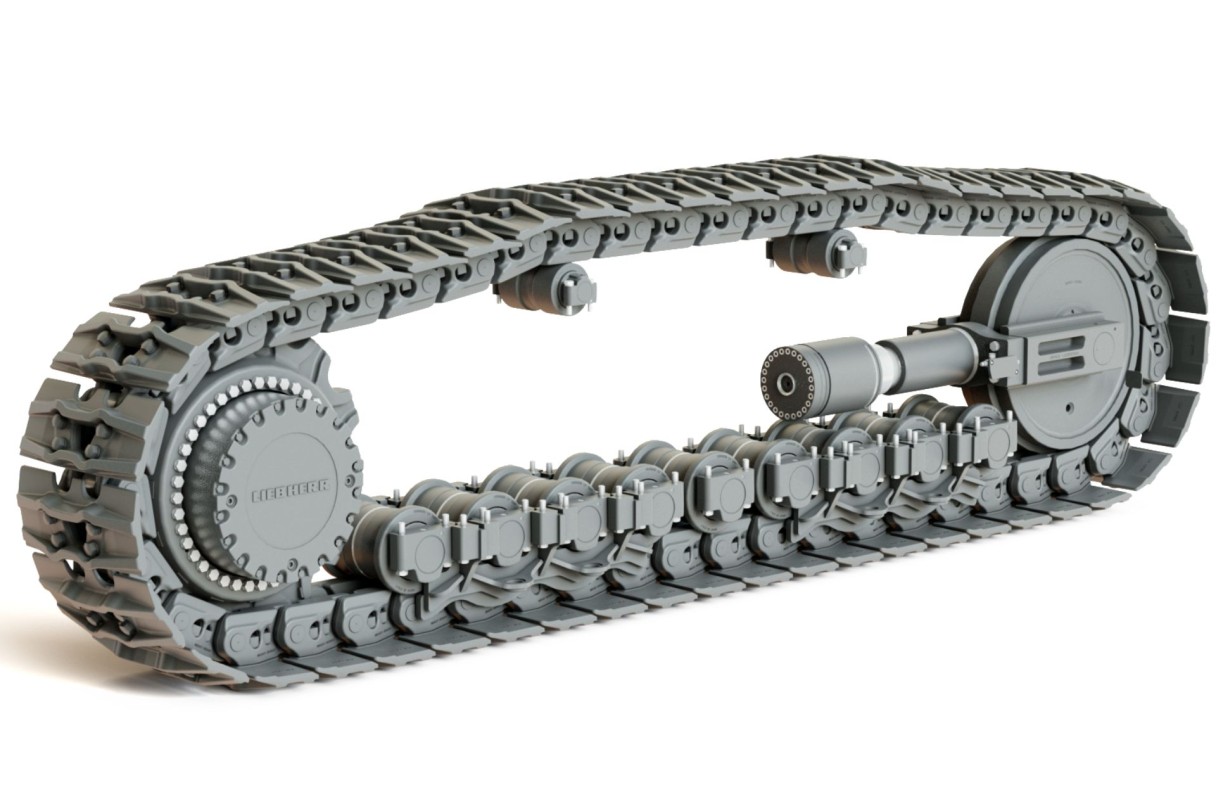

Our undercarriage wear parts portfolio

(Hover over the yellow dots below to learn more)

Undercarriage warranty programs - full coverage, no surprises

All-in warranty coverage

With coverage that includes parts, labour and travel, we help plan maintenance with confidence.*

_{*Warranty coverage, terms and availability may vary by market. Please contact your local Liebherr representative for details.}

Reduced operational risk

By managing the full replacement process, Liebherr helps reduce unplanned downtime and keeps your equipment available when you need it. This also makes maintenance planning more straightforward and supports stable, efficient operations.

Features:

Structural integrity for long service life

Liebherr designs its undercarriages to withstand the demands of mine sites worldwide:

Material expertise: Liebherr combines advanced metallurgy and heat-treatment expertise to enhance durability and long-term performance.
Integrated layout: the entire track layout is engineered and managed by Liebherr, ensuring all components perform seamlessly as one optimised system.
Vertical integration: key components such as travel drives, motors and sprockets are designed by Liebherr and manufactured to Liebherr specifications and quality standards.

Minimised maintenance and reduced total cost of ownership

Liebherr undercarriages are designed to reduce routine maintenance and keep machines productive for as long as possible:

Lifetime sealed: carrier rollers, track rollers, and idlers are lubricated for life, reducing maintenance requirements and eliminating regular greasing.
Heavy-duty design: optimised selected steel grades provide high mechanical strength and hardness, minimising wear and helping reduce operating costs per hour.
Automatic track tensioning: excavators above 400 tonnes feature automatic track tensioning systems with pressurised cylinders and accumulators, ensuring optimal track tension while minimising onsite adjustment.

Superior protection in harsh environments

Mining undercarriages operate in constant contact with rocks, mud and debris. Liebherr uses layered protection to safeguard critical components:

Double lifetime sealing: comes as standard so final drives’ internal gears are protected from dust and mud.
Harsh condition options: Liebherr provides a range of heavy-duty protection packages, including travel gear and sprocket guards, track chain guides, idler protection and belly plates. These solutions are engineered for the toughest mining conditions, protecting critical components from impact, abrasion and debris.

Logistical efficiency and service access

Liebherr undercarriage modular design approach supports easy maintenance:

Modular three-piece design: removable side frames are optional for Liebherr’s 100- and 150-tonne class excavators and come as standard for 200- through to 800-tonne class machines.
Easy maintenance access: multiple service access points are integrated into the side frames, facilitating maintenance for all Liebherr excavators.

Downloads

Product sheet - Undercarriage solutions – hydraulic excavators

Case study – R 9800 track chain performance, Australia

Case study - R 9600 track chain performance, Australia
