Pactronic hybrid drive

The Liebherr Pactronic is a revolutionary hybrid drive system. The major feature is an additional energy storage device, also known as an accumulator.

The accumulator is charged when the load is lowered and also if there is a surplus of power from the conventional drive unit. The Pactronic system from Liebherr is an impressive power booster. Both the lifting and lowering time are sped up significantly despite the primary power remaining unchanged. In addition, fuel consumption of the crane is reduced. The fuel saving is achieved through complete utilisation of the regenerative energy and surplus power in the system.

Advantages of hybrid drive in detail

More power

liebherr-lhm-550-mobile-harbour-crane-container-handling-pactronic-puerto-lirquen-chile-zugeschnitten

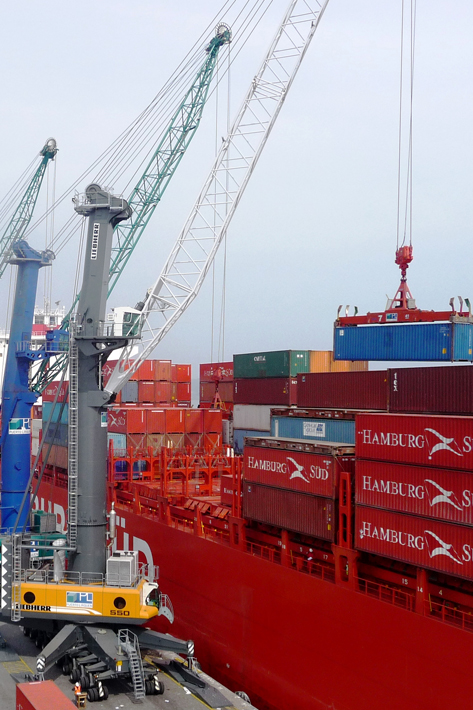

Liebherr LHM 500 mobile harbour crane handling containers in Puerto Lirquen (Chile).

Pactronic stands for highly efficient enhancement of performance and material handling output. If additional energy is required for crane operation, the Pactronic system transfers the energy stored in the accumulator back into the system, thereby enhancing the lifting performance of the crane.

  • Twice the lifting speed +100%
  • Twice the lowering speed +100%
  • Handling performance depending on the application +30%

Liebherr Pactronic: material handling comparison

We need your consent This YouTube video is provided by Google*. If you load the video, your data - including your IP address - is transmitted to Google and may be stored and processed by Google inter alia in the USA. We have no influence over further data processing by Google. By clicking on "Accept", you consent to the transmission of data to Google for this video in accordance with Art. 6 (1) (a) GDPR and at the same time expressly consent to the transfer of data to the USA in accordance with Art. 49 (1) (a) GDPR. If you no longer wish to consent to each YouTube video individually in the future and wish to be able to load the videos without this blocker, you can also select "Always accept YouTube" and thereby consent to the associated data transmissions and transfers to Google and to the USA for all other YouTube videos which you open on our website in the future. Please note that, in the opinion of the European Court of Justice, there does not currently exist an adequate level of data protection in line with EU standards in the USA, and at present we cannot provide suitable safeguards to protect your data and offset this shortcoming. Possible risks to you of data transfer to the USA are that access by state authorities cannot be excluded and that your data could be processed for reasons of national security, criminal prosecution or for other purposes in the public interest of the USA, possibly without you being informed separately and without enforceable rights and effective means of redress being available to you. You can withdraw consent that you have given at any time with future effect via the settings. For further information, please see our Data Protection Declaration and Google's Privacy Policy. *Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Irland; Mutterunternehmen: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA

This video shows a material handling comparison between an LHM 550 with Pactronic and an LHM 550 without Pactronic.

Less consumption and fewer emissions

liebherr-lhm-550-mobile-harbour-crane-bulk-handling-pactronic-agam-kuwait

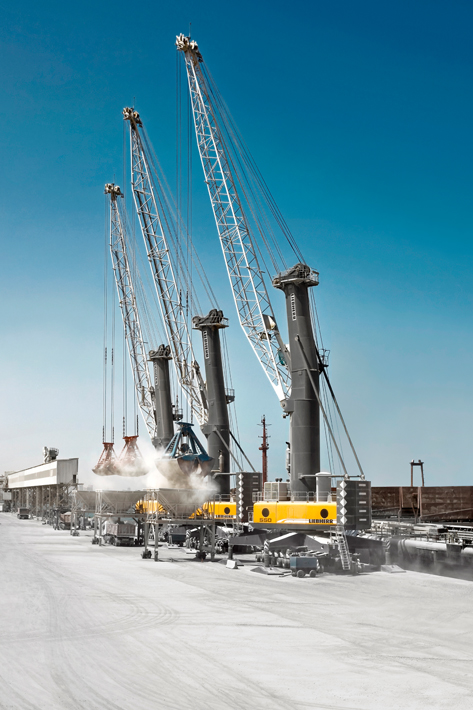

Liebherr LHM 550 mobile harbour cranes handling bulk goods in Agam (Kuwait).

Pactronic achieves greater performance while reducing fuel consumption at the same time. The sustainable hybrid drive therefore reduces the emission of CO2 and other harmful substances. With Pactronic, Liebherr smooths the path towards goods handling with high efficiency and low emissions.

  • Reduced fuel consumption -20%
  • Reduced CO2 emissions -30%
  • Reduced noise

Advantages of the accumulator

liebherr-lhm-550-mobile-harbour-crane-slewing-platform-pactronic-1

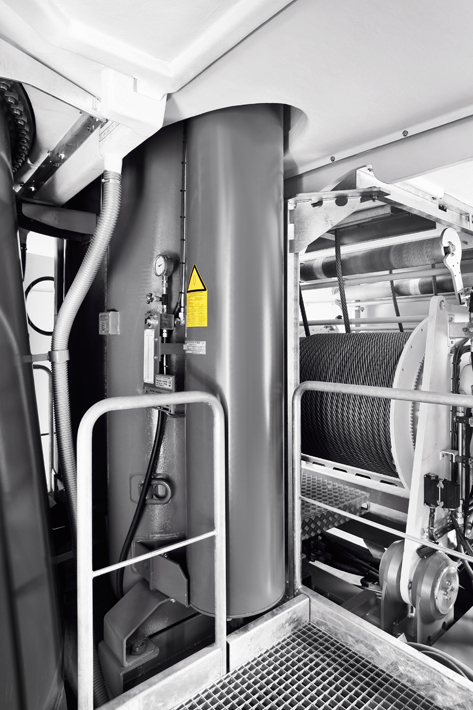

Liebherr Pactronic pressure accumulator – 100% recyclable

The pressure reservoir is a means of storing energy and is based on trusted technology. The Pactronic accumulator from Liebherr combines these advantages.

  • Visual inspection every 10 years sufficient
  • All components are extremely robust
  • Has the same service life as the crane
  • Fast loading and unloading times
  • 100% recyclable
