LTM 1060-3.1
Mobile crane
-
Reaches into the sky
Hoist heights of up to 63 m are possible with the folding jib attached.
-
Time-tested technology
The telescopic boom is extended using the time-tested TELEMATIK single-cylinder telescoping system.
-
Reduced fuel consumption
ECOmode and ECOdrive cut fuel consumption by up to 10%.
-
Superb design
Various driving configurations can be achieved by dividing the ballast slabs.
-
Optional VarioBase®
The prize-winning VarioBase® support system is available as an option to enhance safety.
LTM 1060-3.1 - Ideally prepared for any road.
The LTM 1060-3.1 is designed for driving on roads with lots of ballast. A special method of dividing the ballast slabs has been included in the design of this mobile crane. This means that a wide range of driving configurations can be achieved quickly and easily. Its compact dimensions and time-tested ECOmode and ECOdrive make this mobile crane extremely economical to use. In addition to its compact size, the 3-axle crane features a long telescopic boom and impressive lifting capacities.
Max. load capacity
60 t
Telescopic boom
48 m
Max. hoist height
63 m
Max. radius
48 m
Number of axles
3
What's inside
-
Reaches into the sky:
Hoist heights of up to 63 m are possible with the folding jib attached.
-
Time-tested technology:
The telescopic boom is extended using the time-tested TELEMATIK single-cylinder telescoping system.
-
Reduced fuel consumption:
ECOmode and ECOdrive cut fuel consumption by up to 10%.
-
Superb design:
Various driving configurations can be achieved by dividing the ballast slabs.
-
Optional VarioBase®:
The prize-winning VarioBase® support system is available as an option to enhance safety.

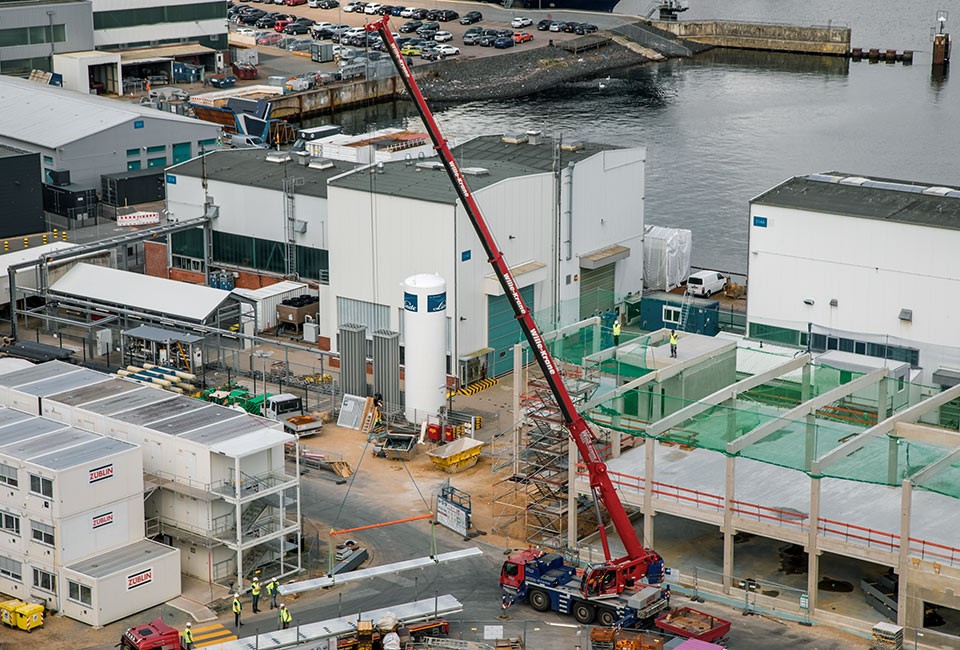

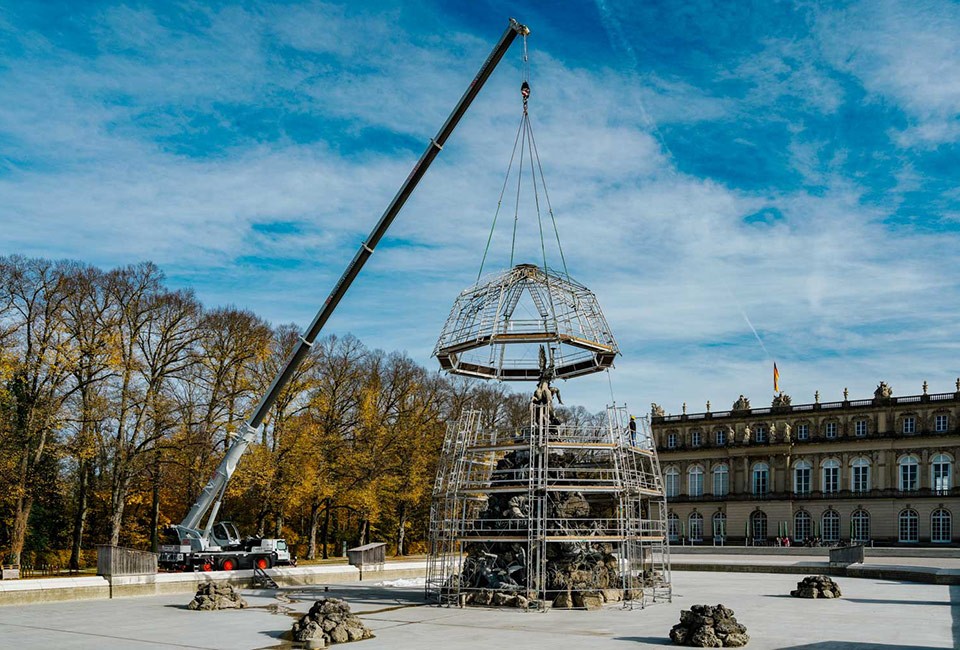

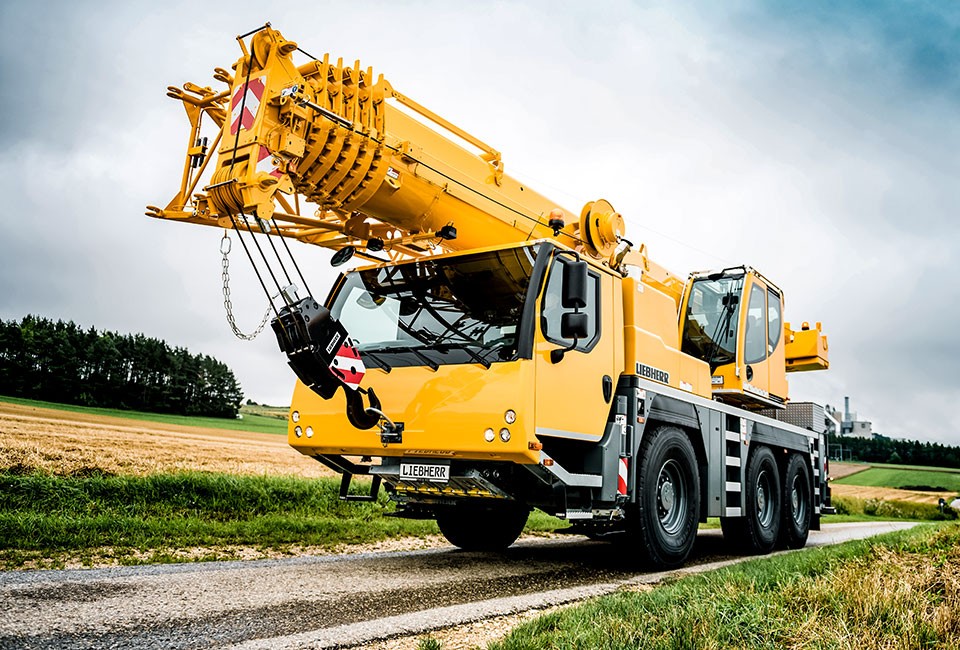

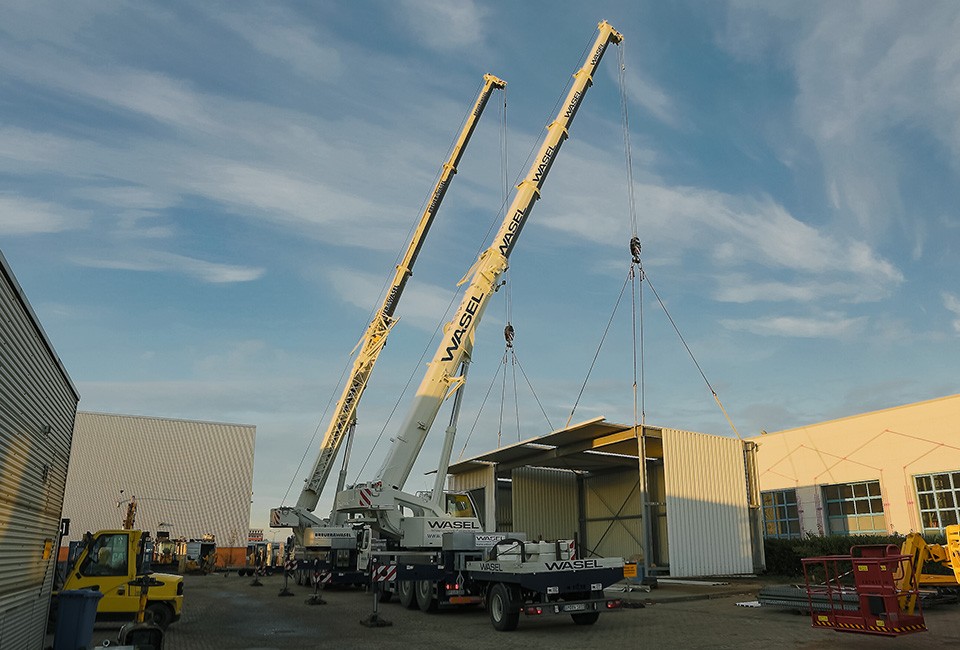

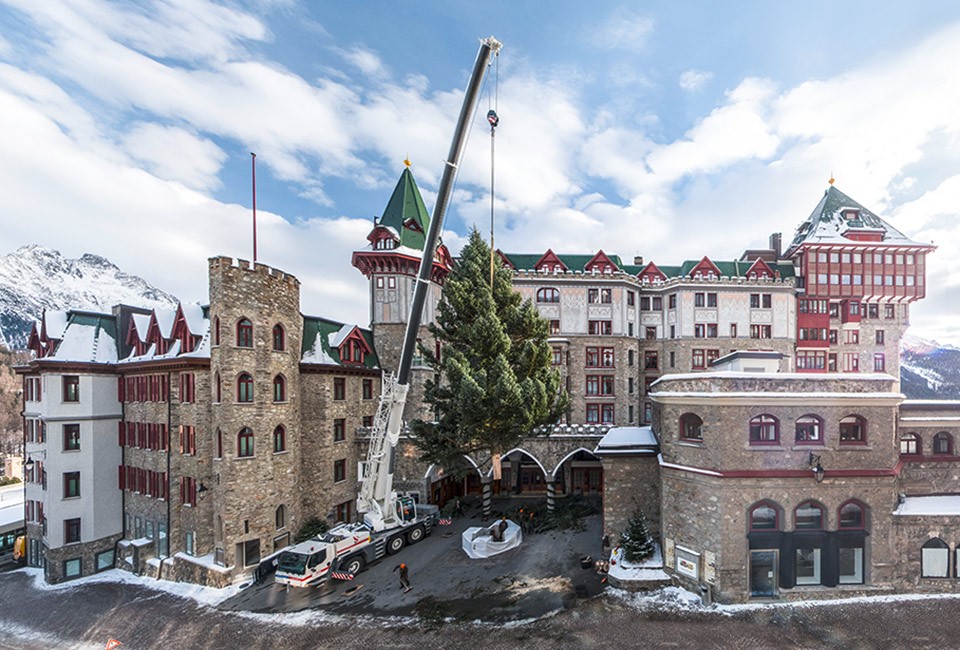

Photo gallery
| Max. load capacity | 60 t |
|---|---|
| at radius | 2.10 m |
| Telescopic boom from | 10.30 m |
| Telescopic boom up to | 48.00 m |
| Lattice jib from | 2.50 m |
| Lattice jib up to | 16.00 m |
| Drive engine/make | Liebherr |
| Drive engine | 6-Zylinder-Diesel |
| Drive engine/power | 270 kW |
| Number of axles | 3 |
| Drive/Steering standard | 6 x 4 x 6 |
| Drive/Steering option | 6 x 6 x 6 |
| Driving speed | 85.00 km/h |
| Total ballast | 12.80 t |
![Technical Data - Mobile crane LTM 1060-3.1 [m/t]](/external/products/products-assets/4f1762b5-1733-4a2f-baf5-f4344bad4775-6_Thumbnail/IMG_110x156/liebherr-250-ltm-1060-3.1-td-250-03-defisr11-2023.jpg)
![Counterweight [t]](/external/products/product-related-entity-assets/89086119-a964-4162-a018-855d828062e5-2/liebherr-lwe-ltm-1060-3.1-ballast-metrisch.jpg)
Counterweight [t]
Boom/jib combinations
On-road driving
Jobsite driving
ECOmode
ECOmode minimises both fuel consumption and noise emissions when operating the crane superstructure. The crane operator sets the required working speed using the control lever. The crane control system calculates the perfect engine speed for the diesel engine.
ECOdrive
ECOdrive makes the mobile crane significantly more comfortable and quieter by reducing the engine speed. Faster gearshifting delivers greater dynamic and traction offroad. On the road, the torque from the Liebherr diesel engine is used efficiently to minimise fuel consumption.
Hillstart-Aid
Hillstart-Aid makes starting on gradients easier. Move off safely and easily without rolling backwards.
VarioBase®
VarioBase makes the crane’s support system variable. It enables each outrigger to be extended to a different length. This enhances safety – particularly in constricted spaces. And what's more, the crane’s lifting capacities are significantly increased, particularly over the outriggers and depending on the configuration.
HVO ready
Up to 90 % lower CO2 emissions in action.
