QCB66

Quick-installation exchangeable blocks (shank system BH07)

For hard soil conditions. Universally deployable. Mounting pins are included.

  • Type - Exchangeable blocks

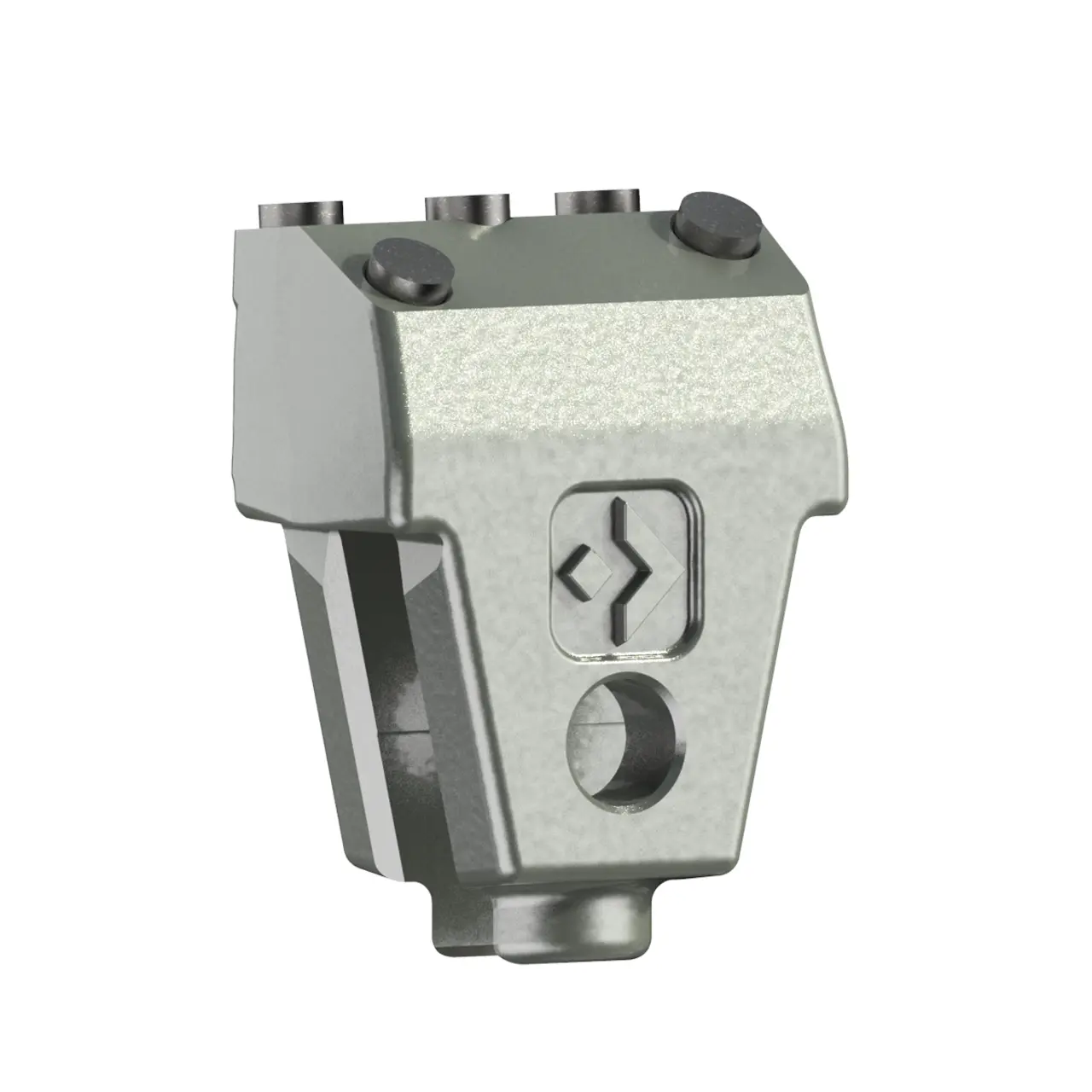

product image 0
Scope of delivery
Box 10 pc.
Carbide core diameter D1
11.0 mm
Carbide core diameter D2
11.0 mm
Total height H1
41.0 mm
Total width B1
40.0 mm
Total width B2
44.0 mm
Total width B3
73.0 mm
Total length L1
97.5 mm
Overcut
4.0 mm

Shop

QCB66
Article no.11999541
Shop

  • Casing outside diameter - 1,000 mm

  • Effective length - 500 mm

  • Type - Standard

  • Equipment - Cutting shoe made of solid material and fitted with QCB63 exchangeable blocks. For further optional blocks, see wear parts.

  • Casing outside diameter - 620 mm

  • Effective length - 500 mm

  • Type - Standard

  • Equipment - Cutting shoe made of solid material and fitted with QCB63 exchangeable blocks. For further optional blocks, see wear parts.

  • Casing outside diameter - 750 mm

  • Effective length - 500 mm

  • Type - Standard

  • Equipment - Cutting shoe made of solid material and fitted with QCB63 exchangeable blocks. For further optional blocks, see wear parts.

  • Casing outside diameter - 800 mm

  • Effective length - 500 mm

  • Type - Standard

  • Equipment - Cutting shoe made of solid material and fitted with QCB63 exchangeable blocks. For further optional blocks, see wear parts.

  • Casing outside diameter - 880 mm

  • Effective length - 500 mm

  • Type - Standard

  • Equipment - Cutting shoe made of solid material and fitted with QCB63 exchangeable blocks. For further optional blocks, see wear parts.

  • Casing outside diameter - 1,000 mm

  • Casing inside diameter - 920 mm

  • Effective length - 500, 1,000, 2,000 mm

  • Type - with exchangeable blocks

  • Equipment - Fitted with QCB63 exchangeable blocks as a standard For further optional blocks, see wear parts.
