D976
Off-road
Highlights

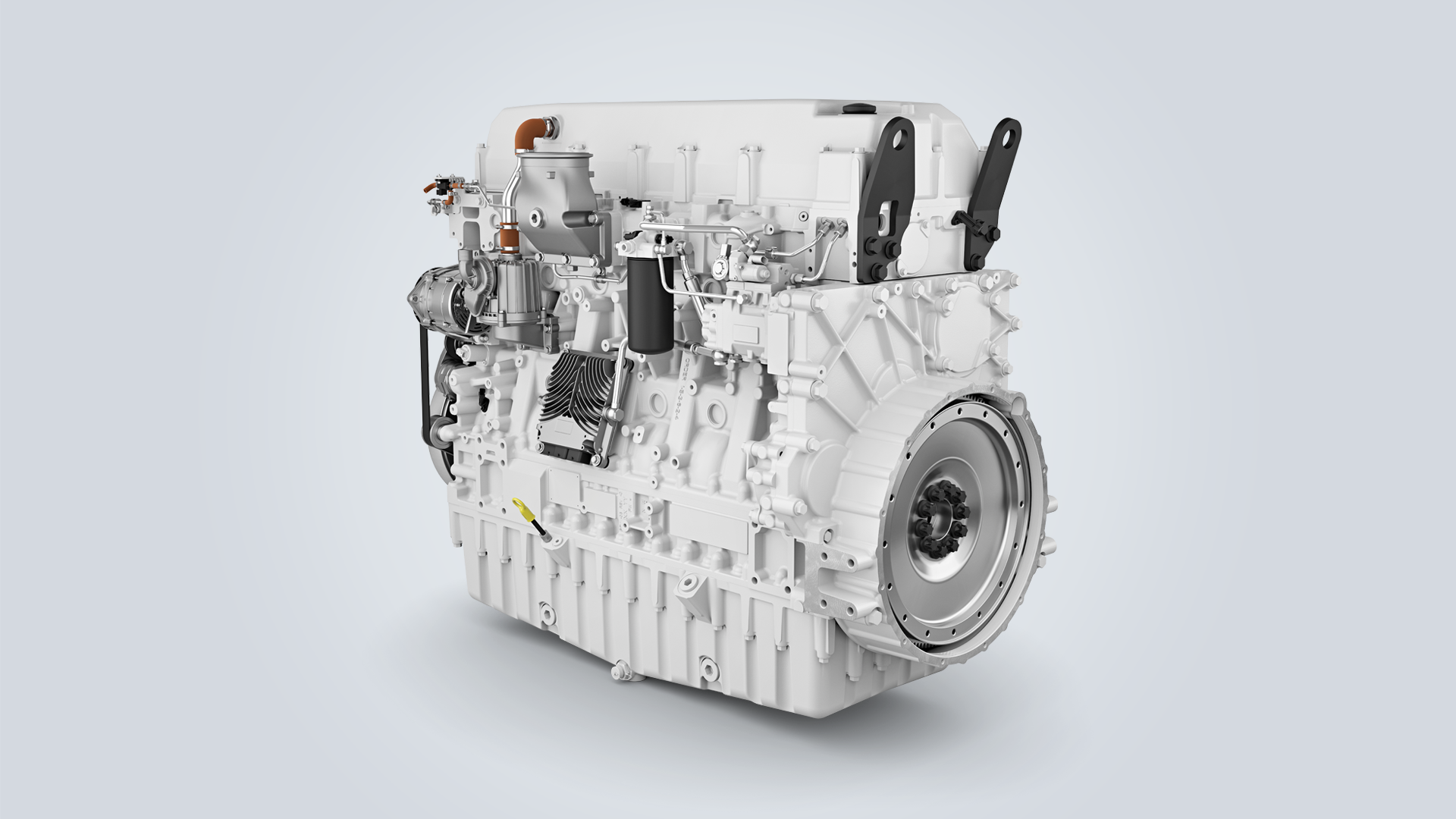

Designed and manufactured by Liebherr, the D976 is one of the best-in-class combustion engines for off-road applications, such as agriculture, construction and industry as well as mining. Thanks to its robust design and Liebherr’s extensive experience, this 6-cylinder in-line engine is perfectly suited for the toughest environmental conditions. Delivering up to 620 kW with 18 L displacement, the engine provides high power density, and reaches a peak torque of 4000 Nm at 1300 rpm. Not only does the D976 achieve high performance, it also reduces the total cost of ownership by featuring high oil change intervals of more than 1000 hours, and low fuel consumption. Our engine diagnostic solution LiDIA, together with a long life service further extends reliability and minimises engine downtime.
Configuration - In-line engine
In-line engine
Number of cylinders - 6
6
Displacement - 18.0 l
18.0 l
Rated power - 510 - 620 kW
510 - 620 kW
Rated speed - 1,700 - 1,900 rpm
1,700 - 1,900 rpm
Application - Agriculture and forestry / Construction and industry / Mining
Agriculture and forestry / Construction and industry / Mining
Product advantages
Robust and highly versatile engine design
Low total cost of ownership
Best in class in fuel-consumption
Easy maintenance
Photo gallery
Technical data
| Application | Agriculture and forestry / Construction and industry / Mining |
| Engine type | Diesel engines |
| Configuration | In-line engine |
| Number of cylinders | 6 |
| Bore | 148 mm |
| Stroke | 174 mm |
| Displacement | 18.0 l |
| Rated power | 510 - 620 kW |
| Rated speed | 1,700 - 1,900 rpm |
| Peak torque | 3,069 Nm at 1,400 rpm |
| Compression ratio | 16.5 : 1 |
| Dimensions (L/W/H) | 1,546 / 1,057 / 1,284 mm |
| Dry weight | 1,763 kg |
Downloads
Options available for the engine
Filtration and fluids
Cooling and air systems
Sensors and diagnostics
Electrical and structural components
Discover more
The Training Academy provides in-depth technical knowledge and practical expertise in the field of combustion engines to help professionals master the challenges of today and tomorrow.
LiDIA is an intuitive and user-friendly engine diagnostic solution, which requires no configuration, facillitates access to the engine environment, and reduces the complexity of diagnostic procedures to the essentials. LiDIA offers a rapid overview of all information on the engine system: status, diagnostic trouble codes, active limitations and failure reactions.
The reduction of global greenhouse gases is a significant challenge of our generation. Striving to reach net zero emissions in the future, Liebherr works on alternative and climate-friendly powertrain concepts.
