Technical data

Highlights

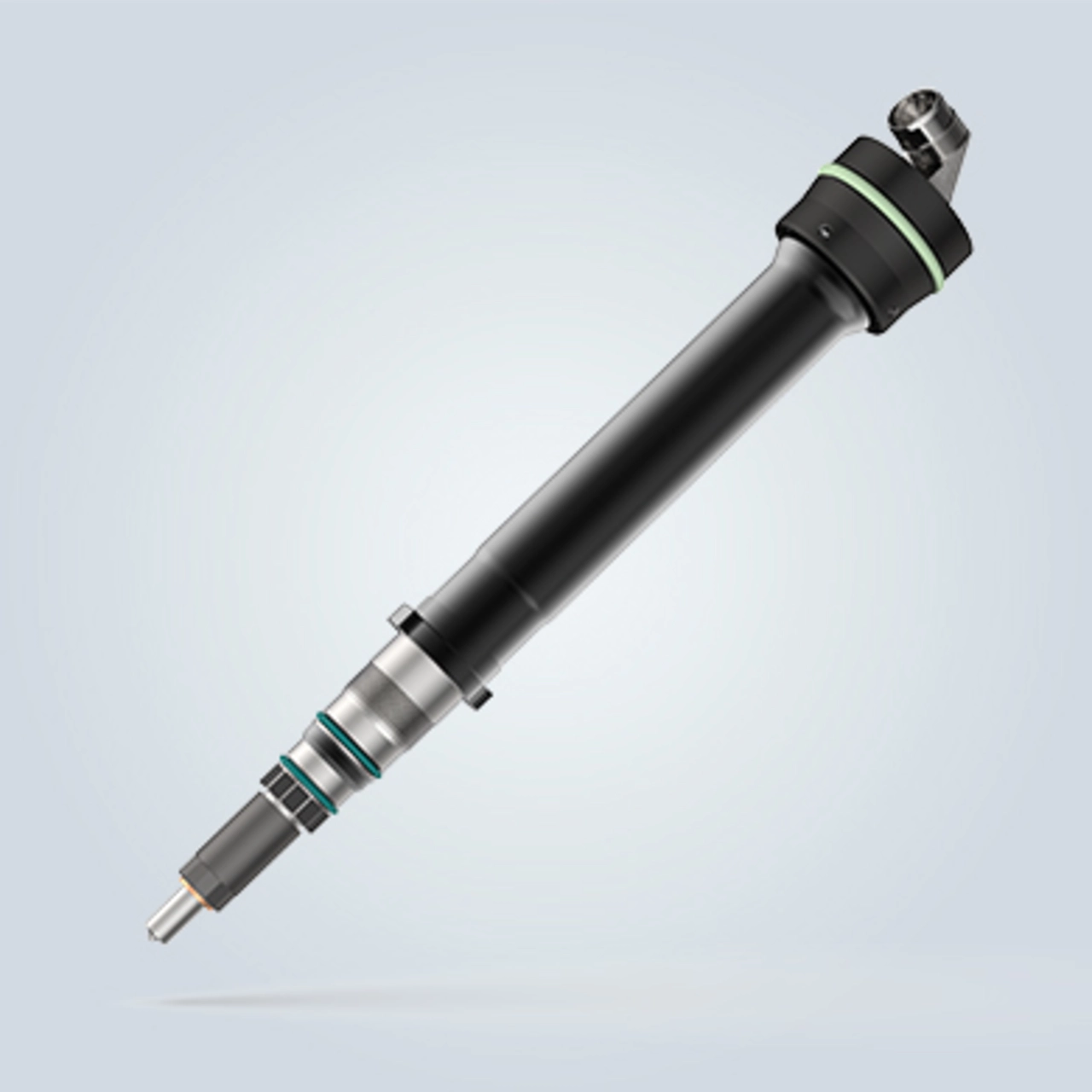

The LI3 common rail injector was specially developed for large-scale diesel applications in the mining, rail, marine and power generation sectors and is particularly robust. The permanent leak-free build is designed for minimal control leakage and is thus very efficient. The double-walled housing design, flat-seat control valve and coated components provide ideal protection against aggressive fuels and vibrations. An integrated pressure tank eliminates the need for a rail and minimises pressure loss. The LI3 is available with various housing sizes and nozzle variants. The micro-precision parts that are important for the function of the injector are manufactured in-house and can thus be optimally adapted to specific customer requirements.

<h2>Production site</h2>

Learn more about our production site for injectors, high pressure pumps, and injection solutions for diesel and alternative fuels in Deggendorf, Germany.

<h2>Common rail solutions for combustion engines</h2>

Common rail solutions for combustion engines

Decades of experience in the development and manufacture of diesel engines result in self-manufactured components and common rail solutions used in heavy-duty trucks, construction, agriculture, mining, rail, genset and marine applications. Learn more.

<h2>reThink & reFuel</h2>

reThink & reFuel - Join us on our journey to alternative injection concepts.

Imprint

Data protection notice

Contact

Privacy Settings

Accessibility statement

Refrigeration and freezing

Earthmoving

Deep foundation

Tower cranes

Concrete technology

Mobile and crawler cranes

Mining

Aerospace and transportation systems

Material handling

Gear technology and automation systems

Components

Maritime cranes

Careers

Job vacancies

Professionals

Young professionals

Students

Pupils

We as an employer

Company

Liebherr worldwide

History

Services

Sales and service partners

Liebherr shop

Product cybersecurity

News

News and press releases

Exhibitions and events

Visit us

Youtube

TikTok

This chart is provided by Google*. When you load this chart, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.By clicking on “ACCEPT”, you consent to the data transmission to Google for this chart pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each Google chart individually in the future and want to be able to load them without this blocker, you can also select “Always accept Google Charts” and thus also consent to the respectively associated data transmissions to Google for all other Google charts that you will access on our website in the future.You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the <a href="#" data-function-id="userCentricsShowSettings" data-function-id-params="null" target="_self" class="copy-link">settings</a> (later also accessible via the “Privacy Settings” in the footer of our website).For further information, please refer to our <a href="#" data-function-id="crossEntryPoint" data-function-id-params="hau_privacy" target="_self" class="copy-link">Data Protection Declaration</a> and the Google <a href="https://policies.google.com/privacy" target="_blank" class="copy-link">Privacy Policy</a>.*Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

External content (third-party service)Google Charts

This map material is provided by Google*. When you load this map, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.By clicking on “ACCEPT”, you consent to the data transmission to Google for this map pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each Google map individually in the future and want to be able to load them without this blocker, you can also select “Always accept Google Maps” and thus also consent to the respectively associated data transmissions to Google for all other Google maps that you will access on our website in the future.You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the <a href="#" data-function-id="userCentricsShowSettings" data-function-id-params="null" target="_self" class="copy-link">settings</a> (later also accessible via the “Privacy Settings” in the footer of our website).For further information, please refer to our <a href="#" data-function-id="crossEntryPoint" data-function-id-params="hau_privacy" target="_self" class="copy-link">Data Protection Declaration</a> and the Google <a href="https://policies.google.com/privacy" target="_blank" class="copy-link">Privacy Policy</a>.* Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

External content (third-party service)Google Maps

Click RELEASE VIDEO and follow the data protection notices.

This video is provided by Google*. When you load this video, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.By clicking on “ACCEPT”, you consent to the data transmission to Google for this video pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each YouTube video individually in the future and want to be able to load them without this blocker, you can also select “Always accept YouTube videos” and thus also consent to the respectively associated data transmissions to Google for all other YouTube videos that you will access on our website in the future.You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the <a href="#" data-function-id="userCentricsShowSettings" data-function-id-params="null" target="_self" class="copy-link">settings</a> (later also accessible via the “Privacy Settings” in the footer of our website).For further information, please refer to our <a href="#" data-function-id="crossEntryPoint" data-function-id-params="hau_privacy" target="_self" class="copy-link">Data Protection Declaration</a> and the Google <a href="https://policies.google.com/privacy" target="_blank" class="copy-link">Privacy Policy</a>.* Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

Pressure	300 - 2,200 bar
Number of injections	3
Min. injection separation	400 µs
Control leakage/injector	< 50 ml/min at 2,200 bar
Injector configuration	Single connector / T-connector
Weight	4.400 kg
Service life off-highway	15,000 h
No. of holes	6 - 10
K-factor	0.0 - 3.0
HE factor	10 - 30 %
Ambient temperature	-40 to 125 °C
Vibration specification	ISO 10816-6 / VDI 3838
Nozzle diameter	13 mm
Nozzle flow	1,600 - 4,000 ml/30 sek
Max. power per engine cylinder	250 kW/cyl.
