 Module 8.00 - 22.00, Workpiece diameter 600 - 2,000, Diametrical pitch 1.155 - 3.175, Workpiece diameter 23.62 - 78.74

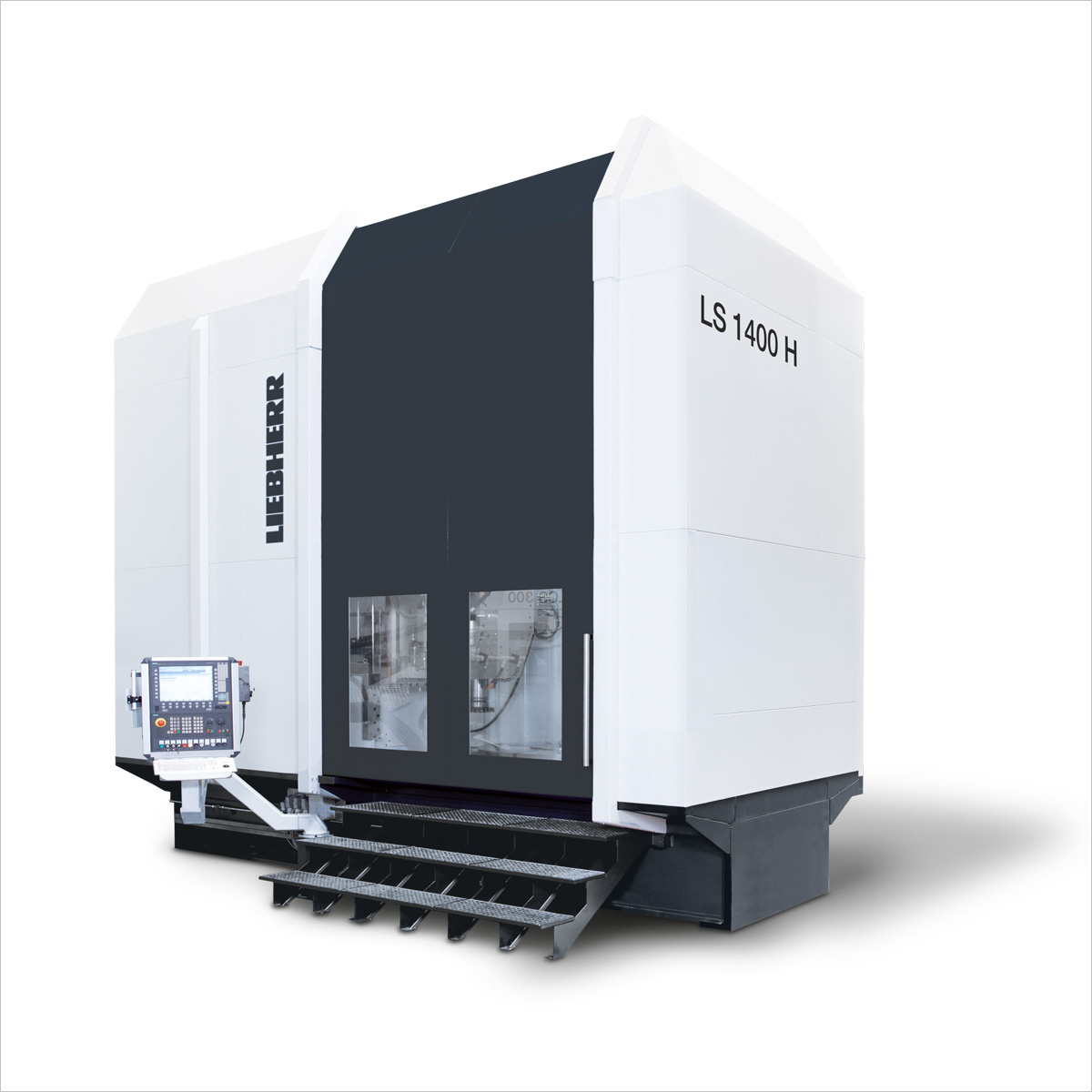

LS 600 - 2000 E/H  - Liebherr

The Liebherr group has a global sales and service network. Here, you can check whether a market participant already has a Liebherr partner contract.

to find the contact person responsible for you.

We have special offers and content for your country.

Results per page

Please enter an alternative search text or limit results using the filter selection.

Unfortunately, we were unable to find any results.

Functions

Unfortunately, we are having technical problems processing your inquiry.

Find out more

Search

I want to share the following page:%0D%0A{pageUrl}

Share

Facebook

Google+

Twitter

YouTube

The current page is not available in the language you selected on the previous web page

	LS 600 E	LS 700 E	LS 800 E H	LS 1000 E/H	LS 1200 E/H	LS 1400 E/H	LS 1500 H	LS 1600 E/H	LS 2000 H
Module (mm)	8.00 / 12.00	8.00 / 12.00	8.00 / 12.00 / 22.00	8.00 / 12.00 / 22.00	8.00 / 12.00 / 22.00	12.00 / 22.00	22.00	12.00 / 22.00	22.00
Workpiece diameter (mm)	600	700	800	1,000	1,200	1,400	1,500	1,600	2,000
Stroke length (mm)	120 / 240	120 / 140	120 / 240 / 440	120 / 240 / 440	120 / 240 / 440	240 / 440	440 / 600	240 / 440	440
Max. stroke rate (DH/min)	1,200 / 1,000	1,200 / 1,000	1,200 / 1,000 / 200	1,200 / 1,000 / 200	1,200 / 1,000 / 200	1,000 / 200	200 / 230	1,000 / 200	200
