TCC 360

Similar to the TCC 300, the rope-grab crane TCC 360 is also designed for continuous operation on 365 days of the year. It also manages up to 45 load cycles per hour 7 days of the week. This is achieved with independent and closed hydraulic loops for every crane movement. With a maximum outreach of 36 metres and a maximum load capacity of 45 tonnes, it is larger in terms of its dimensions and capacity.

metric

imperial

Lifting capacity (max.) - 45 t
45 t
Jib length - 36 m
36 m

Lifting capacity (max.)	45 t
Min. radius	6 m
Jib length	36 m
Total weight	590 t
Container rows max.	11
Max. ship width bulk	43 m
Material handling capacity bulk	1,200 t/h
Engine power	590 kW
Hoisting/lowering max.	130 m/min
Slewing max.	1.40 rpm
Mobility	rail mounted
Fields of application	Bulk handling / Container handling

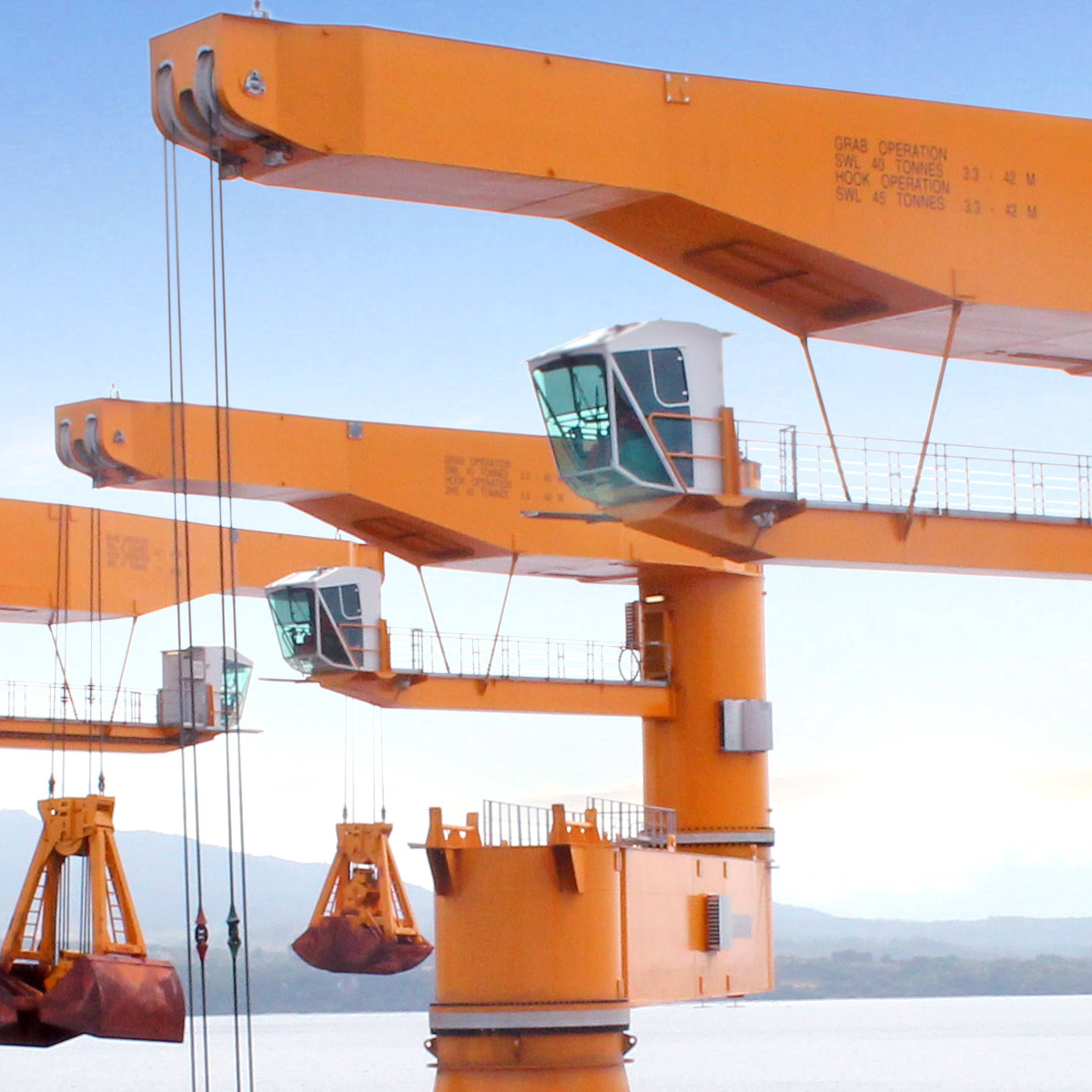

Comfortable cab

The optional comfort cab offers a 360-degree view through front, side, floor and ceiling windows made from tinted glass. This increases safety first and foremost. Other features, such as self-centring joysticks, air conditioning and vibration dampers, are oriented towards the ergonomics of the crane operator's workspace.
