R 9100 G6

The real heavy duty 100 t excavator

The R 9100 is a true 100-tonne mining excavator designed for extreme conditions, that has the versatility to work in a huge range of applications. This excavator follows the Liebherr design philosophy of maximising a machine’s performance by improving the efficiency of all individual subsystems, like the attachment. The R 9100’s attachment has been designed to deliver excellent digging and lifting forces for optimal onsite productivity. To optimise productivity even further, the R 9100 was designed to be easy and fast to maintain. Technicians can effortlessly access major service points for quick and safe maintenance so the machine can be up and running again in no time. The R 9100 is a powerful piece of digging equipment that’s a perfect match for 45–100-tonne haul trucks.

metricimperial
  • Operating weight with backhoe attachment - 113.00 t

  • Operating weight with face shovel attachment - 116.00 t

  • Engine rating at 1800 rpm - 565 kW

  • Bucket capacity at 1.8 t/m³ - 7.00 - 7.50 m³

  • Shovel capacity at 1.8 t/m³ - 7.30 m³

R 9100 highlights:

Easy and fast maintenance

As it is designed to be serviced from one side, the R 9100 allows effortless access facilities to the major service points for quick and safe maintenance.

One machine, many applications

Available in face shovel and backhoe versions with a various choice of booms to meet all quarrying and mining requirements.

High digging forces

Designed for the best mechanical force distribution, the production-tailored attachment delivers tough digging and lifting forces.

Technical data

Engine model
Liebherr D9512
Engine rating at 1800 rpm
565 kW
Emissions (USA/EPA)
US EPA Tier 4f / EU Stage V

Downloads

Videos

  • This video is provided by Google*. When you load this video, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.

    By clicking on “ACCEPT”, you consent to the data transmission to Google for this video pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each YouTube video individually in the future and want to be able to load them without this blocker, you can also select “Always accept YouTube videos” and thus also consent to the respectively associated data transmissions to Google for all other YouTube videos that you will access on our website in the future.

    You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the settings (later also accessible via the “Privacy Settings” in the footer of our website).

    For further information, please refer to our Data Protection Declaration and the Google Privacy Policy.*Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

    R 9100 & R 9150 in action!

  • This video is provided by Google*. When you load this video, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.

    By clicking on “ACCEPT”, you consent to the data transmission to Google for this video pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each YouTube video individually in the future and want to be able to load them without this blocker, you can also select “Always accept YouTube videos” and thus also consent to the respectively associated data transmissions to Google for all other YouTube videos that you will access on our website in the future.

    You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the settings (later also accessible via the “Privacy Settings” in the footer of our website).

    For further information, please refer to our Data Protection Declaration and the Google Privacy Policy.*Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

    Watch Liebherr Bucket Solutions and Ground Engaging Tools!

  • This video is provided by Google*. When you load this video, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google.

    By clicking on “ACCEPT”, you consent to the data transmission to Google for this video pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each YouTube video individually in the future and want to be able to load them without this blocker, you can also select “Always accept YouTube videos” and thus also consent to the respectively associated data transmissions to Google for all other YouTube videos that you will access on our website in the future.

    You can withdraw given consents at any time with effect for the future and thus prevent the further transmission of your data by deselecting the respective service under “Miscellaneous services (optional)” in the settings (later also accessible via the “Privacy Settings” in the footer of our website).

    For further information, please refer to our Data Protection Declaration and the Google Privacy Policy.*Google Ireland Limited, Gordon House, Barrow Street, Dublin 4, Ireland; parent company: Google LLC, 1600 Amphitheatre Parkway, Mountain View, CA 94043, USA** Note: The data transfer to the USA associated with the data transmission to Google takes place on the basis of the European Commission’s adequacy decision of 10 July 2023 (EU-U.S. Data Privacy Framework).

    R 9100 customer testimonial from Israel

Features

Machine gallery

Equipped with the proven Liebherr V12 diesel engine!

Liebherr D9512 ICE*

The R 9100 is equipped with the long-lasting and proven Liebherr V12 diesel engine specifically designed to withstand extreme outside temperatures and high altitudes with low atmospheric pressure.

Advantages:

  • FCO and US EPA Tier 4f / EU Stage V compliant
  • Automatic idle control
  • Max. altitude of 5,000 m (5,468 yd) with power derating
  • Low total cost of ownership
  • Improved fuel consumption thanks to a twin scroll turbocharger
  • Longer service intervals thanks to an integrated fuel fine filter
  • Long oil change interval

*Internal Combustion Engine

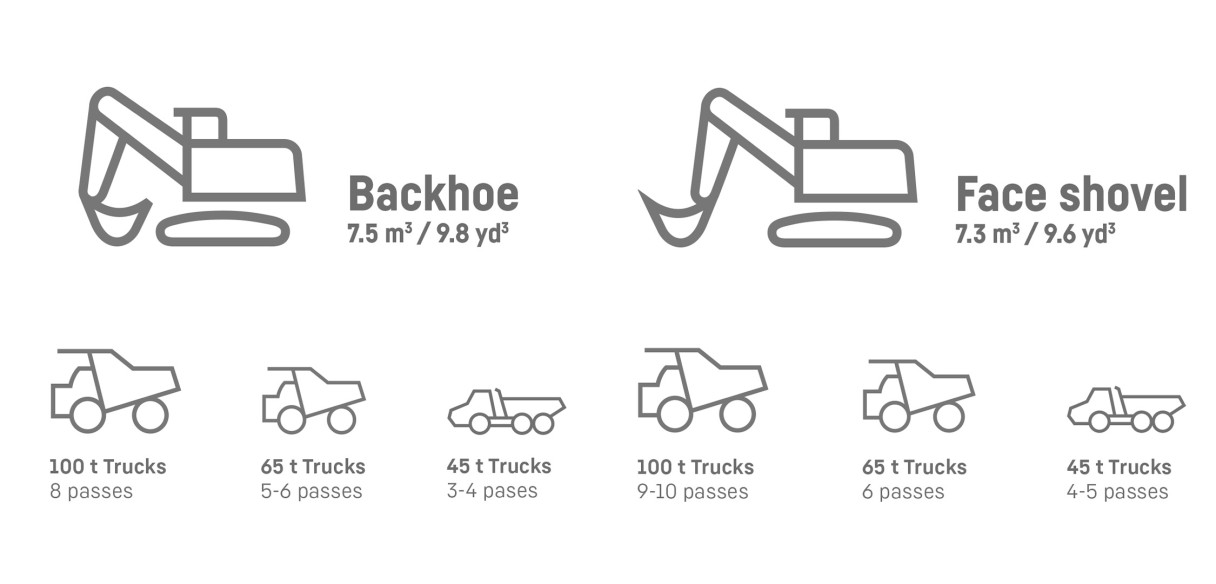

Excavator truck match*

*Site-specific factors like loose material density, bucket size, fill factors, truck body size and payload capacity will influence pass match. Contact your local Liebherr sales and service company or sales partner for analysis of your site.
